YFXRTL8188CEWireless Day & Night MJPEG Network Camera

Wireless Day & Night MJPEG Network Camera Advanced Installation Guide CS303A, ICS303A, CS303B, CS303C, ICS303B, ICS303C, HNIPC150W, CAS-336, CAS-336W, AICC700W, HNC3W, IPC1210 Version 1.0 - 1 - PREFACE Thank you for purchasing the MJPEG Network Camera, a powerful and high-quality image network camera. The camera can be installed as a standalone system within your application environment easily and quickly, and supports remote management function so that you can access and control it using a Web browser on your PC. This Advanced Installation Guide provides you with the instructions and illustrations on how to use your camera, which includes: Chapter 1 Introduction to Your Camera describes the features of the camera. You will also know the components and functions of the camera. Chapter 2 Hardware Installation helps you install the camera according to your application environment. You can use this camera at home, at work, at any where you want. Chapter 3 Accessing the Camera lets you start using your camera without problem. The camera can be set up easily and work within your network environment instantly. Chapter 4 Configuring the Camera guides you through the configuration of the camera using the web browser on your PC. Chapter 5 Appendix provides the specification of the camera and some useful information for using your camera. NOTE The illustrations and configuration values in this guide are for reference only. The actual settings depend on your practical application of the camera. - 2 - Contents Preface .......................................................................................... 1 Chapter 1 Introduction To Your Camera ....................................... 3 1.1 Checking the Package Contents ...................................... 3 1.2 Getting to Know Your Camera ......................................... 4 1.3 Features and Benefits ...................................................... 6 1.4 System Requirement ........................................................ 7 Chapter 2 Hardware Installation .................................................... 8 2.1 Installing the Camera Stand ............................................. 8 2.2 Connecting the Camera to LAN/WLAN ............................ 9 2.3 Applications of the Camera ............................................ 10 Chapter 3 Accessing the Camera ............................................... 11 3.1 Using IPFinder ............................................................... 11 3.2 Accessing to the Camera ............................................... 12 3.3 Configuring the IP Address of the PC ............................ 15 Chapter 4 Configuring the Camera ............................................. 16 4.1 Using the Web Configuration ......................................... 16 4.2 Using Smart Wizard ....................................................... 17 4.3 Basic Setup .................................................................... 20 4.4 Network Settings ............................................................ 23 4.5 Setting up Video & Audio ............................................... 32 4.6 Event Server Configuration ............................................ 34 4.7 Motion Detect ................................................................. 37 4.8 Event Config ................................................................... 38 4.9 Tools ............................................................................... 41 4.10 Information ..................................................................... 43 Chapter 5 Appendix .................................................................... 44 A.1 Specification ................................................................... 44 A.2 Glossary of Terms .......................................................... 46 - 3 - CHAPTER 1 INTRODUCTION TO YOUR CAMERA 1.1 Checking the Package Contents Check the items contained in the package carefully. You should have the following: 5 One Wireless MJPEG Network Camera. 5 One AC Power Adapter. 5 One Camera Stand. 5 One Ethernet Cable (RJ-45 type). 5 One Installation CD-ROM. 5 One Quick Installation Guide. NOTE Once any item contained is damaged or missing, contact the authorized dealer of your locale. - 4 - 1.2 Getting to Know Your Camera Front View Lens Assembly Power LED indicates the camera is powered on with the steady amber light. Link LED indicates the camera’s network connectivity with the flashing green light. Internal Microphone allows the camera to receive sound and voice. - 5 - * For more information of the WPS button, refer to the instruction of the Web Configuration, Network >> Wireless >> WPS Setting. Rear View Screw Hole is used to connect the camera stand. Reset Buttonwill restart the camera when it is pressed quickly; when it is long pressed for five seconds, the camera will resume the factory default settings. DC Power Connector is used to connect the AC power adapter, in order to supply power to the camera. Ethernet Cable Connector is used to connect the network cable, which supports the NWay protocol so that the camera can detect the network speed automatically. WPS Button* (for wireless model) is used to protect your wireless network and for easy wireless connection setu p. - 6 - 1.3 Features and Benefits „ MJPEG codec Supported The camera provides you with VGA images by the MJPEG codec technology, allowing you to adjust image size and quality, and bit rate according to the networking environment. „ 1-way Audio Capability The built-in microphone of the camera provides on-the-spot audio via the Internet, allowing you to monitor the on-site voice. „ Remote Control Supported By using a standard Web browser or the bundled UltraView Pro software application, the administrator can easily change the configuration of the camera via Intranet or Internet. In addition, the camera can be upgraded remotely when a new firmware is available. The users are also allowed to monito…

Text truncated - open the document above for the full version.

Fitivision Technology Inc. FCC Declaration of Conformity Number: CF302 Version: V01 Date: 01-02-2010 DoC We, (legal entity within the US, such as importer or manufacturer) Company Name: Fitivision Technology Inc. Address: 8F, No. 356, Neihu Rd.,Sec 1, Neihu District Postal/Zip: City: Taipei State/Province: Country: Ta i w a n Contact Person: Mr. Ms. Name: Lisa Chen Function: Specialist Email: [email protected] Web: Phone:886-2-2656-0566 Fax: declare for the equipment identified by: Product Description Wireless Day & Night MJPEG Network Camera Type or Model(s) CS303A, ICS303A, CS303B, CS303C, ICS303B, ICS303C, HNIPC150W, CAS-336, CAS-336W, AICC700W, HNC3W, IPC1210 Tradename or Brand(s) - that: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired op- eration. The following documents are subject to this declaration: Test Firm or Laboratory: Test Report Number: Date of issue: Cerpass Technology Corporation TEFD1201008 Jun. 19, 2012 Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Taipei, Taiwan 2012/08/08 Lisa ChenSpecialist (APEC MRA TW1049)

Fitivision Technology Inc. FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Fitivision Technology Inc. Addresss 8F, No. 356, Neihu Rd.,Sec 1, Neihu District City Taipei Country Taiwan request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: YFX RTL8188CE of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Taipei, Taiwan 2012/08/08 Lisa ChenSpecialist

Fitivision Technology Inc. FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name Fitivision Technology Inc. Addresss 8F, No. 356, Neihu Rd.,Sec 1, Neihu District City Taipei Country Taiwan declare that the following representative (agent): Name (person) Clio Hu Company name Cerpass Technology Corp. Addresss No.3, 2F-11, YuanQu St., City Taipei City Country Taiwan is hereby authorized to apply the following equipment for certification on our behalf: Product Description Wireless Day & Night MJPEG Network Camera Type or Model(s) CS303A, ICS303A, CS303B, CS303C, ICS303B, ICS303C, HNIPC150W, CAS-336, CAS-336W, AICC700W, HNC3W, IPC1210 Tradename or Brand(s) - We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Taipei, Taiwan 2012/08/08 Lisa ChenSpecialist

Declaration We, Company Name: Fitivision Technology Inc. Address: 8F, No. 356, Neihu Rd.,Sec 1, Neihu District Postal/Zip/ City: Taipei Country: Taiwan Hereby declare that Product: Wireless Day & Night MJPEG Network Camera Type or Model(s): CS303A, ICS303A, CS303B, CS303C, ICS303B, ICS303C, HNIPC150W, CAS-336, CAS-336W, AICC700W, HNC3W, IPC1210 When the device is working in ad‐hoc mode, is not capable of transmitting on any other frequency not authorized in the US. When operating in Ad‐hoc mode, the supported channels are limited to channel 2412‐2462 MHz in 11b/g/n (20) mode & 2422‐2452 MHz in 11n(40) mode. ____________________________ Lisa Chen / Specialist Fitivision Technology Inc. e‐mail: [email protected] Tel: 886‐2‐2656‐0566

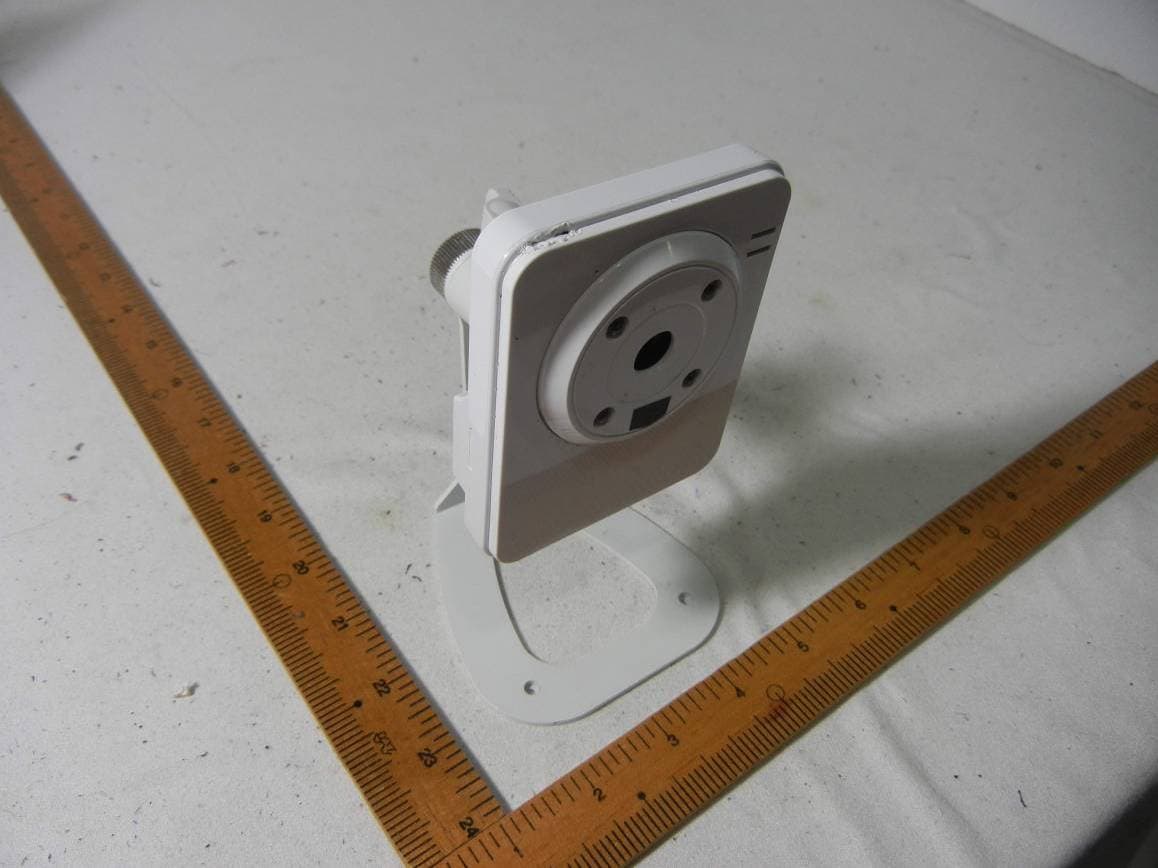

CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued Date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A10 FCC ID : YFXRTL8188CE Appendix A. Photographs of EUT

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued Date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A10 FCC ID : YFXRTL8188CE CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued Date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A10 FCC ID : YFXRTL8188CE CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued Date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A10 FCC ID : YFXRTL8188CE CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued Date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A10 FCC ID : YFXRTL8188CE CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued Date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A6 of A10 FCC ID : YFXRTL8188CE CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued Date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A7 of A10 FCC ID : YFXRTL8188CE CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued Date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A8 of A10 FCC ID : YFXRTL8188CE CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued Date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A9 of A10 FCC ID : YFXRTL8188CE CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued Date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A10 of A10 FCC ID : YFXRTL8188CE

CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 1 of 3 FCC ID : YFXRTL8188CE Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless Day & Night MJPEG Network Camera Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 802.11b: 18.42 dBm (69.5 mW) 802.11g: 14.22 dBm (26.4 mW) 802.11n (20MHz): 13.46 dBm (22.2 mW) 802.11n (40MHz): 13.32 dBm (21.5 mW) Antenna gain (Max) 3.9 dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 18.42 dBm (69.5 mW) at 2412 MHz (withnumeric 2.0 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 2 of 3 FCC ID : YFXRTL8188CE TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No. : 3 of 3 FCC ID : YFXRTL8188CE Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) 802.11b 2412-2462 18.42 3.9 20 0.034 1 802.11g 2412-2462 14.22 3.9 20 0.013 1 802.11n (20MHz) 2412-2462 13.46 3.9 20 0.011 1 802.11n (40MHz) 2422-2452 13.32 3.9 20 0.010 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 188 FCC ID : YFXRTL8188CE FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : Fitivision Technology Inc. Address : 8F, No. 356, Neihu Rd., Sec. 1, Neihu District, Taipei 114, Taiwan, R.O.C. Equipment : Wireless Day & Night MJPEG Network Camera Model No. : CS303A, ICS303A, CS303B, CS303C, ICS303B, ICS303C, HNIPC150W, CAS-336, CAS-336W, AICC700W, HNC3W, IPC1210 FCC ID : YFXRTL8188CE �The test result refers exclusively to the test presented test model / sample., �Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. �The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 188 FCC ID : YFXRTL8188CE Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1Feature of Equipment under Test............................................................................................... 7 2.2Carrier Frequency of Channels .................................................................................................. 8 2.3Test Mode and Test Software ..................................................................................................... 9 2.4Description of Test System......................................................................................................... 9 2.5General Information of Test ...................................................................................................... 10 2.6Measurement Uncertainty ........................................................................................................ 10 3. Antenna Requirements ..................................................................................................................... 11 3.1Standard Applicable ................................................................................................................. 11 3.2Antenna Construction and Directional Gain ............................................................................. 11 4. Test of Conducted Emission ............................................................................................................ 12 4.1Test Limit .................................................................................................................................. 12 4.2Test Procedures ....................................................................................................................... 12 4.3Typical Test Setup .................................................................................................................... 13 4.4Measurement Equipment ......................................................................................................... 13 4.5Test Result and Data ................................................................................................................ 14 4.6Test Photographs ..................................................................................................................... 32 5. Test of Radiated Emission ............................................................................................................... 33 5.1Test Limit .................................................................................................................................. 33 5.2Test Procedures ....................................................................................................................... 33 5.3Typical Test Setup .................................................................................................................... 34 5.4Measurement Equipment ......................................................................................................... 34 5.5Test Result and Data (9kHz ~ 30MHz)..................................................................................... 35 5.6Test Result and Data ................................................................................................................ 35 5.7Test Photographs (30MHz~1000MHz) ................................................................................... 143 5.8Test Photographs (1000MHz~25000MHz) ............................................................................. 144 6. 6dB Bandwidth Measurement Data............................................................................................... 145 6.1Test Limit ................................................................................................................................ 145 6.2Test Procedures ..................................................................................................................... 145 6.3Test Setup Layout .................................................................................................................. 145 6.4Measurement Equipment ....................................................................................................... 145 6.5Test Result and Data .............................................................................................................. 145 7. Maximum Peak and Average Output Power ................................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 37 of 188 FCC ID : YFXRTL8188CE Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11g, CH1 Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 38 of 188 FCC ID : YFXRTL8188CE Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11g, CH1 Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 39 of 188 FCC ID : YFXRTL8188CE Power : AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11b, CH1 Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 40 of 188 FCC ID : YFXRTL8188CE Power: AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11b, CH1 Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 41 of 188 FCC ID : YFXRTL8188CE Power : AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11b, CH6 Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 42 of 188 FCC ID : YFXRTL8188CE Power: AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11b, CH6 Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 43 of 188 FCC ID : YFXRTL8188CE Power: AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11b, CH11Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 44 of 188 FCC ID : YFXRTL8188CE Power: AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11b, CH11Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 45 of 188 FCC ID : YFXRTL8188CE Power: AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11g, CH1 Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 46 of 188 FCC ID : YFXRTL8188CE Power: AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11g, CH1 Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 47 of 188 FCC ID : YFXRTL8188CE Power: AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11g, CH6 Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 48 of 188 FCC ID : YFXRTL8188CE Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11g, CH6 Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 49 of 188 FCC ID : YFXRTL8188CE Power : AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11g, CH11Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 50 of 188 FCC ID : YFXRTL8188CE Power: AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11g, CH11Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 51 of 188 FCC ID : YFXRTL8188CE Power: AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11n HT20, CH1Temperature: 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 52 of 188 FCC ID : YFXRTL8188CE Power : AC 120V Pol/Phase : VERTICAL Test Mode 1 : 802.11n HT20, CH1Temperature : 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 53 of 188 FCC ID : YFXRTL8188CE Power: AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11n HT20, CH1Temperature: 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 54 of 188 FCC ID : YFXRTL8188CE Power: AC 120V Pol/Phase : HORIZONTAL Test Mode 1 : 802.11n HT20, CH1Temperature: 25 °C Adapter: DVE \ DSC-6PFA-05 FUS 050100 Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 55 of 188 F…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 71 of 188 FCC ID : Power : AC 120V Pol/Phase : VERTICAL Test Mode 2 : 802.11g, CH1 Temperature: 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 72 of 188 FCC ID : Power : AC 120V Pol/Phase : VERTICAL Test Mode 2 : 802.11g, CH1 Temperature : 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 73 of 188 FCC ID : Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 2 : 802.11g, CH1 Temperature : 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 74 of 188 FCC ID : Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 2 : 802.11g, CH1 Temperature: 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 75 of 188 FCC ID : Power : AC 120V Pol/Phase : VERTICAL Test Mode 2 : 802.11b, CH1 Temperature : 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 76 of 188 FCC ID : Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 2 : 802.11b, CH1 Temperature: 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 77 of 188 FCC ID : Power : AC 120V Pol/Phase : VERTICAL Test Mode 2 : 802.11b, CH6 Temperature : 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued date : Jul. 16, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 78 of 188 FCC ID : Power : AC 120V Pol/Phase : HORIZONTAL Test Mode 2 : 802.11b, CH6 Temperature: 25 °C Adapter : AMIGO \ AMS47-0501200FU Humidity : 67 % CERPASS TECHNOLOGY CORP. Report No.: TEFI1201008 Cerpass Technology Corp. Issued da…

Text truncated - open the document above for the full version.
