YGKTS16CBluetooth Headset

FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SHENZHEN ROMAN TECHNOLOGY CO.,LTD. Model Difference Product Name: Bluetooth Headset Trademark: ROMAN / MINISO Model Number(s): TS16C, MINISO-TS16C, TS11mini, TS12C, TS12BC, TS1X, TS25, TS26, TS27, TS28, T300, T310, T312, T308, T308A, T308X, T216, T216A, T218, T218A, T206A, T208, T208A, T208X, T210, T210E, T220, T220A, T230, T230A, T800, T801, T802, TS29, TS30, TS31, TS32, TS33, TS34, TS35, TS36, TS37, TS38, TS39, TS40 FCC ID: YGKTS16C All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : Yanhui Cao/Manager Contact information / address: Floor4, buildingC, Fengmenao Industrial Park, Gangtou Shenzhen, China

SHENZHEN ROMAN TECHNOLOGY CO.,LTD. Agent Authorization Company: SHENZHEN ROMAN TECHNOLOGY CO.,LTD. Address: Floor4, buildingC, Fengmenao Industrial Park, Gangtou Shenzhen, China Product Name: Bluetooth Headset Trademark: ROMAN / MINISO Model Number(s): TS16C, MINISO-TS16C, TS11mini, TS12C, TS12BC, TS1X, TS25, TS26, TS27, TS28, T300, T310, T312, T308, T308A, T308X, T216, T216A, T218, T218A, T206A, T208, T208A, T208X, T210, T210E, T220, T220A, T230, T230A, T800, T801, T802, TS29, TS30, TS31, TS32, TS33, TS34, TS35, TS36, TS37, TS38, TS39, TS40 FCC ID: YGKTS16C We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021/05/18 Name: Yanhui Cao Title: Manager Company: SHENZHEN ROMAN TECHNOLOGY CO.,LTD.

SHENZHEN ROMAN TECHNOLOGY CO.,LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021/05/18 Subject; Request for Confidentiality FCC ID: YGKTS16C To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yanhui Cao Title: Manager

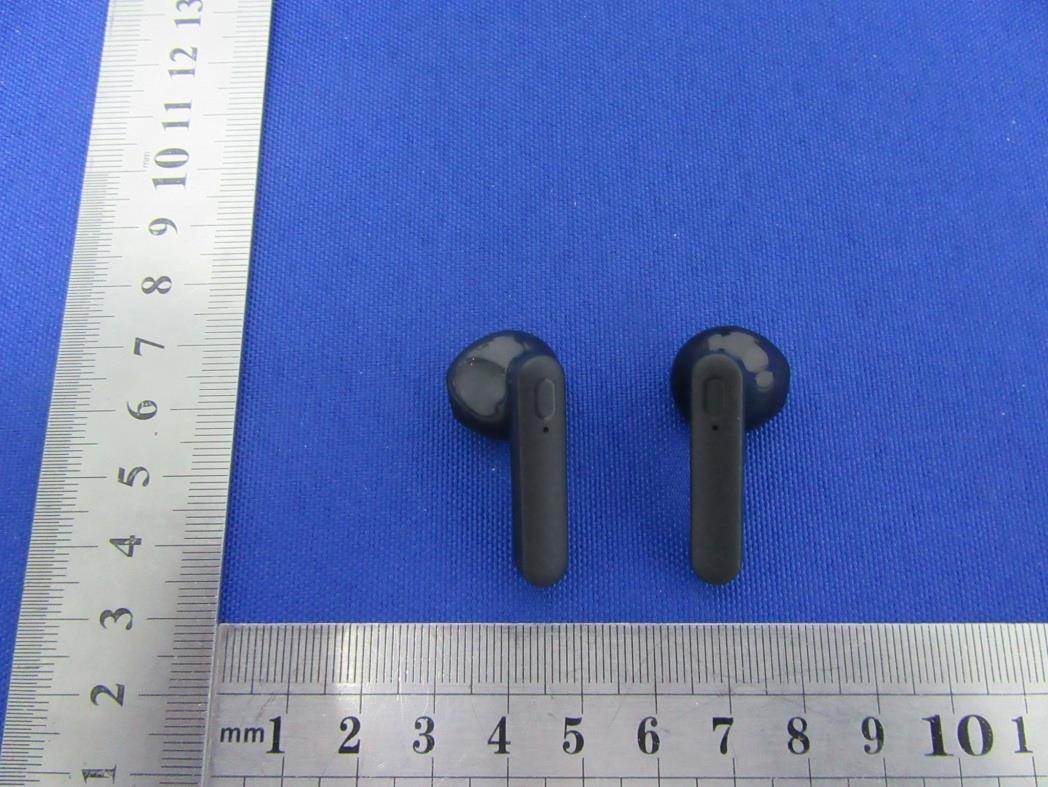

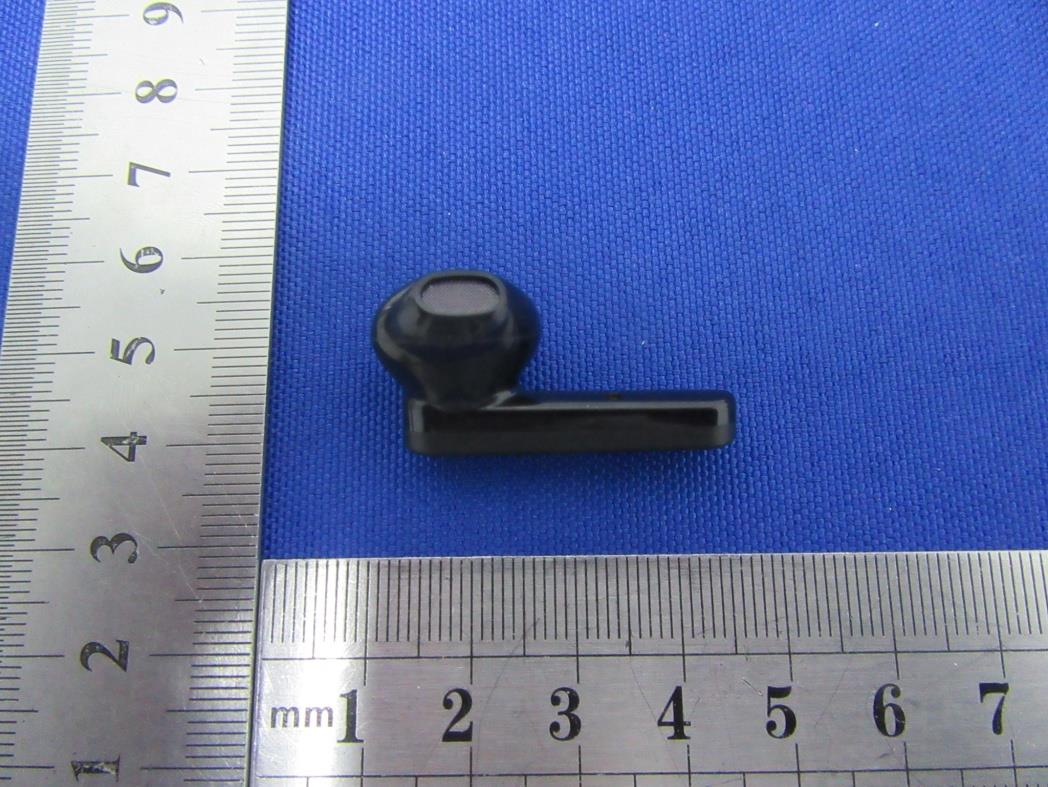

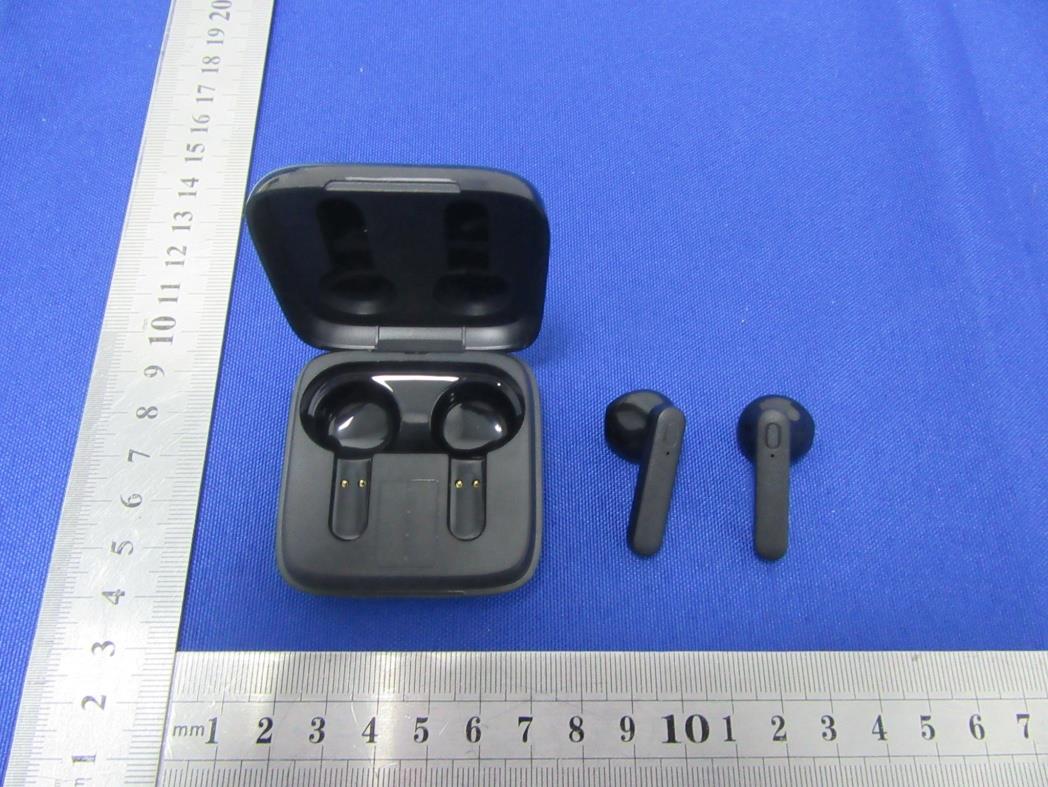

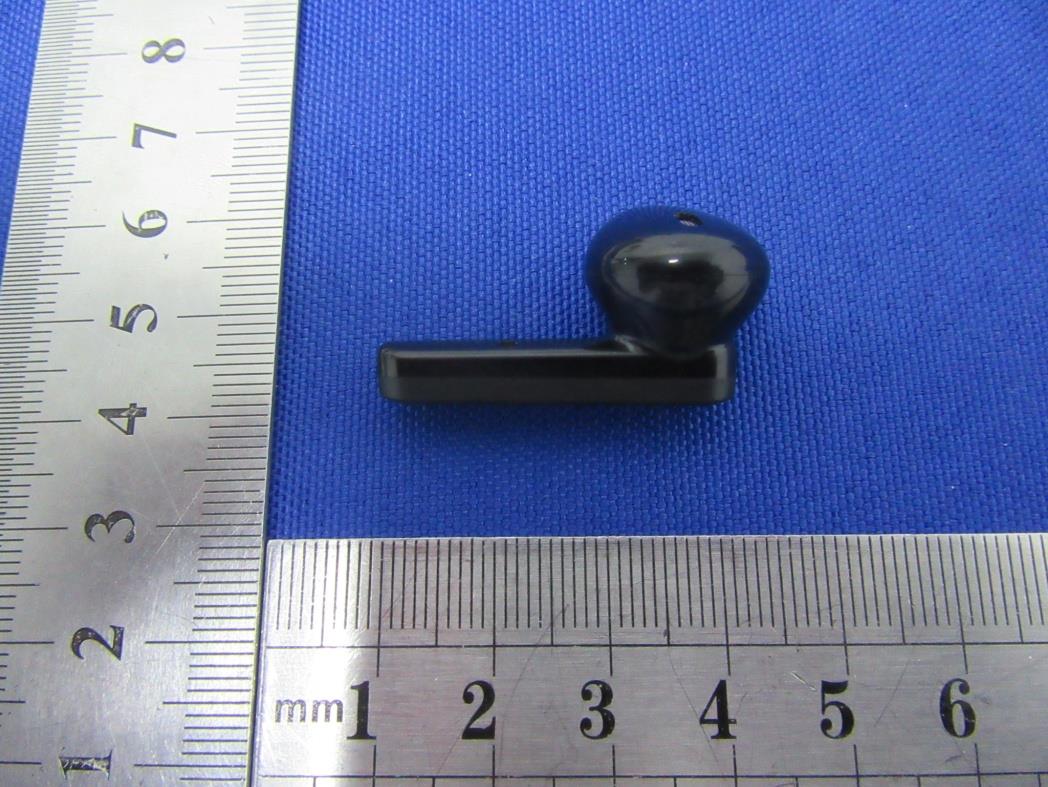

External Photos

10*5mm Label Location FCC ID: YGKTS16C

Internal Photos Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID: YGKTS16C Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK2.480-17.1070.02-17±1-16.000.03<50.007913.00YES Pi/4 DQPSK 2.480-16.1970.02-17±1-16.000.03<50.007913.00YES Conclusion: For the max result : 0.00791＜3.0, the SAR testing is not required.

No.：BCTC/RF-EMC-005 Page 1 of 61 Edition：A.3 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2104829637E Applicant: SHENZHEN ROMAN TECHNOLOGY CO.,LTD. Product Name: Bluetooth Headset Model/Type reference: TS16C Tested Date: 2021-04-22 to 2021-04-29 Issued Date: 2021-04-30 Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 2 of 61 Edition：A.3 FCC ID: YGKTS16C The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Bluetooth Headset Trademark: ROMAN / MINISO Model/Type reference: TS16C MINISO-TS16C, TS11mini, TS12C, TS12BC, TS1X, TS25, TS26, TS27, TS28, T300, T310, T312, T308, T308A, T308X, T216, T216A, T218, T218A, T206A, T208, T208A, T208X, T210, T210E, T220, T220A, T230, T230A, T800, T801, T802, TS29, TS30, TS31, TS32, TS33, TS34, TS35, TS36, TS37, TS38, TS39, TS40 Prepared For: SHENZHEN ROMAN TECHNOLOGY CO.,LTD. Address: Floor4, buildingC, Fengmenao Industrial Park, Gangtou Shenzhen, China Manufacturer: SHENZHEN ROMAN TECHNOLOGY CO.,LTD. Address: Floor4, buildingC, Fengmenao Industrial Park, Gangtou Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China. Sample Received Date: 2021-04-22 Sample tested Date: 2021-04-22 to 2021-04-29 Issue Date: 2021-04-30 Report No.: BCTC2104829637E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Eric Yang/Project Handler Zero Zhou/Reviewer Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 3 of 61 Edition：A.3 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ............................................................. 5 2. TEST SUMMARY ...................................................... 6 3. MEASUREMENT UNCERTAINTY ........................................ 7 4. PRODUCT INFORMATION AND TEST SETUP ............................ 8 4.1 Product Information ..................................................... 8 4.2 Test Setup Configuration ................................................ 8 4.3 Support Equipment ..................................................... 9 4.4 Channel List ........................................................... 9 4.5 Test Mode ............................................................ 10 4.6 table of parameters of text software setting ................................ 10 5. TEST FACILITY AND TEST INSTRUMENT USED ........................ 11 5.1 Test Facility ........................................................... 11 5.2 Test Instrument Used .................................................. 11 6. CONDUCTED EMISSIONS ............................................. 13 6.1 Block Diagram Of Test Setup ............................................ 13 6.2 Limit ................................................................. 13 6.3 Test procedure ........................................................ 13 6.4 EUT operating Conditions ............................................... 13 6.5 Test Result ........................................................... 14 7. RADIATED EMISSIONS ............................................... 16 7.1 Block Diagram Of Test Setup ............................................ 16 7.2 Limit ................................................................. 17 7.3 Test procedure ........................................................ 18 7.4 EUT operating Conditions ............................................... 19 7.5 Test Result ........................................................... 20 8. RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION ................................................... 24 8.1 Block Diagram Of Test Setup ............................................ 24 8.2 Limit ................................................................. 24 8.3 Test procedure ........................................................ 25 8.4 EUT operating Conditions ............................................... 25 8.5 Test Result ........................................................... 26 9. CONDUCTED EMISSION .............................................. 27 9.1 Block Diagram Of Test Setup ............................................ 27 9.2 Limit ................................................................. 27 9.3 Test procedure ........................................................ 27 9.4 Test Result ........................................................... 28 10. 20 DB BANDWIDTH .................................................. 34 10.1 Block Diagram Of Test Setup .......................................... 34 Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 4 of 61 Edition：A.3 10.2 Limit ................................................................ 34 10.3 Test procedure ....................................................... 34 10.4 Test Result .......................................................... 35 11. MAXIMUM PEAK OUTPUT POWER .................................... 39 11.1 Block Diagram Of Test Setup .......................................... 39 11.2 Limit ................................................................ 39 11.3 Test procedure ....................................................... 39 11.4 Test Result .......................................................... 40 12. HOPPING CHANNEL SEPARATION .................................... 44 12.1 Block Diagram Of Test Setup .......................................... 44 12.2 Limit ................................................................ 44 12.3 Test procedure ....................................................... 44 12.4 Test Result ........…

Text truncated - open the document above for the full version.

Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 46 of 61 Edition：A.3 Test plots GFSK Low Channel GFSK Middle Channel Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 47 of 61 Edition：A.3 GFSK High Channel Pi/4 DQPSK Low Channel Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 48 of 61 Edition：A.3 Pi/4 DQPSK Middle Channel Pi/4 DQPSK High Channel Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 49 of 61 Edition：A.3 13. NUMBER OF HOPPING FREQUENCY 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 50 of 61 Edition：A.3 13.4 Test Result Test Plots: 79 Channels in total GFSK Pi/4 DQPSK Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 51 of 61 Edition：A.3 14. DWELL TIME 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0.Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 52 of 61 Edition：A.3 14.4 Test Result DH5 Packet permit maximum 1600 / 79 / 6 hops per second in each channel (5 time slots RX, 1 time slot TX). DH3 Packet permit maximum 1600 / 79 / 4 hops per second in each channel (3 time slots RX, 1 time slot TX). DH1 Packet permit maximum 1600 / 79 /2 hops per second in each channel (1 time slot RX, 1 time slot TX). So, the Dwell Time can be calculated as follows: DH5:1600/79/6*0.4*79*(MkrDelta)/1000 DH3:1600/79/4*0.4*79*(MkrDelta)/1000 DH1:1600/79/2*0.4*79*(MkrDelta)/1000 Remark: Mkr Delta is once pulse time. Modulation Channel Data Packet pulse time(ms) Dwell Time(s) Limits(s) GFSK Middle DH1 0.390 0.125 0.4 DH3 1.656 0.265 0.4 DH5 2.920 0.311 0.4 Pi/4DQPSK Middle 2DH1 0.395 0.126 0.4 2DH3 1.668 0.267 0.4 2DH5 2.930 0.313 0.4 Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 53 of 61 Edition：A.3 Test Plots GFSK DH1 Middle Channel GFSK DH3 Middle Channel Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 54 of 61 Edition：A.3 GFSK DH5 High Middle Channel Pi/4DQPSK DH1 Middle Channel Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 55 of 61 Edition：A.3 Pi/4DQPSK DH3 Middle Channel Pi/4DQPSK DH5 Middle Channel Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 56 of 61 Edition：A.3 15. ANTENNA REQUIREMENT 15.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 15.2 Test Result The EUT antenna is CHIP antenna, fulfill the requirement of this section. Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 57 of 61 Edition：A.3 16. EUT PHOTOGRAPHS EUT Photo 1 EUT Photo 2 Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 58 of 61 Edition：A.3 EUT Photo 3 EUT Photo 4 Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 59 of 61 Edition：A.3 17. EUT TEST SETUP PHOTOGRAPHS Conducted emissions Radiated Measurement Photos Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 60 of 61 Edition：A.3 Report No.: BCTC2104829637E No.：BCTC/RF-EMC-005 Page 61 of 61 Edition：A.3 STATEMENT 1.The equipment lists are traceable to the national reference standards. 2.The test report can not be partially copied unless prior written approval is issued from our lab. 3.The test report is invalid without stamp of laboratory. 4.The test report is invalid without signature of person(s) testing and authorizing. 5.The test process and test result is only related to the Unit Under Test. 6.The quality system of our laboratory is in accordance with ISO/IEC17025. 7.If there is any objection to report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL：400-788-9558 P. C.: 518103 FAX：0755-33229357 Internet：http://www.bctc-lab.com E-Mail：[email protected] ※※※※※ END ※※※※※

Conducted emissions Radiated Measurement Photos
