YGWLH-913COutdoor Intelligence Triple Technology Intruder Detector

TRIPLE TECHNOLOCY DETECTOR Triple technology detector combined microwave and passive infrared with intelligence, adopting advanced signal analysis technology, can avoid various kinds of false alarms for worse environment. It is used in bank, warehouse, living space and other place. GENERAL VIEW Wi r e ex i t Ter minal switches LED ju m p er R ELAY ju m p er Gr een LED R ed LED Yello w LED Du al PI R Microwave module Micr o wav e VR Anti- tamper switch Scr ew 1 2 3 4 5 6 7 8 9 10 11 12 2 3 4 5 6 7 8 1 9 10 11 12 CHARACTERISTIC Adopted MCU Automatic pulse count Streamline design Doppler + Power analysis X-Band plane antenna Microwave detecting range adjustable Auto temperature compensation reducing false alarm Valve adjustable technology with high anti-interference N.C./N.O. optional for different alarm Intelligence technology differing intruder from interference signals SMD technology TECH. SPECIFICATION Worki ng vol tage Suppl y Detecti ng range Warm-up time Detecti ng mode Sensor Mi crowave antenna Mi crowave frequency Instal l ati on method Instal l ati on hei ght Worki ng temperature LED i ndi cati on Relay output Anti-tamper switch DC9 16V 18mA ( DC 12V ) di ameter:8m (i nstal l ati on hei ght:3.6m) 60s Dopper+Power anal ysi s dual l ow noi se PIR pl ane antenna wi th hi gh frequency oscillator GaAs :FET 10.525GHz cei l i ng mounted about 2.5-6m -10 -50 Green:infrared Yel l ow:mi crowave Red:al arm N.C./N.O. opti onal , 60VDC,100mA N.C. without vol tage output,28VDC,100mA ～ ≤ ≤ °C°C TERMINAL BLOCK +12V: DC ANODE GND: DC CATHODE ALARM:RELAY OUTPUT PORT TAMPER:ANTI-TAMPER SWITCH OUTPUT PORT DETECTING RANGE side view infrared microwave 8m 5.3m 3.6m 2.4m top view 0m 2m 4m 2m 4m 0m 2m 4m2m4m infrared microwave INSTALLATION 1. Fix the bracket of detector in the ceiling, after open the front cover and take out the PCB, set the back cover on bracket by screw. 2. Set the PCB in the back cover after connect the wire according to the TERMINAL BLOCK FIGURE Close the front cover. 3. The best installation height is 2.5m to 6m. 4. Avoid installing the detector close to the following objects causing temperature changes easily such as heaters, refrigerators and ovens. Avoid installing the detector in the sun directly. TESTING AND USAGE 1. With 12V power supply, the detector is in self-checking and red LED flashes; The LED is off after 60 seconds and the detector is in operating state. 2. Make walk testing in detecting range, different LED flash: Green LED flashes, infrared is ON; Yellow LED flashes, microwave is ON; Red LED flashes, infrared & Microwave is ON and the detector is in alarm status. 3. RELAY jumper is used to set alarm output mode. Select different output mode depending on specification of control: 1&2/N.O. ; 2&3/N.C. ; 2&3 in normal. 4. Microwave VR is used to adjust the detecting range of microwave according to customer's request. (the largest detection range is set in normal.) 5. LED jumper is used to control LED indication without interference to detector. LED ON jumper can be interrupted after testing for concealment. NOTE: 1. Please install and use the Detector following the Directions. Do not touch the sensor surface as this could result in a detector malfunction. If necessary, clean the sensor surface using a soft cloth with pure alcohol. 2. Avoiding to use the Products in the area with huge change of temperature. 3. For various reasons, including, but not limited to, changes in environmental conditions, electric or electronic disruptions and tampering, the Product may not perform as expected. The user is advised to take all necessary precautions for his/her safety and the protection of his/her property. 4.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Longhorn Security Technology Co.,Ltd July 1, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ___ Longhorn Security Technology Co.,Ltd ________hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Outdoor Intelligence Triple Technology Intruder Detector, LH-913C) We affirm that between SIEMIC and __ Longhorn Security Technology Co.,Ltd ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Qing Li/ Manager Phone : +86-755-33265551 / New and High Technology Industrial Park, Guangming ,Wan Dai HengGuangming，Shenzhen,Guangdong

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Longhorn Security Technology Co.,Ltd July 1, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YGWLH-913C We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Operational Description - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Qing Li/ Manager Phone : +86-755-33265551 / New and High Technology Industrial Park, Guangming ,Wan Dai HengGuangming，Shenzhen,Guangdong

Longhorn Security Technology Co.,Ltd. FCC ID：YGWLH-913C Model:LH-913C This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions(1) This device may not cause harmful interference,and(2)this device must accept any interference received, Including interference that may cause undesired operation

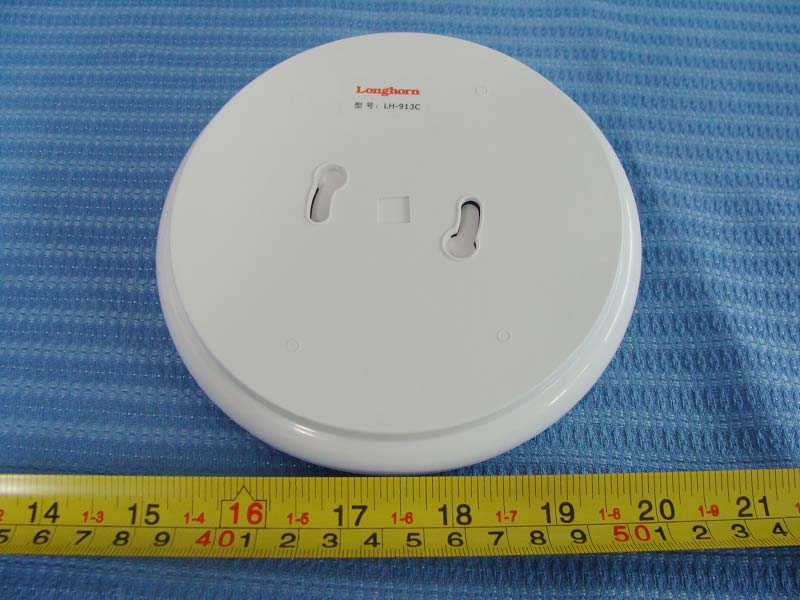

FCC ID Label Locaton

ISO/IEC17025 Accredited Lab. Report No: FCC1005212 File reference No: 2010-06-24 Applicant: Longhorn Security Technology Co.,Ltd Product: Outdoor Intelligence Triple Technology Intruder Detector Model No: LH-913C Trademark: Test Standards: FCC Part 15 Subpart C, Paragraph 15.245 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.245 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: June. 24 .2010 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1005212 Page 2 of 30 Date: 2010-06-24 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement ： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC- Registration No.: IC5205A-01 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-01. Report No: 1005212 Page 3 of 30 Date: 2010-06-24 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition.…
