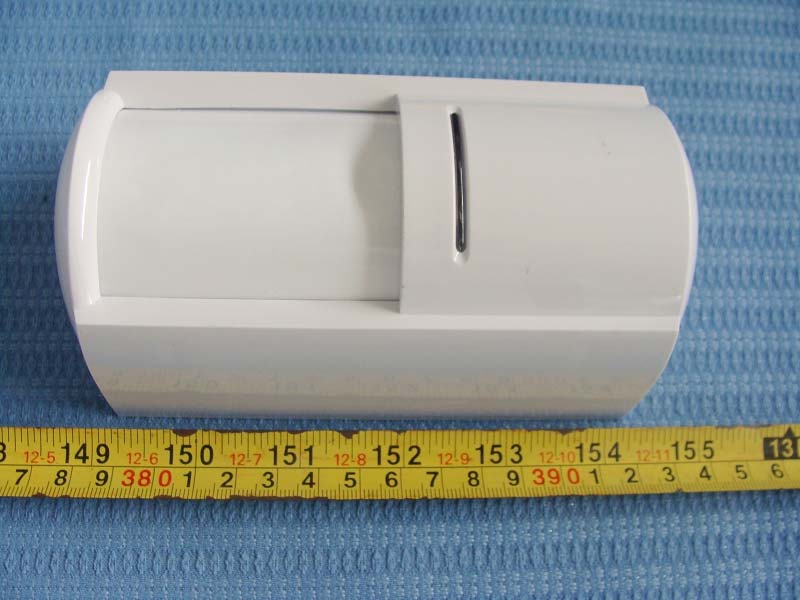

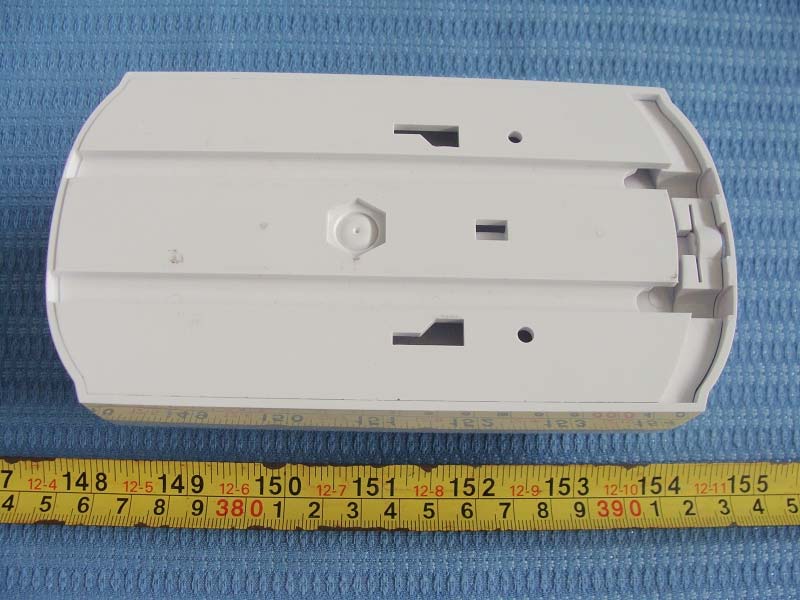

YGWLH-934ICOutdoor Intelligence Triple Technology Intruder Detector

OUTDOOR INTELLIGENCE TRIPLE TECHNOLOGY INTRUDER DETECTOR This product complies with standards of People's Republic of China: GB10408.1-2000 and GB10408.6-91 The product is a triple technology detector composed by microwave, passive infrared and artificial intelligence, and it works based on detecting human body's infrared spectrum and microwave Doppler effect. The product uses special optical filter and advanced signal analysis and process technology, it is provided with waterproof function, being suitable for outdoor usage. The product can be applied on banks, warehouses and homes etc. GENERAL VIEW 1. Microwave module 2. Green LED 3. Red LED 4. Yellow LED 5. Infrared sensor 6. P.COUNT jumper 7. RELAY jumper 8. LED jumper 9. Anti-tamper switch 10. Microwave potentiometer 11. Terminal block 12. Outlet 1 2 3 6 7 8 9 10 11 12 12 12 12 4 5 1. LED indicator 2. Optical lens 1 2 FEATURES MCU processing Pulse count optional Special optical filter lens, white light immunity at 10000 lux Waterproof function for outdoor environment Insect immunity Using Doppler effect and energy analysis Microwave using X-Band patch antenna Microwave detection range adjustable Temperature auto-compensation, avoiding false alarm Alarm output N.C./N.O. optional, suitable for different alarm system Differ intruder signal from interference signal by intelligence technology Pet below 20kg immunity TECHNICAL PARAMETERS Working voltage Working current Detection range Detection angle Infrared sensor Microwave antenna type Microwave frequency Warm-up time LED indicator Installation Installation height Operating temperature Relay output Anti-tamper Size 9 16V DC 30mA (DC 12V) 12m 12m 11 0 Dual element low noise pyroelectric infrared sensor Patch antenna by GaAs FET dielectric oscillator 10.525GHz 60 sec Green: infrared triggering Yellow: microwave triggering Red: ala r Wall hanging Optimal height 2.2m -40+70 N.C./N.O. optional, contact rating 28VDC, 80mA N.C., no voltage output, contact rating 28VDC, 100mA 153mm 80mm 58mm ～ ≤ × ° ≤ °C～ °C ×× DETECTING RANGE FIGURES Top v iew 0 2 4 6 8 m（） 2 4 6 8 2 0468 10 12 （）m Side view 2.2m 02 4 6 81012 m（） USAGE 1. Connect 12V DC power, three indicators flashing, and detector enters self-checking status, self-checking time is about 60 seconds; indicators stop flashing, which means detector enters normal monitoring status. 2. Testing by normal walk speed in detection range, at this time relevant indicator flashing. Green indicator is on, indicating infrared triggering; yellow indicator is on, indicating microwave triggering; red indicator is on, indicating infrared and microwave triggering together and detector enters alarm status. 3. LED jumper controls LED indicator to indicate or not, and it does not effect normal work of detector. LED indicator is on in factory setting. 4. Microwave potentiometer is used to adjust microwave detection range, user can adjust according to requirement. Set maximal detection range in factory setting. 5. P.COUNT jumper JP1(1P/2P) is sensitivity jumper, 1P(1&2) is high sensitivity, supplying maximal detection range; 2P(2&3) is normal sensitivity, supplying maximal anti-interference capability. Set 1P in factory setting. 6. RELAY jumper JP2(N.C./N.O.) is output relay jumper, used to set alarm output status, choosing different output according to different type of security system. Choose N.C.(1&2) for normal closed status; choose N.O.(2&3) for normal open status. Set N.C. in factory setting. INSTALLATION LOCATION AND NOTICES 1. Do not install detector in the place as followed: ★ The area where vehicle pass through ★ The position easy to be blowed by wind ,such as swing sign, tree etc. 2. Avoid proximity to objects which is easy to cause temperature change. 3. Avoid any object in front of the lens of detector. 4. Confirm installation place steadily and no shake. 5. Connect power after finishing all wire connection and checking. 6. Do not put redundant wires in detector. INSTALLATION 1. Select a position where intruder is prone to pass through, optimal installation height is 2.2m. 2. When opening detector, open the locked cam by screwdriver, slip subpanel down, then take subpanel away from cover plate. 3. Fix subpanel on the selected position by screws, wire connection according to terminal block figure. Notice waterproof carrier ring, the direction of wire outlet is down, and we suggest you use 22AWG(0.8mm) wire. 4. Slip detector on the subpanel until finishing all wires connection with detector. 5. Fix the detector by 180 degree revolution of cam on subpanel. 6. we suggest you use set swinging to increase detection range. TERMINAL BLOCK FIGURE +12V: Anode of DC power GND: Cathode of DC power AL ARM: Re la y o u tp u t te rmin a l TAMPER: An ti-ta mp e r switch o u tp u t te rmin a l INSTALLATION FIGURES 1 1. Unl oc k : Sc rewdri v er insert s f lut e of det ect or and makes 180 degree revolution, "" should mat ch unlock sign. △ 2. Push subpanel down to arrow direction. 2 3 3. Take subpanel away. 6. Connect power wire and signal wire to terminals. 6 4 4. Knock out three mounting holes of subpanel. 5. Fix subpanel on the wall by screws. Wal l 5 7 7. Hang detector on the subpanel. Wal l 8. Push detector down to arrow direction. Wal l 8 9. Lock: Screwdriver insert s f lut e of det ect or and makes 180 degree revolution. 9 NOTICES 1. Please mount and use according to this manual, do not touch the surface of infrared sensor, if detector need to be cleaned, use soft cloth with alcohol to clean after turning off power. 2. Yearly testing is required to ensure proper operation of this detector. 3. Though this product can reduce accident, it do not ensure perfectly safe. For your security, you should enhance security consciousness in daily life besides using this product. 4.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
