YIKI30Mini PC

All rights reserved www.giadatech.com FCC ID:YIKI30 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2010-07-06 Head Page ....................................................................................... Gratitude .................................................................................... Copyright and Trademark ............................................................... I. Introduction to the Manual............................................................... 1. Precautions ........................................................................... 2. Accessories ........................................................................... II. About the product ........................................................................ 1. Appearance ........................................................................... 2. Features .............................................................................. III. System setup.............................................................................. 1.Install an operating system......................................................... 2. Drivers install ........................................................................ IV. Equipment expansion .................................................................. 1. Card Reader........................................................................... 2.USB device ........................................................................... 3. Audio device........................................................................... 4. Network device........................................................................ V. Power supply and maintenance ...................................................... 1.Adapter ................................................................................. 2. Maintenance........................................................................... VI. Troubleshooting........................................................................... Contents 2 3 2 4 4 5 6 6 8 9 9 11 12 12 12 13 13 15 15 16 17 1 www.giadatech.com 32 GratitudeCopyright and Trademark Dear Users, Thank you for choosing Giada Slim series product. In such an epoch of PC development, we launched Giada Slim-i series which is characterized by the mini shape, vogue and ultra-thin structure, environment friendly and lower power consumption. Giada Slim-i series is provided with multiple functions, including serving as exclusive downloader, small server, internet access for office work and higher mobility when compared with traditional PCs. Giada will allow you to undergo new experience in the field. This User’s Manual would allow you better understand the device. Therefore, please carefully read the whole manual before you operate the device. In case you have any questions concerning after-sales services in using the product, please contact us according to the contact information below: Website: www.giadatech.com Add: 2/F, Building A, Tsinghua Information Harbor, North Section, Shenzhen Hi-Tech Park, Nanshan, Shenzhen, China. Shenzhen JIEHE Technology development Co., Ltd will try our best to ensure the accuracy and intactness of this manual. However, as our products are being upgraded all the time, we can't guarantee that this Manual is flawless and shall bear no responsibility if it is misunderstood by the user. The User's Manual is subject to change without prior notice. Giada and the related mark are trademarks owned by Shenzhen JIEHE Technology development Co., Ltd. Windows, MS, MS-DOS, Windows XP, Windows Vista and Windows 7 are trademarks of USA Microsoft Corporation, which were registered in the US, other countries or other regions in the world. INTEL and Atom are trademarks of USA's INTEL, which were registered in the US, other countries or other regions in the world. NVIDIA ION, Geforce, Geforce CUDA, PureVideo HD and PhysX are trademarks of USA's NVIDIA, which were registered in the US, other countries or other regions in the world. Shenzhen JIEHE Technology development Co., Ltd reserves the right for final interpretation of this Manual. Copying and reproduction of the contents in this document, or storage and transfer in any form without the prior written permission of Shenzhen JIEHE Technology development Co., Ltd is prohibited. www.giadatech.com 54 I. Introduction to the Manual 1. Precautions In order to prevent the PC from being damaged, extend its service time, and ensure your normal use and personal safety, please carefully read the whole User’s Manual and the related safety information and strictly follow the requirements in it. You should also keep the Manual well. · Please read the documents attached to the product first. The page exclusively inserted should be read firstly. · Please observe all alarm information and marks on safety. · Please use the original power adapter, or use special power supply mentioned in the Manual. · Place place the product correctly on your table and make sure the anti-sliding base is installed. · In lightning time, do not plug or unplug the phone cable, network cable, power cord or other conductors connecting outside. · Unplug the power cord before you clean the device. Never use liquid, sprayed cleaning agent or wet cloth to clean the product. · In order to protect the operating system, motherboard and hard disk, please do not keep pressing the power switch or the reset key. Avoid interrupt power failure during system’s running, which might also physically damage the operating system. · Do not remove the shell or repair the product without permission. such work should be done by professionals. · Keep the PC away from heat source. Never block the heat vents. Keep your PC away from direct sunshin…

Text truncated - open the document above for the full version.

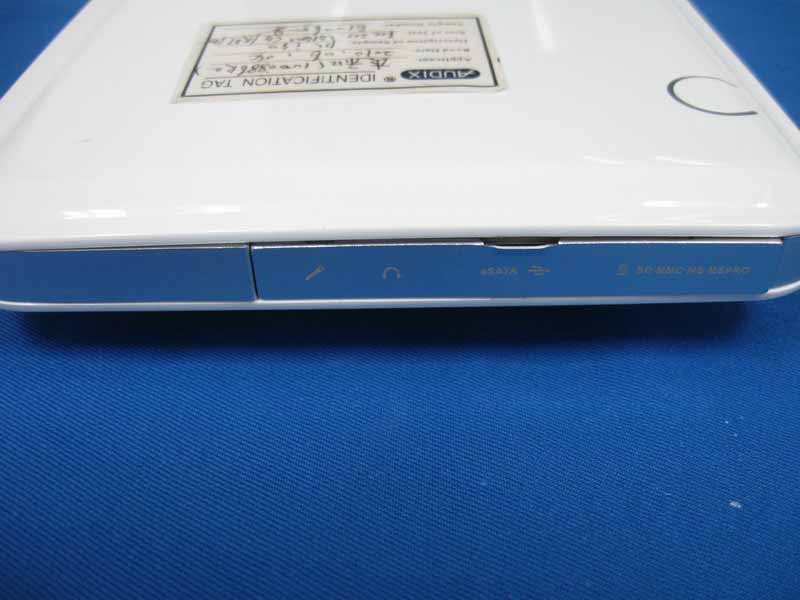

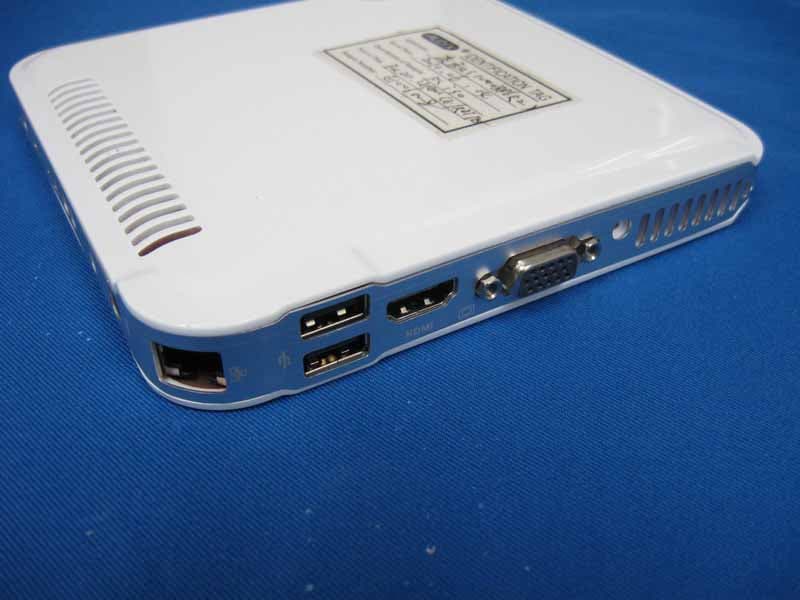

FCC ID:YIKI30 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10160 7-1 7. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT FCC ID:YIKI30 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10160 7-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT FCC ID:YIKI30 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10160 7-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT FCC ID:YIKI30 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10160 7-4 Figure 7 General Appearance of the EUT

N20 i30 贴在机身右侧 （ Giada logo 的另 一 面 ） N20 , i30 贴在机身右侧 （ Giada logo 的另 面 ）

FCC ID:YIKI30 Page 14-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10159 Figure 7 General Appearance of the EUT Figure 8 Inside of the EUT FCC ID:YIKI30 Page 14-5 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10159 Figure 9 HDD Figure 10 HDD FCC ID:YIKI30 Page 14-6 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10159 Figure 11 Frontside of the Memory Figure 12 Backside of the Memory FCC ID:YIKI30 Page 14-7 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10159 Figure 13 Frontside of the Motherboard Figure 14 Backside of the Motherboard FCC ID:YIKI30 Page 14-8 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10159 Figure 15 Frontside of the Wireless Card Figure 16 Backside of the Wireless Card FCC ID:YIKI30 Page 14-9 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10159 Figure 17 Backside of the Wireless Card Figure 18 Adaptor FCC ID:YIKI30 Page 14-10 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10159 Figure 19 Adaptor

FCC ID:YIKI30 Page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10161 11.MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz             11.2.Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) antenna Gain(linear) MPE 11b 1 2412 20.43 110.413.622.300.0506 6 2437 20.58 114.293.622.300.0524 11 2462 20.86 121.903.622.300.0558 11g 1 2412 21.64 145.883.622.300.0668 6 2437 24.98 314.773.622.300.1442 11 2462 23.09 203.703.622.300.0933 11n HT20 1 2412 18.26 66.993.622.300.0307 6 2437 22.76 188.803.622.300.0865 11 2462 19.61 91.413.622.300.0419 11n HT40 1 2422 14.76 29.923.622.300.0137 4 2437 19.26 84.333.622.300.0386 7 2452 14.71 29.583.622.300.0136 Note: The estimation distance is 20cm

FCC ID:YIKI30 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10161 APPLICATION FOR CERTIFICATION On Behalf of SHENZHEN JIEHE TECHNOLOGY DEVELOPMENT Co., Ltd Mini PC Model Number: Giada Slim -i30 FCC ID: YIKI30 Prepared for : SHENZHEN JIEHE TECHNOLOGY DEVELOPMENT Co., Ltd 2/F, Block A, Tsinghua Information Harbor, North Section, Shenzhen Hi-tech Park, Nanshan District, Shenzhen, China P.R. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F10161 Date of Test ： Jul.07~08, 2010 Date of Report ： Jul.12, 2010 FCC ID:YIKI30 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10161 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ....................................................... 1-1 1.1. Description of Standards and Results ............................................................................... 1-1 2. GENERAL INFORMATION ...................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................ 2-1 2.2. Test information ................................................................................................................ 2-3 2.3. Tested Supporting System Details .................................................................................... 2-4 2.4. Block Diagram of Test Setup ............................................................................................ 2-6 2.5. Test Facility ...................................................................................................................... 2-7 2.6. Measurement Uncertainty (95% confidence levels, k=2) ................................................. 2-7 3. POWER LINE CONDUCTED EMISSION TEST .................................................... 3-1 3.1. Test Equipments ................................................................................................................ 3-1 3.2. Power Line Conducted Emission Test Limits ................................................................... 3-1 3.3. Configuration of EUT on Test .......................................................................................... 3-1 3.4. Operating Condition of EUT ............................................................................................. 3-1 3.5. Test Procedure ................................................................................................................... 3-1 3.6. Power Line Conducted Emission Test Results ................................................................. 3-2 4. RADIATED EMISSION TEST ................................................................................... 4-5 4.1. Test Equipment ................................................................................................................. 4-5 4.2. Radiated Emission Limit ................................................................................................... 4-6 4.3. EUT Configuration on Test ............................................................................................... 4-7 4.4. Operating Condition of EUT ............................................................................................. 4-7 4.5. Test Procedure ................................................................................................................... 4-7 4.6. Radiated Emission Test Results ........................................................................................ 4-7 5. CONDUCTED SPURIOUS EMISSIONS................................................................... 5-1 5.1. Test Equipment ................................................................................................................. 5-1 5.2. Limit .................................................................................................................................. 5-1 5.3. Test Procedure ................................................................................................................... 5-1 5.4. Test result .......................................................................................................................... 5-2 6. BAND EDGE COMPLIANCE TEST ....................................................................... 6-15 6.1. Test Equipment ............................................................................................................... 6-15 6.2. Limit ................................................................................................................................ 6-15 6.3. Test Produce .................................................................................................................... 6-15 6.4. Test Results ..................................................................................................................... 6-15 7. 6dB Bandwidth Test ...................................................................................................... 7-1 7.1. Test Equipment ................................................................................................................. 7-1 7.2. Limit .................................................................................................................................. 7-1 7.3. Test Procedure ................................................................................................................... 7-1 7.4. Test Results ....................................................................................................................... 7-1 8. OUTPUT POWER TEST ............................................................................................. 8-1 8.1. Test Equipment ................................................................................................................. 8-1 8.2. Limit (FCC Part 15C 15.247 b(3)) …

Text truncated - open the document above for the full version.

FCC ID:YIKI30 Page 13-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10161 13. PHOTOGRAPH OF TEST 13.1. Photos of Power Line Conducted Emission Test FCC ID:YIKI30 Page 13-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10161 13.2. Photos of Radiated Emission Test 30-1000MHz FCC ID:YIKI30 Page 13-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10161 (Above 1000MHz)
