YJZ20072010Audio Attendant Call System - Remote Unit

Instruction Manual Be sure to read this instruction manual thoroughly before use. Keep this manual for future reference. The SP200 SafePresence™ Audio Attendant Call System is a caregiver aid and not a substitute for watchfulness over an individual who may be at risk of injury from falls. Additional interventions may be required. P.2 P.4 P.6 P.8 P.7 Contents Product diagram and functions Safety instructions Monitoring Instructions SP200 P.5 Rechargeable batteries information Before Using This Product Usage Instructions P.8 P.8 Setting up a bed sensor pad P.10 Specifications To confirm the frequency range Setting up an ID code P.11 Warranty P.9 Troubleshooting SafePresence™ Audio Attendant Call System Safety Instructions Hazard Definitions Examples of Hazard Indicators IMPORTANT SAFETY INSTRUCTIONS • In case of smoke or unusual noise; or • If water or any other liquid is spilled into or onto the SP200 SafePresence™ Audio Attendant Call System; or • If a power socket or cord is extremely hot; or Before using the SP200 SafePresence™ Audio Attendant Call System, be sure to read these instructions. Warning Caution Indicates an imminently hazardous situation which, if not avoided, may result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in injury or property damage. Caution including warning Important precaution Must follow instructions Warning Unplug the SP200 SafePresence™ Audio Attendant Call System from mains power and refer servicing to qualified service personnel under the following conditions: Do not disassemble or alter the product Keep Dry Do not attempt to disassemble or alter the product. It may cause a fire and electric shock. Contact your distributor for inspection, adjustment and repair. Keep this product dry and away from water or other liquids. Failure to keep dry may result in an electric shock. Use SP200 SafePresence™ Audio Attendant Call System with specified voltage (AC 240V). Failure to do so may cause a fire or an electric shock. Do not put a container filled with water or any kind of liquid on top of the product If water/liquid spills or enters the inside of the product, it may cause a fire or an electric shock. • If the SP200 SafePresence™ Audio Attendant Call System has been dropped, or the enclosure is damaged. The following terms are used throughout this manual to bring attention to the presence of hazards of various risk levels, or to convey important information concerning the use of this product. Operate this product only with the specified voltage 2 Rechargeable Batteries How to Install Rechargeable Batteries for the SP200RX WirelessRemote Receiver with Audio 5 Button Push the button and hold to slide away the belt clip. Open the cover and insert the batteries. • LED light on the SP200TX Base Station Monitor and Transmitter blinks when its battery power is low. • LED light and out-of-range lamp on the SP200RX Wireless Remote Receiver with Audio blinks when its battery power is low. • Both units charge automatically when the AC adapter is plugged in. • Both units will take about 8 hours to become fully charged. (Charging also occurs when power to the unit is turned off.) Be sure to use only rechargeable batteries for the SP200RX Wireless Remote Receiver with Audio. (Rechargeable batteries are included.) SP200TX Base Station Monitor and Transmitter has a rechargeable battery detector inside the battery compartment. Rechargeable battery detector 1) Loosen the screw and open the battery cover. 3) Close the battery cover and tighten the screw. • Dispose or recycle batteries in accordance with local laws. Never dispose in fire or water. ♦ The screw does not come off of the cover. How to Replace Rechargeable Batteries for the SP200TX Base Station Monitor and Transmitter Battery life is affected by the number of times the unit is charged and discharged. Replace the rechargeable batteries when the unit can only be used for a short time even after recharging. Follow the instructions below and replace the rechargeable batteries regularly, even when the device is operated primarily on mains power. 2) Remove the old rechargeable batteries and insert the new ones. • Be sure to use the specified batteries. • Do not use other products that could possibly cause unexpected damage or failure. • New batteries come in a discharged condition and must be fully charged before use. Usage Instructions Batteries must be charged before use. Setting up the SP200TX Base Station Monitor and Transmitter Using the bed or chair sensor Connect the bed/chair sensor to the SP200TX Base Station Monitor and Transmitter. Slide the sensor select switch to (bed/ chair).Turn the power on and the red LED light will light up. When using the floor sensor mat Connect the floor sensor to the SP200TX Base Station Monitor and Transmitter. Slide the sensor select switch to (floor).Turn the power on and the red LED light will light up. 1. 2. 1. 2. *Adjust floor mat settings according to the environment in the person being monitored’s room. Setting Up the Floor Mat A B Using the Floor Mat This floor mat is designed to detect when the mat is stepped on by the person being monitored. The floor mat may be placed in a doorway (A) or at the side of a bed (B) to alert caregivers when a person being monitored steps on the floor sensor. The alarm will sound on the SP200RX Wireless Remote Receiver with Audio when the floor sensor is stepped on. 1. 2. 3. 6 Set up the SP200TX Base Station Monitor and Transmitter close to the person being monitored; within 1-3 meters. Connect [remote call button w/ micro- phone] to the unit as necessary depending on the person being monitored’s condition. In this case, the microphone on the main unit stops working. In this mode, the call button works on both sides. To avoid malfunctions caused by low battery, we recommend using the AC adapter. 1. 2. Insert the AC adapter plug into the AC adapter jack on the side of the SP200TX Base St…

Text truncated - open the document above for the full version.

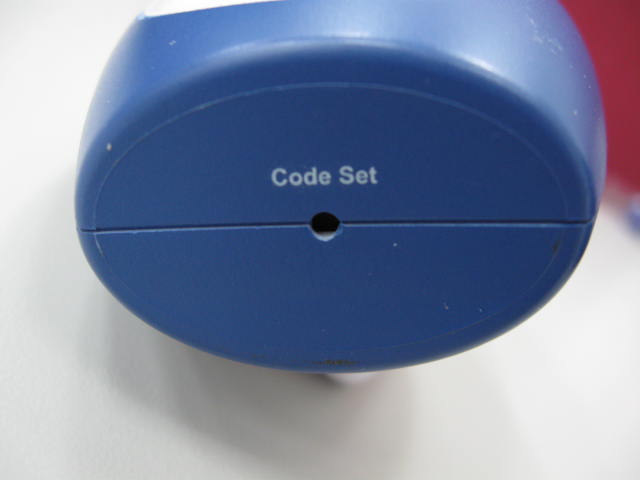

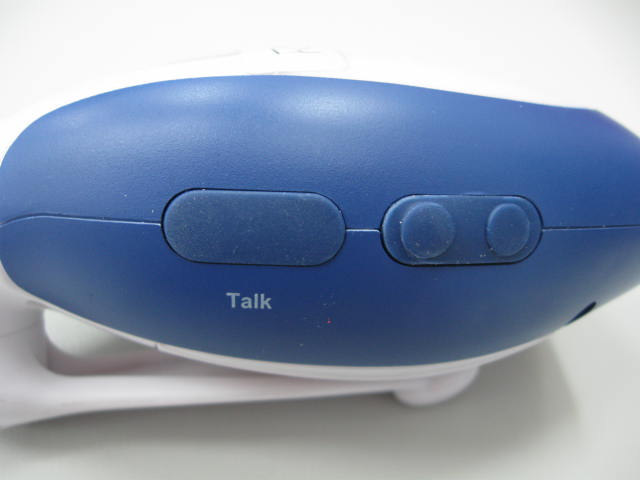

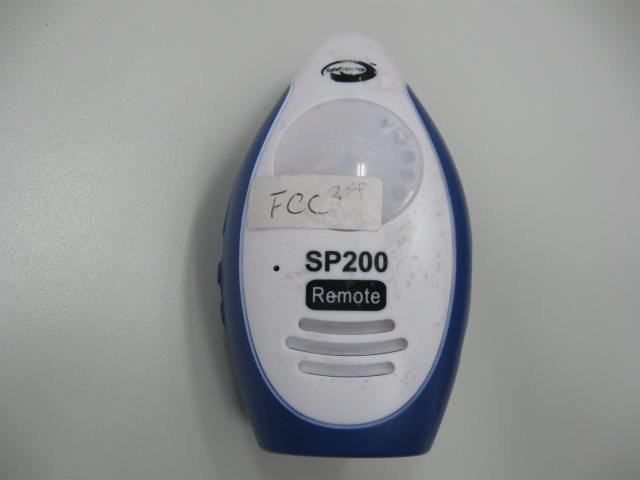

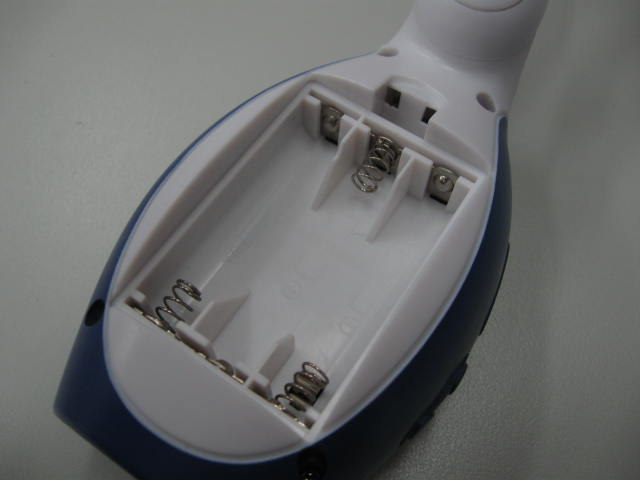

External Photo

Internal Photo

TEST REPORT No.: (5210)180-0241 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 2 of 29 Location of the test laboratory Radiated and Conducted emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2003. An Open Area Test Site and Full Anechoic Chamber (FCC Listed Site, Registration No. 642151) are set up for investigation and located at : BUREAU VERITAS HONG KONG LIMITED, EMC CENTRE No. 2106-2107, 21/F., Westin Centre, 26 Hung To Road, Kwun Tong, Kowloon, Hong Kong List of measuring equipment Radiated Emission EQUIPMENT MANUFACTURER MODEL NO. SERIAL NO. CALIBRATION DUE EMI TEST RECEIVER R&S ESCI 100379 06-SEP-2011 BILOG ANTENNA SCHAFFNER CBL6112D 25229 02-AUG-2011 OPEN AREA TEST SITE BVCPS N/A N/A 05-JULY-2011 ANECHOIC CHAMBER ALBATROSS M-CDC 80374004499B 06-JULY-2011 HORN ANTENNA SCHWARZBECK BBHA9120D 9120D-692 20-JULY-2011 PREAMPLIFIER SCHWARZBECK BBV9718 9718-152 26-JULY-2011 COAXIAL CABLE SUHNER N/A N/A 07-DEC-2010 Conducted Emission EQUIPMENT MANUFACTURER MODEL NO. SERIAL NO. CALIBRATION DUE EMI TEST RECEIVER R&S ESCI 100379 06-SEP-2011 LISN R&S ENV216 100024 09-MAR-2011 Remarks:- N/A : Not Applicable or Not Available The measurement instrumentation uncertainty would be taking into consideration on each of the test result TEST REPORT No.: (5210)180-0241 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 3 of 29 Equipment Under Test [EUT] Description of Sample: Model Name: Wireless Remote Receiver with Audio Model Number: SP200RX Rating: 100-240Va.c. 50/60Hz – 6Vd.c. (AC/DC adaptor) 3.6Vd.c. (“1.2Vd.c. rechargeable battery” x 3) Description of EUT Operation: The Equipment Under Test (EUT) is a J. BRASCH CO. of Remote Transceiver. It is a one knob and two buttons transceiver and operating at 2422MHz to 2451MHz. The EUT continues to transmit while Talk button is being pressed. It is using FHSS, total 30 channels, and Modulation by IC, type is pulse modulation. The lowest, middle & highest frequency had tested and the results are shown in the report. The transmitter has different control: 1. Power/Vol. knob – Control power on / off and adjust volume 2. Talk button – Control Transmission on / off 3. ID code setting button – ID code setting Antenna Requirement (Section 15.203) The EUT is use of a permanently antenna. The antenna consists of 7.5cm long metal wire. It is soldered on the PCB. The antenna is not replaceable or user serviceable. The requirements of S15.203 are met. There are no deviations or exceptions to the specifications . TEST REPORT No.: (5210)180-0241 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, p…
