YK4-JW9-85579-00TERMINAL UNIT

䇭1. Introduction of the product These devices make it possible to efficiently manage and maintain numerous YDRE's in a single golf course. 䇭2. Parts and descriptions 䇭(1) Child device 䇭(2) Device cover 䇭(3) Wire lead 㪝㪼㫉㫉㫀㫋㪼㩷㪺㫆㫉㪼 㪩㫆㫆㪽㩷㫄㫆㫌㫅㫋㩷㪿㫆㫃㪼 㪙㫆㪻㫐 㪚㫆㫅㫅㪼㪺㫋㫆㫉 㪛㪼㫍㫀㪺㪼㩷㫄㫆㫌㫅㫋㫀㫅㪾㩷㪹㫆㫊㫊 㪮㫀㫉㪼㩷㪿㪸㫉㫅㪼㫊㫊㩷㪺㫆㫅㫅㪼㪺㫋㫆㫉 㪛㪼㫍㫀㪺㪼㩷㪺㫆㫅㫅㪼㪺㫋㫆㫉 㪮㪸㫋㪼㫉㩷㪻㫉㪸㫀㫅㩷㫊㫃㫀㫋㫊 (Thegeneral term Child device in the text means a TERMINAL UNIT.) 䇭3. Installation 䇭(1) Install the child device onto the device cover. Use three tapping screws to mount the child device on the device cover. Connect the wire lead to the child device. 䇭 (2) Install the child device on the roof. Drill four holes on the roof, and then secure the device cover on the roof via the bolts and nuts. 䇭 (3) Install the wire leads. Route the wire lead through the gutter into the rear cowl. Connect the wire lead to the wire harness inside the rear cowl. 㪟㫆㫃㪼 㪞㫌㫋㫋㪼㫉 㪮㫀㫉㪼 㪮㫀㫉㪼㩷㫃㪼㪸㪻 !䇭Caution䋺 Do not disassemble the transmitter. Contact Yamaha Service if the device requires service or repair. !䇭Caution䋺 Secure the wire lead on the frame. Don't allow it to contact the motor or other rotating objects or the hot portions. Secure the wire lead on the vehicle frame so that it won't reach below the vehicle frame. 䇭4. Operation 䇭䇭(1) Setting up the Vehicle Management PC 䇭䇭䇭䇭Refer to the separate "Vehicle Management Software Installation Manual". 䇭䇭 (2) Registering the vehicles and the relay devices 䇭䇭(3) How to use the Vehicle Management software 䇭䇭䇭䇭Please refer to the separate document, "Vehicle Management System: JW9-85560-00 Parent device, JW9-8A2F0-00 Relay device". FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note. This equipment has been tested and found to comply with the limits for a Class A digital device , pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment Is oparated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications, Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expence. 䋭The cable of child unit with ferrite core must be used for RF Interference suppression. 䇭5. Equipment specifications In service䋺CH1 (default) ItemSpecificationsRemarks Product model type JW9-85579-00 External dimensions 106 X 153 X 27.5mm Product weightAbout 170g RegionUSA Operating-10䌾60㷄 Operating humidity 85%Rh or lowerNo formation of dew Rated VoltageDC 5V ± 0.5V Max. power consumption 35mA or less Interface standard RS-232C serial communication Interface data transmission 9600bps Connector specifications 䊶Housing䋺6188-0004 䊶Terminal䋺1500-0105 䊶Pin layout 䇭1pin DC5V䋨red䋩 䇭2pin GND䋨black䋩 䇭3pin data receive (blue) 䇭4pin data send (yellow) CommunicationSimplex communication system Operating frequencies CH0䋺916.2204MHzOn registration䋺CH0 CH1䋺918.0636MHz CH2䋺919.9068MHz CH3䋺921.7500MHz Type of oscillation PLL synthesizer type Type of modulation 2-value FSK CodingNRZ Aerial typeDielectric chip antenna Electric field stren gth, send Less than 93.9dBuV/mBy 3m method Spurious radiation stren gth 0.1uW (-40dBm) or lower Maximum electric power up to tertiar y harmonics at end Frequency deviation Within 32±15kHz By 511bit STD encoded si gnal at 19200bps Signal reception level settin g Level 4-5 threshold䋺33dBuVemf Level 3-4 threshold䋺23dBuVemf Collateral radiation stren gth 0.1uW (-40dBm) or lower Maximum electric power between 0䌾3GHz at end of Sensitivity to rece ption 15dBuVemf or lower Per standard data at 19200b ps, DEV32kHz, and

Outside pictures 【TERMINAL UNIT outside pictures】 《front side》《top side》《under side》 《left side》《right side》《back side》

㪐㪇 㪈㪋㪇 㪈㪊㪇 㪈㪇㪌㪅㪏 㪍㪇 㪉㪉㪅㪐 㪛㪚㪄㪺㪸㪹㫃㪼 㫊㪺㫉㪼㫎 㪉㪎㪅㪌 㫌㫅㪻㪼㫉㩷㪺㪸㫊㪼 㪺㫆㫍㪼㫉 㪈㪋㪅㪋 㪌㪇 䌌䌡䌢䌥䌬䇭䌚䌯䌯䌭䋨䌓䋽㪈䋺䋱䋩 㫃㪸㪹㪼㫃 6'4/+0#.70+69,ޓ 㫋㪸㫇㪼 㫄㪸㫅㫌㪽㪸㪺㫋㫌㫉㪼㫉㩷㪺㫆㪻㪼㩷㪊㪻㫀㪾㫀㫋㫊㩷㪂㩷 㫇㫉㫆㪻㫌㪺㫋㩷㪺㫆㪻㪼㩷㪈㪋㪻㫀㪾㫀㫋㫊㩷㫆㫉㩷㫃㪼㫊㫊 㪰㪘㪤㪘㪟㪘㩷㪤㪦㪫㪦㪩㩷㪧㪦㪮㪜㪩㪜㪛㩷㪧㪩㪦㪛㪬㪚㪫㪪㩷㪚㪦㪅㪃㪣㪫㪛 㪫㪿㫀㫊㩷㪻㪼㫍㫀㪺㪼㩷㪺㫆㫄㫇㫃㫀㪼㫊㩷㫎㫀㫋㪿㩷㪧㪸㫉㫋㩷㪈㪌㩷㫆㪽㩷㫋㪿㪼㩷㪝㪚㪚㩷㪩㫌㫃㪼㫊㪅㩷㪦㫇㪼㫉㪸㫋㫀㫆㫅㩷㫀㫊㩷㫊㫌㪹㫁㪼㪺㫋㩷㫋㫆㩷㫋㪿㪼㩷㪽㫆㫃㫃㫆㫎㫀㫅㪾㩷㫋㫎㫆㩷㪺㫆㫅㪻㫀㫋㫀㫆㫅㫊㪑㩿㪈㪀㩷㫋㪿㫀㫊㩷㪻㪼㫍㫀㪺㪼㩷㫄㪸㫐㩷㫅㫆㫋㩷㪺㪸㫌㫊㪼㩷㪿㪸㫉㫄㪽㫌㫃㩷㫀㫅㫋㪼㫉㪽㪼㫉㪼㫅㪺㪼㪃㪸㫅㪻㩿㪉㪀㩷㫋㪿㫀㫊㩷㪻㪼㫍㫀㪺㪼㩷㫄㫌㫊㫋㩷㪸㪺㪺㪼㫇㫋㩷㪸㫅㫐㩷㫀㫅㫋㪼㫉㪽㪼㫉㪼㫅㪺㪼㩷㫉㪼㪺㪼㫀㫍㪼㪻㪃㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫀㫅㫋㪼㫉㪽㪼㫉㪼㫅㪺㪼㩷㫋㪿㪸㫋㩷㫄㪸㫐㩷㪺㪸㫌㫊㪼㩷㫌㫅㪻㪼㫊㫀㫉㪼㪻㩷㫆㫇㪼㫉㪸㫋㫀㫆㫅 㪥㫆㪅㩷㪁㪁㪁㪁㪄㪁㪁㪁㪁㪁㪁 㪫㪜㪩㪤㪠㪥㪘㪣㩷㪬㪥㪠㪫 㪝㪚㪚㩷㪠㪛㪑㪰㪢㪋㪄㪡㪮㪐㪄㪏㪌㪌㪎㪐㪄㪇㪇 㪛㪚㩷㪩㪸㫋㫀㫅㪾㩷㪑㩷㪛㪚㪌㪭㩷㪆㩷㪊㪌㫄㪘 㪤㫆㪻㪼㫃㩷㪥㫆㪅㩷㪑㩷㪡㪮㪐㪄㪏㪌㪌㪎㪐㪄㪇㪇 㪰㪘㪤㪘㪟㪘㩷㪤㪦㪫㪦㪩㩷㪧㪦㪮㪜㪩㪜㪛㩷㪧㪩㪦㪛㪬㪚㪫㪪㩷㪚㪦㪅㪃㪣㪫㪛 㪫㪿㫀㫊㩷㪻㪼㫍㫀㪺㪼㩷㪺㫆㫄㫇㫃㫀㪼㫊㩷㫎㫀㫋㪿㩷㪧㪸㫉㫋㩷㪈㪌㩷㫆㪽㩷㫋㪿㪼㩷㪝㪚㪚㩷㪩㫌㫃㪼㫊㪅㩷 㪦㫇㪼㫉㪸㫋㫀㫆㫅㩷㫀㫊㩷㫊㫌㪹㫁㪼㪺㫋㩷㫋㫆㩷㫋㪿㪼㩷㪽㫆㫃㫃㫆㫎㫀㫅㪾㩷㫋㫎㫆㩷㪺㫆㫅㪻㫀㫋㫀㫆㫅㫊㪑 㩿㪈㪀㩷㫋㪿㫀㫊㩷㪻㪼㫍㫀㪺㪼㩷㫄㪸㫐㩷㫅㫆㫋㩷㪺㪸㫌㫊㪼㩷㪿㪸㫉㫄㪽㫌㫃㩷㫀㫅㫋㪼㫉㪽㪼㫉㪼㫅㪺㪼㪃㪸㫅㪻 㩿㪉㪀㩷㫋㪿㫀㫊㩷㪻㪼㫍㫀㪺㪼㩷㫄㫌㫊㫋㩷㪸㪺㪺㪼㫇㫋㩷㪸㫅㫐㩷㫀㫅㫋㪼㫉㪽㪼㫉㪼㫅㪺㪼㩷㫉㪼㪺㪼㫀㫍㪼㪻㪃 㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫀㫅㫋㪼㫉㪽㪼㫉㪼㫅㪺㪼㩷㫋㪿㪸㫋㩷㫄㪸㫐㩷㪺㪸㫌㫊㪼㩷㫌㫅㪻㪼㫊㫀㫉㪼㪻㩷㫆㫇㪼㫉㪸㫋㫀㫆㫅 㪥㫆㪅㩷㪁㪁㪁㪁㪄㪁㪁㪁㪁㪁㪁 㪫㪜㪩㪤㪠㪥㪘㪣㩷㪬㪥㪠㪫 㪝㪚㪚㩷㪠㪛㪑㪰㪢㪋㪄㪡㪮㪐㪄㪏㪌㪌㪎㪐㪄㪇㪇 㪛㪚㩷㪩㪸㫋㫀㫅㪾㩷㪑㩷㪛㪚㪌㪭㩷㪆㩷㪊㪌㫄㪘 㪤㫆㪻㪼㫃㩷㪥㫆㪅㩷㪑㩷㪡㪮㪐㪄㪏㪌㪌㪎㪐㪄㪇㪇 4'8+5+10 01 2#46 01 2#46 0#/' 4'/#4- (+0+5* 36 /#6'4+#.5+<' 5;/2#4601 #22418'& &4#90 %*'%-'&  %*'%-'&  &'5+)0'&   5%#.' %*'%-'& 5+)0'& 4'8+5+10 &#6' 5;/ %1//'4%+#. 61.'4#0%' #55'/$.;&4#9+0) 㨀㧯㧯㧝㧣㧞㧮㧡㧙㧭 6JKTFCPINGRTQLGEVKQP ,+5# 6#6';#/#-#)#-7+0&%1.6&

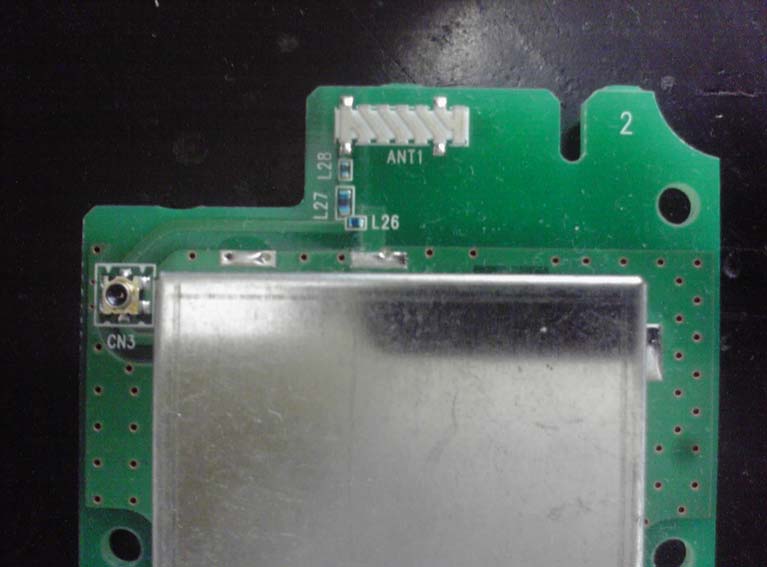

Inside pictures 【TERMINAL UNIT inside pictures】 《front side》《back side》 《antenna part》 RF block 【TERMINAL UNIT RF brock pictures without shield case】 《front side》 《back side》

Test report No. : 30CE0008-YK-01-D-R1 Page : 2 of 20 Issued date : July 23, 2010 Revised date : September 15, 2010 FCC ID : YK4-JW9-85579-00 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information··········································································································· 3 SECTION 2: Equipment under test (E.U.T.) ···························································································· 3 SECTION 3: Test specification, procedures & results ············································································· 4 SECTION 4: Operation of E.U.T. during testing······················································································ 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission)· 9 SECTION 6: 20dB Bandwidth and Duty Cycle ······················································································10 APPENDIX 1: Photographs of test setup ································································································· 11 Radiated Emission ............................................................................................................................11 Worst case position ...........................................................................................................................12 APPENDIX 2: Data of EMI test ················································································································· 13 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) .....................13 20dB Bandwidth ...............................................................................................................................16 Duty Cycle ........................................................................................................................................17 APPENDIX 3:Test Instruments ················································································································· 20 Test report No. : 30CE0008-YK-01-D-R1 Page : 3 of 20 Issued date : July 23, 2010 Revised date : September 15, 2010 FCC ID : YK4-JW9-85579-00 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : YAMAHA MOTOR POWERED PRODUCTS CO., LTD. * Address : 322-1 Narutaki, Kakegawa, Shizuoka, 436-0085 Japan Telephone Number : +81-537-21-0950 Facsimile Number : +81-537-21-0951 Contact Person : Atsushi Uchiyama *Remarks: YAMAHA MOTOR POWERED PRODUCTS CO., LTD. designates Tateyama Kagaku Industry Co., Ltd. as manufacturer of the product (TERMINAL UNIT). SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : TERMINAL UNIT Model No. : JW9-85579-00 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 5.0V Receipt Date of Sample : June 11, 2010 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: JW9-85579-00 (referred to as the EUT in this report) is the TERMINAL UNIT. Feature of EUT: EUT is the data transfer unit. It conducts radio communication (transmitting and receiving) with BASE ASSY and TRANSMITTING UNIT. Clock frequency(ies) in the system : CPU Main: 9.83MHz, RF reference clock: 14.7456MHz Equipment Type : Transceiver Frequency of Operation : 916.2204MHz, 918.0636MHz, 921.7500MHz, 923.5932MHz Frequency Shift : 64kHz Type of Modulation : FSK Antenna Type : Dielectric Chip Antenna Antenna Gain : 1.64dBi (max) Antenna Connector Type : Soldering Power Supply (Inner) : DC 3.3V Test report No. : 30CE0008-YK-01-D-R1 Page : 4 of 20 Issued date : July 23, 2010 Revised date : September 15, 2010 FCC ID : YK4-JW9-85579-00 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.249 Operation within the bands 902-928MHz, 2400-2483.5MHz, 5725-5875MHz and 24.0-24.25GHz 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst margin Results 1 Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207(a) N/A N/A N/A *1) 2 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.249(a)(e) N/A 0.1dB (916.220MHz, Horizontal, QP) Complied 3 Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.205(a)(b) Section 15.209(a) Section 15.249(a)(d)(e) N/A 2.9dB (1836.127MHz, Vertical, PK with Duty factor) Complied 4 20dB Bandwidth ANSI C63.4:2003 Reference N/A N/A N/A 5 Frequency Tolerance ANSI C63.4:2003 Section 15.249(b) N/A N/A N/A *2) Note: UL Japan, Inc.’s EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. The EUT is a vehicle equipment. *2) The test is not required since this EUT does not operate with 24.05GHz to 24.25GHz. *In case any questions arise about test procedure, ANSI C63.4: 2003 is also referred. FCC 15.31 (e) This EUT provides stable voltage (DC 3.3V) constantly to RF part regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement The antenna is not removable from the EUT.…

Text truncated - open the document above for the full version.

Test report No. : 30CE0008-YK-01-D-R1 Page : 13 of 20 Issued date : July 23, 2010 Revised date : September 15, 2010 FCC ID : YK4-JW9-85579-00 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.2 Semi Anechoic Chamber Report No. 30CE0008-YK-01 Date 06/15/2010 Temperature/ Humidity 23 deg. C. / 67% 22 deg. C. / 60% Engineer Katsunori Okai Hiroyuki Furutaka (Avobe 1GHz) (Below 1GHz) Mode Transmitting mode, 916.2204MHz QP or PK FrequencyDetectorAntLossGainDutyLimit FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m]HorVer 188.480 QP21.822.017.08.128.0-18.919.143.524.624.4 375.245 QP21.921.716.79.328.2-19.719.546.026.326.5 560.331 QP26.928.319.010.028.8-27.128.546.018.917.5 572.618 QP26.530.219.110.028.8-26.830.546.019.215.5 884.735 QP32.325.422.311.128.0-37.730.846.08.315.2 902.000 QP21.621.522.511.228.0-27.327.246.018.718.8 916.220 QP87.883.922.611.327.9-93.889.993.90.14.0 1832.441 PK55.856.926.33.032.5-52.653.773.921.320.2 2748.661 PK48.850.527.33.432.3-47.248.973.926.725.0 3664.882 PK43.844.828.33.931.8-44.245.273.929.728.7 4581.102 PK45.646.730.23.731.4-48.149.273.925.824.7 5497.322PKNSNS------73.9 -- 6413.543PKNSNS------73.9 -- 7329.763PKNSNS------73.9 -- 8245.984PKNSNS------73.9 -- 9162.204PKNSNS------73.9 -- Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimit FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m]HorVer 1832.441 PK55.856.926.33.032.5-3.149.550.653.94.43.3 2748.661 PK48.850.527.33.432.3-3.144.145.853.99.88.1 3664.882 PK43.844.828.33.931.8-3.141.142.153.912.811.8 4581.102 PK45.646.730.23.731.4-3.145.046.153.98.97.8 5497.322 PKNSNS----3.1--53.9-- 6413.543 PKNSNS----3.1--53.9-- 7329.763 PKNSNS----3.1--53.9-- 8245.984 PKNSNS----3.1--53.9-- 9162.204 PKNSNS----3.1--53.9-- Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). *NS: No Signal Margin [dB] Margin [dB] ReadingResult Reading [dBuV] Result [dBuV/m] [dBuV][dBuV/m] * The test above 1GHz was performed with PK detect. Average emission measurements were calculated with PK detect and Duty cycle factor. * Duty Factor was calculated with the assumption of the worst condition in 100msec. * The noise measured with PK detect was pulse emission. Test report No. : 30CE0008-YK-01-D-R1 Page : 14 of 20 Issued date : July 23, 2010 Revised date : September 15, 2010 FCC ID : YK4-JW9-85579-00 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.2 Semi Anechoic Chamber Report No. 30CE0008-YK-01 Date 06/15/2010 Temperature/ Humidity 23 deg. C. / 67% 22 deg. C. / 60% Engineer Katsunori Okai Hiroyuki Furutaka (Avobe 1GHz) (Below 1GHz) Mode Transmitting mode, 918.0636MHz QP or PK FrequencyDetectorAntLossGainDutyLimit FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m]HorVer 560.332 QP26.426.819.010.028.8-26.627.046.019.419.0 855.244 QP26.723.622.111.028.1-31.728.646.014.317.4 884.734 QP27.025.022.311.128.0-32.430.446.013.615.6 918.064 QP87.785.322.611.327.9-93.791.393.90.22.6 1836.127 PK55.657.326.33.032.5-52.454.173.921.519.8 2754.191 PK49.150.427.33.432.3-47.548.873.926.425.1 3672.254 PK43.944.328.33.931.8-44.344.773.929.629.2 4590.318 PK45.146.730.23.731.4-47.649.273.926.324.7 5508.382 PKNSNS------73.9 -- 6426.445 PKNSNS------73.9 -- 7344.509 PKNSNS------73.9 -- 8262.572 PKNSNS------73.9 -- 9180.636 PKNSNS------73.9 -- Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimit FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m]HorVer 1836.127 PK55.657.326.33.032.5-3.149.351.053.94.62.9 2754.191 PK49.150.427.33.432.3-3.144.445.753.99.58.2 3672.254 PK43.944.328.33.931.8-3.141.241.653.912.712.3 4590.318 PK45.146.730.23.731.4-3.144.546.153.99.47.8 5508.382 PKNSNS----3.1--53.9-- 6426.445 PKNSNS----3.1--53.9-- 7344.509 PKNSNS----3.1--53.9-- 8262.572 PKNSNS----3.1--53.9-- 9180.636 PKNSNS----3.1--53.9-- Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). *NS: No Signal ReadingResult Reading [dBuV] Result [dBuV/m] [dBuV][dBuV/m] Margin [dB] Margin [dB] * The test above 1GHz was performed with PK detect. Average emission measurements were calculated with PK detect and Duty cycle factor. * Duty Factor was calculated with the assumption of the worst condition in 100msec. * The noise measured with PK detect was pulse emission. Test report No. : 30CE0008-YK-01-D-R1 Page : 15 of 20 Issued date : July 23, 2010 Revised date : September 15, 2010 FCC ID : YK4-JW9-85579-00 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.2 Semi Anechoic Chamber Report No. 30CE0008-YK-01 Date 06/15/2010 Temperature/ Humidity 23 deg. C. / 67% 22 deg. C. / 60% Engineer Katsunori Okai Hiroyuki Furutaka (Avobe 1GHz) (Below 1GHz) Mode Transmitting mode, 923.5932MHz QP or PK FrequencyDetectorAntLossGainDutyLimit FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m]HorVer 589.823 QP26.728.719.410.1 28.8 -27.429.446.018.616.6 634.061 QP26.228.519.810.3 28.7 -27.629.946.018.416.1 884.734 QP26.426.022.311.1 28.0 -…

Text truncated - open the document above for the full version.

Test report No. : 30CE0008-YK-01-D-R1 Page : 11 of 20 Issued date : July 23, 2010 Revised date : September 15, 2010 FCC ID : YK4-JW9-85579-00 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 30CE0008-YK-01-D-R1 Page : 12 of 20 Issued date : July 23, 2010 Revised date : September 15, 2010 FCC ID : YK4-JW9-85579-00 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis
