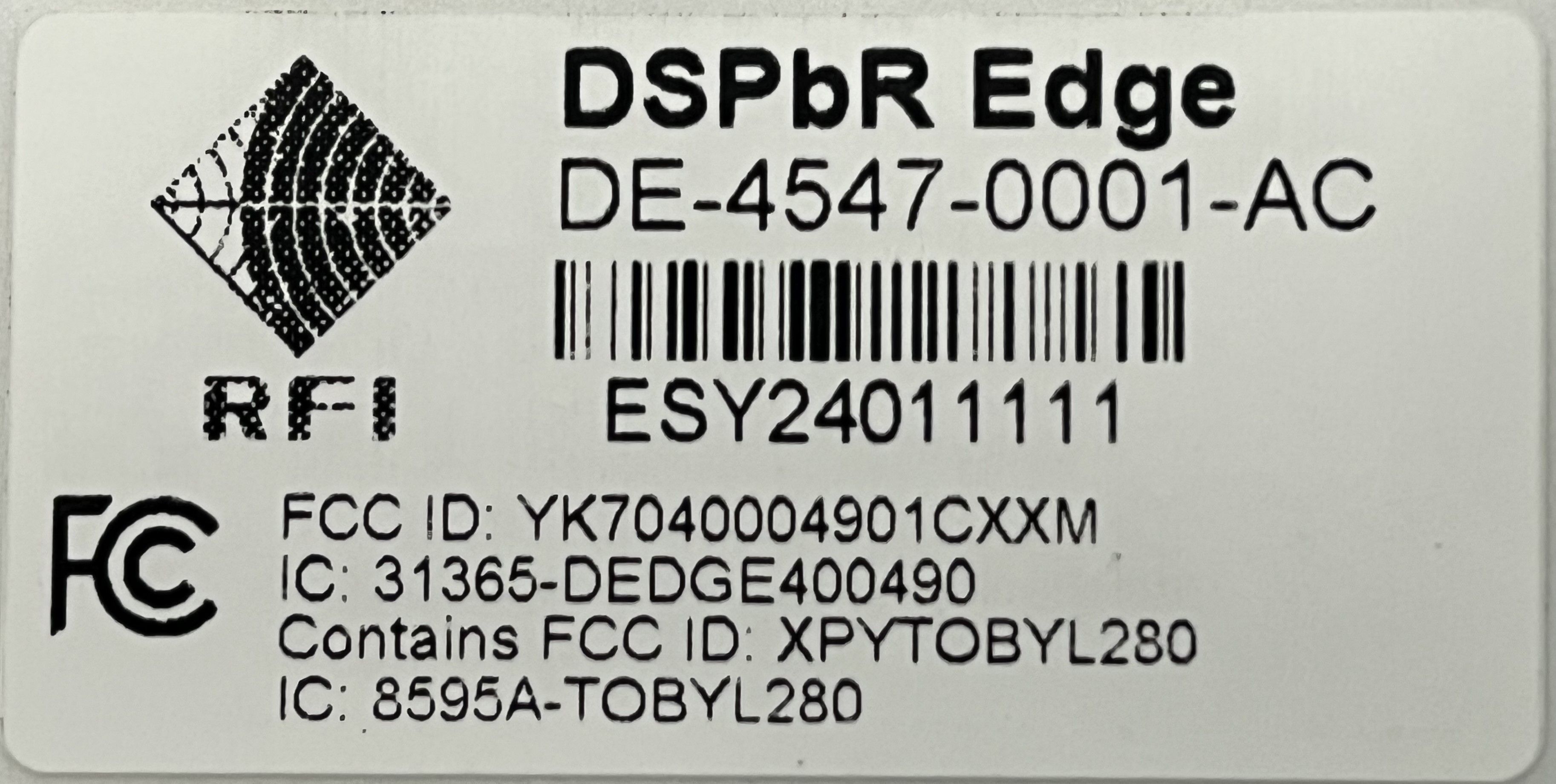

RFI Technology Solutions – DSPbR Edge – External Photographs P/N, S/N, FCC, & ISED Label 1 | P a g e DSPbR EDGE – RHS – P/N, S/N, FCC, & ISED Label RFI Technology Solutions – DSPbR Edge – External Photographs P/N, S/N, FCC, & ISED Label 2 | P a g e DSPbR EDGE – RHS – P/N, S/N, FCC, & ISED Label RFI Technology Solutions – DSPbR Edge – External Photographs P/N, S/N, FCC, & ISED Label 3 | P a g e DSPbR EDGE – RHS – P/N, S/N, FCC, & ISED Label

P2380005_FCC_Part 1.1310_Rev 2.0 Page 1 of 6 Test Report Prepared for: RF Industries Pty Ltd Model: DSPbR Edge Description: Channelized Bidirectional Repeater FCC ID: YK7040004901CXXXM To FCC Part 1.1310 Date of Issue: October 27, 2023 On the behalf of the applicant: RF Industries Pty Ltd 99 Station Road Seven Hills, New South Wales 2147 Australia Attention of: Alireza Etemadfar Ph: +61 478 404 839 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p2380005 Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. P2380005_FCC_Part 1.1310_Rev 2.0 Page 2 of 6 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 10/27/2023 Greg Corbin Original Document 2.0 11/27/23 Greg Corbin Corrected applicants address on page 1 and numeric gain on page 5. P2380005_FCC_Part 1.1310_Rev 2.0 Page 3 of 6 ANAB Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2017. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. FCC Site Reg. #349717 IC Site Reg. #2044A-2 P2380005_FCC_Part 1.1310_Rev 2.0 Page 4 of 6 EUT Description Model: DSPbR Edge Description: Channelized Bidirectional Repeater Serial Number: ESY23089108, ESY23079202 Software:4.9.4 HVIN: DEDGE400490 PMN: DSPbR EDGE UPN: DEDGE400490 Additional Information: The EUT is a channelized bidirectional industrial signal booster / repeater. The EUT is controlled by a webserver GUI. The EUT can provide up to 8 channels with the output power limited to +36 dBm composite output power. The output power is limited in software per the number of channels selected as shown in Table 1. Table 1 - # of Channels and Maximum Output Power # of channels Maximum Power dBm 1 +36 2 +33 4 +30 8 +27 Table 2 - EUT frequency range and emission designators Regulation Frequency Range MHz Modulation Emission Designators FCC Part 90 450 – 490 FM, C4FM, TDMA H- CPM, TDMA H-DQPSK F1D, F1E, F3E, FXE, F1W, G1E, G1D, D7E, D7W, D7D, D1E, D1W, F9W FCC Part 22 454.025 – 459.975 FM, C4FM, TDMA H- CPM, TDMA H-DQPSK ISED 450 – 470 FM, C4FM, TDMA H- CPM, TDMA H-DQPSK The manufacturer does not supply the antennas. The antennas are site specific and determined at the time of installation. The manufacturer limits the output power to + 36 dBm composite output power via software and has provided the following statement: “The DSPbR Edge has a configurable output power level, which allows the user to lower the power level per channel in 1dB increments. Even though the DSPbR Edge is capable of 36dBm composite power, based on the antenna gain and feeder loss and the FCC ERP limit of 37dBm, the power levels per channel must be set appropriately by the end user to ensure the ERP limit of 37dBm is not exceeded.” Since the ERP limit is +37 dBm, this RF exposure exhibit calculates the MPE based on maximum manufacturer output power of +36 dBm with 1 dBi antenna gain. Any antenna used with a gain higher than 1 dBi, will require the output power to be reduced accordingly to stay within the 37 dBm ERP limit. P2380005_FCC_Part 1.1310_Rev 2.0 Page 5 of 6 MPE Evaluation This is a mobile device used in Uncontrolled Exposure environment. Limits Controlled Exposure 47 CFR 1.1310 Table 1, (A) 0.3-3.0 MHz: Limit [mW/cm²] = 100 3.0-30 MHz: Limit [mW/cm²] = (900/f²) 30-300 MHz: Limit [mW/cm²] = 1.0 300-1500 MHz: Limit [mW/cm²] = f/300 1500-100,000 MHz Limit [mW/cm²] = 5 Limits Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz: Limit [mW/cm²] = 100 1.34-30 MHz: Limit [mW/cm²] = (180/f²) 30-300 MHz: Limit [mW/cm²] = 0.2 300-1500 MHz: Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Data Test Frequency, MHz 450 Power, Conducted, mW (P) 4000 Antenna Gain Isotropic 1 dBi Antenna Gain Numeric (G) 1.26 Antenna Type N/A Distance (R) 20 cm 푆= 푃∗퐺 4휋푟 ଶ Power Density (S) mw/cm 2 Power Density (S) = 1.00 mw/cm 2 Limit = (from above table) = 0.300 mw/cm 2 At 450 MHz, with an antenna gain of 1 dBi, the transmitter at 1.0 mw/cm 2 is over the RF exposure limit of 0.300 mw/cm 2 when calculated at 20 cm. The minimum safe distance is calculated on the next page. P2380005_FCC_Part 1.1310_Rev 2.0 Page 6 of 6 Minimum Safe Distance Evaluation This is a mobile device used in Uncontrolled Exposure environment. Limits Controlled Exposure 47 CFR 1.1310 Table 1, (A) 0.3-3.0 MHz: Limit [mW/cm²] = 100 3.0-30 MHz: Limit [mW/cm²] = (900/f²) 30-300 MHz: Limit [mW/cm²] = 1.0 300-1500 MHz: Limit [mW/cm²] = f/300 1500-100,000 MHz Limit [mW/cm²] = 5 Limits Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz: Limit [mW/cm²] = 100 1.34-30 MHz: Limit [mW/cm²] = (180/f²) 30-300 MHz: Limit [mW/cm²] = 0.2 300-1500 MHz: Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Data Test Frequency, MHz 450 Power, Conducted, mW (P) 4000 Antenna Gain Isotropic 1 dBi Antenna Gain Numeric (G) 1.26 Antenna Type N/A Limit (L) 0.300 R=√(PG/4πL) Distance (R) cm Power mW (P) Numeric Gain (G) Limit (L) 36.6 4000 1.26 0.300 At 450 MHz, the minimum safe distance is 36.6 cm when using an antenna with 1 dBi gain. If an antenna is used with a gain of > 1 dBi, the minimum safe distance will change and will need to be re- evaluated. END OF TEST REPORT

P2380005_ FCC_ Part 90_Rev 2.0 Page 1 of 35 Test Report Prepared for: RF Industries Pty Ltd Model: DSPbR Edge Description: Channelized Bidirectional Repeater FCC ID: YK7040004901CXXXM ISED ID:31365-DEDGE400490 To FCC Part 90 FCC Part 22 RSS-131 Issue 4 (December 16, 2022) Date of Issue: October 27, 2023 On the behalf of the applicant: RF Industries Pty Ltd 99 Station Road Seven Hills, New South Wales 2147 Australia Attention of: Alireza Etemadfar Ph: +61 478 404 839 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p2380005 Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested. P2380005_ FCC_ Part 90_Rev 2.0 Page 2 of 35 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 10/27/2023 Greg Corbin Original Document 2.0 1/4/2024 Greg Corbin Corrected low band duplexer freq, page 8 table 4. Changed Part 22 test frequency and updated test data for Part 22 throughout the report. Added C63.26 test method references to test summary table Updated Annex A, C, E with part 22 test data Added the ISED ID for the cellular module to page 6 P2380005_ FCC_ Part 90_Rev 2.0 Page 3 of 35 Table of Contents Description Page Table of Annexes 3 Test Result Summary 4 Standard Test Conditions and Engineering Practices 6 AGC Threshold 9 Out of Band Rejection 11 Conducted Output Power and Amplifier Gain 14 Conducted Spurious Emissions 18 Radiated Spurious Emissions 20 Input vs Output, Occupied Bandwidth (Emission Masks) 23 Intermodulation 27 Noise Figure 30 Noise Power 31 Frequency Stability (Temperature Variation) 32 Measurement Uncertainty 34 Test Equipment Utilized 35 Table of Annexes Description Page Annex A Conducted Spurious Emissions 19 Annex B Radiated Spurious Emissions 22 Annex C Input vs Output 26 Annex D Emission Mask 26 Annex E Intermodulation 29 Annex F Noise Power 31 P2380005_ FCC_ Part 90_Rev 2.0 Page 4 of 35 Test Result Summary Specification Test Name Pass, Fail, N/A Comments FCC ISED KDB 935210 D05 (4.2) C63.26 (7.2.3.1 a) N/A AGC Threshold Pass KDB 935210-D05 (4.3) C63.26 (7.2.3.2) RSS-131 (9.1) Out of Band Rejection Pass 90.219 (e)(1) 2.1046 KDB 935210 D05 (4.5) C63.26 (7.2.3.4) RSS-131 (9.3, 10.2) Output Power (Conducted) Pass 90.219 (e)(4)(ii) 90.210 2.1049 KDB 935210 D05 (4.4) C63.26 (7.2.3.3) RSS-131 (9.2) Input vs Output_ Occupied Bandwidth (Emission Masks) Pass 90.219 (e)(3) 90.219 (e)(4)(iii) 2.1051 KDB 935210 D05 (4.7.3) C63.26 (7.2.3.7) RSS-131 (10.5) Spurious Emissions (Transmitter Conducted) Pass 2.1053 KDB 935210 D05 (4.9) C63.26 (7.2.3.9) N/A Radiated Spurious Emissions Pass 90.219 (e)(3) KDB 935210-D05 (4.7) C63.26 (7.2.3.6) RSS-131 (10.3) Intermodulation Pass 90.219(e)(2) KDB 935210-D05 (4.6) C63.26 (7.2.3.5) RSS-131 (10.4) Noise Figure Pass N/A RSS-131 (10.4) Noise Limits Pass 90.219 (e)(4)(i) 90.213 KDB 935210-D05 (4.8) C63.26 (7.2.3.8) RSS-131 (9.4) Frequency Stability (Temperature Variation) Pass 90.219 (e)(4)(i) 90.213 KDB 935210-D05 (4.8) C63.26 (7.2.3.8) RSS-131 (9.4) Frequency Stability (Voltage Variation) Pass Statements of conformity are reported as:  Pass - the measured value is below the acceptance limit, acceptance limit = test limit.  Fail - the measured value is above the acceptance limit, acceptance limit = test limit. P2380005_ FCC_ Part 90_Rev 2.0 Page 5 of 35 ANAB Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2017. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. FCC Site Reg. #349717 IC Site Reg. #2044A-2 P2380005_ FCC_ Part 90_Rev 2.0 Page 6 of 35 Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations Part 90.219, Part 2, ANSI C63.26-2015, KDB 935210 D05, RSS-131, RSS-GEN where appropriate. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing. In accordance with ANSI/TIA 603C, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 24.9 – 31.0 25.9 – 43.0 961.7 – 974.6 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: DSPbR Edge Description: Channelized Bidirectional Repeater Serial Number: ESY23089108, ESY23079202 Software:4.9.4 HVIN: DEDGE400490 PMN: DSPbR EDGE UPN: DEDGE400490 Additional Information: The EUT is a channelized bidirectional industrial signal booster / repeater. The EUT is controlled by a webserver GUI. The EUT has a pre-certified cellular modem installed for remote access. The cellular modem FCC ID is XPYTOBYL280. The cellular modem ISED ID is 8595A-TOBYL280. The modem has singular module approval for Bands 2,5,7. The modem was connected over the air to a basestation simulator during the radiated emissions testing. See the radiated emissions section of this report for more details. The EUT can provide up to 8 channels with the output power limited to +36 dBm composite output power. The output power is limited in software per the number of channe…

Text truncated - open the document above for the full version.

P2380005_Annex A _ Rev 2.0 Page 1 of 19 Annex A Conducted Spurious Emissions Note: Any emission over the limit in the graphs in this Annex, are the fundamental transmit frequencies and are exempt from the limit. These signals are identified with markers and should be ignored. P2380005_Annex A _ Rev 2.0 Page 2 of 19 Donor to Server_ no duplexer_ Booster mode_459.975 MHz_CW_1 - 5 GHz Donor to Server_ no duplexer_ Booster mode_459.975 MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 3 of 19 Donor to Server_ no duplexer_ Booster mode_469.975 MHz_CW_1 - 5 GHz Donor to Server_ no duplexer_ Booster mode_469.975 MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 4 of 19 Donor to Server_ no duplexer_ Repeater mode_D-450.025 MHz_ S-459.975 MHz_CW_1 - 5 GHz Donor to Server_ no duplexer_ Repeater mode_D-450.025 MHz_ S-459.975 MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 5 of 19 Donor to Server_ no duplexer_ Repeater mode_D-450.025 MHz_ S-469.975 MHz_CW_1 - 5 GHz Donor to Server_ no duplexer_ Repeater mode_D-450.025 MHz_ S-469.975 MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 6 of 19 Donor to Server_ no duplexer_ Repeater mode_D-454.350_S-459.350 MHz_CW_1 - 5 GHz Donor to Server_ no duplexer_ Repeater mode_D-454.350_S-459.350 MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 7 of 19 Donor to Server_ with duplexer_ Booster mode_459.975 MHz_CW_1 - 5 GHz Donor to Server_ with duplexer_ Booster mode_459.975 MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 8 of 19 Donor to Server_ with duplexer_ Booster mode_485.5 MHz_CW_1 - 5 GHz (FCC only) Donor to Server_ with duplexer_ Booster mode_485.5 MHz_CW_30 - 1000 MHz (FCC only) P2380005_Annex A _ Rev 2.0 Page 9 of 19 Donor to Server_ with duplexer_ Repeater mode_D-457.025 MHz_ S-461.975 MHz_1 - 5 GHz Donor to Server_ with duplexer_ Repeater mode_D-457.025 MHz_ S-461.975 MHz_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 10 of 19 Donor to Server_ with duplexer_ Repeater mode_D-483.5 MHz_ S- 487.5 MHz_CW_1 - 5 GHz (FCC only) Donor to Server_ with duplexer_ Repeater mode_D-483.5 MHz_ S- 487.5 MHz_CW_30 - 1000 MHz (FCC only) P2380005_Annex A _ Rev 2.0 Page 11 of 19 Server to Donor_ no duplexer_ Booster mode_459.975 MHz_CW_1 - 5 GHz Server to Donor_ no duplexer_ Booster mode_459.975 MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 12 of 19 Server to Donor_ no duplexer_ Booster mode_469.975 MHz_CW_1 - 5 GHz Server to Donor_ no duplexer_ Booster mode_469.975 MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 13 of 19 Server to Donor_ no duplexer_ Repeater mode_S-450.025 MHz_D-459.975 MHz_CW_1 - 5 GHz Server to Donor_ no duplexer_ Repeater mode_S-450.025 MHz_D-459.975 MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 14 of 19 Server to Donor_ no duplexer_ Repeater mode_S-450.025 MHz_D-469.975 MHz_CW_1 - 5 GHz Server to Donor_ no duplexer_ Repeater mode_S-450.025 MHz_D-469.975 MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 15 of 19 Server to Donor_ no duplexer_ Repeater mode_S-459.350_D-454.350 MHz_CW_1 - 5 GHz Server to Donor_ no duplexer_ Repeater mode_S-459.350_D-454.350 MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 16 of 19 Server to Donor_ with duplexer_ Booster mode_451.5MHz_CW_1 - 5 GHz Server to Donor_ with duplexer_ Booster mode_451.5MHz_CW_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 17 of 19 Server to Donor_ with duplexer_ Booster mode_476.5 MHz_CW_1 - 5 GHz (FCC only) Server to Donor_ with duplexer_ Booster mode_476.5 MHz_CW_30 - 1000 MHz (FCC only) P2380005_Annex A _ Rev 2.0 Page 18 of 19 Server to Donor_ with duplexer_ Repeater mode_S-450.025 MHz_D-453.975 MHz_1 - 5 GHz Server to Donor_ with duplexer_ Repeater mode_S-450.025 MHz_D-453.975 MHz_30 - 1000 MHz P2380005_Annex A _ Rev 2.0 Page 19 of 19 Server to Donor_ with duplexer_ Repeater mode_S-474.025 MHz_D-478.975 MHz_CW_1 - 5 GHz (FCC only) Server to Donor_ with duplexer_ Repeater mode_S-474.025 MHz_D-478.975 MHz_CW_30 - 1000 MHz (FCC only)

P2380005_Annex B _ Rev 1.0 Page 1 of 9 Annex B Radiated Spurious Emissions Note: in the spectrum analyzer plots, there are markers for the cellular modem fundamental frequencies that are exempt from the spurious limits and should be ignored. The highest spurious frequency is marked and included in the test summary tables in the test report. The individual graph titles describe what filtering (notch, lowpass, or highpass) was used between the receive antenna and pre-amplifier. P2380005_Annex B _ Rev 1.0 Page 2 of 9 RE_1 - 10 GHz_Donor to Server_459.5 MHz_B5 connected_1 - 10 GHz HP filter for B5 RE_1 - 10 GHz_Server to Donor_451.5 MHz_B5 connected_1 - 10 GHz HP filter for B5 P2380005_Annex B _ Rev 1.0 Page 3 of 9 RE_1 - 3.2 GHz_Donor to Server_459.5 MHz_B3 connected_1747.5 MHz notch filter for B3 RE_1 - 3.2 GHz_Donor to Server_459.5 MHz_B7 connected_2535 MHz notch filter for B7 P2380005_Annex B _ Rev 1.0 Page 4 of 9 RE_1 - 3.2 GHz_Server to Donor_451.5 MHz_B3 connected_1747.5 MHz notch filter for B3 RE_1 - 3.2 GHz_Server to Donor_451.5 MHz_B7 connected_2535 MHz notch filter for B7 P2380005_Annex B _ Rev 1.0 Page 5 of 9 RE_3.2 - 13 GHz_Donor to Server_459.5 MHz_B3 connected_3.2 GHz HPF for B3 RE_3.2 - 13 GHz_Donor to Server_459.5 MHz_B7 connected_3.2 GHz HPF for B7 P2380005_Annex B _ Rev 1.0 Page 6 of 9 RE_3.2 - 13 GHz_Server to Donor_451.5 MHz_B3 connected_3.2 GHz HPF for B3 RE_3.2 - 13 GHz_Server to Donor_451.5 MHz_B7 connected_3.2 GHz HPF for B7 P2380005_Annex B _ Rev 1.0 Page 7 of 9 RE_Doner to Server_459.5 MHz_Modem Band 3 on_30 - 1000 MHz RE_Doner to Server_459.5 MHz_Modem Band 5 on_30 - 1000 MHz P2380005_Annex B _ Rev 1.0 Page 8 of 9 RE_Doner to Server_459.5 MHz_Modem Band 7 on_30 - 1000 MHz RE_Server to Doner_451.5 MHz_Modem Band 3 on_30 - 1000 MHz P2380005_Annex B _ Rev 1.0 Page 9 of 9 RE_Server to Doner_451.5 MHz_Modem Band 5 on_30 - 1000 MHz RE_Server to Doner_451.5 MHz_Modem Band 7 on_30 - 1000 MHz

P2380005_Annex C _ Rev 2.0 Page 1 of 59 Annex C Input vs. Output (Occupied Bandwidth) P2380005_Annex C _ Rev 2.0 Page 2 of 59 Input Signal_C4FM_450.025 MHz_ Pin = -63.5 dBm Input Signal_C4FM_454.35 MHz_ Pin = -64 dBm P2380005_Annex C _ Rev 2.0 Page 3 of 59 Input Signal_C4FM_459.35 MHz_ Pin = -64 dBm Input Signal_C4FM_459.975 MHz_ Pin = -63.5 dBm P2380005_Annex C _ Rev 2.0 Page 4 of 59 Input Signal_C4FM_469.975 MHz_ Pin = -63.5 dBm Input Signal_C4FM_474.025 MHz_ Pin = -63.7 dBm P2380005_Annex C _ Rev 2.0 Page 5 of 59 Input Signal_C4FM_476.5 MHz_ Pin = -63.7 dBm Input Signal_C4FM_483.5 MHz_ Pin = -63.7 dBm P2380005_Annex C _ Rev 2.0 Page 6 of 59 Input Signal_C4FM_485.5 MHz_ Pin = -63.7 dBm Input Signal_FM_450.025 MHz_ Pin = -63.5 dBm P2380005_Annex C _ Rev 2.0 Page 7 of 59 Input Signal_FM_454.35 MHz_ Pin = -64 dBm Input Signal_FM_459.35 MHz_ Pin = -64 dBm P2380005_Annex C _ Rev 2.0 Page 8 of 59 Input Signal_FM_459.975 MHz_ Pin = -63.5 dBm Input Signal_FM_469.975 MHz_ Pin = -63.5 dBm P2380005_Annex C _ Rev 2.0 Page 9 of 59 Input Signal_FM_474.025 MHz_ Pin = -63.7 dBm Input Signal_FM_476.5 MHz_ Pin = -63.7 dBm P2380005_Annex C _ Rev 2.0 Page 10 of 59 Input Signal_FM_483.5 MHz_ Pin = -63.7 dBm Input Signal_FM_485.5 MHz_ Pin = -63.7 dBm P2380005_Annex C _ Rev 2.0 Page 11 of 59 Input Signal_ TDMA H-CPM_450.025 MHz_ Pin = -63.5 dBm Input Signal_ TDMA H-CPM_459.975 MHz_ Pin = -63.5 dBm P2380005_Annex C _ Rev 2.0 Page 12 of 59 Input Signal_ TDMA H-CPM_469.975 MHz_ Pin = -63.5 dBm Input Signal_ TDMA H-CPM_474.025 MHz_ Pin = -63.7 dBm P2380005_Annex C _ Rev 2.0 Page 13 of 59 Input Signal_ TDMA H-CPM_476.5 MHz_ Pin = -63.7 dBm Input Signal_ TDMA H-DPQSK_450.025 MHz_ Pin = -63.5 dBm P2380005_Annex C _ Rev 2.0 Page 14 of 59 Input Signal_ TDMA H-DPQSK_459.975 MHz_ Pin = -63.5 dBm Input Signal_ TDMA H-DPQSK_469.975 MHz_ Pin = -63.5 dBm P2380005_Annex C _ Rev 2.0 Page 15 of 59 Input Signal_TDMA_H-DPQSK_454.35 MHz_ Pin = -64 dBm Input Signal_TDMA_H-DPQSK_459.35 MHz_ Pin = -64 dBm P2380005_Annex C _ Rev 2.0 Page 16 of 59 Input Signal_TDMA_H-DQPSK_476.5 MHz_ Pin = -63.7 dBm Input Signal_TDMA_H-DQPSK_483.5 MHz_ Pin = -63.7 dBm P2380005_Annex C _ Rev 2.0 Page 17 of 59 Input Signal_TDMA_H-DQPSK_485.5 MHz_ Pin = -63.7 dBm Output_ Donor to Server_ Booster config with Duplexer_485.5 MHz_C4FM (FCC only) P2380005_Annex C _ Rev 2.0 Page 18 of 59 Output_ Donor to Server_ Booster config with Duplexer_485.5 MHz_C4FM_Pin + 3 dB (FCC only) Output_ Donor to Server_ Booster config with Duplexer_485.5 MHz_ FM (FCC only) P2380005_Annex C _ Rev 2.0 Page 19 of 59 Output_ Donor to Server_ Booster config with Duplexer_485.5 MHz _FM_ Pin + 3 dB (FCC only) Output_ Donor to Server_ Booster config with Duplexer_485.5 MHz_ TDMA_ H-DQPSK (FCC only) P2380005_Annex C _ Rev 2.0 Page 20 of 59 Output_ Donor to Server_ Booster config with Duplexer_485.5 MHz_ TDMA_ H-DQPSK_ Pin + 3 dB (FCC only) Output_ Donor to Server_ no duplexer_ Booster config_459.975 MHz_C4FM P2380005_Annex C _ Rev 2.0 Page 21 of 59 Output_ Donor to Server_ no duplexer_ Booster config_459.975 MHz_C4FM_Pin + 3 dB Output_ Donor to Server_ no duplexer_ Booster config_459.975 MHz_ FM P2380005_Annex C _ Rev 2.0 Page 22 of 59 Output_ Donor to Server_ no duplexer_ Booster config_459.975 MHz _FM_ Pin + 3 dB Output_ Donor to Server_ no duplexer_ Booster config_459.975 MHz_ TDMA H-DPQSK P2380005_Annex C _ Rev 2.0 Page 23 of 59 Output_ Donor to Server_ no duplexer_ Booster config_459.975 MHz_ TDMA H-DPQSK_ Pin + 3 dB Output_ Donor to Server_ no duplexer_ Booster config_469.975_C4FM P2380005_Annex C _ Rev 2.0 Page 24 of 59 Output_ Donor to Server_ no duplexer_ Booster config_469.975_C4FM_Pin + 3 dB Output_ Donor to Server_ no duplexer_ Booster config_469.975_FM P2380005_Annex C _ Rev 2.0 Page 25 of 59 Output_ Donor to Server_ no duplexer_ Booster config_469.975_FM_Pin + 3 dB Output_ Donor to Server_ no duplexer_ Booster config_469.975_TDMA H-DPQSK P2380005_Annex C _ Rev 2.0 Page 26 of 59 Output_ Donor to Server_ no duplexer_ Booster config_469.…
