YKO-WK-8800AIR-LOCK WK-8800 NETWORK STABALIZER MODULE BOOSTER

Airgoon L TD. 2207 Concord Pike Unit 700 Wilmington, DE 19803-2908 PH: (888) 728-6330 FAX: (888) 728-6322 November 17 th 2011 Model: Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module Introduction Manual. The Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module is the world’s only Intelligent Network Stabilizer Module for simple plug and play operation. It is the only module on the market today that will exceed the specifications of today and beyond current 4G protocols. The Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module has been engineered to keep pace with the Network Operator’s future developments in technologies thereby removing the fear of obsolescence. Built in a compact package size just measuring (LxWxH) 50.8 mm. x 50.8 mm. x 12.7 mm., it provides for a simple integration or along side other devices. The Airgoon Air-Lock WK 8800 Wireless Network Stabilizer has been designed and manufactured for enhancing, extending or maintaining a constant signal for better performance without impacting the Carrier’s Networks. The Air Lock WK 8800 is available for use on all 850/1900 MHz networks with the following: 700 MHz, 1700 MHz, 2100 MHz and 2.5 GHz. Frequency Bands being released in the Q1 2012. FCC/IC Regulatory Information Important notice We, Airgoon LTD 2207 Concord Pike, Suite 700, Wilmington, Delaware 19803 declare that the Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module complies with Parts 22H and 24E of the FCC CFR47 Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. Because of the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare but they do occur when wireless devices such as the Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module are used. The Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Airgoon and its affiliates accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using The Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module Network Stabilizer, or for failure of the Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module to transmit or receive such data. Confidential and Proprietary Information “Not to be Disseminated”. Page 1 of 5 . Forever Evolving Today’s Technologies Airgoon L TD. 2207 Concord Pike Unit 700 Wilmington, DE 19803-2908 PH: (888) 728-6330 FAX: (888) 728-6322 November 17 th 2011 Model: Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module The Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module has been granted approval for mobile and fixed applications. If using the Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module within other products additional FCC/IC (Industry Canada) certification may or may not be needed if they meet the following conditions; In a mobile environment at least 25.4 cm separation distance between the outdoor antenna and the user’s body and at least 20.32 cm separation between the antenna and the user’s body must be maintained at all times. In a building structure environment at least 50.8cm separation distance between the outdoor antenna and the user’s body and at least 38.1 cm separation distance between the outdoor antenna and the user’s body must be maintained at all times. When using the Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module, use of any antenna gain higher than 15.12 dBi using is in violation of FCC regulations, for which the offender is fully liable. Failure of the end-user to comply with the applicable requirements may result in the unlawful operation and adverse action against the end-user by the applicable National Regulatory Authority. This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all Applicable Regulatory Certifications and Approvals. If using the Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module within another device a label must be affixed to the outside of the end product into which is incorporated, with a statement similar to the following: This device contains FCC ID: --------- and IC ID: ---------- The Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module ID: IC------- where ID: IC------- is the Airgoon Network Stabilizer’s certification number. A user manual with the end product must clearly indicate the operating requirements and conditions that must be observed to ensure compliance with current FCC / IC RF Exposure Guidelines. The end product with an the Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module may also need to pass the FCC Parts 22H and 24E Unintentional Emission Testing Requirements and be properly authorized by the FCC. Confidential and Proprietary Information “Not to be Disseminated”. Page 2 of 5. Forever Evolving Today’s Technologies Airgoon L TD. 2207 Concord Pike Unit 700 Wilmington, DE 19803-2908 PH: (888) 728-6330 FAX: (888) 728-6322 November 17 th 2011 Model: Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module Installation Instructions Placement of the Antennae is very important, as the Antennae location may affect the RF performance. The Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module is shielded to prevent network interference, however careful consideration must be made when deciding where to place the antennae. Note: AIRGOON CANNOT GUARENTEE OTHER MANUFACTUERS PRODUCTS, THE USE OF ANY OTHER ANTENNAE OTHER THAN AIR…

Text truncated - open the document above for the full version.

Airgoon LTD. 2207 Concord Pike Unit 700 Wilmington, DE 19803-2908 PH: (888) 728-6330 FAX: (888) 728-6322 Forever Evolving Today’s Technologies Attestation for FCC Declaration of Conformity. Brand: Airgoon LTD Model Number: Air-Lock WK 8800 Date: May 11th, 2012 FCC ID: YKO-WK-8800 ATTESTATION STATEMENT. § 22.383 In-building radiation systems. Licensees may install and operate in-building radiation systems without applying for authorization or notifying the FCC, provided that the locations of the in-building radiation systems are within the protected service area of the licensee's authorized transmitter(s) on the same channel or channel block. Please be notified that we, Airgoon LTD, declares that the product which bears the above FCC ID is also compliant with the FCC Requirements for DoC. Sincerely Yours, Q Mr. Robert K Skilton VP R & D Engineering [email protected] Page 1 of 1.

Applicant/Grantee Airgoon L.T.D. FCC ID: YKO-WK-8800 Section 15.212 Modular Transmitters Request for Modular Approval X Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. N 3 The modular transmitter must have its own power supply regulation. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. Signature______ Name/Title: Robert Skilton Company Name: Airgoon L.T.D Address: 2207 Concord Pike Unit 700 Wilmington Delaware 19803 TEL: 888-728-6330 FAX: 888-728-6322 Email: [email protected]

Airgoon LTD. 2207 Concord Pike Unit - 700 Wilmington, DE 19803-2908 TEL: (888) 728-6330 FAX: (888) 728-6322 Date: 2012/2/2 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize (Miller Lee /Measurement Center Manger) of Compliance Certification Services Inc . and hereafter referred to as (CCS), to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by (Miller Lee / Measurement Center Manger) of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. In authorizing (CCS) as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted? d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Q Mr. Robert K Skilton VP R & D Engineering [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

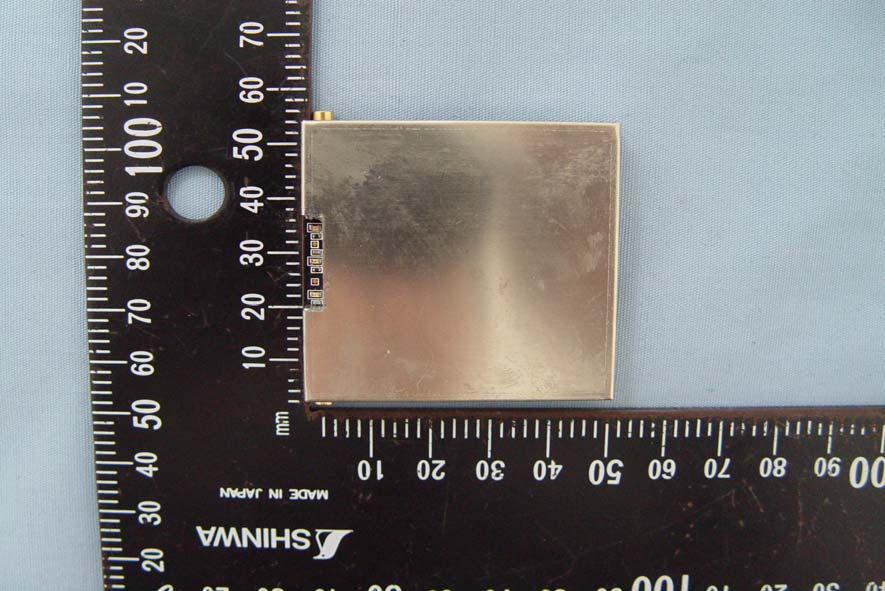

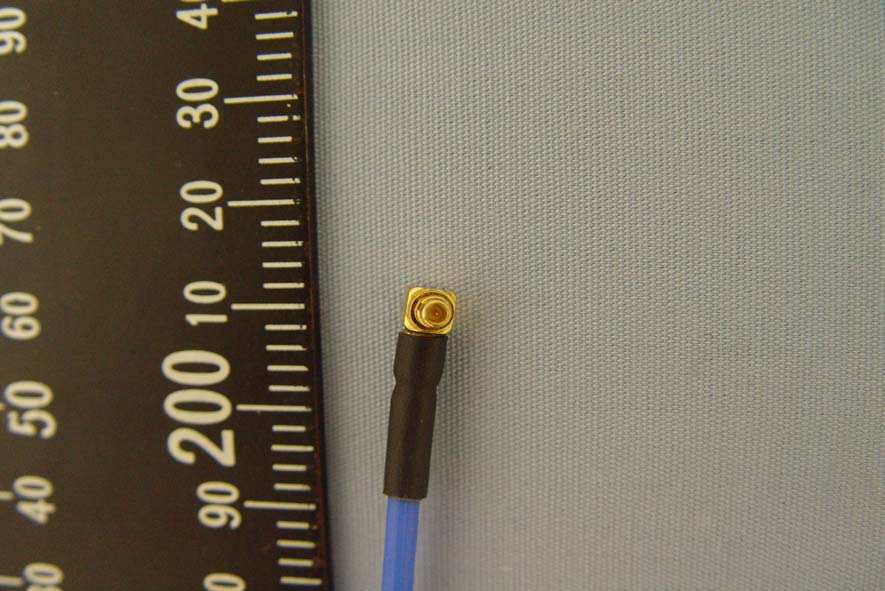

Compliance Certification Services Inc. Report No.: T111021002 Date of Issue: November 16, 2011 A1 - 1 / 10 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T111021002 Date of Issue: November 16, 2011 A1 - 2 / 10 Compliance Certification Services Inc. Report No.: T111021002 Date of Issue: November 16, 2011 A1 - 3 / 10 Compliance Certification Services Inc. Report No.: T111021002 Date of Issue: November 16, 2011 A1 - 4 / 10 Compliance Certification Services Inc. Report No.: T111021002 Date of Issue: November 16, 2011 A1 - 5 / 10 Compliance Certification Services Inc. Report No.: T111021002 Date of Issue: November 16, 2011 A1 - 6 / 10 Compliance Certification Services Inc. Report No.: T111021002 Date of Issue: November 16, 2011 A1 - 7 Compliance Certification Services Inc. Report No.: T111021002 Date of Issue: November 16, 2011 A1 - 8

Model: Air­Lock WK 8800 850/1900 MHz Network Stabilizer Module ID: YKO‐WK‐8800 S/N: 103111000001 9176A‐WK8800 FCC/IC Regulatory Information Important Notice. This device has been tested and complies with the following: Parts 22H and 24E of the FCC CFR47 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. Label Location

Compliance Certification Services Inc. Report No.: T111021002 Date of Issue: November 16, 2011 A1 - 9 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T111021002 Date of Issue: November 16, 2011 A1 - 10

SPECIFICATION Part No.: OD012 Product Name : Multi-Band Omni-Directional Marine Outdoor Antenna. Works with GSM / CDMA / PCS / DCS / UMTS/ WCDMA / LTE Features : Excellent Radiation Patterns Lightweight All Weather Operation Installed for Vertical Operation RoHS Compliant Photo : REVISION STATUS : Version Date Page Revision Description Prepared Approved 01 Mar 4th 2011 All New Product Release Airgoon Products Groups C. Clements 02 Apr 4th 2011 All Return Loss Added Airgoon Products Groups C. Clements 03 May 4th 2011 All Housing ModificationAirgoon Products Groups C. Clements 1.0 Introduction: The OD012 Multi-Band Marine Antenna is professionally designed with the highest industrial quality. The antenna base is aluminum and resists rust. The products have good water resistance. Great care has been taken in the manufacture and assembly of the internal copper elements so they can bear a high input power. 2.0 Antenna Performance: Frequency Band 700 MHz - 2500 MHz Bandwidth 96 MHz. (Cellular) / 140 MHz. (PCS) Gain 12 dBi Impedance 50 Ohm Polarization Vertical Max Power Handling 50W VSWR 1.5:1 (Cellular) / 2.0:1 (PCS) Vertical Beamwidth 15° Horizontal Beamwidth 360° 3.0 Mechanical Specifications: Connector 1 x TNC Type Female Connector Location Bottom Dimensions (L*W*D) Length 450mm, Diameter 170mm Radome Diameter 56mm Weight (& Mounting Bracket max) 320g Antenna Heart Brass Brass stack Radome Material White Fiberglass Mounting Options U-Bolt(Stainless steel) 4.0 Environmental Ratings: Lightening Protection None Temperature -40°C to +80°C Wind Survival >150mph 5.0 Return Loss: Test Data Taken at 2.45GHz. 6.0 VSWR: Test Data Taken at 2.45GHz. 7.0 Smith Chart: Test Data Taken at 2.45GHz. 8.0 Radiation Patterns: Vertical E-plane co-pol ------ 3-dB beam-with=15 Deg Test Data Taken at 2.45GHz. Horizontal E-plane co-pol ------ 3-dB beam-with=360 Deg Test Data Taken at 2.45GHz.

SPECIFICATION Part No.: OD015 Product Name : Multi-Band Omni-Directional Marine Outdoor Antenna. Works with GSM / CDMA / PCS / DCS / UMTS/ WCDMA / LTE Features : Excellent Radiation Patterns Lightweight All Weather Operation Installed for Vertical Operation RoHS Compliant Photo : REVISION STATUS : Version Date Page Revision Description Prepared Approved 01 Mar 4th 2011 All New Product Release Airgoon Products Groups C. Clements 02 Apr 4th 2011 All Return Loss Added Airgoon Products Groups C. Clements 03 May 4th 2011 All Housing ModificationAirgoon Products Groups C. Clements 1.0 Introduction: The OD015 Multi-Band Marine Antenna is professionally designed with the highest industrial quality. The antenna base is aluminum and resists rust. The products have good water resistance. Great care has been taken in the manufacture and assembly of the internal copper elements so they can bear a high input power. 2.0 Antenna Performance: Frequency Band 700 MHz - 2500 MHz Bandwidth 96 MHz. (Cellular) / 140 MHz. (PCS) Gain 15 dBi Impedance 50 Ohm Polarization Vertical Max Power Handling 50W VSWR 1.5:1 (Cellular) / 2.0:1 (PCS) Vertical Beamwidth 15° Horizontal Beamwidth 360° 3.0 Mechanical Specifications: Connector 1 x TNC Type Female Connector Location Bottom Dimensions (L*W*D) Length 450mm, Width 203mm, Diameter 64mm Radome Diameter N/A Weight (& Mounting Bracket max) 320g Antenna Heart Brass Brass stack Radome Material White Fiberglass Mounting Options U-Bolt(Stainless steel) 4.0 Environmental Ratings: Lightening Protection None Temperature -40°C to +80°C Wind Survival >150mph 5.0 Return Loss: Test Data Taken at 2.45GHz. 6.0 VSWR: Test Data Taken at 2.45GHz. 7.0 Smith Chart: Test Data Taken at 2.45GHz. 8.0 Radiation Patterns: Vertical E-plane co-pol ------ 3-dB beam-with=15 Deg Test Data Taken at 2.45GHz. Horizontal E-plane co-pol ------ 3-dB beam-with=360 Deg Test Data Taken at 2.45GHz.

Airgoon L TD. 2207 Concord Pike Unit 700 Wilmington, DE 19803-2908 PH: (888) 728-6330 FAX: (888) 728-6322 November 17 th 2011 Model: Airgoon Air-Lock WK 8800 Wireless Network Stabilizer Module Subject: Manufacturing Tune-Up Procedure. This Tune-Up Procedure is for Reference Purposes Only. The Airgoon Air-Lock WK 8800, Wireless Network Stabilizer Module is Autonomous by Design meaning: The Performance Specifications are Automatically Hard-Coded via Hardware Design Settings that can not be altered in anyway and without Explicit Design and Topology Knowledge. The Air-Lock WK 8800 by default has been designed to be virtually Tamper-Proof and there are no adjustments that can be made or required by the “End-User” that would not be a serious Detriment to the Integrity and Performance of the Design. Confidential and Proprietary Information “Not to be Disseminated”. Page 1 of 1 . Forever Evolving Today’s Technologies

Compliance Certification Services Inc. IC: 9176A-WK8800 FCC ID: YKO-WK-8800 Report No.: T111021002 Page 186 7.7 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT EUT Specification EUT Air-Lock WK-8800 Network Stabilizer Module Booster Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others: WCDMA Band V Uplink: 826.4 ~ 846.6 MHz WCDMA Band V Downlink: 871.4 ~ 891.6 MHz AMPS / CDMA / TDMA: Uplink: 824 – 849MHz Downlink: 869 – 894MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power Mode: WCDMA WCDMA Band V Uplink: 826.4 ~ 846.6 MHz: 28.51 dBm / 709.57mW WCDMA Band V Downlink: 871.4 ~ 891.6 MHz: 12.91 dBm / 19.54mW Max. output power Mode: AMPS Uplink: -8.72 dBm / 0.13 mW Downlink: 25.28 dBm / 337.29 mW Max. output power Mode: CDMA Uplink: 0.53 dBm / 1.13 mW Downlink: 31.26 dBm / 1336.60 mW Max. output power Mode: TDMA Uplink: -2.12 dBm / 0.61 mW Downlink: 28.98 dBm / 790.68 mW Antenna gain (Max) 15 dBi (Numeric gain: 31.62) Evaluation applied MPE Evaluation SAR Evaluation N/A Test Specification: ANSI / IEEE Std.C95.1-1999, H46_2/99_237E: 199 Remark: The maximum output power is 28.51 dBm (709.57mW) (with 31.62 numeric antenna gain.) TEST RESULTS No non-compliance noted. MPE EVALUATION No non-compliance noted. Compliance Certification Services Inc. IC: 9176A-WK8800 FCC ID: YKO-WK-8800 Report No.: T111021002 Page 187 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 1336.60mW Numeric Antenna gain = 31.62 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 8.4104 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.) Compliance Certification Services Inc. IC: 9176A-WK8800 FCC ID: YKO-WK-8800 Report No.: T111021002 Page 188 EUT Air-Lock WK-8800 Network Stabilizer Module Booster Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others: WCDMA Band II Uplink: 1852.4 ~ 1907.6 MHz WCDMA Band II Downlink: 1932.4 ~ 1987.6 MHz AMPS / CDMA / TDMA: Uplink: 1850 – 1910MHz Downlink: 1930 – 1990MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power Mode: WCDMA WCDMA Band II Uplink: 1852.4 ~ 1907.6 MHz: 28.34 dBm / 682.33mW WCDMA Band II Downlink: 1932.4 ~ 1987.6 MHz: 14.46 dBm / 27.92mW Max. output power Mode: AMPS Uplink: -8.23 dBm / 0.15 mW Downlink: 24.87 dBm / 306.9 mW Max. output power Mode: CDMA Uplink: 0.84 dBm / 1.21 mW Downlink: 15.04 dBm / 31.92 mW Max. output power Mode: TDMA Uplink: -2.59 dBm / 0.55 mW Downlink: 28.36 dBm / 685.49 mW Antenna gain (Max) 15 dBi (Numeric gain: 31.62) Evaluation applied MPE Evaluation SAR Evaluation N/A Test Specification: ANSI / IEEE Std.C95.1-1999, H46_2/99_237E: 199 Remark: The maximum output power is 28.34 dBm (682.33mW) (with 31.62 numeric antenna gain.) TEST RESULTS No non-compliance noted. MPE EVALUATION No non-compliance noted. Compliance Certification Services Inc. IC: 9176A-WK8800 FCC ID: YKO-WK-8800 Report No.: T111021002 Page 189 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 685.49mW Numeric Antenna gain = 31.62 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 4.3134 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. IC:9176A-WK8800 FCC ID: YKO-WK-8800 Report No.: T111021002 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 191 FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E & INDUSTRY CANADA RSS-131 TEST REPORT For Air-Lock WK-8800 Network Stabilizer Module Booster Trade Name: Airgoon Model: Air-Lock WK 8800 Issued to Airgoon LTD. 2207 Concord Pike, Suite 700, Wilmington, DELAWARE, United States, 19803 Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: April 20, 2012 Compliance Certification Services Inc. IC: 9176A-WK8800 FCC ID: YKO-WK-8800 Report No.: T111021002 Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 20, 2012 Initial Issue ALL Gina Lo Compliance Certification Services Inc. IC: 9176A-WK8800 FCC ID: YKO-WK-8800 Report No.: T111021002 Page 3 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 4 2. EUT DESCRIPTION .................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................. 7 3.1 EUT CONFIGURATION.............................................................................................................. 7 3.2 EUT EXERCISE......................................................................................................................... 7 3.3 GENERAL TEST PROCEDURES.................................................................................................. 7 3.4 DESCRIPTION OF TEST MODES................................................................................................. 8 4. INSTRUMENT CALIBRATION................................................................................................. 9 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ............................................................................ 10 4.3 MEASUREMENT UNCERTAINTY .................................................................................. 11 5. FACILITIES AND ACCREDITATIONS ................................................................................. 12 5.1 FACILITIES............................................................................................................................ 12 5.2 EQUIPMENT........................................................................................................................... 12 5.3 LABORATORY ACCREDITATIONS AND LISTING............…
