YLM2161A1.9GHz DECT Cordless Phone with Caller ID - Base

Model 2161/2161-2/2161-3/2161-4 Please read this manual before operating product for the first time. Visit the RCA web site at www.rca4phones.com DECT 6.0 Multi-Handset Cordless Telephone User's Guide Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. 1 Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, a product identifier in the format US:AAAEQ##TXXXX and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes • This equipment may not be used on coin service provided by the telephone company. • Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. • Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. • If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment , consult your telephone company or a qualified installer. US Number is located on the cabinet bottom. REN Number is located on the cabinet bottom. 2 Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment , operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment , the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. Interference Information This device complies with Part 15 of the FCC Rules and the Industry Canada licence-exempt RSS standard(s). Operation is subject tothe following two conditions: (1) This device may not cause harmful interference-; and (2) This device must accept any interference received, including interference that may cause undesired operation. 2161 Printed in China 15-10 Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for your product. Visit the RCA web site at www.rca4phones.com This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Privacy of Communications may not be ensured when using this product. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). • Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna. • Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/ TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402.Please specify stock number 004-000-00345-4 when ordering copies. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Hearing Aid Compatibility (HAC) This telephone system me…

Text truncated - open the document above for the full version.

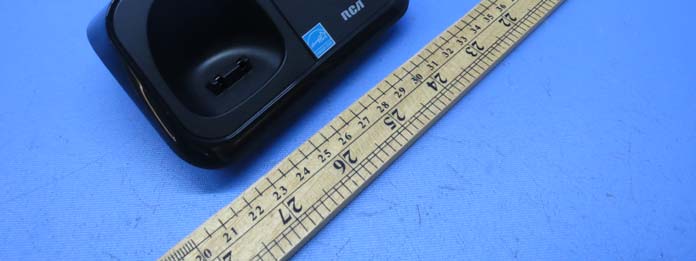

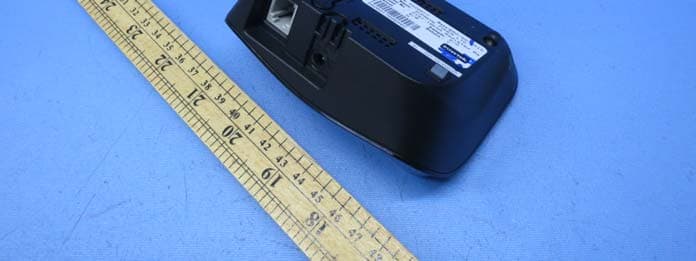

INTERTEK TESTING SERVICES External Photos FCC ID: YLM2161A INTERTEK TESTING SERVICES External Photos FCC ID: YLM2161A

UL no. label Size:20x27mm Base product label Size:52x35mm Base SN label Size:29.5x11.5mm Base unit 2161-xBKGA YYWWD03 S/NO.: nnnnnnn Energy star label Size:10.3x10mm Base top cabinet MADE IN CHINA FABRIQUE EN CHINE MODEL NO.: 2161 www.rca4phones.com THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. US: SPLW400B2162-A REN: 0.0B FCC ID: YLM2161A IC: 9101A-2161A I.T.E. 3XE7 E 340439

INTERTEK TESTING SERVICES Internal photos FCC ID: YLM2161A INTERTEK TESTING SERVICES Internal photos FCC ID: YLM2161A INTERTEK TESTING SERVICES Internal photos FCC ID: YLM2161A INTERTEK TESTING SERVICES Internal photos FCC ID: YLM2161A

INTERTEK TESTING SERVICES FCC ID: YLM2161A RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 1.9GHz Base Unit of tested model: 2161, the measured powers among all the measured channels were within its production tolerance: +17 dBm (Minimum) and +20.969 dBm (Maximum).The antenna gain of 2161 is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 20.8% (5/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 20.969 dBm = 125.0 mW The Conducted Power source-based time-averaging output power = (125.0 * 0.208) mW = 25.999 mW The power density at 20cm = 25.999 *1.00/ 4R 2 = 0.0052 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

- Intertek’s standard Terms and Conditions can be obtained at our website: http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: 15020015HKG-004 Application For Original Grant of 47 CFR Part 15 Certification New Family of RSS-213 Issue 3 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Base Unit) FCC ID: YLM2161A IC: 9101A-2161A Prepared and Checked by: Approved by: Signed on File Leung Chiu Kuen, Stanley Nip Ming Fung, Melvin Engineer Assistant Manager April 1, 2015 INTERTEK TESTING SERVICES Test Report No.: 15020015HKG-004 Page 1 of 61 FCC ID: YLM2161A IC: 9101A-2161A GENERAL INFORMATION Applicant Name: Supreme Power Ltd. Applicant Address: Unit 5-6, 7/F., Greenfield Tower, Concordia Plaza, 1 Science Museum Road, Tsim Sha Tsui, Kowloon, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2013 Edition FCC ID: YLM2161A FCC Model(s): 2161, 2161-X, 2161-XYYZV IC Specification Standard: RSS-213 Issue 3, March 2015 RSS-Gen Issue 3, December 2010 IC: 9101A-2161A IC Model(s): 2161-1BKGA, 2161-2BKGA, 2161-3BKGA, 2161-4BKGA Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz DECT Cordless Phone with Caller ID - Base Unit Serial Number: N/A Sample Receipt Date: February 02, 2015 Date of Test: February 25, 2015 - March 5, 2015 Report Date: April 1, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report No.: 15020015HKG-004 Page 2 of 61 FCC ID: YLM2161A IC: 9101A-2161A Table of Contents 1.0 Test Results Summary & Statement of Compliance............................................... 5 1.1 Summary of Test Results......................................................................................... 5 1.2 Statement of Compliance......................................................................................... 7 2.0 General Description................................................................................................... 9 2.1 Product Description ................................................................................................... 9 2.2 Technical Description ................................................................................................ 9 2.3 Test Methodology.................................................................................................... 10 2.4 Test Facility ............................................................................................................. 10 3.0 System Test Configuration...................................................................................... 12 3.1 Justification ............................................................................................................. 12 3.2 Conducted Emission Test Configuration ................................................................. 13 3.3 Conducted Monitoring and Operational Test Configuration ..................................... 13 3.4 EUT Exercising Software ........................................................................................ 13 3.5 Details of EUT and Description of Accessories ....................................................... 14 3.6 Measurement Uncertainty ....................................................................................... 14 4.0 Measurement Results.............................................................................................. 16 4.1 Antenna Requirement ............................................................................................. 16 4.2 Digital Modulation Techniques ................................................................................ 16 4.3 Emission Bandwidth................................................................................................ 17 4.4 Directional Gain of the Antenna............................................................................... 20 4.5 Peak Transmit Power .............................................................................................. 21 4.6 Power Spectral Density ........................................................................................... 24 4.7 Automatic Discontinuation of Transmission ............................................................. 27 4.8 Unwanted Emission Inside the Sub-Band ............................................................... 28 4.9 Emissions Outside the Sub-Band............................................................................ 32 4.9.1 Radiated Emissions Configuration Photographs .................................................. 33 4.9.2 Radiated Emissions Data ...................................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: YLM2161A IC: 9101A-2161A Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: YLM2161A IC: 9101A-2161A AC Conducted Emission – Base Unit Talk Front View Side View 1 INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: YLM2161A IC: 9101A-2161A AC Conducted Emission Side View 2
