YLM7114ADECT 6.0 Corded & Cordless Combo with Answering System

Model 7114-2 Please read this manual before operating product for the first time. Visit the RCA web site at www.rca4phones.com DECT 6.0 Corded & Cordless Speakerphone with Answering Machine User's Guide Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. 1 Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes This equipment may not be used on coin service provided by the telephone company. Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom. REN Number is located on the cabinet bottom. 2 Rights of the Telephone Company Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment , operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment , the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. Interference Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference-; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Privacy of Communications may not be ensured when using this product. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • • • • 7114 Printed in China 12-18 Please do not send any products to the Indianapolis address listed in this manual or on the carton. This will only add delays in service for your product. Visit the RCA web site at www.rca4phones.com Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). R e o r i e n t o r r e l o c a t e a n d i n c r e a s e t h e s e p a r a t i o n b e t w e e n t h e telecommunications equipment and receiving antenna. Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate the interference, please consult your dealer or an experienced radio/television technician for additional suggestions. Also, the Federal Communications Commission has prepared a helpful booklet , “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Hearing Aid Compatibility (HAC) This telephone system meets FCC standards for Hearing Aid Compatibility. FCC…

Text truncated - open the document above for the full version.

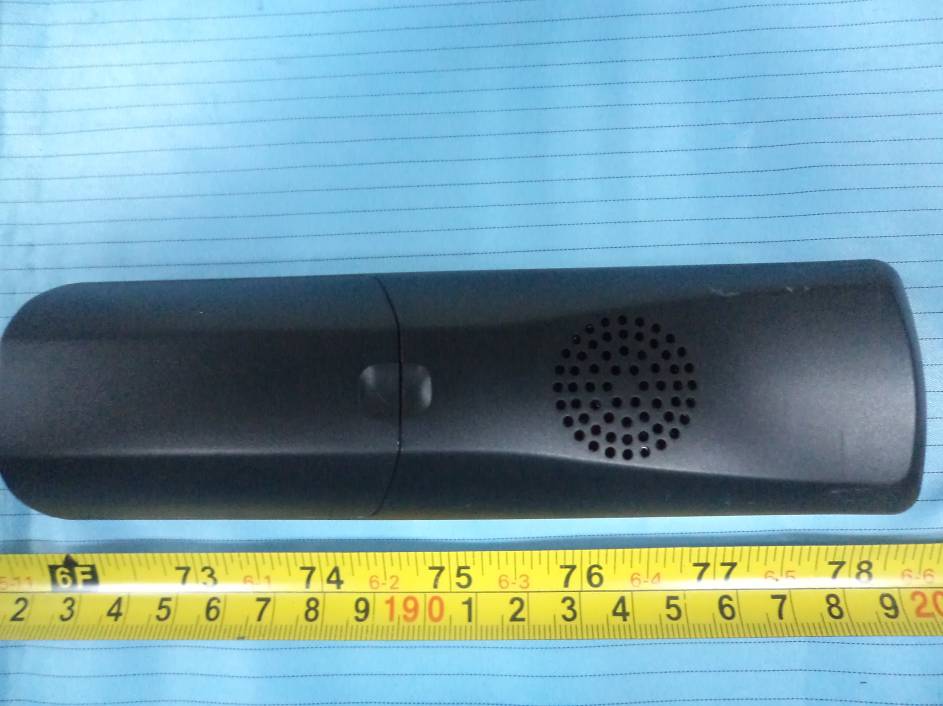

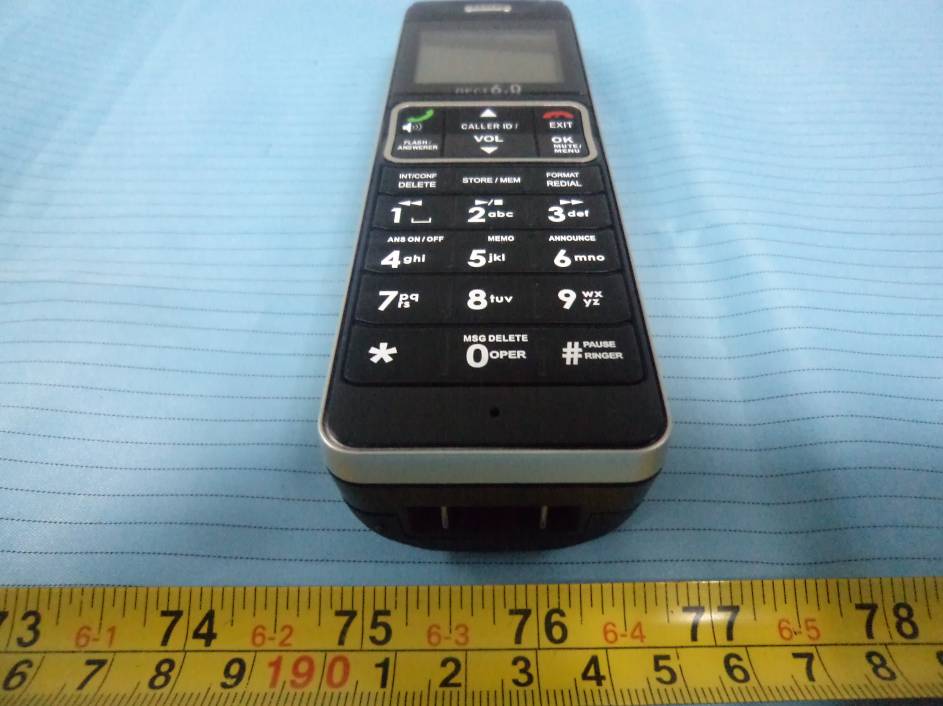

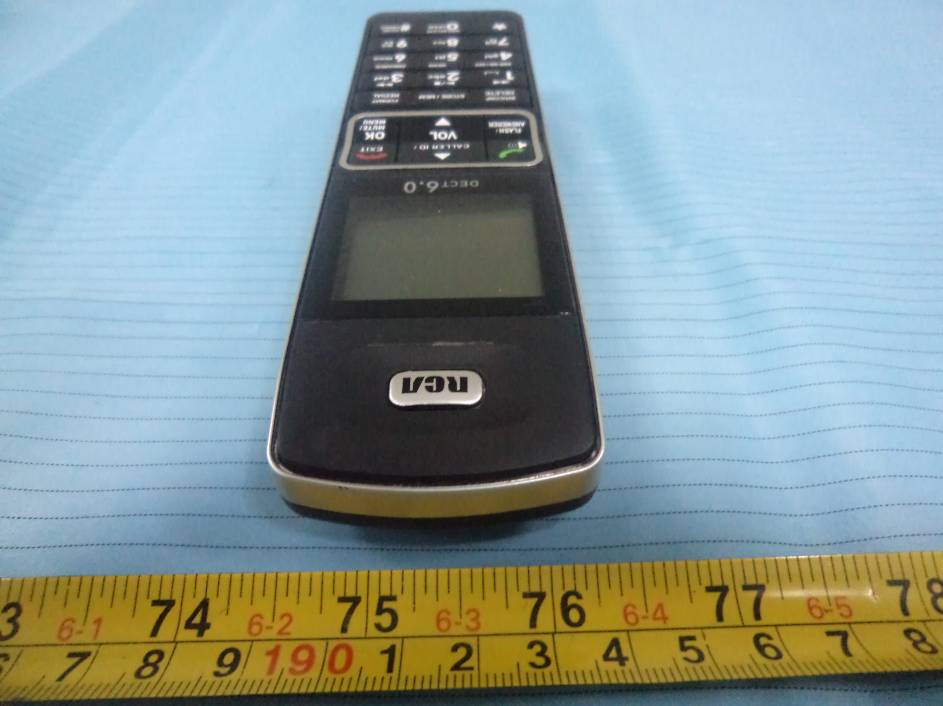

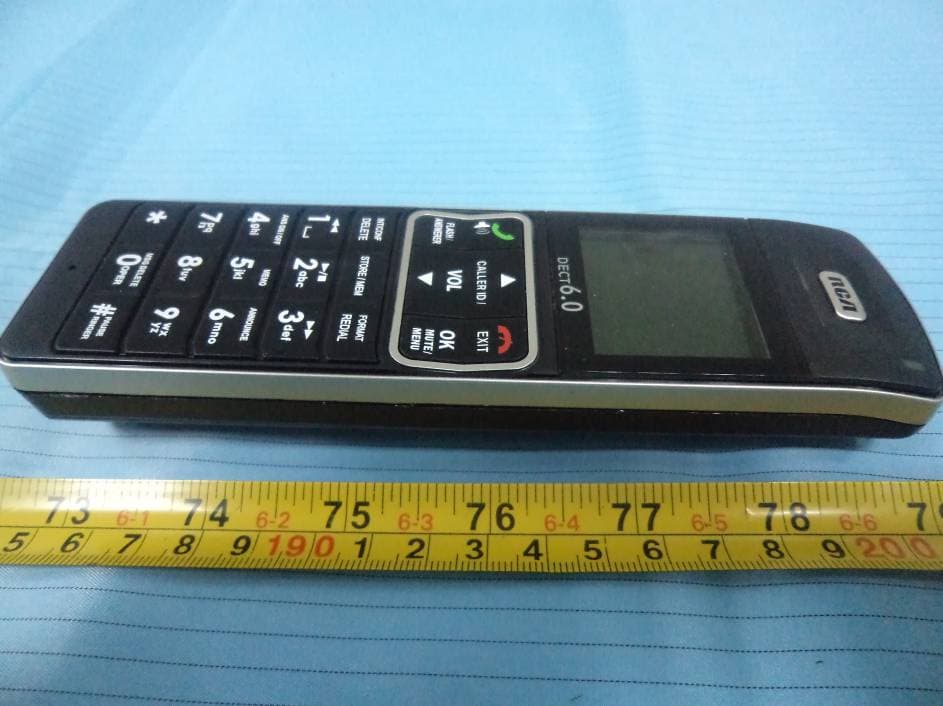

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View EUT – Rear View EUT – Left Side View EUT – Right Side View

MODEL NO.: 7114-2 2 2 2 MODEL NO.: 7114-2 -2 2 2 2 2 2 MODEL NO.: 7114-3 3 3 3 -3 3 3 3 3 3 MODEL NO.: 7114-3 MODEL NO.: 7114-4 4 4 4 -4 4 4 4 4 4 MODEL NO.: 7114-4 MODEL NO.: 7114-5 5 5 5 -5 5 5 5 5 5 MODEL NO.: 7114-5

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View EUT – Main Board Top with Display & Keyboard View EUT – Main Board Top without Keyboard View EUT – Main Board Bottom View EUT – Main Board Bottom Shielding off View Antenna EUT – Display Top View EUT – Display Bottom View EUT – Battery View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1DG120516005-00PP FCC Part 15D Page 8 of 45 FCC §15. 319 (i) & §2.1093 - RF EXPOSURE Applicable Standard According to FCC §15.319 (i) Unlicensed PCS devices are subject to the radiofrequency radiation exposure requirements specified in §1.1307(b), 2.1091and 2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a general population/uncontrolled environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request. According to KDB 447498 D01 Mobile Portable RF Exposure v04 1) c): Unless excluded by specific FCC test procedures, portable devices with output power > 60/f (GHz) mW shall include SAR data for equipment approval. RF Exposure Evaluation Maximum peak output power at antenna input terminal: 1921.536 MHz: 17.54 dBm = 56.75 mW The Time-based average power at antenna input terminal = Peak output power *Duty cycle =56.75×3.82% = 2.168 mW 2.168 mW<60/f(GHz) mW=60/1.921536 GHz = 31.23 mW So, when the time base average output power < 60/f(GHz) mW, according to KDB 447498, For an unlicensed transmitter that does not transmit simultaneously with other transmitters and its output is ≤ 60/f(GHz) mW, 1-g SAR evaluation is not required. Note: The time-base average output power depends on the duty cycle, and this device’s duty cycle is 3.82%.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Shenzhen).This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15D MEASUREMENT AND TEST REPORT For Supreme Power Ltd. Unit 9-10, 27/F, Seapower Tower Concordia Plaza, 1 Science Museum Road, Tsim shatsui, Kowloon, Hong Kong FCC ID: YLM7114A Report Type: Original Report Product Type: DECT 6.0 Corded & Cordless Combo with Answering System (Handset) Test Engineer: Mick Yin Report Number: R1DG120516005-00PP Report Date: 2012-07-04 Reviewed By: Sula Huang RF Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1DG120516005-00PP FCC Part 15D Page 2 of 45 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 FCC §15.319 (I) & §2.1093 - RF EXPOSURE ............................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 RF EXPOSURE EVALUATION........................................................................................................................................8 FCC §15.317 & §15.203 - ANTENNA REQUIREMENT ..........................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................9 FCC §15.323 (A) - EMISSION BANDWIDTH .........................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST DATA................................................................................................................................................................10 FCC §15.319 (C) - PEAK TRANSMIT POWER......................................................................................................13 APPLICABLE STANDARD............................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST DATA................................................................................................................................................................13 FCC§15.319 (D) - POWER SPECTRAL DENSITY ................................................................................................16 APPLICABLE STANDARD............................................................................................................................................16 TEST PROCEDURE....…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View Frequency Stability
