A$&#A%DQQM2CIG9GFPGUFC[/C[2/ Caution-i En Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1Read these instructions. 2Keep these instructions. 3Heed all warnings. 4Follow all instructions. 5Do not use this apparatus near water. 6Clean only with dry cloth. 7Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11Only use attachments/accessories specified by the manufacturer. 12Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13Unplug this apparatus during lightning storms or when unused for long periods of time. 14Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. IMPORTANT SAFETY INSTRUCTIONS A$&#A%DQQM2CIGK9GFPGUFC[/C[2/ Caution-ii En We Want You Listening For A Lifetime Yamaha and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion - and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels. FCC INFORMATION (for US customers) 1IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product. 2IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA. 3NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America A/V Division, 6600 Orangethorpe Ave., Buena Park, CA 90620. The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries. COMPLIANCE INFORMATION STATEMENT (DECLARATION OF CONFORMITY PROCEDURE) Responsible Party: Yamaha Corporation of America A/V Division Address: 6600 Orangethorpe Avenue Buena Park, CA 90620, USA Telephone: 1-714-522-9011 Type of Equipment: Blu-ray Disc Player Model Name: BD-A1040 • This device complies with Part 15 of the FCC Rules and RSS- Gen of IC Rules. • Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. See the “Troubleshooting” section at the en…

Text truncated - open the document above for the full version.

Attention-ii Fr Nous vous souhaitons un plaisir musical durable Yamaha et le Groupe des Entreprises Électroniques Grand Public de l’Association des Industries Électroniques désirent que vous tiriez le meilleur parti de votre équipement tout en écoutant à un niveau non dommageable pour l’ouïe. Un niveau qui vous permet d’obtenir un son fort et clair, sans hurlement ni distorsion, mais sans aucun danger pour l’ouïe. Comme les sons trop forts causent des lésions auditives qui ne peuvent être détectées qu’à long terme, lorsqu’il est trop tard, Yamaha et le Groupe des Entreprises Électroniques Grand Public de l’Association des Industries Électroniques vous déconseillent l’écoute prolongée à des volumes excessifs. INFORMATIONS DE LA FCC (pour les clients résidant aux États-Unis) 1AVIS IMPORTANT : NE PAS APPORTER DE MODIFICATIONS À CET APPAREIL ! Cet appareil est conforme aux exigences de la FCC s’il est installé selon les instructions du mode d’emploi. Toute modification non approuvée expressément par Yamaha peut invalider l’autorisation de la FCC d’utiliser cet appareil. 2IMPORTANT : N’utiliser que des câbles blindés de haute qualité pour le raccordement de cet appareil à des accessoires et/ou à un autre appareil. Seuls le ou les câbles fournis avec le produit DOIVENT être utilisés. Suivre les instructions concernant l’installation. Le non respect des instructions peut invalider l’autorisation, accordée par la FCC, d’utiliser ce produit aux États-Unis. 3REMARQUE : Cet appareil a été testé et déclaré conforme aux normes relatives aux appareils numériques de Classe « B », telles que fixées dans l’Article 15 de la Réglementation FCC. Ces normes sont destinées à assurer une protection suffisante contre les interférences nuisibles avec d’autres appareils électroniques dans une installation résidentielle. Cet équipement génère et utilise des fréquences radio qui, en cas d’installation et d’utilisation non conformes aux instructions du mode d’emploi, peuvent être à l’origine d’interférences empêchant d’autres appareils de fonctionner. Cependant, la conformité à la Réglementation FCC ne garantit pas l’absence d’interférences dans une installation particulière. Si cet appareil devait produire des interférences, ce qui peut être déterminé en « ÉTEIGNANT », puis en « RALLUMANT » l’appareil, l’utilisateur est invité à essayer de corriger le problème d’une des manières suivantes : Réorienter cet appareil ou le dispositif affecté par les interférences. Utiliser des prises de courant branchées sur différents circuits (avec interrupteur de circuit ou fusible) ou installer un ou des filtres pour ligne secteur. Dans le cas d’interférences radio ou TV, déplacer l’antenne et la réorienter. Si l’antenne est un conducteur plat de 300 ohms, remplacer ce câble par un câble de type coaxial. Si ces mesures ne donnent pas les résultats escomptés, prière de contacter le revendeur local autorisé à commercialiser ce type d’appareil. Si ce n’est pas possible, prière de contacter Yamaha Corporation of America Division A/V, 6600 Orangethorpe Ave., Buena Park, CA 90620. Les déclarations précédentes concernent EXCLUSIVEMENT les appareils commercialisés par Yamaha Corporation of America ou ses filiales. DÉCLARATION SUR LES INFORMATIONS DE CONFORMITÉ (PROCÉDURE DE DÉCLARATION DE CONFORMITÉ) Partie responsable : Yamaha Corporation of America Division A/V Addresse : 6600 Orangethorpe Avenue Buena Park, CA 90620, USA Téléphone : 1-714-522-9011 Type d’équipement : Blu-ray Disc Player Nom de modèle : BD-A1040 • Cet appareil est conforme à la Partie 15 du Règlement FCC et au RSS-Gen du Règlement IC. • Le fonctionnement est soumis aux deux conditions suivantes : 1) Cet appareil ne peut pas causer d’interférences nuisibles et 2) Cet appareil doit recevoir toutes les interférences, y compris celles pouvant entraîner des problèmes de fonctionnement. Voyez la section « Guide de dépannage » à la fin de ce mode d’emploi si vous pensez que le problème de réception radio est dû à des interférences. IMPORTANT Veuillez noter le numéro de série de cet appareil dans l’espace réservé à cet effet, ci-dessous. MODÈLE : No. de série : Le numéro de série se trouve à l’arrière de l’appareil. Prière de conserver le mode d’emploi en lieu sûr pour toute référence future. Pour obtenir des informations sur la mise au rebut des produits usagés ou en fin de vie aux États-Unis, consultez la page http://usa.yamaha.com/support/ (4AA%CWA$&#A%HO2CIGKK(TKFC[/C[2/ Attention-iii Fr AVERTISSEMENT FCC Tout changement apporté sans l’approbation expresse du fabricant pourrait entraîner l’annulation du droit d’utilisation de l’appareil. REMARQUE Cet appareil a été testé et il s’est avéré être conforme aux limites déterminées pour un appareil numérique de Classe B, conformément à la partie 15 du Règlement FCC. Ces limites sont destinées à offrir une protection raisonnable contre les interférences nuisibles pouvant survenir en cas d’utilisation de ce produit dans un environnement domestique. Cet appareil produit, utilise et peut émettre de l’énergie radioélectrique et, s’il n’est pas installé conformément aux instructions, peut provoquer des interférences radio. Il n’est toutefois pas garanti qu’aucune interférence ne se produira dans le cas d’une installation donnée. Si l’appareil provoque des interférences nuisibles à la réception de programmes radio ou de télévision, ce qui peut être déterminé en éteignant, puis en allumant l’appareil, l’utilisateur est prié de tenter de corriger le problème en prenant l’une ou plusieurs des mesures suivantes: – Réorienter ou déplacer l’antenne réceptrice. – Éloigner davantage l’appareil du récepteur. – Raccorder l’appareil à une prise d’un circuit différent de celui du récepteur. – Consulter le revendeur ou un technicien radio/télé expérimenté. Les antennes installées doivent être situées de facon à ce que la population ne puisse y être exposée à une distance de moin de 20 cm. Installer les antennes de …

Text truncated - open the document above for the full version.

Date: _June 10, 2014 ___ _ Subject: Confidentiality Request for: IC: 9088A-W30BT4C and FCC ID: YLZ-W30BT4C Pursuant to FCC 4 7 CRF 0.457( d) and 0.459 and IC RSP-1 00, Section 10, the applicant requests that a part of the subject FCC application be held contidential. Type of Confidentiality Requested 0 Short Term ~ Permanent 0 Shan Term 0 Short Term 0 Permanent* 1 0 ShOJi Term ~ Permanent 0 ShOJi Term 0 Permanent 0 Sho1i Term 0 Permanent 0 Sho1i Term ~Permanent 0 Shan Term 0 Sho1i Term 0 Permanent* *:\otc: _(lns~rL!~xplanation as :\ecessaryl Exhibit Block Diagrams External Photos Internal Photos Operation Description/Theory of Operation Parts List & Placement/ B0\11 Tune-Cp Procedure Schematics Test Setup Photos Cser's Vlanual China Hualu Group Co .. Ltd has spent substantial eff01i in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. :\ot protecting the details ofthe design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as sho11 term confidential be withheld from public view for a period of -~(sQ.e\;ify_number_of g _ays not to exceed 180) 2 _ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they arc responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public:\ otice DA 04-1705. :\OTE for Industry Canada Applications: The applicant understands that until such time Confidentiality, either type of marked Sincerely, By: ·-------------- distinguishes between Short Term and Permanent :it?'f'li&~ly be marked Confidential when submitted to 1C. ' -The asteriskcd items(*) require further just1 -tio~m'{~J;Wn~. confidentiality will be allowed. These also currently require review by the FCC under their Permit- -;\lR ~olicy . e the grant is issued and can delay completion of an application. Further justification should be added \5 ove. One such example for a potted device would be: "The ELT is FLLL Y potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitr y . Sec photographs exhibits that outline the device before and after potting." 2 - Please refer to hrtp://acbcert.com/documents/misc-docs/ Memo-Short-Term-V s-Standard-Confident ialitv.pdf for complete details. - Must be signed by applicant contact given f(Jr applicant on the FCC siic, or by the authorized agent if<m appropriate authorized agent iettcr has been provided. Letters should be placed on appropriate letter·head.

Date: June 10, 2014 __ American Certification Body, Inc. 6731 Whittier A venue Suite C110 .\!I cLean, VA 2210 I To Whom It .\!lay Concern: . Intertek Testing Services Shanghai is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, lnc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 ofthe Anti-Drug Abuse Act of 1988, 21 L.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date:~. June 10, 201 5~- By: Title: On behalf of: Telephone: 0411- 65801874 ___ CheYongjin (Print name) ·-Must be signed by applicant contact given for applicant on the FCC s ite. or by the authorized agent if an appropriate aurh(Jrizcd agent letter has been provided. Letters shou!d k placed on a ppmpriatc letterhead.

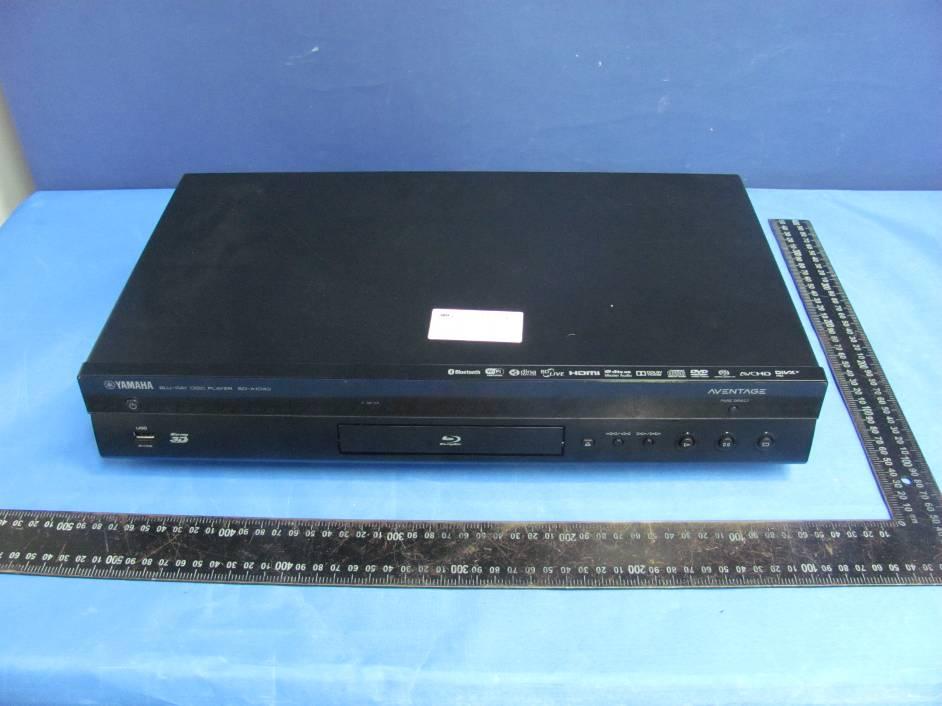

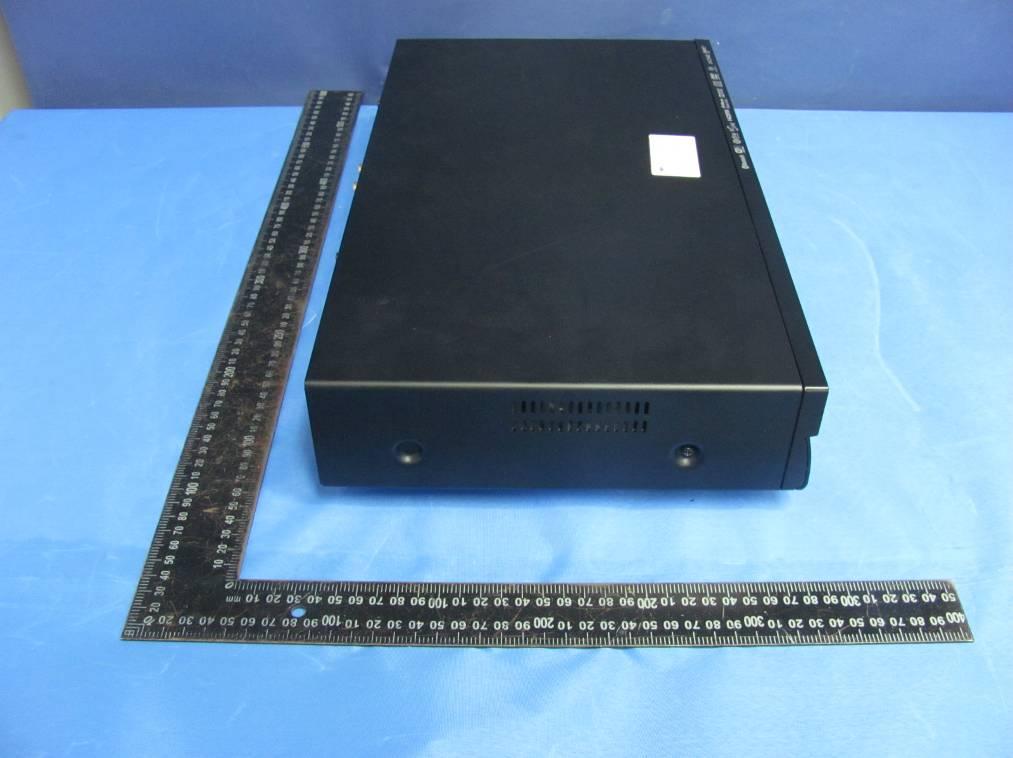

FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 1 of 3 External Picture FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 2 of 3 EUT FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 3 of 3

FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 1 of 8 Internal Picture FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 2 of 8 FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 3 of 8 FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 4 of 8 FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 5 of 8 FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 6 of 8 BT module FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 7 of 8 FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 8 of 8 BT module

FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 1 of 2 Statement of compliance to Maximum Permissible Exposure (MPE) Applicant : China Hualu Group Co., Ltd. No.1 Hua Road, Qixianling Hi-Tech Zone, Dalian, China Manufacturer : Dalian Golden Hualu Digital Technology Co., Ltd. No.1 Hua Road, Qixianling Hi-Tech Zone, Dalian, China Equipment : Blu-Ray Disc player Type/Model : BD-A1040 According to §2.1091, §2.1093 and §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. The S = PG / (4πR²) Where S = power density in mW/cm² P = transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see the maximum output power of Wi-Fi in FCC ID: 2AANL-WL91: The maximum output power for Wi-Fi = 19.44dBm= 87.902mW The MPE of Wi-Fi = PG / (4πR²) = 139.316 / (4 * 3.14 * 20 * 20) = 0.0277 mW/cm² As we can see from the test reports 140500630SHA-001 and 140500630SHA-002: The maximum output power for Bluetooth = 8.10dBm = 6.457mW The MPE of Bluetooth = PG / (4πR²) = 8.128mW / (4 * 3.14 * 20 * 20) = 0.0016mW/cm² For the device can support simultaneous transmission, according to 447498 D01 General RF Exposure Guidance v05r02, The sum of the MPE ratios = 0.0277 / 1.0 + 0.0016 / 1.0 = 0.0293mW/cm² This level is below the simultaneous transmission MPE test exclusion requirements (≤1.0). Date of issue: June 21, 2014 Prepared by: Reviewed by: Nemo Li (Project Engineer) Daniel Zhao (Reviewer) FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 2 of 2 Appendix I Definition below must be outlined in the User Manual: To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended.

FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 1 of 57 EMC TEST REPORT for Intentional Radiator No. 140500630SHA-001 Applicant : China Hualu Group Co., Ltd. No.1 Hua Road, Qixianling Hi-Tech Zone, Dalian, China Manufacturer : Dalian Golden Hualu Digital Technology Co., Ltd. No.1 Hua Road, Qixianling Hi-Tech Zone, Dalian, China Equipment : Blu-Ray Disc player Type/Model : BD-A1040 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2013): Radio Frequency Devices ANSI C63.4 (2009): American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: June 23, 2014 Prepared by: Reviewed by: Nemo Li (Project Engineer) Daniel Zhao (Reviewer) FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 2 of 57 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Jonny Jing Tel: +86 21 64956565 ext. 271 Fax: +86 21 54262335 ext. 271 FCC ID: YLZ-W30BT4C IC: 9088A-W30BT4C Page 3 of 57 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 5 1.1 Applicant Information ..................................................................................................... 5 1.2 Identification of the EUT ................................................................................................ 5 1.3 Technical specification ................................................................................................... 6 1.4 Mode of operation during the test / Test peripherals used .............................................. 6 2. TEST SPECIFICATION .................................................................................................................................. 7 2.1 Instrument list ................................................................................................................. 7 2.2 Test Standard ................................................................................................................ 10 2.3 Test Summary ............................................................................................................... 11 3. 20 DB BANDWIDTH .................................................................................................................................... 12 3.1 Limit .............................................................................................................................. 12 3.2 Test Configuration ........................................................................................................ 12 3.3 Test Procedure and test setup ........................................................................................ 12 3.4 Test Protocol ................................................................................................................. 13 4. CARRIER FREQUENCY SEPARATION ........................................................................................................ 19 4.1 Limit .............................................................................................................................. 19 4.2 Test Configuration ........................................................................................................ 19 4.3 Test Procedure and test setup ........................................................................................ 19 4.4 Test Protocol ................................................................................................................. 20 5. MAXIMUM PEAK OUTPUT POWER ............................................................................................................. 26 5.1 Test limit ....................................................................................................................... 26 5.2 Test Configuration ........................................................................................................ 26 5.3 Test procedure and test setup ........................................................................................ 26 5.4 Test protocol ................................................................................................................. 27 6. RADIATED SPURIOUS EMISSIONS.............................................................................................................. 28 6.1 Test limit ....................................................................................................................... 28 6.2 Test Configuration ........................................................................................................ 28 6.3 Test procedure and test setup ........................................................................................ 29 6.4 Test protocol ................................................................................................................. 30 7. CONDUCTED SPURIOUS EMISSIONS & BAND EDGE ................................................................................. 34 7.1 Limit .............................................................................................................................. 34 7.2 Test Configuration .....…
