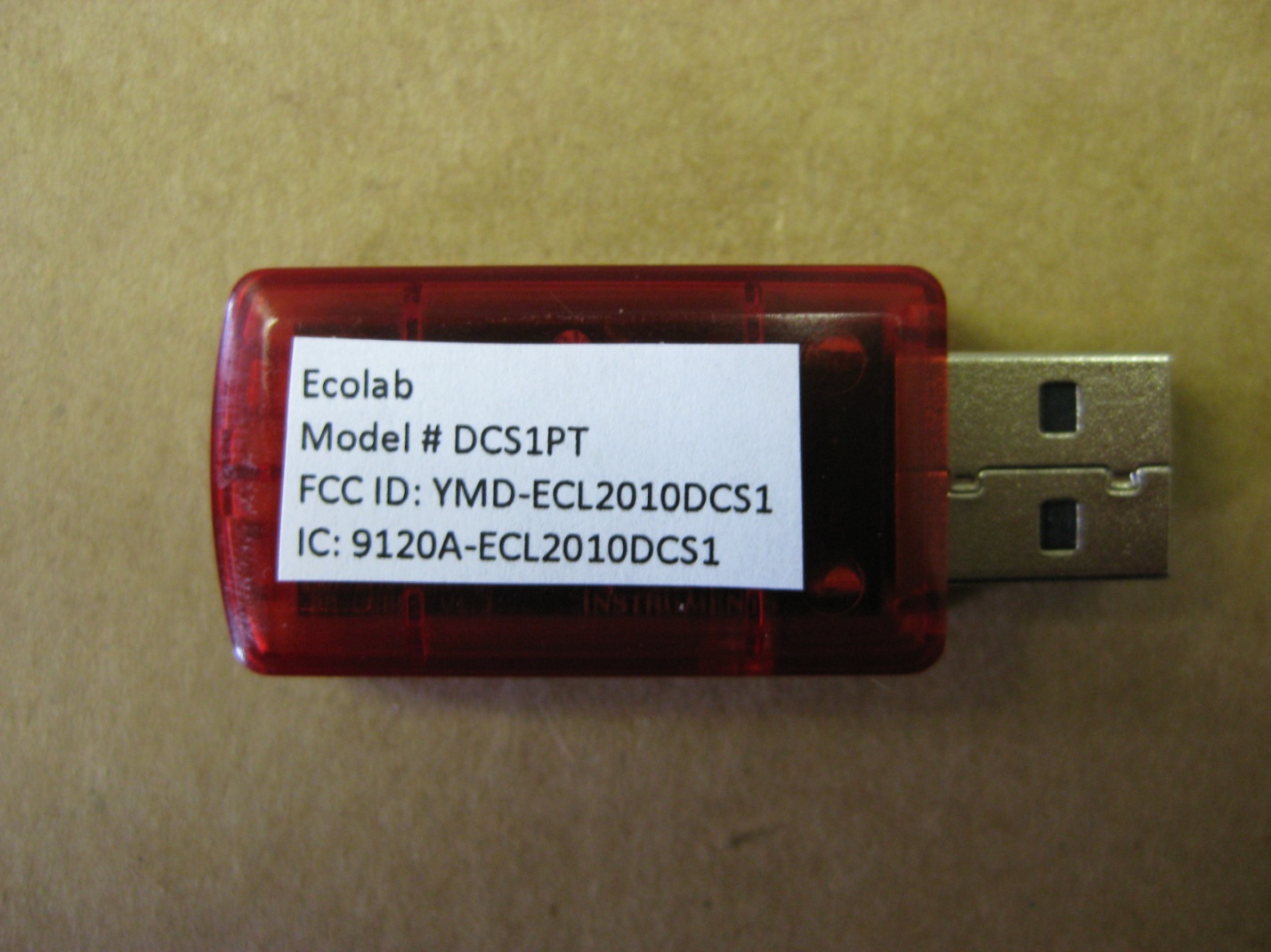

Ecolab Hand Hygiene Monitoring System User Manual Data collection station The data collection stations require connection to AC power via a wall outlet, as well as connection to a LAN cable to enable data transfer to the vendor’s remote server. Once a badge has accumulated a threshold amount of data, or the set time limit has been reached, the badge will begin looking for a Data collection station with which to communicate, as evidenced by the periodic blinking of the green LED. Bring the badge within several feet of a Data collection station to allow it to offload its accumulated data and receive updated configuration (if applicable) from the Data collection station. Label information Ecolab Model #: DCS1PT FCC ID: YMD-ECL2010DCS1 IC: 9120A-ECL2010DCS1 FCC Compliance Statements (Data Collection Station) Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Interference Statement (Part 15.105 (b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Industry Canada Compliance Statement Section 7.1.5 of RSS‐GEN Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.

370 Wabasha Street N St. Paul, MN 55102 July 15, 2010 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: LS Research, LLC is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). On our behalf, we appoint Thomas T. Smith, Ken Boston and Ryan Urness of LS Research, LLC, W66 N220 Commerce Court, Cedarburg, Wisconsin 53012 USA to act as our agent in the preparation and signing of documentation for this application for equipment certification. We certify that we are not subject to denial of federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, including FCC benefits. Thank you. Best regards, Pete A. Carlson PETE A. CARLSON Sr. Regulatory Specialist Law & Regulatory Affairs T 651.293.2478 F 651.225.3122

370 Wabasha Street N St. Paul, MN 55102 Request for Confidentiality Date: July 16, 2010 Subject: Confidentiality Request for FCC ID: YMD-ECL2010DCS1 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Ecolab Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Sincerely, Pete A. Carlson Senior Regulatory Specialist PETE A. CARLSON Sr. Regulatory Specialist Law & Regulatory Affairs T 651.293.2478 F 651.225.3122

EXTERNAL PHOTOS Company Name Ecolab Inc. Model # DCS1PT FCC ID # YMD‐ECL2010DCS1 IC # 9120A‐ECL2010DCS1 Page 1 of 2 View of Front Side Case EXTERNAL PHOTOS Company Name Ecolab Inc. Model # DCS1PT FCC ID # YMD‐ECL2010DCS1 IC # 9120A‐ECL2010DCS1 Page 2 of 2 View of Back Side Case

INTERNAL PHOTOS Company Name Ecolab Inc. Model # DCS1PT FCC ID # YMD‐ECL2010DCS1 IC # 9120A‐ECL2010DCS1 Page 1 of 4 RF Board Open INTERNAL PHOTOS Company Name Ecolab Inc. Model # DCS1PT FCC ID # YMD‐ECL2010DCS1 IC # 9120A‐ECL2010DCS1 Page 2 of 4 Front Side of RF Board INTERNAL PHOTOS Company Name Ecolab Inc. Model # DCS1PT FCC ID # YMD‐ECL2010DCS1 IC # 9120A‐ECL2010DCS1 Page 3 of 4 Backside of Board INTERNAL PHOTOS Company Name Ecolab Inc. Model # DCS1PT FCC ID # YMD‐ECL2010DCS1 IC # 9120A‐ECL2010DCS1 Page 4 of 4 Close‐up of RF Section with Chip Antenna

W66 N220 Commerce Court ● Cedarburg, WI 53012 ● USA Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com TEST REPORT # 310194-A LSR Job #: C-944 Compliance Testing of: Data Collection Station Test Date(s): October 6 th to 12 th and 22 nd 2010 Prepared For: Ecolab 655 Lone Oak Drive F6 Eagan, MN 55121 In accordance with: Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.249 Industry Canada (IC) RSS 210 Annex 2 Transmitters Operating in the Frequency Band 902 MHz – 928 MHz This Test Report is issued under the Authority of: Signature: Date: 10.23.2010 Test Report Reviewed by: Thomas T. Smith, Manager EMC Test Services Signature: Date: 10.23.2010 Tested by: Khairul Aidi Zainal, Senior EMC Engineer Signature: Date: 10.23.10 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: Ecolab EUT: Data Collection Station LS Research, LLC Report #310194-A Model #: DCS1PT Template: 15.249 8-11-2010 LSR Job #:C-944 Serial #:Engineering Prototype Page 2 of 38 TABLE OF CONTENTS (page 1 of 2) EXHIBIT 1: INTRODUCTION 1.1 Scope 4 1.2 Normative References 4 1.3 LS Research, LLC Test Facility 5 1.4 Location of Testing 5 1.5 Test Equipment Utilized 5 EXHIBIT 2: PERFORMANCE ASSESSMENT 2.1 Client Information 6 2.2 Equipment Under Test (EUT) Information 6 2.3 Associated Antenna Description 6 2.4 EUT’s Technical Specifications 7 2.5 Product Description 8 EXHIBIT 3: EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS 3.1 Climate Test Conditions 9 3.2 Applicability & Summary of EMC Emission Test Results 9 3.3 Modifications Incorporated in the EUT for Compliance Purposes 9 3.4 Deviations & Exclusions from Test Specifications 9 EXHIBIT 4: DECLARATION OF CONFORMITY 10 EXHIBIT 5: RADIATED EMISSIONS TESTING 5.1 Test Setup 11 5.2 Test Procedure 11 5.3 Test Equipment Utilized 12 5.4 Test Results 12 5.5 Calculation of Radiated Emissions Limits 13 5.6 Radiated Emissions Test Data Chart 15 5.7 Test Setup Photo(s) – Radiated Emissions Test 18 5.8 Screen Captures – Radiated Emissions Test 19 EXHIBIT 6: CONDUCTED EMISSIONS TEST, AC POWER LINE 6.1 Test Setup 23 6.2 Test Procedure 23 6.3 Test Equipment Utilized 23 6.4 Test Results 23 6.5 FCC Limits of Conducted Emissions at the AC Mains Ports 24 6.6 Conducted Emissions Test Data Chart 25 6.7 Test Setup Photo(s) – Conducted Emissions Test 26 6.8 Screen Captures – Conducted Emissions Test 27 Prepared For: Ecolab EUT: Data Collection Station LS Research, LLC Report #310194-A Model #: DCS1PT Template: 15.249 8-11-2010 LSR Job #:C-944 Serial #:Engineering Prototype Page 3 of 38 TABLE OF CONTENTS (Page 2 of 2) EXHIBIT 7: OCCUPIED BANDWIDTH 7.1 Limits 28 7.2 Method of Measurements 28 7.3 Test Data 28 7.4 Screen Captures – Occupied Bandwidth 28 EXHIBIT 8: BAND-EDGE MEASUREMENTS 8.1 Method of Measurements 30 EXHIBIT 9: FREQUENCY & POWER STABILITY OVER VOLTAGE VARIATIONS 31 APPENDICES APPENDIX A: TEST EQUIPMENT LIST 32 APPENDIX B: TEST STANDARDS – RADIO 34 APPENDIX C: UNCERTAINTY STATEMENT 35 APPENDIX D: ANTENNA SPECIFICATIONS 36 Prepared For: Ecolab EUT: Data Collection Station LS Research, LLC Report #310194-A Model #: DCS1PT Template: 15.249 8-11-2010 LSR Job #:C-944 Serial #:Engineering Prototype Page 4 of 38 EXHIBIT 1. INTRODUCTION 1.1 SCOPE References: FCC Part 15, Subpart C, Section 15.249 and 15.209 FCC Part 2, Section 2.1043 paragraph (b)1. RSS GEN Issue 2 (2007) and RSS 210 Annex 2 Issue 7 (2007) Title: FCC : Telecommunication – Code of Federal Regulations, CFR 47, Part 15. IC : Low-power License-exempt Radio-communication Devices (All Frequency Bands): Category I Equipment Purpose of Test: To gain FCC and IC Certification Authorization for Low- Power License-Exempt Transmitters. Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification: • Commercial, Industrial or Business • Residential 1.2 NORMATIVE REFERENCES Publication Title 47 CFR, Parts 0-15 (FCC) Code of Federal Regulations - Telecommunications RSS 210 Low-power License-exempt Radio-communication Devices (All Frequency Bands): Category I Equipment ANSI C63.4 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. CISPR 16-1-1 Specification for radio disturbance and immunity measuring apparatus and methods. Part 1-1: Measuring Apparatus. CISPR 16-2-1 Specification for radio disturbance and immunity measuring apparatus and methods. Part 201: Conducted disturbance measurement. Prepared For: Ecolab EUT: Data Collection Station LS Research, LLC Report #310194-A Model #: DCS1PT Template: 15.249 8-11-2010 LSR Job #:C-944 Serial #:Engineering Prototype Page 5 of 38 1.3 LS Research, LLC TEST FACILITY LS Research, LLC is accredited by A2LA (American Association for Laboratory Accreditation) to conform to ISO/IEC 17025, 2005 “General Requirements for the Competence of Calibration and Testing Laboratories”. LS Research, LLC’s scope of accreditation includes all test methods listed herein, unless otherwise noted. A copy of the accreditation may be accessed on our web site: www.lsr.com . Accreditation status can be verified at A2LA’s web site: www.a2la2.net . 1.4 LOCATION OF TESTING All testing was performed at LS Research, LLC, W66 N220 Commerce Court, Cedarburg, Wisconsin, 53012 USA, utilizing the facilities listed below, unless otherwise noted. List of Facilities Located at LS Research, LLC: • Compact Chamber • Semi-Anechoic Chamber • Open Area Test Site (OATS) 1.5 TEST EQUIPMENT UTILIZED A complete list of equipment utilized in testing is provided in Appendix A of this test report. Calibration dates are indicated in Appendix A. All test equipment is calibrated …

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Company Name Ecolab Inc. Model # DCS1PT FCC ID # YMD‐ECL2010DCS1 IC # 9120A‐ECL2010DCS1 Page 1 of 2 Radiated Emissions Setup Photos Flat Vertical Side Rear of EUT when in Flat orientation. TEST SETUP PHOTOS Company Name Ecolab Inc. Model # DCS1PT FCC ID # YMD‐ECL2010DCS1 IC # 9120A‐ECL2010DCS1 Page 2 of 2 Conducted Emissions Test Setup Photos
