American Certification Body Inc. 6731 Whittier Ave, Suite C110 McLean, VA22101 Date: 25.10.2012 FCC ID: YMY030164 IC: 9157A-030164 Model Number(s): 030164 Subject: Compliance Statement in Car Manual Dear Sirs, Our client’s products with the above listed product identification(s) are marketed together with cars, where it’s operation is included in the individual owner’s manual of the car. We hereby assure that the following caution statement as per CFR 47, §15.21 is included in a prominent location of the owner’s manual of the cars: The title “CAUTION TO USERS” or “FCC WARNING”: “NOTE” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” In addition, we also assure that the following statement is also included in a prominent location in the manual as per CFR 47, §15.19(a)(3) and RSS-GEN 7.1.3: This device complies with Part 15 of the FCC Rules and Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation In accordance with RSS-Gen Section 5.3 we assure that this statement will also appear in French. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Thomas Ring Manager Certification mikes-testingpartners gmbh Ohmstr. 2-4, 94342 Strasskirchen, Germany

Request for Confidentiality Date: 25.10.2012 Subject: Confidentiality Request for: FCC ID: YMY030164 IC: 9157A-030164 ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos (EUT is not accessible to general public) Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ALLIGATOR Ventilfabrik GmbH has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of (0) days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Manager Certification Thomas Ring 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

American Certification Body Inc. 6731 Whittier Ave, Suite C110, McLean, VA 22101, USA TCB: Please note that justification is required for internal photos to be held confidential. Here is a list of conditions under which internal photos may be held confidential. Please note which one of these applies and provide a declaration/explanation of how the requirement is met: a. Internal photos of a consumer device may be held confidential when the circuit board is enclosed in epoxy or in a material that would destroy the circuit board if removed. b. Internal photos of a consumer device may be held confidential if the device is sealed and disassembly would destroy the product. c. Internal photos can also be held confidential if a non-consumer device is inaccessible to the general public, such as a device mounted on the top of a large tower (or in a fenced enclosure) that is only serviceable by the licensee or his designated technicians. Applicant: The EUT is built into a car. It is not visible to general public as mentioned in the confidentiality request letter. The same confidential procedure was used in the certification with FCC ID: YMY030152 in 2011.

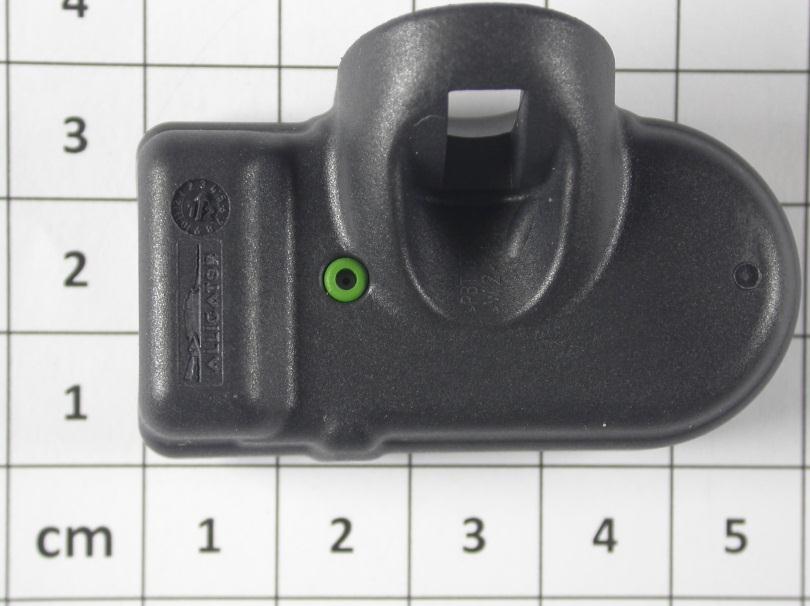

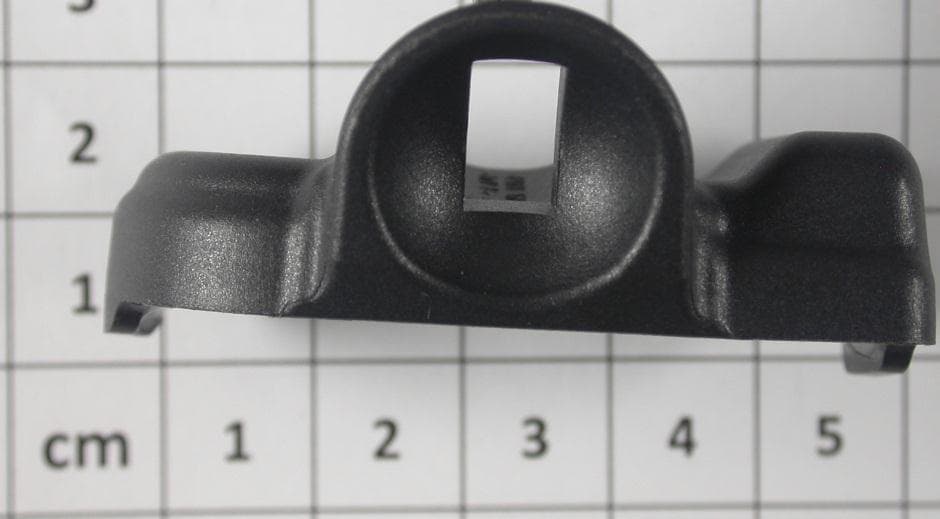

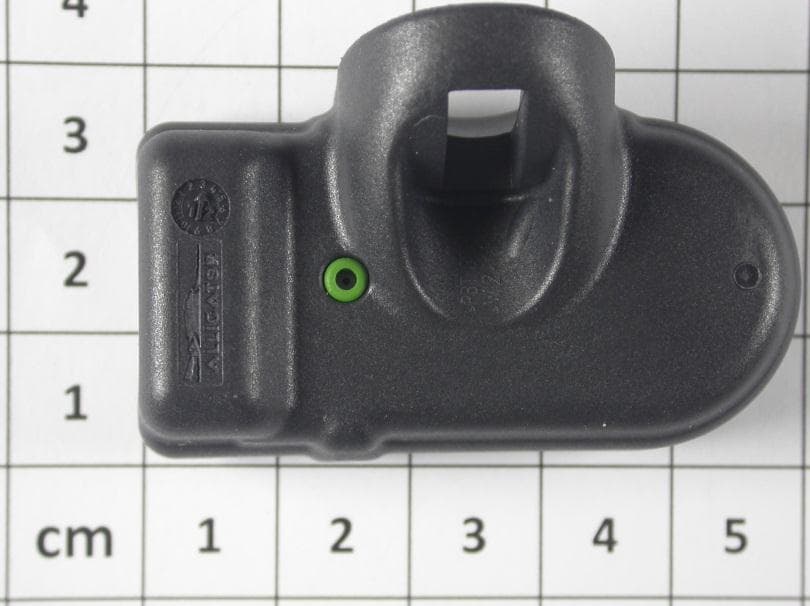

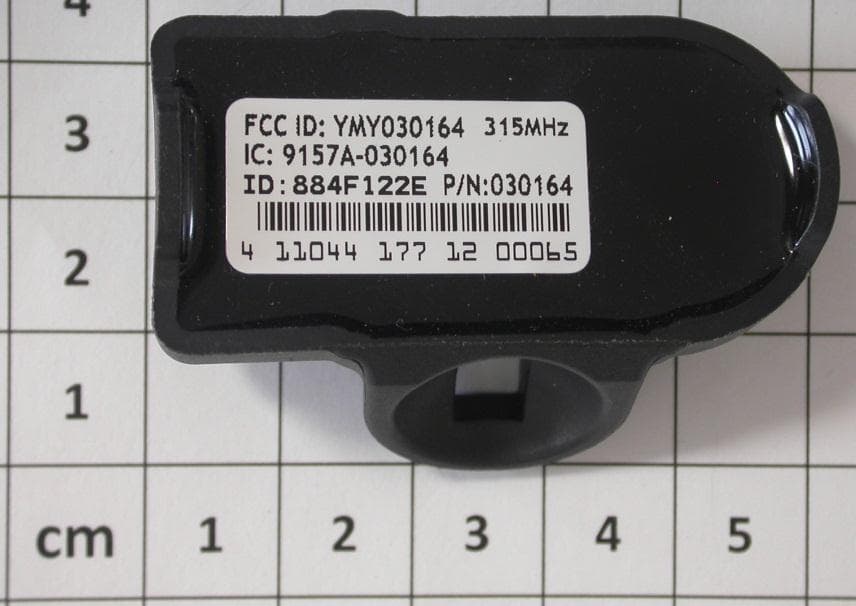

Attachment A to File No.: T36350-00 1 P h o t o d o c u m e n t a t i o n o f t h e E U T – R S 1 M 1.1 External views:

FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 1 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 EMI − T E S T R E P O R T - FCC Part 15.231 - Test Report No. : T36350-00-04HU 22. October 2012 ______________________________________________________________________________________________ Date of issue Type / Model Name : Wheel electronic / 030164 / RS1M Product Description : Tire pressure monitoring system - Tire safety system Applicant : LDL Technology Address : Parc Technologique du Canal, 3 rue Hermès 31520 Ramonville St-Agne, France Manufacturer : ALLIGATOR Ventilfabrik GmbH Address : Richard-Steiff-Str. 4 D-89537 Giengen/Brenz Licence holder : ALLIGATOR Ventilfabrik GmbH Address : Richard-Steiff-Str. 4 D-89537 Giengen/Brenz Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 2 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 3 E Q U I P M E N T U N D E R T E S T 6 3.1 Photo documentation of the EUT – See Attachment A 6 3.2 Power supply system utilised 6 3.3 Short description of the Equipment under Test (EUT) 6 4 T E S T E N V I R O N M E N T 7 4.1 Address of the test laboratory 7 4.2 Environmental conditions 7 4.3 Statement of the measurement uncertainty 7 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 7 5 T E S T C O N D I T I O N S A N D R E S U L T S 9 5.1 Conducted emissions 9 5.2 Field strength of the fundamental wave 10 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz 12 5.4 Spurious emissions radiated (electric field) 14 5.5 Correction for pulse operation (duty cycle) 18 5.6 Emission bandwidth 22 5.7 On / Off Period 25 5.8 Signal deactivation 29 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 33 A T T A C H M E N T A FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 3 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2011) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2011) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1: 1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 4 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 2 S U M M A R Y GENERAL REMARKS: All radiated tests have been performed on samples which are in original state. For activating the EuT a trigger transmitter was used to power up the Wheel Unit Sensor. The EuT has an incorporated antenna an d is powered by a primary battery. The manufacturer declares following transmitting intervals: Normal mode: Alarm mode: FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 5 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 24. September 2012 Testing concluded on : 11. October 2012 Checked by: Tested by: Klaus Gegenfurtner Dipl.-Ing.(FH) Manager Radio Group Markus Huber FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 6 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EUT – See Attachment A 3.2 Power supply system utilised Power supply voltage : 3.0 V / DC (Lithium battery) 3.3 Short description of the Equipment under Test (EUT) The wheel electronic is a part of a TPMS. It will be mounted in the wheel of a vehicle. Number of tested samples: 2 Serial number: 884F10E5 and 884F1024 EUT operation mode: The equipment under test was operated during the measurement under the following conditions: - Tx mode at frequency 315.0 MHz, Fast send mode (Alarm mode) - Tx mode at frequency 315.0 MHz, Normal Operation mode - EUT configuration: The following peripheral devices and interface cables were connected during the measurements: - Trigger Tool Unit Model : Provided by LDL - Model : - Model : - Model : - Model : - Model : FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 7 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  F…

Text truncated - open the document above for the full version.

FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 10 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 2. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to FCC Part 15C, Section 15.231(e): The field strength of emissions from intentional radiators shall not exceed the effective field strength limits. 5.2.2 Description of Measurement The radiated power of the fundamental wave from the EUT is measured in the frequency range of 30 to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. Measurements between 30 MHz and 1000 MHz are made with 120 kHz/6 dB bandwidth and quasi-peak detection. Table top equipment is placed on a 1.0 X 1.5 metres non-conducting table 80 centimetres above the ground plane. Floor standing equipment is placed directly on the turntable/ground plane. The set up of the EUT will be in accordance to ANSI C63.4. The Interface cables that are closer than 40 centimetres to the ground plane are bundled in the centre in a serpentine fashion so they are at least 40 centimetres from the ground plane. Cables to simulators/testers (if used in this test) are routed through the centre of the table and to a screen room located outside the test area. The antenna was positioned 3, 10 or 30 metres horizontally from the EUT. To locate maximum emissions from the test sample the antenna is varied in height from 1 to 4 metres, measurement scans are made in horizontal and vertical antenna polarization’s and the EUT is rotated 360 degrees. The resolution bandwidth during the measurement is as follows: 30 MHz – 1000 MHz: RBW: 120 kHz FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 12 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up 5.3.3 Applicable standard According to FCC Part 15C, Section 15.209: The emissions from intentional radiators shall not exceed the effective field strength limits. 5.3.4 Description of Measurement The magnetic field strength from the EUT will be measured on an open area test site in the frequency range of 9 kHz to 30 MHz using a tuned receiver and a shielded loop antenna. The set up of the Equipment under test will be in accordance to ANSI C63.4. The antenna was positioned 3, 10 or 30 meters horizontally from the EUT. Measurements have been made in all three orthogonal axes and the shielded loop antenna was rotated to locate the maximum of the emissions. In the case where larger measuring distances are required the results will extrapolated based on the values measured on the closer distances according to Section 15.31(f)(2)(2). The final measurement will be performed with an EMI Receiver set to Quasi Peak detector except for the frequency bands 9 kHz to 90 kHz and 110 to 490 kHz where an average detector will be used according to Section 15.209(d)(2). FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 14 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.4 Spurious emissions radiated (electric field) For test instruments and accessories used see section 6 Part SER 2, SER 3. 5.4.1 Description of the test location Test location: OATS1 Anechoic Chamber A2 Test distance: 3 metres 5.4.2 Photo documentation of the test set-up FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 18 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.5 Correction for pulse operation (duty cycle) For test instruments and accessories used see section 6 Part DC. 5.5.1 Description of the test location Test location: AREA4 5.5.2 Photo documentation of the test set-up 5.5.3 Applicable standard According to FCC Part 15C, Section 15.35(c): The emissions from intentional radiators shall not exceed the effective field strength limits. 5.5.4 Test result The Duty cycle factor (dB) is calculated applying the following formula: KE= 20 log ((tiB)/100) KE: pulse operation correction factor (dB) tiB pulse duration for one pulse (ms) Maximum transmitting duration in every 100ms period: 24.0 ms KE= 20 log ((24.0)/100) = -12.39 dB Remarks: FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 22 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.6 Emission bandwidth For test instruments and accessories used see section 6 Part MB. 5.6.1 Description of the test location Test location: AREA4 5.6.2 Photo documentation of the test set-up 5.6.3 Applicable standard According to FCC Part 15C, Section 15.231(c): The bandwidth of the emission shall not exceed the effective limits. 5.6.4 Description of Measurement The measurement was performed conducted with intentional modulation using a spectrum analyser. The analyser span was set wide enough to capture the most of the power envelope of the signal. The function “20-dB-down” is used to determine the BW. For an overview on the adjacent restricted bands the span was set as wide as needed to show that the restricted bands are not affected. FCC ID: YMY030164 mikes-testingpartners gmbh File No. T36350-00-04HU, page 25 of 33 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax: +49(0)9424-9481240 Rev. No. 1.1, 05.11.2008 5.7 On / Off Period For test instrument…
