YMY030180Programming Tool Unit

29.03.2011 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below for the following FCC ID: YMY030180 Schematics Parts List Operating Description, Block Diagram Internal photos (EUT will not be accessible by general public) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Thomas Ring Manager Certification mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany

PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 04.05.2011 FCC ID: YMY030180 Subject: DOC Attestation Dear Sirs, The Programming Tool Unit 030180 with the FCC ID: YMY030180 will be covered also by a report according to FCC Part 15B as this model is also a PC Periphery (Class B) device. For further details see report T34707-00-02HU, page 5. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Thomas Ring Manager Certification mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany

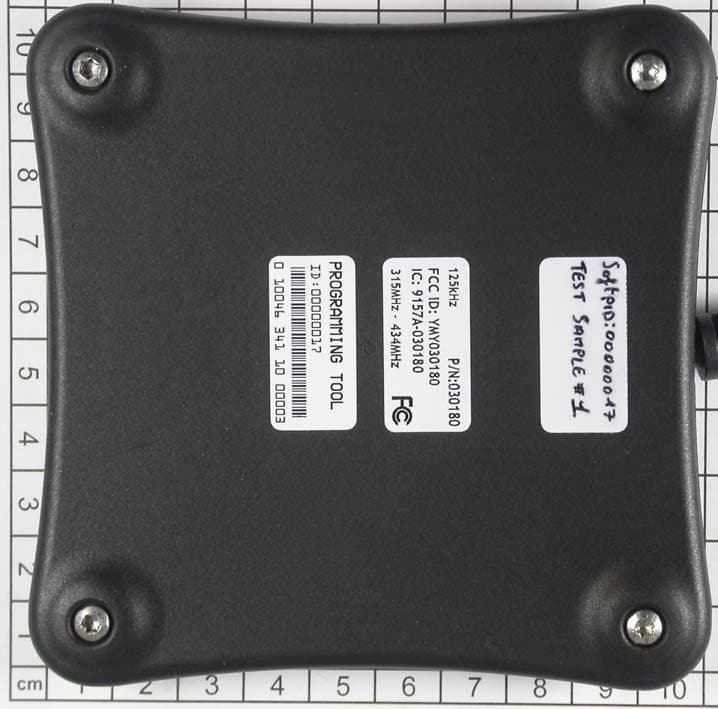

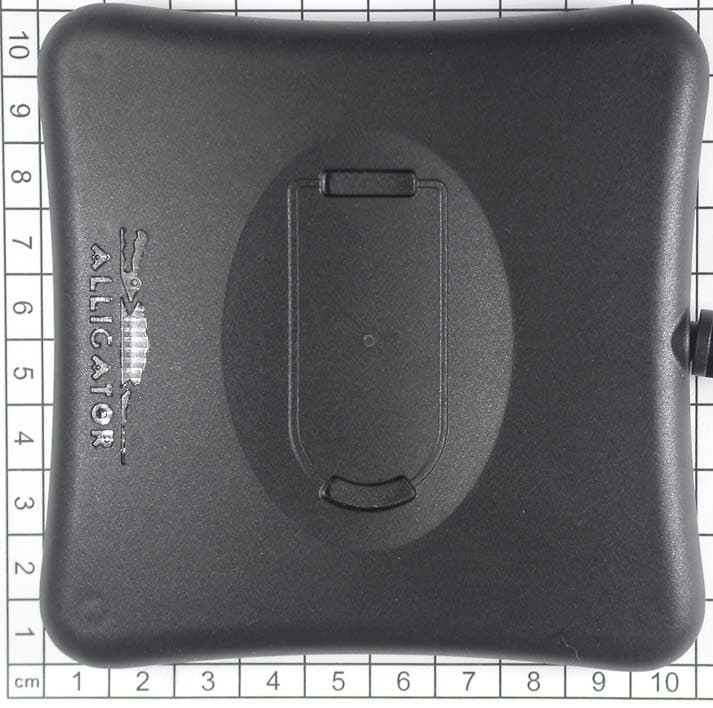

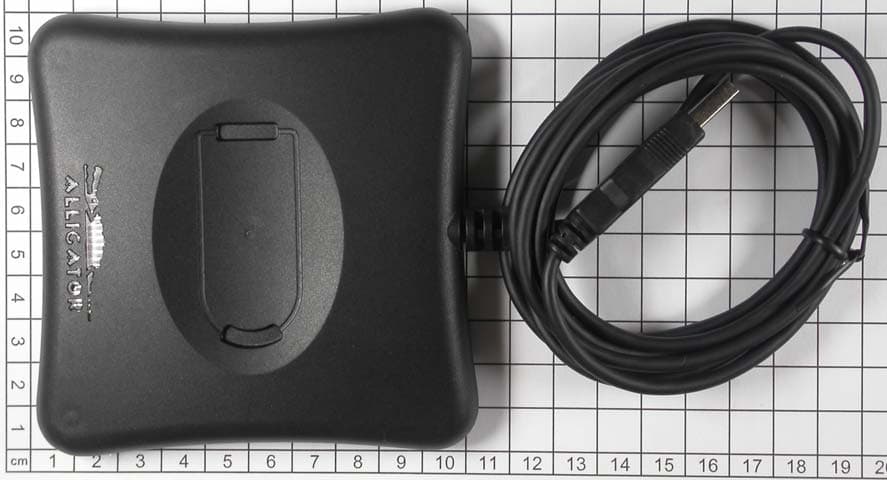

mikes-testingpartners gmbh File No. T34707-00HU, page 3 of 9 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.0; 19.2.2009 1 Photo documentation of the EUT Test Setup: mikes-testingpartners gmbh File No. T34707-00HU, page 4 of 9 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.0; 19.2.2009 1.1 External views: + mikes-testingpartners gmbh File No. T34707-00HU, page 5 of 9 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.0; 19.2.2009

mikes-testingpartners gmbh File No. T34707-00HU, page 4 of 9 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.0; 19.2.2009 1.1 External views: +

FCC ID: YMY030180 mikes-testingpartners gmbh File No. T34707-00-00HU, page 1 of 21 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 EMI − T E S T R E P O R T - FCC Part 15.209 - Test Report No. : T34707-00-00HU 21. April 2011 ______________________________________________________________________________________________ Date of issue Type / Model Name : 030180 Product Description : Programming Tool Unit Applicant : LDL Technology Address : Parc Technologique du Canal, 3 rue Hermès 31520 Ramonville St-Agne, France Manufacturer : ALLIGATOR Ventilfabrik GmbH Address : Richard-Steiff-Str. 4 D-89537 Giengen/Brenz Licence holder : ALLIGATOR Ventilfabrik GmbH Address : Richard-Steiff-Str. 4 D-89537 Giengen/Brenz Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: YMY030180 mikes-testingpartners gmbh File No. T34707-00-00HU, page 2 of 21 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 Photo documentation of the EUT – Detailed photos see Attachment A 5 3.2 Power supply system utilised 5 3.3 Short description of the Equipment under Test (EUT) 5 4 TEST ENVIRONMENT 7 4.1 Address of the test laboratory 7 4.2 Environmental conditions 7 4.3 Statement of the measurement uncertainty 7 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 8 5 TEST CONDITIONS AND RESULTS 9 5.1 Conducted emissions 9 5.2 Field strength of the fundamental wave 13 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz 16 5.4 Emission Bandwidth 19 6 USED TEST EQUIPMENT AND ACCESSORIES 21 FCC ID: YMY030180 mikes-testingpartners gmbh File No. T34707-00-00HU, page 3 of 21 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2010) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2010) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement FCC ID: YMY030180 mikes-testingpartners gmbh File No. T34707-00-00HU, page 4 of 21 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 2 SUMMARY GENERAL REMARKS: The carrier frequency is 125.0 kHz The EuT has a print on antenna on the PCB. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 18. January 2011 Testing concluded on : 19. April 2011 Checked by: Tested by: Klaus Gegenfurtner Dipl.-Ing.(FH) Manager: Radio Group Huber Markus FCC ID: YMY030180 mikes-testingpartners gmbh File No. T34707-00-00HU, page 5 of 21 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT – Detailed photos see Attachment A 3.2 Power supply system utilised Power supply voltage: : 5.0 V / DC (Powered Hub or Host USB port) 3.3 Short description of the Equipment under Test (EUT) FCC ID: YMY030180 mikes-testingpartners gmbh File No. T34707-00-00HU, page 6 of 21 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 Number of tested samples: 2 Serial number: Sample ID: 00000018 Sample ID: 00000019 EUT operation mode: The equipment under test was operated during the measurement under the following conditions: - Tx mode at 125 kHz - Continuous Wave Emitter Sample (unmodulated) - Tx mode at 125 kHz - Continuous Frame Emitter Sample (modulated) - EUT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - USB Power Supply Block Model : Fa. LDL - Model : - Model : - Model : - Model : - Model : - customer specific cables FCC ID: YMY030180 mikes-testingpartners gmbh File No. T34707-00-00HU, page 7 of 21 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Tel.: +49(0)9424-94810 x Fax: +49(0)9424-9481240 Rev. No. 1.2, 9.9.2010 4 TEST ENVIRONMENT 4.1 Address of the test laboratory mikes-testingpartners gmbh Ohmstrasse 2-4 94342 STRASSKIRCHEN GERMANY 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data a…

Text truncated - open the document above for the full version.

mikes-testingpartners gmbh File No. T34707-00-01HU, page 10 of 17 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 10.9.2010 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up mikes-testingpartners gmbh File No. T34707-00-01HU, page 12 of 17 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 10.9.2010 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up mikes-testingpartners gmbh File No. T34707-00-01HU, page 15 of 17 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 10.9.2010 5.4 Occupied bandwidth For test instruments and accessories used see section 6 Part MB. 5.4.1 Description of the test location Test location: AREA4 5.4.2 Photo documentation of the test set-up 5.4.3 Applicable standard According to RSS-Gen Issue 3, 4.6.1: When an occupied bandwidth is not specified in the applicable RSS, the transmitted signal bandwidth to be reported is to be its 99% emission bandwidth. 5.4.4 Description of Measurement The bandwidth was measured with the function “bandwidth measurement” of the spectrum analyser. The EUT is connected via suitable attenuator at the spectrum analyser. The measurement is repeated for every different modulation standard of the EUT and recorded. 5.4.5 Test result Fundamental (kHz) 99% Bandwidth f1 (kHz) 99% Bandwidth f2 (kHz) Measured Bandwidth (kHz) 125.00 109.90 138.40 28.50 Remarks:
