YNG-GPF080001GPS Portable Navigation Device with BT

User Manual GPS 84F-3 Thanks for using YF GPS 84F-3! z YF reserves the rights of final interpretation of the manual. z The manual content is subject to change without notice. Please accept our apology for your inconvenience. z Please back up your data of the GPS navigator. YF assumes no responsibility for any loss caused by data loss. z The manual might contain a few mistakes though it has been checked. If mistakes are found, you are welcome to contact the YF customer service center. Operation Instruction Read Me First z Please read the instructions in this manual and use only accessories of YF to avoid unpredicted damage. Failure to follow the instructions will invalidate warranty and might endanger personnel safety, for which YF assumes no responsibility. z Data of navigation electronic maps might be inconsistent with actual traffic signals due to transportation development. Please follow traffic regulations and signs and drive according to road situation. Operating the GPS navigator device while driving might cause serious accidents. YF assumes no responsibility for accidents and loss due to improper use. z For information of software update and upgrade, please go to our website www.yfgps.com . z The pictures in the manual are subject to the material object. Contents Welcome ...........................................................................................................................................1 Chapter I Beginning Use ................................................................................................................2 1.1 Appearance .................................................................................................................................................. 2 1.2 Power Supply & Charging........................................................................................................................... 3 1.3 Basic Use..................................................................................................................................................... 4 1.4 System Main Interface and Major Functions............................................................................................... 5 Chapter II GPS................................................................................................................................7 2.1 Map ............................................................................................................................................................. 7 2.2 Navigation ................................................................................................................................................... 7 2.3 Reception..................................................................................................................................................... 7 Chapter III Media ...........................................................................................................................8 3.1 Music Player................................................................................................................................................ 8 3.2 Video Player .............................................................................................................................................. 11 3.3 Photo Browser ........................................................................................................................................... 13 3.4 E-book Reader........................................................................................................................................... 14 Chapter IV Games ........................................................................................................................19 4.1 Othello....................................................................................................................................................... 19 4.2 DuiDuiPeng............................................................................................................................................... 19 4.3 Russia Block.............................................................................................................................................. 20 Chapter V Tools.............................................................................................................................21 5.1 Calculator .................................................................................................................................................. 21 5.2 Unit............................................................................................................................................................ 21 Chapter VI Setting ........................................................................................................................23 6.1 Summary ................................................................................................................................................... 23 6.2 Volume ...................................................................................................................................................... 24 6.3 Backlight ................................................................................................................................................... 24 6.4 Language ................................................................................................................................................... 25 6.5 Date& Time ............................................................................................................................................... 25 6.6 Calibration................................................................................................................................................. 26 6.7 System Info .......................................................................................................................…

Text truncated - open the document above for the full version.

Crystal 20MHz Crystal 16.367667MHz Crystal 24MHz

Dongguan Yuanfeng Technology Co., Ltd Data: October 28, 2010 FCC ID: YNG-GPF080001 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. MOST Technology Service Co., Ltd Address: No.5, Langshan 2nd Rd, North Hi-Tech Industrial park, Nanshan, Shenzhen, Guangdong, China Name: Terry Job Title: Manager Email: [email protected] I am therefore responsible for the contents of the application. Model Name of the specified radio equipment: 84F-3, 84F-1, 84F-2, 84F-4, 84F-5, 84F-6, 84F-7, 84F-8, 84F-9, 84F-51, 84F-52, 84F-53, 84F-54, 84F-55, 84F-56, 84F-57, 84F-58, 84F-59, PF08-4301, PF08-4302, PF08-4303, PF08-4304, PF08-4305, PF08-4306, PF08-4307, PF08-4308, PF08-4309, PF08-5001, PF08-5002, PF08-5003, PF08-5004, PF08-5005, PF08-5006, PF08-5007, PF08-5008, PF08-5009, PF08-5004HD, 84F-53HD, 84F-54HD, 84F-56HD, 84F-59HD FCC ID: YNG-GPF080001 Product Name: GPS Portable navigation device Signature____________________ FCC grantee contact person information. Name/Title: Zhixiang Wei (engineer) Company Name: Dongguan Yuanfeng Technology Co., Ltd Address: NO.62, South Fumin Road, Fumin Industrial Park, Dalang Town, Dongguan City, Guangdong, P.R. China TEL: +86-755-86309068 FAX: +86-755-26995182 Email: [email protected]

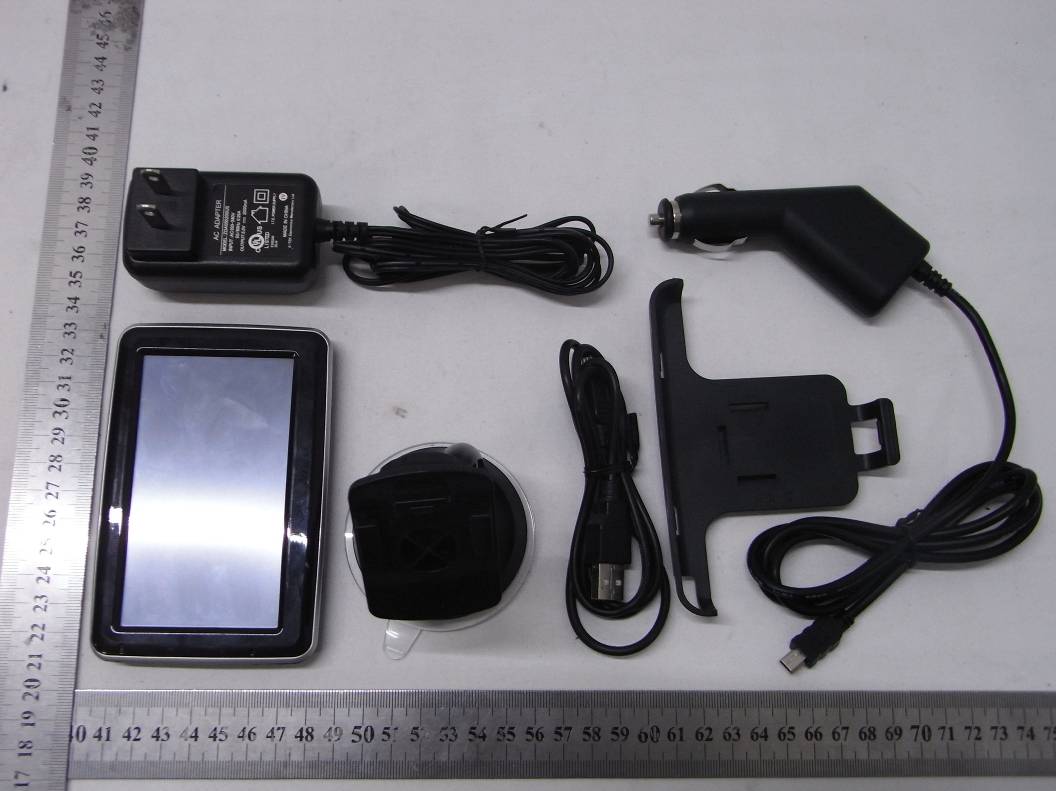

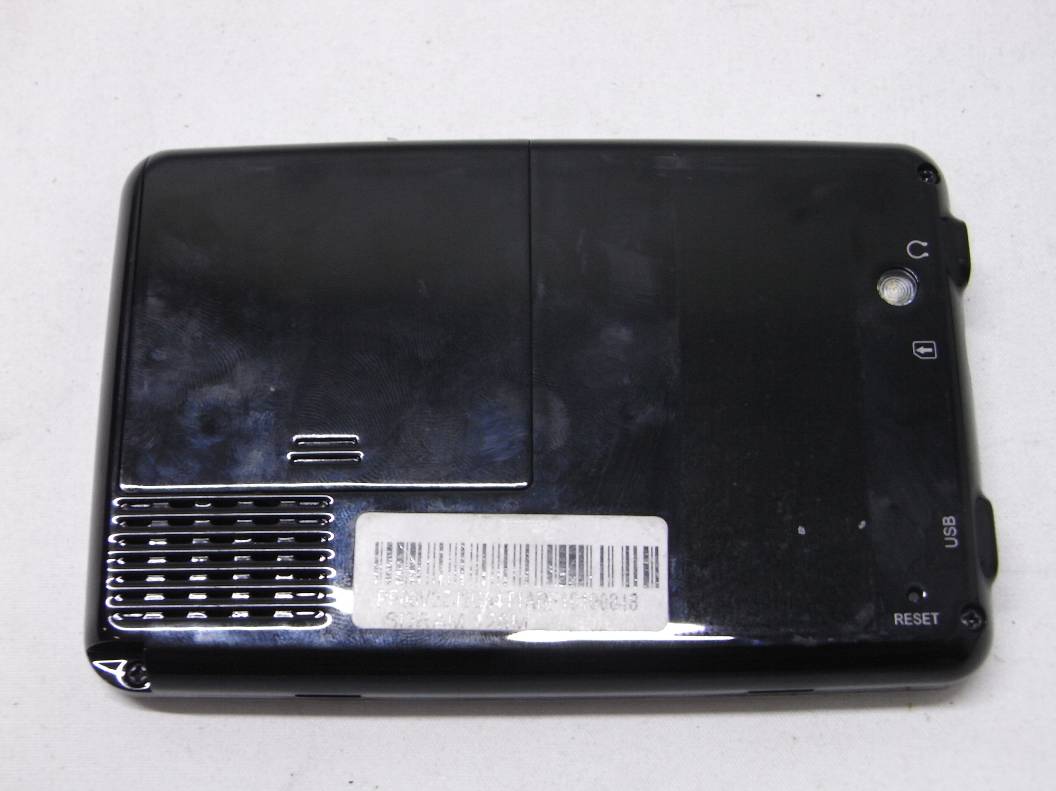

FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE PHOTO OF POWER SUPPLY PHOTO OF USB LINE PHOTO OF CAR ADAPTOR PHOTO OF TRESTLE TABLE PHOTO OF THE ENTIRE SAMPLE PHOTO OF THE BATTERY

INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE -2 INTERNAL PHOTO OF SAMPLE - 3 INTERNAL PHOTO OF SAMPLE - 4 INTERNAL PHOTO OF POWER SUPPLY INTERNAL PHOTO OF CAR SUPPLY Photo of FM Module Photo of Bluetooth Module

Operation Principle Multi-function GPS Portable Navigation Device-84F-3 1. BlueTooth a. RoadTunes ROM b. Communication interface: UART c. Frequency: 2.4GHz ISM band d. 24MHz crystal e. Power supply:3.3V f. Built-in high-performance 2.4GHz chip antennas. 2. GPS a. 64-channel GPS baseband with hardware match filter b. Operating Frequency：1575.42MHz c. 16.367667MHz/+/-0.5PPM crystal d. Power supply:3.3V e. Built-in passive ceramic antenna 3. FM Transmit a. 88.1MHz to 107.9MHz full band tuning in b. 50/100/200 kHz step sizes c. 50/75us pre-emphasis d. I2C interface e. Power supply:3.3V

55 44 33 22 11 D D C C B B A A X_SCL_0 X_SDA_0 XOUTXOUTWXINWXIN X_CKO_1 CKO_0_32K XINW XOUTW XOUT XIN CKO_0_32KX_TEST_MODE0 X_TEST_MODE3 X_TEST_MODE2 X_CKO_1/BT_24M_CLK X_TEST_MODE1 X_TEST_MODE1 X_TEST_MODE0 X_TEST_MODE2X_TEST_MODE3 VDD_CORE 3,4 X_RTC_RST_B 4 X_USB_VBUS 14X_USB_DN 14 X_USB_DP 14 X_SYSTEM_EN 4 X_DRAM_EN 4 X_GPS_RF_CLK 11X_GPS_MAG 11X_GPS_SGN 11 X_TEST_MODE0 6X_TEST_MODE1 6X_TEST_MODE2 6 CKO_0_32K 10 X_TEST_MODE3 6 X_ON_KEY_B 4 USB_ID 14 X_RESET_B 4 X_GPS_SAMPLE_CLK 4,11 X_CKO_1/BT_24M_CLK 8,9 X_LOWBATT_B 4 X_EXT_ON 14 TitleSize Document Number Rev Date: Sheet of AtlasV-PART A V01 YF Atlas-V 标准平台(PF08) Custom 115 Monday, April 12, 2010 TitleSize Document Number Rev Date: Sheet of AtlasV-PART A V01 YF Atlas-V 标准平台(PF08) Custom 115 Monday, April 12, 2010 TitleSize Document Number Rev Date: Sheet of AtlasV-PART A V01 YF Atlas-V 标准平台(PF08) Custom 115 Monday, April 12, 2010 深圳市远峰计算机技术有限公司 R8 200K R8 200K R233RR233R C415pF_C0G_5%C415pF_C0G_5% R4499RR4499R C515pF_C0G_5%C515pF_C0G_5% C315pF_C0G_5%C315pF_C0G_5% C115pF_C0G_5%C115pF_C0G_5% C222pF_C0G_5%C222pF_C0G_5% R1 44R2_1%R1 44R2_1% R52MR52M Y124MHz_20ppmY124MHz_20ppm 13 4 2 U1A ATLAS-V U1A ATLAS-V X_GPIO_15/TCK R5 X_RESET_B R11 X_XINW T1 X_GPIO_2/SCL_1 T2 X_GPIO_7/PWM3 T3 X_GPIO_13/RTCK T4 X_GPIO_12/NSRST T5 X_UTXD_0/GPIO0[19] L2 X_RXD_0/GPIO3[15] L1 X_UTFS_0/USB1_UTMI_DRWBUS/GPIO0[21] L4 X_GPIO_11/TDO L5 X_GPS_MAG/GPIO3[21] A2 X_GPS_SGN/GPIO3[20] A3 X_USB_DN K1 X_USB_TXRTUNE_RKELVIN K2 X_URXD_1/SPK_P/GPIO0[25] K3 X_UTFS_1/SPK_N/GPIO0[26] K4 X_GPIO_9/TMS M5 X_XIN P1 X_USB_DP J1 X_URFS_1/I2S_DOUT[2]/CTS_0/GPIO0[27] J3 X_URFS_0/I2S_DOUT[1]/RTS_0/GPIO0[22] J4 X_GPIO_0 P2 X_GPIO_4/PWM0 P3 X_GPIO_10/TDI P4 X_GPIO_14/NTRST P5 X_RTC_RST_B P7 X_SYSTEM_EN P10 X_GPIO_8/WARM_RST_B R2 X_LOWBATT_B P13 X_GPIO_3/SDA_1 R4 X_XOUT R1 X_GPIO_5/PWM1 R3 X_GPIO_1 N3 X_USB_VBUS N4 X_TESTMODE_0 N5 X_RXD_1/GPIO3[16] M4 X_USB_ID K5 X_SDA_0/GPIO3[18] T11 X_SCAN_EN H5 X_XOUTW U1 X_CKO_0 U2 X_GPIO_6/PWM2 U3 X_TESTMODE_4 U6 X_SCL_0/GPIO3[19] T12 X_TESTMODE_5 V6 X_CKO_1/I2S_MCLK/GPIO1[20] E2 X_TXD_0 G4 X_TESTMODE_2 R6 X_TESTMODE_1 R10 X_TESTMODE_3 T6 X_GPS_CLK/GPIO4[28] B3 X_GPS_SAMPLE_CLK/GPIO3[22] B2 X_UTXD_1/Headphone_L/GPIO0[24] H3 X_TXD_1 H4 X_EF_FSOURCE D11 X_URXD_0/GPIO0[20] G3 X_USCLK_1/Headphone_R/GPIO0[23] G2 X_USCLK_0/I2S_EXTCLK/GPIO0[18] F2 X_EF_VGATE C11 X_DRAM_EN U11 X_EXT_ON U10 X_ON_KEY_B V10 Y232K768Y232K768 12 3 R31MR31M 55 44 33 22 11 D D C C B B A A X_AUX2 X_XP 12 Light_Sensor 12 X_YP 12 X_XN 12 X_YN 12 X_GPIO3_23/LCD_DE 12X_L_PCLK 12 X_L_FCK 12 X_L_LCK 12 X_LDD0 12 X_LDD1 12 X_LDD2 12 X_LDD3 12 X_LDD4 12 X_LDD5 12 X_LDD6 12 X_LDD7 12 X_LDD8 12 X_LDD9 12 X_LDD10 12 X_LDD11 12 X_LDD12 12 X_LDD13 12 X_LDD14 12 X_LDD15 12 TitleSize Document Number Rev Date: Sheet of AtlasV-PART B V01 YF Atlas-V 标准平台(PF08) Custom 215 Friday, April 09, 2010 TitleSize Document Number Rev Date: Sheet of AtlasV-PART B V01 YF Atlas-V 标准平台(PF08) Custom 215 Friday, April 09, 2010 TitleSize Document Number Rev Date: Sheet of AtlasV-PART B V01 YF Atlas-V 标准平台(PF08) Custom 215 Friday, April 09, 2010 深圳市远峰计算机技术有限公司 R9R9 U1B ATLAS-V U1B ATLAS-V X_SD_DAT_3_1/SPI_CLK_0/GPIO1[29] E1 X_SD_DAT_3_3/SPI_DOUT_0//GPIO1[1] E3 X_SD_CMD_3/GPIO1[3] E4 X_SD_WP_B_1/GPIO1[9] E5 X_AC97_BIT_CLK/I2S_BCLK/GPIO4[24] F1 X_AC97_DIN/I2S_DIN/GPIO4[26] F3 X_SD_DAT_3_2/SPI_DIN_0/GPIO1[0] F4 X_SD_VCC_ON_1/GPIO1[8] F5 X_SD_CD_B_1/GPIO1[7] G5 X_AC97_SYNC/I2S_LRCK/GPIO4[27] H2 X_SD_DAT_1_2/GPIO1[14] A1 X_LDD15/FD15 A4 X_LDD11/FD11 A5 X_LDD7/FD7 A6 X_LDD3/FD3 A7 X_L_FCK/FOE_B A8 X_L_PCLK/FCE_B1 A9 X_DF_WE_B/SD2_CLK A10 X_DF_AD1//SD0_DAT_1/SD2_DAT_1 A11 X_DF_AD4/SD0_DAT_4/SD2_DAT_4 A12 X_DF_AD7/SD0_DAT_7/SD2_DAT_7 A13 X_SD_DAT_1_1/GPIO1[13] B1 X_LDD14/FD14 B4 X_LDD10/FD10 B5 X_LDD6/FD6 B6 X_LDD2/FD2 B7 X_L_DE/FA1/GPIO3[23] B8 X_L_LCK/FWE_B B9 X_DF_ALE/SD0_CMD B10 X_DF_AD0//SD0_DAT_0/SD2_DAT_0 B11 X_DF_AD3/SD0_DAT_3/SD2_DAT_3 B12 X_DF_AD6/SD0_DAT_6/SD2_DAT_6 B13 X_SD_DAT_1_3/GPIO1[15] C1 X_SD_CLK_1/GPIO1[10] C2 X_SD_DAT_1_0/GPIO1[12] C3 X_LDD13/FD13 C4 X_LDD9/FD9 C5 X_LDD5/FD5 C6 X_LDD1/FD1 C7 X_DF_CS_B_0/X_DF_CS_B_2 C8 X_DF_RY_BY C9 X_DF_CLE/SD0_CLK C10 X_DF_AD2/SD0_DAT_2/SD2_DAT_2 C12 X_DF_AD5/SD0_DAT_5/SD2_DAT_5 C13 X_SD_DAT_3_0/SPI_EN_0/GPIO1[28] D1 X_SD_CLK_3/GPIO1[2] D2 X_SD_CMD_1/GPIO1[11] D3 X_LDD12/FD12 D4 X_LDD8/FD8 D5 X_LDD4/FD4 D6 X_LDD0/FD0 D7 X_DF_CS_B_1 D8 X_DF_WP_B/SD0_VCC_ON D9 X_DF_RE_B/SD2_CMD D10 X_AC97_DOUT/I2S_DOUT[0]/GPIO4[25] G1 X_XP T15 X_XN T14 X_AUX1 T13 X_AUX0 U13 X_AUX2 U14 X_YN R14 X_YP R15 X_REF_ADC P14 R10R10 C7105_X5R_0402C7105_X5R_0402 55 44 33 22 11 D D C C B B A A VDD_RTC X_GATE_O 5 X_GATE_I 5 X_MCLK_O 5 X_MCLKB_O 5 VDD_PLL 4 X_MCS_B 5 X_MBA0 5 X_MCKE 5 X_MRAS_B 5 X_MBA1 5 X_MCAS_B 5 X_MWE_B 5 AVDD_IO 2,4,8,14 GND 1,2,4,5,6,7,8,9,10,11,12,13,14,15 X_MA0 5 VDD_IO 1,4,6,7,8,9,10,14 X_MD0 5 X_MDQM0 5 X_MDQS0 5 X_MD1 5 X_MD2 5 X_MD3 5 X_MD4 5 X_MD5 5 X_MA1 5 VDD_CORE 1,4 X_MD6 5 X_MA2 5 X_MD7 5 X_MA3 5 X_MA4 5 X_MD8 5 X_MD9 5 X_MD10 5 X_MD11 5 X_MD12 5 X_MD13 5 X_MD14 5 X_MD15 5 X_MA5 5 X_MDQM1 5 X_MA6 5 X_MDQS1 5 X_MA7 5 X_MA8 5 X_MA9 5 VDD_MEM 4,5 X_MA10 5 X_MA11 5 X_MA12 5 VDD_RTC 4,6,14 X_MA13 5 TitleSize Document Number Rev Date: Sheet of SIRF AtlasV-PART C/D V01 YF Atlas-V 标准平台(PF08) Custom 315 Tuesday, February 02, 2010 TitleSize Document Number Rev Date: Sheet of SIRF AtlasV-PART C/D V01 YF Atlas-V 标准平台(PF08) Custom 315 Tuesday, February 02, 2010 TitleSize Document Number Rev Date: Sheet of SIRF AtlasV-PART C/D V01 YF Atlas-V 标准平台(PF08) Custom 315 Tuesday, February 02, 2010 深圳市远峰计算机技术有限公司 C13 224_X7R_10% C13 224_X7R_10% C26 224_X7R_10% C26 224_X7R_10% U1D ATLAS-V U1D ATLAS-V VSS_PLL0 N1 VSS_PLL1 N2 VDDIO4 N6 VSS28 N7 VSS29 N8 VSS30 N9 VSS31 N10 VDD_CORE6 N11 VSSA_TSC N12 VDDA3V3_TSC N13 VDDIO3 P6 VSS32 P8 VSS33 P9 VDD_CORE4 P11 VDD_TSC P12 VSS35 R8 VSS34 R9 VDD_RTC R12 VSS_TSC R13 VSS36 T7 VSS37 T8 VSS38 T9 VSS39 T10 VSS24 M6 VSS25 M8 VSS27 M11 VSS26 M10 VDD_CORE3 H8 VSS9 H7 VSS10 J6 VSS11 H9 VSS12 H10 VSS13 J7 VSS15 J11 VSS14 J10 VDD_CORE7 K6 VSS17 K7 VSS16 K8 VSS1…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : Dongguan Yuanfeng Technology Co., Ltd. Address : No.62, South Fumin Road, Fumin Industrial Park, Dalang Town, Dongguan City, Guangdong, P.R. China Product Name : GPS Portable Navigation Device Model Name : 84F-3 Brand Name : N/A FCC ID : YNG-GPF080001 Report No. : MOST101003F2A Date of Issue : October. 22, 2010 Issued by :Most Technology Service Co., Ltd. Address : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 29 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: YNG-GPF080001 Report No.:MOST101003F2A Page 2 of 29 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 3 2. GENERAL INFORMATION ............................................................................................................................ 4 2.1 Product Information ...................................................................................................................................... 4 2.2 Objective ...................................................................................................................................................... 5 2.3 Test Standards and Results .......................................................................................................................... 5 2.4 Environmental Conditions............................................................................................................................. 5 2.5 Support Equipment....................................................................................................................................... 5 3. TEST FACILITY.............................................................................................................................................. 6 4. TEST EQUIPMENT LIST ............................................................................................................................... 7 5. 47 CFR Part 15C Requirements................................................................................................................... 8 5.1 20dB Bandwidth ........................................................................................................................................... 8 5.1.1 Definition ................................................................................................................................................... 8 5.1.2 Test Description ......................................................................................................................................... 8 5.1.3 Test Result................................................................................................................................................. 8 5.2 Frequency Range ..................................................................................................................................... 10 5.2.1 Definition ................................................................................................................................................. 10 5.2.2 Test Description ....................................................................................................................................... 10 5.2.3 Test Result............................................................................................................................................... 10 5.3 Radiated Emission.....................................................................................................................................11 5.3.1 Definition ..................................................................................................................................................11 5.3.2 Test Configuration ................................................................................................................................... 12 5.3.3 Test Description ....................................................................................................................................... 13 5.3.4 Test Result............................................................................................................................................... 13 5.4 Antenna Requirement .............................................................................................................................. 16 5.4.1 Definition ................................................................................................................................................. 16 5.4.2 Evaluation Procedure .............................................................................................................................. 16 5.4.3 Evaluation Criteria ................................................................................................................................... 16 5.4.4 Evaluation Results................................................................................................................................... 16 APPENDIX 1 .................................................................................................................................................... 17 PHOTOGRAPHS OF TEST SETUP ...................................................................................................... .......... 17 APPENDIX 2 ....................................................................................................................…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : Dongguan Yuanfeng Technology Co., Ltd. Address : No.62, South Fumin Road, Fumin Industrial Park, Dalang Town, Dongguan City, Guangdong, P.R. China Product Name : GPS Portable Navigation Device Model Name : 84F-3 Brand Name : N/A FCC ID : YNG-GPF080001 Report No. : MOST101003F2B Date of Issue : October. 22, 2010 Issued by :Most Technology Service Co., Ltd. Address : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 32 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: YNG-GPF080001 Report No.:MOST101003F2B Page 2 of 32 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 2 2. GENERAL INFORMATION ............................................................................................................................ 4 2.1 Product Information ...................................................................................................................................... 4 2.2 Objective ...................................................................................................................................................... 5 2.3 Test Standards and Results .......................................................................................................................... 5 2.4 Environmental Conditions............................................................................................................................. 5 3. TEST FACILITY ............................................................................................................................................. 6 3.1TEST FACILITY............................................................................................................................................. 6 3.2 GENERAL TEST PROCEDURES ................................................................................................................ 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS..................................................................... 7 4. SETUP OF EQUIPMENT UNDER TEST ....................................................................................................... 8 4.1 SUPPORT EQUIPMENT.............................................................................................................................. 8 4.2 TEST EQUIPMENT LIST ............................................................................................................................. 9 5. 47 CFR Part 15C 15.249 Requirements..................................................................................................... 10 5.1 Spurious Emission Test .............................................................................................................................. 10 5.1.1 Requirement............................................................................................................................................ 10 5.1.2 Test Description ........................................................................................................................................11 5.1.3 Test Description ....................................................................................................................................... 12 5.1.4 Test Result............................................................................................................................................... 13 5.2 Band Edge................................................................................................................................................. 18 5.2.1 Requirement............................................................................................................................................ 18 5.2.2 Test Description ....................................................................................................................................... 18 5.2.3Test Result................................................................................................................................................ 18 APPENDIX 1 .................................................................................................................................................... 20 PHOTOGRAPHS OF TEST SETUP ................................................................................................................ 20 APPENDIX 2 .................................................................................................................................................... 22 PHOTOGRAPHS OF EUT ............................................................................................................................... 22 FCC ID: YNG-GPF080001 Report No.:MOST101003F2B Page 3 of 32 1．VERIFICATION OF CONFORMITY Equipment Under Test: GPS Portable Navigation Device Brand Name: N/A Model Number: 84F-3 FCC ID： YNG-GPF080001 Dongguan Yuanfeng Technology Co., Ltd. Applicant: No.62, South Fumin Road, Fumin Industrial Park, Dalang Town, Dongguan City, Guangdong, P.R. China Dongguan Yuanfeng Technology Co., Ltd. Manufacturer: No.62, South Fumin Road, Fumin Industrial Park, Dalang Town, Dongguan City, Guangdong, P.R. China Technical Standards: 47 CFR Part 15 Subpart C File Number: MOST101003F2B Date of test: October. 16, 2010 – October. 21, 2010 Deviation: None Condition of Test Sample: Normal Test Result: PASS The above equipment was tested b…

Text truncated - open the document above for the full version.

CE TEST SETUP RE TEST SETUP
