YNG-PF100001CONNECTED PND-GSM PORTION

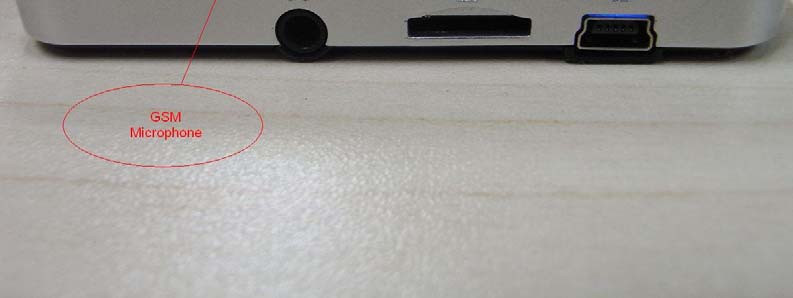

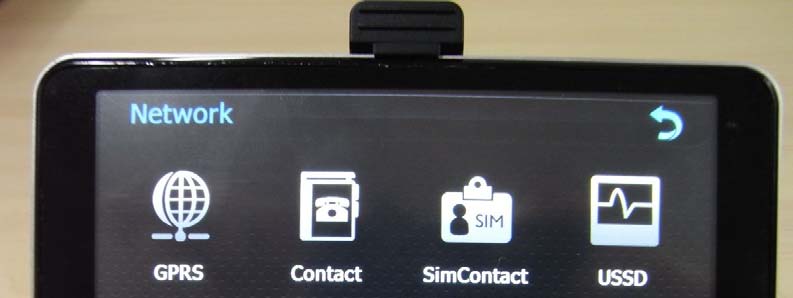

User Manual Model: PF10-5002 FCC ID: YNG-PF100001 Thanks for using YF GPS PF10-5002! z YF reserves the rights of final interpretation of the manual. z The product is subject to change without any further notice. Please accept our apology for your inconvenience. z Please back up your information in the GPS navigator. YF assumes no responsibility for any loss caused by material loss. z The manual might contain a few mistakes though it has been checked. If mistakes are found, please contact the YF customer service center. z Please read carefully the instructions in this manual and use only accessories of YF to avoid unpredicted damage. Failure to follow the instructions will invalidate warranty and might endanger personnel safety, for which YF assumes no responsibility. z Data of navigation electronic maps might be inconsistent with actual traffic signals due to transportation development. Please follow traffic regulations and signs and drive according to road situation. z Operating the GPS navigator device while driving might cause serious accidents. Please shorten your time in viewing the navigator and use the voice prompt function. While driving, try to shorten your time in operating the navigator, for example, inputting addresses, changing settings or using other functions. YF assumes no responsibility for accidents and loss due to improper use. z For safe driving, please pay attention to road and weather conditions as well. z For information of software update and upgrade, please go to our website www.yfgps.com . z The pictures in the manual are subject to the material object. Table of Contents Chapter I Welcome ................................................................................................. 1 Chapter II Basic Operation ..................................................................................... 2 2.1 Appearance ........................................................................................... 2 2.2 Power Supply & Charging .................................................................... 3 2.3 Power on ............................................................................................... 4 2.4 Power off & Sleep................................................................................. 4 2.5 Reset ..................................................................................................... 5 2.6 Fix the GPS Navigator .......................................................................... 5 2.7 Use T-FLASH Card............................................................................... 6 2.8 Use Touch Screen.................................................................................. 6 2.9 Main Interface & Major Functions ........................................................ 7 2.10 Network Connection ........................................................................... 8 Chapter III GPS .................................................................................................. 10 Chapter IV Dial ...................................................................................................11 4.1 Make Calls...........................................................................................11 4.2 Answer Calls....................................................................................... 12 4.3 Contacts .............................................................................................. 13 4.4 Record ................................................................................................ 17 4.5 Favorite Contacts ................................................................................ 18 Chapter V SMS ................................................................................................. 19 5.1 Read Message ..................................................................................... 19 5.2 Create & Send Message ...................................................................... 20 5.3 Save drafts .......................................................................................... 22 5.4 Manage Messages ............................................................................... 23 Chapter VI Network ........................................................................................... 25 6.1 GSM ................................................................................................... 25 6.2 Contact................................................................................................ 25 6.3 SIM Contacts ...................................................................................... 26 Table of Contents 6.4 USSD.................................................................................................. 26 6.5 Pin ...................................................................................................... 27 6.6 Home page .......................................................................................... 28 6.7 SMS Center......................................................................................... 28 6.8 Carrier................................................................................................. 29 Chapter VII GPRS ............................................................................................... 31 Chapter VIII Media ............................................................................................... 32 8.1 Music Player ....................................................................................... 32 8.2 Video Player........................................................................................ 36 8.3 Photo Browser.................................................................................... 38 8.4 E-book Reader .................................................................................... 41 9.1 FM Transmitter ................................................................................... 47 9.2 F…

Text truncated - open the document above for the full version.

Crystal 16.367667MHz Cr y stal 26MHz Cr y stal 24MHz Cr y stal 32.768kHz

Dongguan Yuanfeng Technology Co., Ltd FCC ID: YNG-PF100001 POWER OF ATTORNEY December 16, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, Dongguan Yuanfeng Technology Co., Ltd, hereby authorize Most Technology Service Co., Ltd. (Terry YANG/ Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Most Technology Service Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on December 31, 2010. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Dongguan Yuanfeng Technology Co., Ltd are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Li Sha (Certificate Engineer) Dongguan Yuanfeng Technology Co., Ltd December 16, 2010

Dongguan Yuanfeng Technology Co., Ltd. FCC ID: YNG-PF100001

FRONT BACK T VIEW OF SA K VIEW OF SA AMPLE AMPLE LEFT RIGHT T VIEW OF SA T VIEW OF SA AMPLE AMPLE TOP BOTTO VIEW OF SA OM VIEW OF S MPLE SAMPLE PHOTO PHO O OF POWER OTO OF USB SUPPLY LINE PHOTO PHOTO O OF CAR AD O OF TRESTLE DAPTOR E TABLE PHOTO O PHOTO F THE ENTIR O OF THE BA RE SAMPLE ATTERY PHOTO OF THE OTHER SAMPLE‐1 PHOTO OF THE OTHER SAMPLE‐2

INTERNAL INTERNAL L PHOTO OF S L PHOTO OF S SAMPLE - 1 SAMPLE - 2 INTERNAL INTERNAL L PHOTO OF S L PHOTO OF S SAMPLE - 3 SAMPLE - 4 INTERNAL PHOTO OF POWER SUPPLY INTERNAL PHOTO OF CAR SUPPLY

Operation Principle Connected PND -PF10-5002 1. FM Transmit a. 88.1 MHz to 107.9 MHz full band tuning in b. 50/100/200 kHz step sizes c. 50/75us pre-emphasis d. I2C interface e. Power supply:3.3V 2. GPS f. 64-channel GPS baseband with hardware match filter g. Operating Frequency：1575.42MHz h. 16.367667MHz/+/-0.5PPM crystal i. Power supply:3.3V j. Built-in passive ceramic antenna 3. GSM/GPRS a. MT6223 GSM/GPRS Baseband Processor b. Quad-Band GSM/GPRS:850/900/1800/1900 c. 26MHz crystal d. Power supply:3.4V-4.2V e. Built-in antenna

PF10_V1 基准BOM 序号 物料编码 元件名称 元件参数/型号 元件封装 数量 元件编号 备注 品牌 等级 1.01 RN0000RBF0004020001 贴片电阻 0R±5% R0402 9 G_R1 L4 L6 R43 R45 R120 R 137 R148 R150 RES 0R±5% 0402 国巨 C 1.02 RN0010RAF0004020001 贴片电阻 10R±1% R0402 1 R142 RES 10R±1% 0402 国巨 C 1.03 RN0027RBF0004020001 贴片电阻 27R±5% R0402 8 R135 R65 R67 R72 R73 R82 R85 R86 RES 27R±5% 0402 国巨 C 1.04 RN044R2AF0004020001 贴片电阻 44.2R±1% R0402 1 R5 RES 44.2R±1% 0402 国巨 C 1.05 RN0056RBF0004020001 贴片电阻 56R±5% R0402 2 R134 R136 RES 56R±5% 0402 国巨 C 1.06 RN0100RBF0004020001 贴片电阻 100R±5% R0402 4 R44 R103 R104 R119 RES 1 00R±5% 0402 国巨 C 1.07 RN0499RAF0004020001 贴片电阻 499R±1% R0402 4 R4 R108 R177 R178 RES 49 9R±1% 0402 国巨 C 1.08 RN0001KBF0004020001 贴片电阻 1K±5% R0402 19 R66 R77 R79 R113 R133 R139 R141 R143 R145R155 R162 R23 R60 R96 R99 G_R2 R152 R184 R25 RES 1K±5% 0402 国巨 C 1.09 RN0002KAF0004020001 贴片电阻 2K±1% R0402 3 R62 R40 R41 RES 2K±1% 0402 国巨 C 1.10 RN02K20BF0004020001 贴片电阻 2.2K±5% R0402 8 R1 R2 R93 R94 R131 R132 R146 R147 RES 2.2K±5% 0402 国巨 C 1.11 RN02K49AF0004020001 贴片电阻 2.49K±1% R0402 1 R97 RES 2.49K ±1% 0402 国 巨C 1.12 RN003K3AF0004020001 贴片电阻 3.3K±1% R0402 2 R102 R183 RES 3.3K±1% 04 02 国巨 C 1.13 RN004K7BF0004020001 贴片电阻 4.7K±5% R0402 19 G_R3 R30 R49 R61 R80 R81 R92 R98 R109 R111R112 R115 R124 R170 R175 R181 R117 R118 R15 RES 4.7K±5% 0402 国巨 C 1.14 RN005K1AF0004020001 贴片电阻 5.1K±1% R0402 2 R9 R161 RES 5.1K±1% 0402 国巨 C 一、贴片电阻类： 板 型：PF10-5002 确认: 第1页 共14页 2010/12/16 PF10_V1 基准BOM 1.15 RN006K8AF0004020001 贴片电阻 6.8K±1% R0402 1 R156 RES 6.8K±1% 0402 国巨 C 1.16 RN0010KBF0004020001 贴片电阻 10K±5% R0402 24 R8 R11 R12 R33 R42 R46 R50 R52 R57 R55 R63R110 R123 R130 R140 R154 R157 R159 R165 R169R190 R78 R122 R54 RES 10K±5% 0402 国巨 C 1.17 RN0020KAF0004020001 贴片电阻 20K±1% R0402 2 R138 R100 RES 20K±1% 0402 国巨 C 1.18 RN0047KBF0004020001 贴片电阻 47K±5% R0402 15 R27 R64 R106 R107 R114 R125 R126 R129 R164R167 R168 R171 R179 R31 R36 RES 47K±5% 0402 国巨 C 1.19 RN0100KAF0004020001 贴片电阻 100K±1% R0402 10 R18 R19 R174 R176 R127 R151 R158 R166 R173C146 RES 100K±1% 0402 国巨 C 1.20 RN0130KAF0004020001 贴片电阻 130K±1% R0402 1 R32 RES 130K±1% 0402 国巨 C 1.21 RN0150KAF0004020001 贴片电阻 150K±1% R0402 5 R16 R26 R39 R7 R153 RES 150K±1% 0402 国巨 C 1.22 RN0261KAF0004020001 贴片电阻 261K±1% R0402 1 R13 RES 261K±1% 0402 国巨 C 1.23 RN0300KAF0004020001 贴片电阻 300K±1% R0402 8 R14 R24 R29 R34 R35 R38 R10 R160 RES 300K±1% 0402 国巨 C 1.24 RN0510KAF0004020001 贴片电阻 510K±1% R0402 1 R20 RES 510K±1% 0402 国巨 C 1.25 RN001M5BF0004020001 贴片电阻 1.5M±5% R0402 2 R22 R3 RES 1.5M±5% 0402 国 巨C 1.26 RN0002MBF0004020001 贴片电阻 2M±5% R0402 1 R6 RES 2M±5% 0402 国巨 C 1.27 RN0000RBG0006030001 贴片电阻 0R±5% R0603 1 R188 RES 0R±5% 0603 国巨 C 1.28 RN006R2AG0006030001 贴片电阻 6.2R±1% R0603 1 R101 RES 6.2R±1% 0603 国巨 C 1.29 RN0001KBG0006030001 贴片电阻 1K±5% R0603 1 R191 RES 1K±5% 0603 国巨 C 1.30 RR0022RBF0004020001 贴片阻排 22R±5% 8P4R_0402 5 RA9 RA10 RA11 RA13 R A12 RES 22R±5% 8P4R_0402 国巨 C 1.31 RR0100RBF0004020001 贴片阻排 100R±5% 8P4R_0402 5 RA2 RA3 RA4 RA5 RA6 RES 100R±5% 8P4R_0402 国巨 C 确认: 第2页 共14页 2010/12/16 PF10_V1 基准BOM 1.32 RR0010KBF0004020001 贴片排阻 10K±5% 8P4R_0402 1 RA1 RES 10K±5% 8P4R_0 402 国巨 C 1.33 XU900MLVS0402E10001 压敏电阻 MLVS0402E10-3.5pF R0402 12 R17 R74 R75 R76 R128 R163 D13 D14 D15 D16D18 D19 Working voltage:5V.Maximum Capacitance:3.5pF 佳邦 C 序号 物料编码 元件名称 元件参数/型号 元件封装 数量 元件编号 备注 品牌 等级 2.01 CF003R9EC0004020001 贴片陶瓷电容 3.9pF±0.25pF 50V COG (GRM1555C1H3R 9CZ01D) C0402 2 C194 C197 CAP MLCC 3.9pF ±0.25pF 50V COG MURATA C 2.02 CF005R6EC0004020001 贴片陶瓷电容 5.6pF±0.25pF 50V COG (GRM1555C1H5R 6CZ01D) C0402 7 C199 C201 C175 C182 C191 C192 C122 CAP MLCC 5.6pF ± 0.25pF 50V COG MURATA C 2.03 CF00150AC0004020001 贴片陶瓷电容 15pF±5% 50V C0G (GRM1555C1H150JZ01 D) C0402 2 C2 C3 CAP MLCC 15pF ±5% 50V C0G MURATA C 2.04 CF00180AC0004020001 贴片陶瓷电容 18PF±5% 50V C0G (GRM1555C1 H180JZ01D) C0402 4 C202 C204 C205 C208 CAP MLCC 18PF ±5% 50V C0G MUR ATA C 2.05 CF00220AC0004020001 贴片陶瓷电容 22pF±5% 50V C0G (GRM1555C1H 220JZ01D) C0402 13 C153 C154 C159 C168 C190 G_C3 G_C4 G_C14 L14C4 C5 C139 C140 CAP MLCC 22pF ±5% 50V C0G MURATA C 2.06 CF00270AC0004020001 贴片陶瓷电容 27pF±5% 50V C0G (GRM1555C1H270JZ 01D) C0402 1 C183 CAP MLCC 27pF ±5% 50V C0G MURATA C 2.07 CG00390AC0004020001 贴片陶瓷电容 39pF±5% 50V C0G (GRM1555C1H390JZ01 D) C0402 2 C171 C195 CAP MLCC 39pF ±5% 50V C0G MURATA C 2.08 CF00470AC0004020001 贴片陶瓷电容 47pF±5% 50V C0G (GRM1555C1H47 0JZ01D) C0402 3 C57 C167 C169 CAP MLCC 47pF ±5% 50V C0G MURATA C CF00560AC0004020001 56pF±5% 50V C0G (GRM1555C1H560JZ01D) C0402 1 CAP MLCC 56pF ±5% 50V C0G MURATA C CF00560AC0004020004 56pF±5% 50V C0G (CC0402JRNPO9BN560) C 0402 0 CAP MLCC 56pF ±5% 50V C0G 国巨 C CF00560AC0004020003 56pF±5% 50V C0G (C0402C0G560J500NT /Y) C0402 0 CAP MLCC 56pF ±5% 50V C0G 宇阳 C 2.10 CF00680AC0004020001 贴片陶瓷电容 68pF±5% 50V C0G (GRM1555C1H 680JZ01D) C0402 1 C118 CAP MLCC 68pF ±5% 50V C0G MURATA C 2.11 CF00820AC0004020001 贴片陶瓷电容 82pF±5% 50V C0G (GRM1555C1H820JZ01 D) C0402 2 C165 C198 CAP MLCC 82pF ±5% 50V C0G MURATA C 二、贴片电容类： 2.09 贴片陶瓷电容 C117 确认: 第3页 共14页 2010/12/16 PF10_V1 基准BOM CG00221BC0004020001 221±10% 50V X7R (GRM155R71H221KA01) C040 2 9 CAP MLCC 220pF ±10% 50V X7R MURATA C CG00221BC0004020003 221±10% 50V X7R (C0402X7R221K500NT/Y ) C0402 0 CAP MLCC 220pF ±10% 50V X7R 宇阳 C CG00221BC0004020002 221±10% 50V X7R (CC0402KRX7R9BB221) C0402 0 CAP MLCC 220pF ±10% 50V X7R 国巨 C CG00221BC0004020005 221±10% 50V X7R (CL05B221KB5NNNC) C0402 0 CAP MLCC 220pF ±10% 50V X7R SAMSUNG C CG00102BC0004020002 102±10% 50V X7R (C0402X7R102K500NT) C040 2 11 CAP MLCC 1nF ±10% 50V X7R 宇阳 C CG00102BC0004020001 102±10% 50V X7R (GRM155R71H102KA01D) C04 02 0 CAP MLCC 1nF ±10% 50V X7R MURATA C CG00102BC0004020003 102±10% 50V X7R (CC0402KRX7R9BB102) C04 02 0 CAP MLCC 1nF ±10% 50V X7R 国巨 C CG00102BC0004020005 102±10% 50V X7R (CL05B102KB5NNNC) C0402 0 CA P MLCC 1nF ±10% 50V X7R SAMSUNG C CG00103BC0004020002 103±10% 50V X7R (C0402X7R103K500NT) C0402 25 CAP MLCC 10nF ±10% 50V X7R 宇阳 C CG00103BC0004020001 103±10% 50V X7R (GRM155R71H103KA88D+A01) C 0402 0 CAP MLCC 10nF ±10% 50V X7R MURATA C CG00103BC0004020003 103±10% 50V X7R (CC0402K…

Text truncated - open the document above for the full version.

Turn up Figure 1 1 Adjustment of RF Output Power: (1) The equipment setup as shown in Figure 1. (2) Operation of PC adjusts equipment. (3) Use RF Engineering Tools at PC side. Select GSM850 Band: 1) Set GSM850 Band. 2) Set ARFCN: 190 3) TX ON. 4) Adjust the power to 33dBm (Power control level: PCL=5) by PA DAC value. 5) Repeat 4) for 15 times, and adjust the power level to 31dBm, 29dBm, 27dBm, 25dBm, 23dBm, 21dBm, 19dBm, 17dBm, 15dBm, 13dBm, 11dBm, 9dBm, 7dBm, 5dBm. 6) Make 16 Ramp-Up/Ramp-Down data from the adjustment value of (5) and (6). PC RF Tester Te s tSample GPIB Cable UART Cable RF Ca ble 7) Data of 5) and 6) is written to flash memory. 8) The power output tolerance in GSM850MHz is +0.5dB/- 1.5dB. Select PCS1900 Band: 1) Set PCS Band. 2) Set ARFCN: 661. 3) TX ON. 4) Adjust the power to 30dBm (Power control level: PCL=0) by PA DAC value. 5) Repeat 4) for 15 times, and adjust the power level to 28dBm, 26dBm, 24dBm, 22dBm, 20dBm, 18dBm, 16dBm, 14dBm, 12dBm, 10dBm, 8dBm, 6dBm, 4dBm, 2dBm, 0dBm. 6) Make 16 Ramp-Up/Ramp-Down data from the adjustment value of (5) and (6). 7) Data of 5) and 6) is written to flash memory. 8) The power output tolerance in GSM1900MHz is +0.5dB/- 1.5dB. 2 Adjustment of RX Sensitivity: (1) Select GSM850 Band: 1) Set BCCH level: -85dBm; ARFCN: 190. 2) Test sample make a call to connect RF Tester. 3) Set TCH level:-102dBm. 4) Measure BERII error at TCH ARFCN:128,190,251. 5) Turn up the RX matching circuit to make sure BERII <2.44% at each ARFCN. (2) Select PCS1900 Band: 1) Set BCCH level: -85dBm; ARFCN: 661. 2) Test sample make a call to connect RF Tester. 3) Set TCH level:-100dBm. 4) Measure BERII error at TCH ARFCN:512,661,810. 5) Turn up the RX matching circuit to make sure BERII <2.44% at each ARFCN.

Compliance Certification Services Inc. Report No: KS101208B03-SF FCC ID: YNG-PF100001 Date of Issue: December 9, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 31 Rev. 00 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Connected PND Model: PF10-5002 Series Model Number：PF10-5001; PF10-5003; PF10-5004; PF10-5005; PF10-5006;PF10-5007; PF10-5008; PF10-5009; PF10-5001HD; PF10-5002HD; PF10-5003HD; PF10-5004HD; PF10-5005HD; PF10-5006HD; PF10-5007HD ; PF10-5008HD; PF10-5009HD Trade Name: N/A Issued to Dongguan Yuanfeng Technology Co., Ltd NO.62, South Fumin Road, Fumin Industrial Park, Dalang Town, Dongguan City, Guangdong, P.R. China Issued by Compliance Certification Services Inc. Kunshan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: KS101208B03-SF FCC ID: YNG-PF100001 Date of Issue: December 9, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) .........................................................3 2. EUT DESCRIPTION ..........................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ..........................5 4. TEST METHODOLOGY ...................................................................................................................5 5. DOSIMETRIC ASSESSMENT SETUP ............................................................................................5 5.1 MEASUREMENT SYSTEM DIAGRAM ........................................................................................................ 6 5.2 SYSTEM COMPONENTS ............................................................................................................................ 7 6. EVALUATION PROCEDURES......................................................................................................10 7. MEASUREMENT UNCERTAINTY ..............................................................................................14 8. EXPOSURE LIMIT ..........................................................................................................................15 9. EUT ARRANGEMENT....................................................................................................................16 9.1 ANTHROPOMORPHIC HEAD PHANTOM................................................................................................. 16 9.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION.................................................................................. 17 9.3 DEFINITION OF THE “TILTED” POSITION ............................................................................................... 18 10. MEASUREMENT RESULTS ......................................................................................................19 10.1 TEST LIQUIDS CONFIRMATION............................................................................................................... 19 10.2 SYSTEM PERFORMANCE CHECK........................................................................................................... 21 10.3 EUT TUNE-UP PROCEDURES ................................................................................................................. 23 10.4 SAR MEASUREMENT RESULTS .............................................................................................................. 24 11. EUT PHOTO .................................................................................................................................30 12. EQUIPMENT LIST & CALIBRATION STATUS.....................................................................35 13. FACILITIES ..................................................................................................................................36 14. REFERENCES ..............................................................................................................................36 15. ATTACHMENTS..........................................................................................................................37 Compliance Certification Services Inc. Report No.: KS101208B03-SF FCC ID: YNG-PF100001 Date of Issue: December 9, 2010 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: Dongguan Yuanfeng Technology Co., Ltd NO.62, South Fumin Road, Fumin Industrial Park, Dalang Town, Dongguan City, Guangdong, P.R. China Manufacturer: Dongguan Yuanfeng Technology Co., Ltd NO.62, South Fumin Road, Fumin Industrial Park, Dalang Town, Dongguan City, Guangdong, P.R. China Equipment Under Test: Connected PND Trade Name: N/A Model Number: PF10-5002 Series Model Number： PF10-5001; PF10-5003; PF10-5004; PF10-5005; PF10-5006; PF10-5007; PF10-5008; PF10-5009; PF10-5001HD; PF10- 5002HD; PF10-5003HD; PF10-5004HD; PF10-5005HD; PF10- 5006HD; PF10-5007HD ; PF10-5008HD; PF10-5009HD Devices supporting GPRS: Class B Model Discrepancy: N/A Date of Test: December 9, 2010 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Application Type: Certification APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply only to the tested sample of the stated devi…

Text truncated - open the document above for the full version.

Report No: KS101208B03-SF Page 38 II. 1900MHz Band RESULTS TYPE PAR AM E TE RS Phone Measurement 1: Face Down toward phantom 5mm, High Channel in GSM1900 mode Measurement 2: Face up toward phantom 5mm, High Channel in GSM1900 mode Measurement 3: Face Down toward phantom 5mm, High Channel in GPRS1900 mode Measurement 4: Face up toward phantom 5mm, High Channel in GPRS1900 mode Measurement 5: Left edge toward phantom 5mm, High Channel in GSM1900 mode Measurement 6: Right edge toward phantom 5mm, High Channel in GSM1900 mode Measurement 7: Left edge toward phantom 5mm, High Channel in GPRS1900 mode Measurement 8: Right edge toward phantom 5mm, High Channel in GPRS1900 mode Measurement 9: Rear edge toward phantom 5mm, High Channel in GSM1900 mode Measurement 10: Tip edge toward phantom 5mm, High Channel in GSM1900 mode Measurement 11: Rear edge toward phantom 5mm, High Channel in GPRS1900 mode Measurement 12: Tip edge toward phantom 5mm, High Channel in GPRS1900 mode Report No: KS101208B03-SF Page 39 MEASUREMENT 1 Date of measurement: 12/9/2010 Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Body Device Position Face Down toward phantom Band GSM1900 Channels High Signal GSM B. Instrumentations. PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Calibration Due: N/A Wireless Communication Test Set R&S (CMU200, SN:B23-03291) Calibration Due: 05/25/2011 Network Analyzer Agilent(E5071B, MY42301382) Calibration Due: 03/24/2011 Voltmeter Keithley (2000, SN:1015843) Calibration Due: 05/25/2011 Signal Generator Agilent (E8257C, SN:MY43321570)Calibration Due: 03/24/2011 Amplifier Mini-Circuits (ZHL-42, SN:110405)Calibration Due: 07/29/2011 Power Meter Agilent (E4416A, SN:QB41292714)Calibration Due: 03/24/2011 Probe Antennessa (SN:SN_1109_EP_100)Calibration Due: 05/04/2011 DIPOLE 1900 Antennessa (DIPG35,SN 48/05) Calibration Due: 02/09/2012 Phantom Antennessa (SN:SN41_05_SAM29)Calibration Due: N/A Liquid Antennessa Calibration Due: N/A Measurement SW OPEN SAR V2.1 Calibration Due: N/A C. SAR Measurement Results Frequency (MHz) 1910.000000 Relative permitivity (real part) 50.201000 Relative permitivity (imaginary part) 14.254800 Conductivity (S/m) 1.016522 Variation (%) -0.130000 Ambient Temperature: 21 °C Report No: KS101208B03-SF Page 40 Liquid Temperature: 20.3 °C ConvF: 40.42, 41.12, 54.75 Crest factor： 1:8 SURFACE SAR VOLUME SAR Report No: KS101208B03-SF Page 41 Maximum location: X=-13.00, Y=-3.00 SAR 10g (W/Kg) 0.532857 SAR 1g (W/Kg) 0.302436 Z Axis Scan Report No: KS101208B03-SF Page 42 MEASUREMENT 2 Date of measurement: 12/9/2010 Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Body Device Position Face UP toward phantom Band GSM1900 Channels High Signal GSM B. Instrumentations. PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Calibration Due: N/A Wireless Communication Test Set R&S (CMU200, SN:B23-03291) Calibration Due: 05/25/2011 Network Analyzer Agilent(E5071B, MY42301382) Calibration Due: 03/24/2011 Voltmeter Keithley (2000, SN:1015843) Calibration Due: 05/25/2011 Signal Generator Agilent (E8257C, SN:MY43321570)Calibration Due: 03/24/2011 Amplifier Mini-Circuits (ZHL-42, SN:110405)Calibration Due: 07/29/2011 Power Meter Agilent (E4416A, SN:QB41292714)Calibration Due: 03/24/2011 Probe Antennessa (SN:SN_1109_EP_100)Calibration Due: 05/04/2011 DIPOLE 1900 Antennessa (DIPG35,SN 48/05) Calibration Due: 02/09/2012 Phantom Antennessa (SN:SN41_05_SAM29)Calibration Due: N/A Liquid Antennessa Calibration Due: N/A Measurement SW OPEN SAR V2.1 Calibration Due: N/A C. SAR Measurement Results Frequency (MHz) 1910.000000 Relative permitivity (real part) 49.053007 Relative permitivity (imaginary part) 16.763500 Conductivity (S/m) 1.112775 Variation (%) -0.700000 Ambient Temperature: 21 °C Liquid Temperature: 20.3 °C Report No: KS101208B03-SF Page 43 ConvF: 40.42, 41.12, 54.75 Crest factor： 1:8 SURFACE SAR VOLUME SAR Report No: KS101208B03-SF Page 44 Maximum location: X=-13.00, Y=-3.00 SAR 10g (W/Kg) 0.510125 SAR 1g (W/Kg) 0.257362 Z Axis Scan Report No: KS101208B03-SF Page 45 MEASUREMENT 3 Date of measurement: 12/9/2010 Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Body Device Position Face Down toward phantom Band GPRS1900 Channels High Signal GPRS B. Instrumentations. PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Calibration Due: N/A Wireless Communication Test Set R&S (CMU200, SN:B23-03291) Calibration Due: 05/25/2011 Network Analyzer Agilent(E5071B, MY42301382) Calibration Due: 03/24/2011 Voltmeter Keithley (2000, SN:1015843) Calibration Due: 05/25/2011 Signal Generator Agilent (E8257C, SN:MY43321570)Calibration Due: 03/24/2011 Amplifier Mini-Circuits (ZHL-42, SN:110405)Calibration Due: 07/29/2011 Power Meter Agilent (E4416A, SN:QB41292714)Calibration Due: 03/24/2011 Probe Antennessa (SN:SN_1109_EP_100)Calibration Due: 05/04/2011 DIPOLE 1900 Antennessa (DIPG35,SN 48/05) Calibration Due: 02/09/2012 Phantom Antennessa (SN:SN41_05_SAM29)Calibration Due: N/A Liquid Antennessa Calibration Due: N/A Measurement SW OPEN SAR V2.1 Calibration Due: N/A C. SAR Measurement Results Frequency (MHz) 1910.000000 Relative permitivity (real part) 50.24995 Relative permitivity (imaginary part) 16.249500 Conductivity (S/m) 1.210150 Variation (%) -0.600000 Ambient Temperature: 21 °C Report No: KS101208B03-SF Page 46 Liquid Temperature: 20.3 °C ConvF: 40.42, 41.12, 54.75 Crest factor： 1:8 SURFACE SAR VOLUME SAR Report No: KS101208B03-SF Page 47 Maximum location: X=-13.00, Y=-3.00 SAR 10g (W/Kg) 0.526702 SAR 1g (W/Kg) 0.220364 Z Axis Scan Report No: KS101208B03-SF Page 48 MEASUREME…

Text truncated - open the document above for the full version.

Report No: KS101208B03-SF Page 56 Maximum location: X=-13.00, Y=-3.00 SAR 10g (W/Kg) 0.430120 SAR 1g (W/Kg) 0.291447 Z Axis Scan Report No: KS101208B03-SF Page 57 MEASUREMENT 7 Date of measurement: 12/9/2010 Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm dy=20mm dz=5mm A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Body Device Position Left edge toward phantom Band GPRS1900 Channels High Signal GPRS B. Instrumentations. PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Calibration Due: N/A Wireless Communication Test Set R&S (CMU200, SN:B23-03291) Calibration Due: 05/25/2011 Network Analyzer Agilent(E5071B, MY42301382) Calibration Due: 03/24/2011 Voltmeter Keithley (2000, SN:1015843) Calibration Due: 05/25/2011 Signal Generator Agilent (E8257C, SN:MY43321570)Calibration Due: 03/24/2011 Amplifier Mini-Circuits (ZHL-42, SN:110405)Calibration Due: 07/29/2011 Power Meter Agilent (E4416A, SN:QB41292714)Calibration Due: 03/24/2011 Probe Antennessa (SN:SN_1109_EP_100)Calibration Due: 05/04/2011 DIPOLE 1900 Antennessa (DIPG35,SN 48/05) Calibration Due: 02/09/2012 Phantom Antennessa (SN:SN41_05_SAM29)Calibration Due: N/A Liquid Antennessa Calibration Due: N/A Measurement SW OPEN SAR V2.1 Calibration Due: N/A C. SAR Measurement Results Frequency (MHz) 1910.000000 Relative permitivity (real part) 48.015000 Relative permitivity (imaginary part) 16.185905 Conductivity (S/m) 1.015527 Variation (%) -0.130000 Ambient Temperature: 21 °C Report No: KS101208B03-SF Page 58 Liquid Temperature: 20.3 °C ConvF: 40.42, 41.12, 54.75 Crest factor： 1:8 SURFACE SAR VOLUME SAR Report No: KS101208B03-SF Page 59 Maximum location: X=-13.00, Y=-3.00 SAR 10g (W/Kg) 0.504131 SAR 1g (W/Kg) 0.240112 Z Axis Scan Report No: KS101208B03-SF Page 60 MEASUREMENT 8 Date of measurement: 12/9/2010 Area Scan: 7 x 7 x 1 dx=15mm dy=15mm Zoom Scan: 5 x 5 x 7 dx=5mm dy=5mm dz=5mm Z Axis Scan: 1 x 1 x 21 dx=20mm…
