YNIJAZWARES138TBLP0139-BLP-Remote Control Vehicle (RC Racecar)

BLP0139 INCLUDES: Remote Control Handset B RC Racecar A AGES 3 + Congratulations on your purchase of the RC Racecar. Please read all information in this guide thoroughly for usage instructions. INSTRUCTION MANUAL The RC Racecar BATTERY WARNINGS: 1. Requires 3 x 1.5V AAA Batteries (RC Racecar) and 2 x 1.5V AAA Batteries (Remote Control Handset) (Batteries not included). 2. Batteries are to be replaced by an adult. 3. Non-rechargeable batteries are not to be recharged. 4. Rechargeable batteries are to be removed from the toy before being charged. 5. Rechargeable batteries are only to be charged under adult supervision. 6. For best performance, only the recommended batteries or their equivalent are to be used. 7. Batteries must be inserted with correct polarity. 8. Do not mix new and used batteries. 9. Do not mix different types of batteries. 10. Exhausted batteries are to be removed from the toy. 11. The supply terminals are not to be short-circuited. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING! Changes or modifications not expressively approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. HOW TO CLEAN THE RC RACECAR • Clean with a damp cloth, use water only. • Do not submerge in water. • Do not use chemical or abrasive cleaners. Made in China. Manufactured and Distributed by: Jazwares, LLC, Sunrise, FL 33326, USA Jazwares, 16A Crane Grove, London, N7 8LE, United Kingdom Jazwares GmbH, Mina-Rees-Str. 8, 64295 Darmstadt , Germany www.jazwares.com / www.jazwares.de Blippi™ Copyright © 2020 Moonbug Entertainment. All Rights Reserved. Protect the environment by not disposing of this product with household waste (2012/19/EU). Check your local authority for recycling advice and facilit ies. IMPORTANT: Please save this instruction sheet. It contains valuable product information. FCC ID for Vehicle: YNIJAZWARES139 FCC ID for Controller: YNIJAZWARES138 NEVER sit or stand on any parts of the RC Racecar or accessories. NEVER drop or throw the RC Racecar or accessories. NEVER expose the RC Racecar to moisture of any kind. Bottom of Vehicle Press for Blippi sounds! Press to drive forward Press to reverse and turn RC Racecar Bottom of Remote Control Handset 3 ( 1.5V ) NOTES & TROUBLESHOOTING • Remote Control Handset will function up to a distance of over 65 feet (20 meters) from the RC Racecar. • Fresh batteries will allow the RC Racecar to function continuously for approximately 15 minutes. • This product does not transmit well through obstacles such as buildings, metal structures and trees. • Replace batteries if the RC Racecar does not operate as usual or signal range decreases noticeably. • RC Racecar performs best on flat surfaces and will not work well on high pile carpet floors or very rough surfaces. The most important is the vehicle* controller by sleep model (approx. 3min), need be re-press switch back on and try again. INSTRUCTIONS 1. How to Replace Batteries (Batteries Not Included) ADULT INSTALLATION REQUIRED. • Ensure both RC Racecar and Remote Control Handset unit is in the “OFF” position. • Use a Phillips Head screwdriver (not included) to loosen screws in battery compartment cover (screw remains attached to cover). • Remove cover and discard depleted batteries. • Replace with 3 x 1.5V AAA batteries (RACECAR) and 2 x 1.5V AAA batteries (Remote Control Handset) . Follow the (+) and (-) markings in the battery compartment and on the batteries to ensure proper battery placement. • Replace cover and tighten screws. • Move the switch to the “ON” position to actvate the play features. • Move the switch to the “OFF” position when not in use to help save battery life of the toy. 2. Operation Switch mode from “TRY ME” on your RC Racecar and Remote Control Handset unit settings to “ON” and use the Remote Control Handset to steer your new RC Racecar. RANGE OF PLAY: ?? METERS/?? FEET. CONTROLLER FREQUENCY BAND ?? MHz - ?? MHz MAXIMUM POWER?? mW RECEIVER FREQUENCY BAND ?? MHz - ?? MHzMAXIMUM POWER?? mW TROUBLESHOOTINGHOW TO PAIR 1. Turn the vehicle ON, then turn the transmitter controller ON within 30 seconds. *Do not press any buttons or switches on the controller while pairing, this may cause interference. 2. The LED light on controller will start blinking. 3. Once the pairing is successful, the LED light on controller will stop blinking and stay on. 4. If pairing is unsuccessful, turn the vehicle and controller OFF and try again. 5. If vehicle enters sleep mode, turn the vehicle and controller off, then back on and try again. Vehicle will not START Vehicle does not respond to controls Vehicle does not move Vehicle does not respond properly Trans…

Text truncated - open the document above for the full version.

Letter of Agency Jazwares, LLC 2021/03/29 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Jazwares, LLC FCC ID: YNIJAZWARES138 To Whom It May Concern: We, (Jazwares, LLC), hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (YNIJAZWARES138) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is 2021/03/29. The Limited Agency Agreement expires on 2022/03/28, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Signature: Name: Simon Ng Title: Director of Compliance & Quality Assurance

Confidential Request Jazwares, LLC Attention: Certification reviewer RE: Request for Confidentiality FCC ID: YNIJAZWARES138 To Whom It May Concern: Permanent Confidentiality Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: Schematics Block Diagrams Operational Description Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, _________________ Signature: Name: Simon Ng Title: Director of Compliance & Quality Assurance Date:2021/3/29

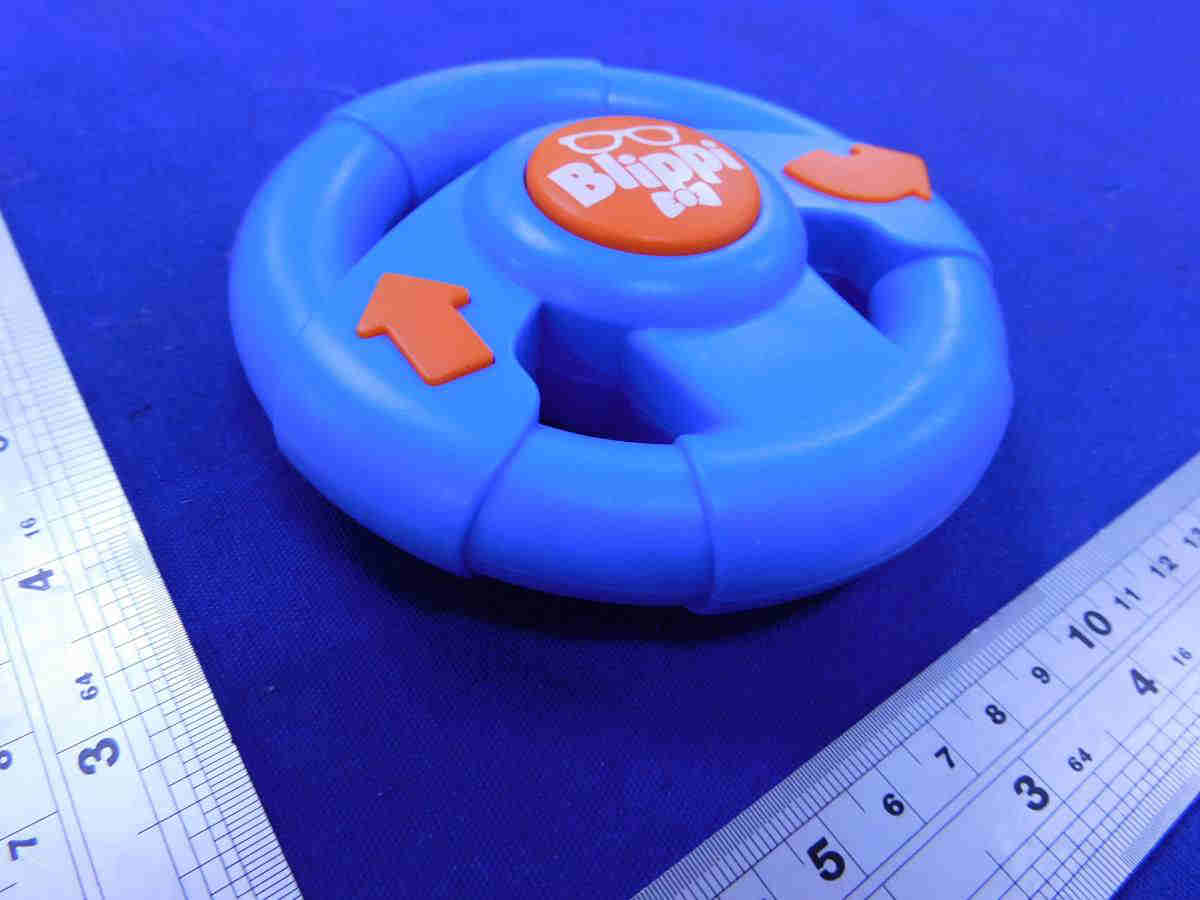

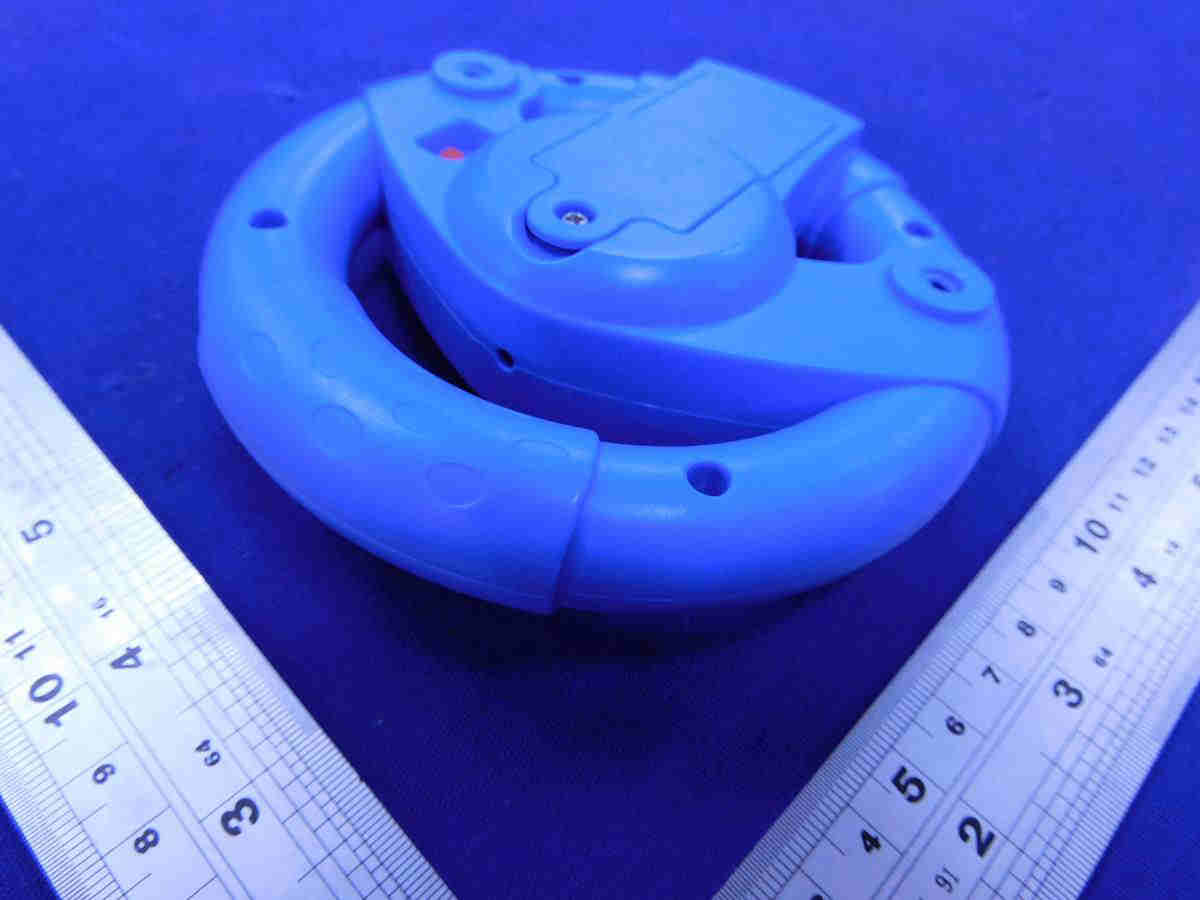

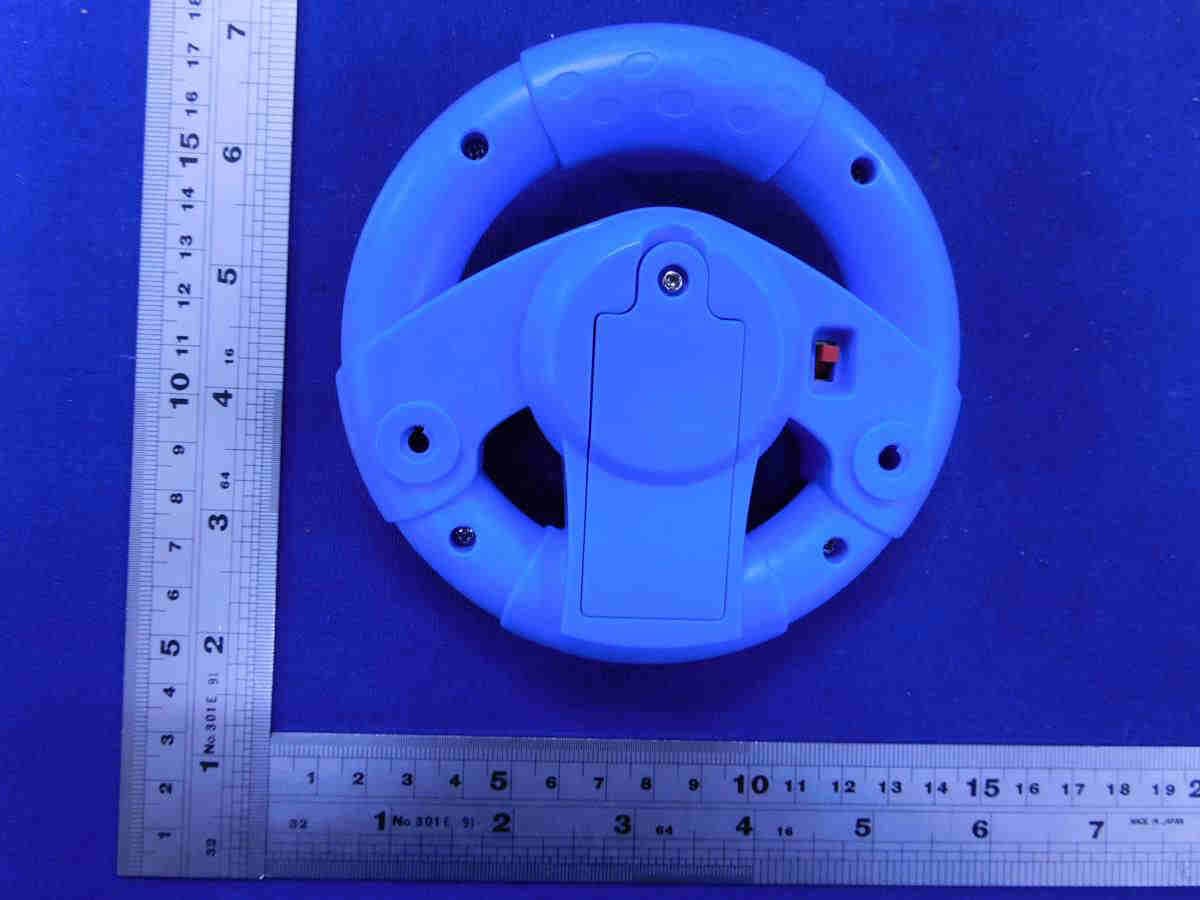

Page 1 of 2 External Photos Page 2 of 2

BL00139 c 2020Moonbug Jazwares,LLC. Made in China B L P 0 1 3 9 - 0 3 0 8 5 H B C A N I C E S - 0 0 3 ( B ) / N M B - 0 0 3 ( B ) - FCC ID:YNIJAZWARES138 OFF ON CLOSE OPEN CLOSE OPEN 2.4GHz 8.5 1.5 1.5 1.5 7.00 2.00 8.50 CCE和UKCA要做实心、垃圾桶形状 按国际标准做、尺寸是8.5mm 8.50 Label Artwork and Location 1.5mm 19. 98mm

Page 1 of 2 Internal Photos Page 2 of 2

1 INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a BLP0139-BLP-Remote Control Vehicle (RC Racecar) operating at 2.4G Band. The EUT can be powered by DC 3.0V (2 x 1.5V AAA batteries). For more detail information pls. refer to the user manual. Antenna Type: Integral antenna. Antenna Gain: 0dBi. The normal radiated output power (e.i.r.p) is: -2.0dBm (tolerance: +/- 3dB). The normal conducted output power is -2.0dBm (tolerance: +/- 3dB). Modulation Type: GFSK. According to the KDB 447498: The Maximum peak radiated emission for the EUT is 94.7 dBμV/m at 3m in the frequency 2407MHz The EIRP = [(FS*D) ^2 / 30] mW = -0.53dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 92.8 dBμV/m at 3m in the frequency 2477MHz The EIRP = [(FS*D) ^2 / 30] mW = -2.43dBm which is within the production variation. The maximum conducted output power specified is 1dBm= 1.259mW The source- based time-averaging conducted output power =5.012* Duty cycle mW <5.012 mW(Duty cycle <100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.477) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duty cycle is simply the on-time divided by the period: The duration of one cycle = 20.2174ms Effective period of the cycle = 0.5797ms DC =0.5797ms / 20.2174ms =0.0287 or 2.87% FCC ID: YNIJAZWARES138

Jazwares, LLC TEST REPORT SCOPE OF WORK FCC TESTING– MODEL: BLP0139 REPORT NUMBER SZHH01548157-005 ISSUE DATE MAY 14, 2021 PAGES 24 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: SZHH01548157-005 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 24 FCC ID 249_C Test Report Jazwares, LLC Application for Certification FCC ID: YNIJAZWARES138 BLP0139-BLP-Remote Control Vehicle (RC Racecar) Model: BLP0139 2.4GHz Transceiver Report No.: SZHH01548157-005 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Sign on file Terry Tang Assistant Supervisor Kidd Yang Technical Supervisor Date: May 14, 2021 Intertek Report No.: SZHH01548157-005 Version: 01-November-2017 Page: 2 of 24 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel / Fax: 86-755-8601 6288/86-755-8601 6751 Intertek Report No.: SZHH01548157-005 Version: 01-November-2017 Page: 3 of 24 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result .......................................................................................... 4 2.0 General Description ................................................................................................. 5 2.1 Product Description ................................................................................................. 5 2.2 Related Submittal(s) Grants .................................................................................... 5 2.3 Test Methodology .................................................................................................... 5 2.4 Test Facility ............................................................................................................ 5 3.0 System Test Configuration ...................................................................................... 6 3.1 Justification ............................................................................................................. 6 3.2 EUT Exercising Software ......................................................................................... 6 3.3 Special Accessories ................................................................................................ 6 3.4 Equipment Modification ........................................................................................... 6 3.5 Measurement Uncertainty ....................................................................................... 6 3.6 Support Equipment List and Description .................................................................. 6 4.0 Emission Results ..................................................................................................... 7 4.1 Radiated Test Results ............................................................................................. 7 4.1.1 Field Strength Calculation ..................................................................................... 7 4.1.2 Radiated Emission Configuration Photograph ....................................................... 8 4.1.3 Radiated Emissions .............................................................................................. 8 4.1.4 Transmitter Spurious Emissions ......................................................................... 11 5.0 Equipment Photographs ........................................................................................ 15 6.0 Product Labelling ................................................................................................... 15 7.0 Technical Specifications ........................................................................................ 15 8.0 Instruction Manual ................................................................................................. 15 9.0 Miscellaneous Information .................................................................................... 16 9.1 Bandedge Plot ...................................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 2 Radiated Photos Up to 1GHz (The EUT placed at the center of the turntable) Page 2 of 2 Above 1GHz (The EUT placed at the center of the turntable)
