YO9RP-002Remote Control Switch

FCC NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

RP-002 Block switch high low-level signal MCU RF Module Antenna crystal oscillator 26MHz 2.4GHz

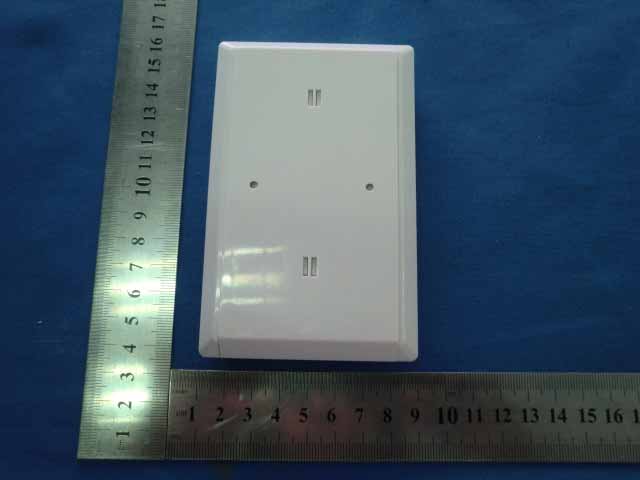

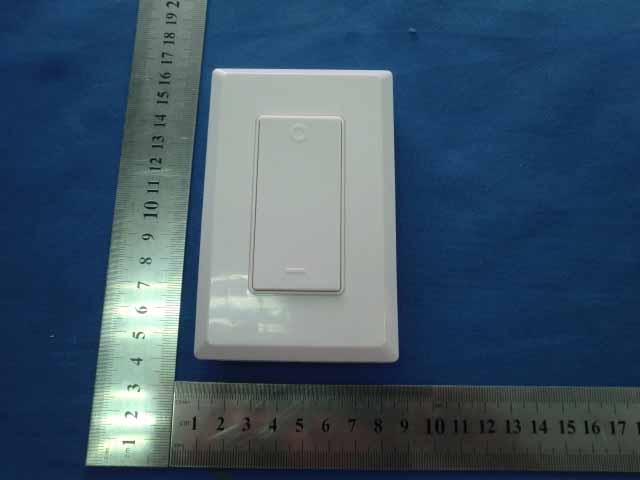

External Photo External Photo External Photo

FCC ID LABEL FCC ID:YO9RP-002 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location

Internal Photo Internal Photo Internal Photo Internal Photo Antenna

RP-002 Description High-low signals by switching to MCU, The Encoded data sent to the RF module, Oscillation in the RF module to the 2.4G frequency modulation, switch high-low signal sent to the lamp body to receive by antenna 1 Voltage3VDC 2 dynamic current4-6mA 3 quiescent current0.04-0.06mA 4 Frequency 2.4GHz 5 Modulation GFSK

1 2 3 4 ABCD 4 3 2 1 D CBA RF SCKRF SDORF CSRF SDIRF IRQ ANTENNA C2/104 C1/10uF/16V 3V Y1 26MHz K1/ON C7 15P C8 15P 1516 13 18 24 2 19 20 2 14 31 13 10 9 6 4 C6 472 C9 100P C10 224 C5 100P R1/27K L1/0R C3/105 C4/102 L2/0R 10 9 8 7 6 11 1713 12 14 21 4 5 C11/104 2223 IC1/EM9201-V2 IC2/AT16F526 WINSTAR ELECTRICAL CO,LID 中山市威星电器有限公司 设计审核批准 日期 品名 ： 型号图号 版本 日期日期 页页 第 张 共 张 DS9000C-01 DS9000C-01原理图 K2/OFF 12 11 P04DS9000C-01SCH A/0 5

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For ZhongShan Winstar Electrical Co., LTD. Sandun Industry District, MinZhong Town, ZhongShan City, Guangdong, China FCC ID:YO9RP-002 Aug. 21, 2010 This Report Concerns: Original Report Equipment Type Remote Control Switch Test Engineer: Eric Li Report No.: BST1008132R-3 Receive EUT Date/Test Date: Aug.10,2010/ Aug.10-21,2010 Reviewed By: (Manager) Christina Deng Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road, Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. The test was performed by Eric Li from BST and supervised by Wilson Loke and Christina Deng at emitel (Shenzhen) Limited ZhongShan Winstar Electrical Co., LTD. FCC ID: YO9RP-002 BST FCC ID REPORT : BST1008132R-3 Page 2/17 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL...........................................................................................................................5 4. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 5. TEST EQUIPMENT USED .......................................................................................................7 6. CONDUCTED POWER LINE TEST .......................................................................................8 6.1. Test Equipment .................................................................................................................8 6.2. Test Procedure ..................................................................................................................8 6.3. Test Setup..........................................................................................................................8 6.4. Configurating of the EUT .................................................................................................8 6.5. EUT Operating Condition...............................................................................................10 6.6. Conducted Power line Emission Limits..........................................................................10 6.7. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Confihuration of the EUT ...............................................................................................12 7.5. EUT Operating Condition...............................................................................................12 7.6. Radiated Emission Limit.................................................................................................12 7.7. Radiated Emission Test Result .......................................................................................13 8. BAND EDGE .............................................................................................................................15 8.1. Test Equipment ...............................................................................................................15 8.2. Test Procedure ................................................................................................................15 8.3. Configuration of The EUT ..............................................................................................15 8.4. EUT Operating Condition...............................................................................................15 8.5. Band Edge FCC 15.249(d) Limit ....................................................................................15 8.6. Band Edge Test Result ....................................................................................................15 ZhongShan Winstar Electrical Co., LTD. FCC ID: YO9RP-002 BST FCC ID REPORT : BST1008132R-3 Page 3/17 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at…
