YO9RP-003REMOTE CONTROL SWITCH

User Manual Insert 2 x AAA batteries into the remote switch and you can now control the Light Strips with the remote. Note: Remote works up to 20 feet from the controller box. STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada license-exempt RSS standard(s). Operation is Subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

RP-003 Block Diagram switch high low-level signal MCU RF Module Antenna crystal oscillator 26MHz 2.4GHz

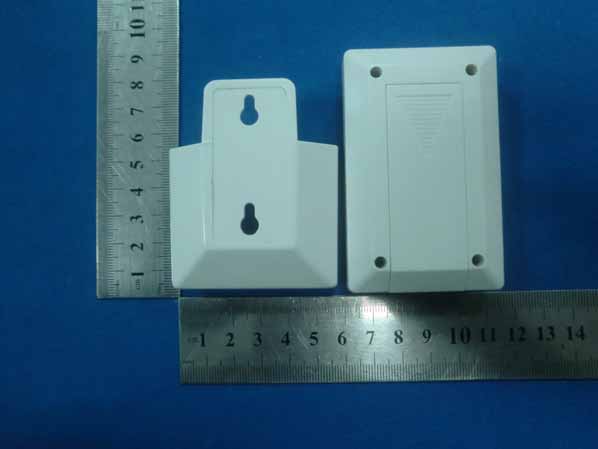

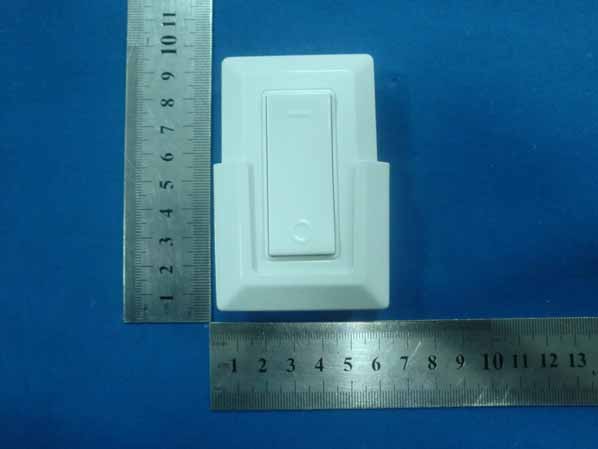

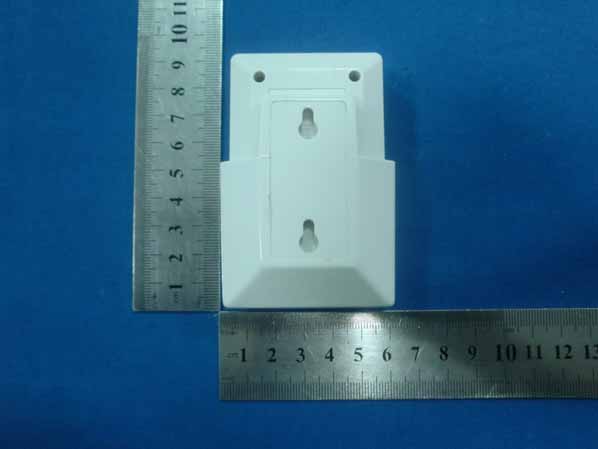

External Photo

FCC Certification Label FCC ID: YO9RP-003 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT View/ FCC ID Label Location

Internal Photo Antenna

RP-003 Description High-low signals by switching to MCU, The Encoded data sent to the RF module, Oscillation in the RF module to the 2.4G frequency modulation, then transmit the signal by antenna. 1 Voltage3VDC 2 dynamic current4-6mA 3 quiescent current0.04-0.06mA 4 Frequency 2.4GHz 5 Modulation GFSK

1 2 3 4 ABCD 4 3 2 1 D CBA RF SCKRF SDORF CSRF SDIRF IRQ ANTENNA C11/104 3V Y1 26MHz K1/ON C6 15P C7 15P 1516 13 18 24 2 19 20 2 14 31 13 10 9 6 4 C5 472 C9 100P C8 224 C4 100P R2/27K C2/104 C3/102 10 9 8 7 6 11 1713 12 14 21 4 5 2223 IC1/WSD01 IC2/WSD03 WINSTAR ELECTRICAL CO,LID 中山市威星电器有限公司 设计审核批准 日期 品名 ： 型号图号 版本 日期日期 页页 第 1 张 共 1 张 DS8000C-00 DS8000C-00原理图 K2/OFF 12 11 P04DS8000C-00SCH A/0 5 C1/4.7uF/6V R1/10R C10/105

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For ZhongShan Winstar Electrical Co., LTD. Sandun Industry District, MinZhong Town, ZhongShan City, GuangDong, China FCC ID: YO9RP-003 November 7, 2011 This Report Concerns: Original Report Equipment Type: Remote Control Switch Test Engineer: Eric Li Report No.: BST11100237Y-1ER-3 Receive EUT Date/Test Date: November 1, 2011/ November 2-6, 2011 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road, Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. ZhongShan Winstar Electrical Co., LTD. FCC ID: YO9RP-003 BST FCC ID REPORT: BST11100237Y-1ER-3 Page 2/19 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL...........................................................................................................................5 4. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 5. TEST EQUIPMENT USED .......................................................................................................7 6. ANTENNA REQUIREMENT ...................................................................................................8 6.1. Standard Applicable..........................................................................................................8 6.2. Antenna Connected Construction .....................................................................................8 6.3. Result ................................................................................................................................8 7. CONDUCTED POWER LINE TEST .......................................................................................9 7.1. Test Equipment .................................................................................................................9 7.2. Test Procedure ..................................................................................................................9 7.3. Test Setup..........................................................................................................................9 7.4. Conducted Power line Emission Limits............................................................................9 7.5. Conducted Power Line Test Result.................................................................................10 8. RADIATED EMISSION TEST ...............................................................................................11 8.1. Test Equipment ...............................................................................................................11 8.2. Test Procedure ................................................................................................................11 8.3. Radiated Test Setup ........................................................................................................11 8.4. Radiated Emission Limit.................................................................................................12 8.5. Radiated Emission Test Result .......................................................................................13 9. BAND EDGE .............................................................................................................................17 9.1. Test Equipment ...............................................................................................................17 9.2. Test Procedure ................................................................................................................17 9.3. Band Edge FCC 15.249(d) Limit ....................................................................................17 9.4. Band Edge Test Result ....................................................................................................17 ZhongShan Winstar Electrical Co., LTD. FCC ID: YO9RP-003 BST FCC ID REPORT: BST11100237Y-1ER-3 Page 3/19 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BST approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BST in any way guarantees the later performance of the p…
