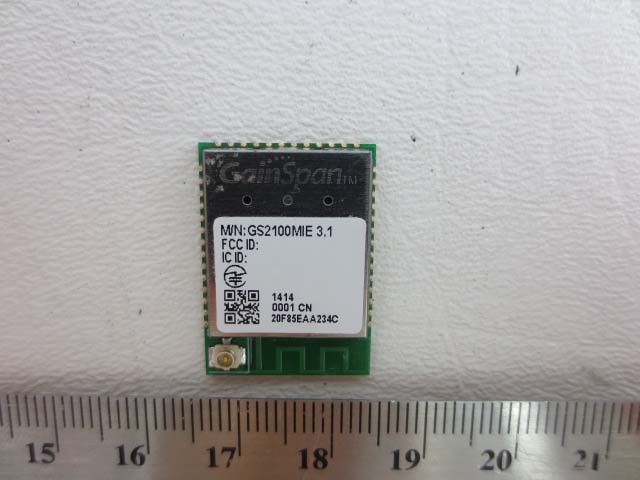

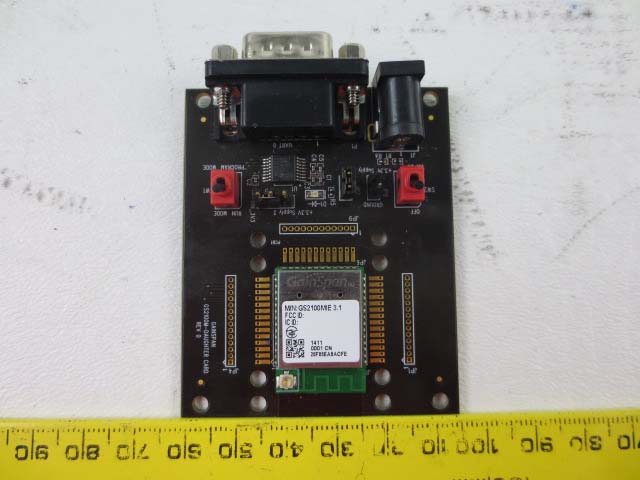

GainSpan Corporation FCC ID: YOPGS2100MIE, IC: 9154A-GS2100MIE Report Number: R1404031-247 Page 73 of 75 FCC Part 15C/IC RSS-210 Test Report 16 Exhibit C – EUT Photographs 16.1 EUT with Shielding View 16.2 EUT RF Module – Back View GainSpan Corporation FCC ID: YOPGS2100MIE, IC: 9154A-GS2100MIE Report Number: R1404031-247 Page 74 of 75 FCC Part 15C/IC RSS-210 Test Report 16.3 EUT with Supporting Board View 16.4 Dipole Antenna

3.1 3.1 PRODUCT LABEL, GS2100MIE IC: 9154A-GS2100MIE 3.2 211-140504

GainSpan Corporation FCC ID: YOPGS2100MIE, IC: 9154A-GS2100MIE Report Number: R1404031-247 Page 75 of 75 FCC Part 15C/IC RSS-210 Test Report 16.5 EUT Module – Front Unshielded 16.6 EUT – Power Supply View --- END OF REPORT ---

GainSpan Corporation FCC ID: YOPGS2100MIE, IC: 9154A-GS2100MIE Report Number: R1404031-247 Page 10 of 75 FCC Part 15C/IC RSS-210 Test Report 4 FCC §15.247 (i), §2.1091 & IC RSS-102 – RF Exposure 4.1 Applicable Standards According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of IC RSS-102 must be followed concerning the exposure of humans to RF fields. According to IC RSS-102 Issue 2 section 4.1, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Time Averaging (min) 0.003 - 1 280 2.19 - 6 1 - 10 280 / f 2.19 / f - 6 10 - 30 28 2.19 / f - 6 30 – 300 28 0.073 2* 6 300 – 1 500 1.585 f 0.5 0.0042 f 0.5 f/150 6 1 500 – 15 000 61.4 0.163 10 6 15 000 – 150 000 61.4 0.163 10 616000/f 1.2 150 000- 300 000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000/f 1.2 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz GainSpan Corporation FCC ID: YOPGS2100MIE, IC: 9154A-GS2100MIE Report Number: R1404031-247 Page 11 of 75 FCC Part 15C/IC RSS-210 Test Report 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results With Dipole Antenna (2 dBi) Maximum peak output power at antenna input terminal (dBm): 19.77 Maximum peak output power at antenna input terminal (mW): 94.8418 Prediction distance (cm): 20 Prediction frequency (MHz): 2412 Maximum Antenna Gain, typical (dBi): 2 Maximum Antenna Gain (numeric): 1.5849 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.0299 Power density of prediction frequency at 20.0 cm (W/m 2 ): 0.2990 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ): 10 With PCB Antenna (1 dBi) Maximum peak output power at antenna input terminal (dBm): 19.77 Maximum peak output power at antenna input terminal (mW): 94.8418 Prediction distance (cm): 20 Prediction frequency (MHz): 2412 Maximum Antenna Gain, typical (dBi): 1 Maximum Antenna Gain (numeric): 1.2589 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.0237 Power density of prediction frequency at 20.0 cm (W/m 2 ): 0.2375 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 MPE limit for uncontrolled exposure at prediction frequency (W/m 2 ): 10 The device is compliant with the requirement MPE limit for uncontrolled exposure at the distance of 20cm.
