YP9INM800PHONEImmarsat Phone

%'#0#LNN 5'4#07#.  %'#0#LNN 056#..#6+10#0&5'4#07#. Product name: Oceana 800 Manual revision: 03 Part number: USRMAN006603 Release date: June 2012 BEAM Communications Pty Ltd 8 Anzed Court, Mulgrave, Victoria, 3170, AUSTRALIA Information furnished by BEAM Communications Pty Ltd (BEAM) is believed to be accurate and reliable. However, no responsibility is assumed by BEAM for its use, or for any infringement of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under an y patent or patent rights of BEAM. BEAM reserves the right to change specifications at any time without notice. Copyright © 2011 BEAM Communications Pty Ltd. All rights reserved 0/#45#6016+(+%#6+10Sections on page 32 to page 58 are reproduced with permission from Inmarsat Global Limited and are copyright of Inmarsat Global Limited 2011. All rights are reserved by Inmarsat Global Limited and no further reproduction is permitted without permission. While the information in this user guide has been prepared in good faith, no representation or warranty, express or implied, is made or given as to the adequacy, accuracy, reliability or completeness of such information. In relation to sections reproduced with permission from Inmarsat Global Limited, Inmarsat Global Limited nor any group company or their respective officers, employees or agents shall have any responsibility or liability to any person resulting from the use of the information in this user guide. INMARSAT is a registered trademark of the International Mobile Satellite Organisation; the Inmarsat LOGO is a registered trademark of Inmarsat (IP) Company Limited. Both trademarks are licensed to Inmarsat Global Limited. %($02FHDQD,QVWDOODWLRQ 8VHU0DQXDO  $176 1//70+%#6+105BEAM Communications , a wholly owned subsidiary of World Reach Limited (WRR), listed on the Australian Stock Exchange, is a world leader in design, manufacture and distribution of specialised communications equipment for the Inmarsat Satellite Network.BEAM’s commitment to be at the forefront has continued to increase its share of the global satellite communications market. Its premium distribution network spans the world. Recognized as a leading provider of satellite communication solutions, BEAM specializes in voice, data, tracking and customized solutions. BEAM develops innovative products and services to meet market demands and niche applications. BEAM’s leading edge products are deployed in a wide range of vertical markets including maritime, transport, government, defence, mining, construction, forestry, emergency services, relief aid, telemetry and rural telephony. Supported by a dedicated team of professionals, BEAM has developed solid relationships with its peers and network of distributors worldwide. BEAM Communications Pty Ltd8 Anzed Court, Mulgrave,Victoria, 3170, AUSTRALIAWeb: www.beamcommunications.com Information: [email protected] Support: [email protected] Tel: +61 3 8588 4500 Fax: +61 3 9560 9055     %'#0#LNN2#4607/$'4 F 0/#45#6016+(+%#6+10 F $176'#/1//70+%#6+105 G 108'06+105+06*+5/#07#. I Terminology #%-#)'%106'065 J Optional accessoriesAdditional informationOther resources available online #('6;+0(14/#6+10 K Safety transceiver Oceana 800Oceana 800 FCC informationElectronic devicesPacemakersOther medical devices %'#0#LNN-';('#674'5 EE Tracking/Instant MessagingLeoTRAK-Online global tracking portal 37+2/'0618'48+'9 EG 056#..#6+10)7+&'.+0'5 EH Routing cablesGuidelines for electrical connections 056#..#6+10241%'&74' EI Installing the Oceana 800 2'4#6+10 FK SIM PIN useRegistrationTracking & instant message configuration (optional)Placing voice callsRJ11/POTS phone useTracking and instant message '66+0)56#46'& GF 5+0);174%'#0#LNN GH *10'$11-X%106#%65n14)#0+5'4 HL '4510#.+5'&5'66+0) IF '%74+6; IJ Security Locks and Codes Types of tones on RJ11/POTSOceana 800 main dial keypadOceana 800 function keypadStatus LEDSpecial modes of operationAssuring quality of service 2'%+(+%#6+1057//#4; JF Physical dimensions - Oceana 800Mounting dimensions - Oceana 800 417$.'5*116+0) JI  9#44#06;%10&+6+105 JK %($02FHDQD,QVWDOODWLRQ 8VHU0DQXDO  '4/+01.1); TERM DESCRIPTION Falcon Falcon - MS Windows install SMS Short Message Service Mobile Originating Describes a call initiated by the Oceana 800 Mobile Terminating Describes an incoming call being answered by the Oceana 800 Š The Š symbol, mark and logos are owned by the respective companies of which the symbol follows. Any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners. RF Radio Frequencies SMA Sub Miniature version A co-axial RF connection RJ11 Connector type and reference for the POTS telephone port RJ9 4P4C connector for the privacy handset POTS Plain Old Telephone Service GPS Global Positioning System GSPS Inmarsat’s Global Satellite Phone Service PABX Private Analogue Branch Exchange IO Input Output port These notes will appear throughout this manual and should be taken into consideration.Warning or Caution This symbol and associated text indicate a warning note providing information to prevent damage to equipment or personal injury.Note/Important/Tip HeaderThis symbol and associated text indicate a note providing general operating information.Interference HeaderAll wireless phones may get interference, which could affect performance.Record HeaderWrite details of your unit for easy reference when required. Ideal when troubleshooting. 108'06+105+06*+5/#07#. #%-#)'%106'065Check that your Oceana 800 package contains all of the following items: F 1 x Oceana 800 unit F 1 x Maritime antenna (active) F 1 x 110-240V AC plug pack F 1 x 10-32V DC power cable F 1 x 2m I/O cable F 1 x Wall mounting plate F Mini USB cable F Fuse kit F LeoTRAK-Online Sign-Up card F User manual & Quick Start Guid…

Text truncated - open the document above for the full version.




         Product name: Terra 800 Manual revision: 03 Part number: USRMAN006703 Release date: June 2012 BEAM Communications Pty Ltd 8 Anzed Court, Mulgrave, Victoria, 3170, AUSTRALIA Information furnished by BEAM Communications Pty Ltd (BEAM) is believed to be accurate and reliable. However, no responsibility is assumed by BEAM for its use, or for any infringement of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under an y patent or patent rights of BEAM. BEAM reserves the right to change specifications at any time without notice. Copyright © 2011 BEAM Communications Pty Ltd. All rights reserved         Sections on page 30 to page 55 and page 64 are reproduced with permission from Inmarsat Global Limited and are copyright of Inmarsat Global Limited 2011. All rights are reserved by Inmarsat Global Limited and no further reproduction is permitted without permission. While the information in this user guide has been prepared in good faith, no representation or warranty, express or implied, is made or given as to the adequacy, accuracy, reliability or completeness of such information. In relation to sections reproduced with permission from Inmarsat Global Limited, Inmarsat Global Limited nor any group company or their respective officers, employees or agents shall have any responsibility or liability to any person resulting from the use of the information in this user guide. INMARSAT is a registered trademark of the International Mobile Satellite Organisation; the Inmarsat LOGO is a registered trademark of Inmarsat (IP) Company Limited. Both trademarks are licensed to Inmarsat Global Limited.     BEAM Communications , a wholly owned subsidiary of World Reach Limited (WRR), listed on the Australian Stock Exchange, is a world leader in design, manufacture and distribution of specialised communications equipment for the Inmarsat Satellite Network.BEAM’s commitment to be at the forefront has continued to increase its share of the global satellite communications market. Its premium distribution network spans the world. Recognized as a leading provider of satellite communication solutions, BEAM specializes in Voice, Data, Tracking and customized solutions. BEAM develops innovative products and services to meet market demands and niche applications. BEAM’s leading edge products are deployed in a wide range of vertical markets including Maritime, Transport, Government, Defence, Mining, Construction, Forestry, Emergency Services, Relief Aid, Telemetry and Rural Telephony. Supported by a dedicated team of professionals, BEAM has developed solid relationships with its peers and network of distributors worldwide. BEAM Communications Pty Ltd8 Anzed Court, Mulgrave,Victoria, 3170, AUSTRALIAWeb: www.beamcommunications.com Information: [email protected] Support: [email protected] Tel: +61 3 8588 4500 Fax: +61 3 9560 9055



                  !    "   # Terminology $%&  ' Optional accessoriesAdditional informationOther resources available online  (    Safety transceiver Terra 800Terra 800 FCC informationElectronic devicesPacemakersOther medical devicesPosted facilities
%(  )* +  !! , )     &   ) Routing cables(for vehicle installations)Guidelines for electrical connections      )- Installing the Terra 800   * RegistrationPlacing voice callsRJ11/POTS phone use . &     &(
 * $" %/  0&  # $     & -  ( - Types of tones on RJ11/POTSTerra 800 main dial keypadTerra 800 features keypadStatus LEDTerra 800 feature buttons/LED lights Assuring quality of service      ( #) Physical dimensions - Terra 800Mounting dimensions - Terra 800
  " & # , (   ##
  &( TERM DESCRIPTION Falcon Falcon - MS Windows install SMS Short Message Service Mobile Originating Describes a call initiated by the Terra 800 Mobile Terminating Describes an incoming call being answered by the Terra 800  The  symbol, mark and logos are owned by the respective companies of which the symbol follows. Any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners. RF Radio Frequencies SMA Sub Miniature version A co-axial RF connection RJ11 Connector type and reference for the POTS telephone port RJ9 4P4C connector for the privacy handset POTS Plain Old Telephone Service GPS Global Positioning System GSPS Inmarsat’s Global Satellite Phone Service PABX Private Analogue Branch Exchange IO Input Output port These notes will appear throughout this manual and should be taken into consideration.Warning or Caution This symbol and associated text indicate a warning note providing information to prevent damage to equipment or personal injury.Note/Important/Tip HeaderThis symbol and associated text indicate a note providing general operating information.Interference HeaderAll wireless phones may get interference, which could affect performance.Record HeaderWrite details of your unit for easy reference when required. Ideal when troubleshooting.  !    "
          $%&  Check that your Terra 800 package contains all of the following items:
1 x Terra 800 unit
1 x Directional/Fixed antenna (passive)
1 x 110-240V AC plug pack
1 x 10-32V DC power cable
1 x 2m I/O cable
1 x Wall mounting plate
Mini USB cable
Fuse kit
LeoTRAK-Online Sign-Up card
User manual & Quick Start Guide Falcon software is available for download from: www.beamcommunications.com/support/terra800       The following optional accessories are available …

Text truncated - open the document above for the full version.

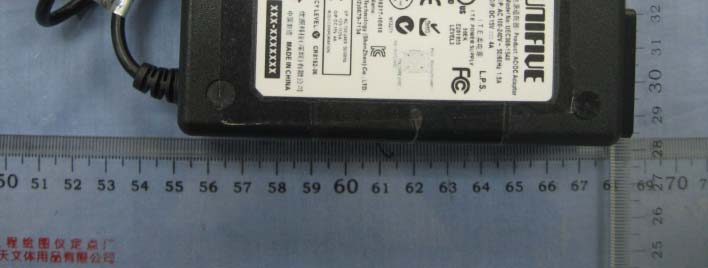

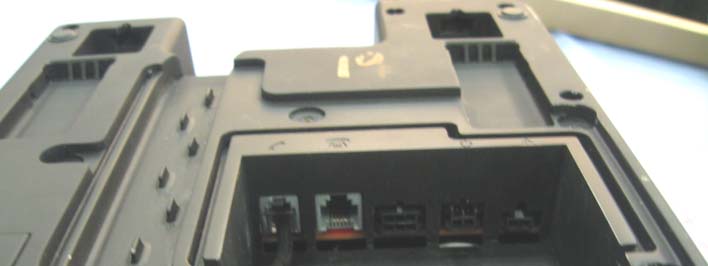

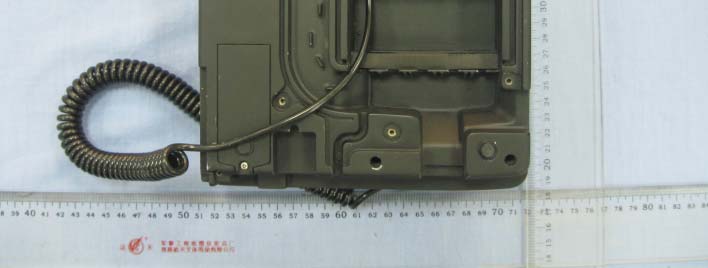

External Photos Enclosure of EUT Enclosure of EUT Terminal of EUT Terminal of EUT Photo of Adaptor

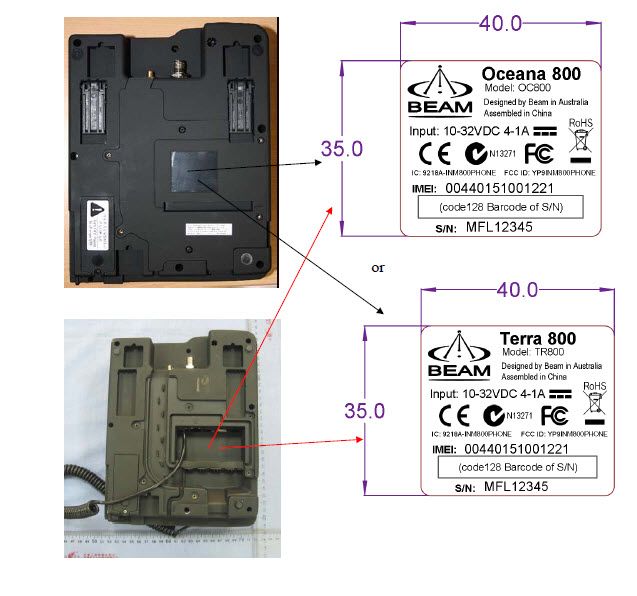

Work Instruction – Labels Beam Communications [Doc Revision:02] File: 800Terminal - Labels WI[02].doc STRICTLY CONFIDENTIAL 3 of 4 Printed: 20/02/2012 10:43:00 AM ASSEMBLY 1 : Serial Numbers Parts list: ITEM QTY SAP # DESCRIPTION 1 2 LBLSPP005603 LBLSPP005703 OC800 Product/Serial#, printed from Final PC OR TR800 Product/Serial#, printed from Final PC 2 2 LBLSPP005301 FCC 15 certification label Step 1: Place the two labels in the Rear connector bay as shown. Step 2: Place the two labels on the Rear cover as shown c) Place the label against the wall of the connector bay b) Place the lower cut piece under the top half so that only the SN is visible a) Cut the serial number above the IMEI number as shown d) Place the FCC label in the centre of the cable area LOWER Cover - 800 Terminal Part No: MCHSPP016701 Rear cover - 800 Terminal Part No: MCHSPP017201 FCC 15 certification label Part No: LBLSPP005301 OC800 Product/Serial# Part No: LBLSPP005603 FCC 15 certification label Part No: LBLSPP005301 OC800 Product/Serial# Part No: LBLSPP005603

Internal Photo internal of EUT PCB of EUT PCB of EUT PCB of Keyboard PCB of Keyboard PCB of module PCB of module PCB of module PCB of module PCB of adaptor PCB of adaptor

Report No.: TR-1202-067-01 Page 1 of 57 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch FCC Test Report (TR-1202-067-01) Applicant : Beam Communications Pty Ltd. Address : 5/8 Anzed court Mulgrave, Victoria, Australia 3170 Manufacturer : Season Components Co., Ltd. Address : Jun Da Lu, DongKeng, Dongguan, Guangdong, China Product Name : Oceana 800, Terra 800 Trademark : None Model(s) : OC800, TR800 Standard(s) : FCC Part 15 Subpart C Test Result : Pass Date of Test : May 03, 2011 to May 04, 2012 Report issued Dated : Sep 25, 2012 Note: This test report covers Bluetooth test mode only and refer to additional test report for satellite communication measurements (report no.:1101-038-01). The report shall not be reproduced except in full, without the written approval of the TDK EMC Center. The results in this report apply only to the sample(s) tested. The production units are required to conform to the initial sample as received when the units are placed in the market. Responsible Engineer : Approved by : Phenix Zhang Technical manager CHAN king-chui Date : 2012.09.25 Date : 2012.09.25 Report No.: TR-1202-067-01 Page 2 of 57 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch Table of Contents Description Page 1. Description of the Test Site ...................................................................................................................... 3 1.1 Test Site Location: ..................................................................................................................................... 3 1.2 Site Registration ....................................................................................................................................... 3 1.3 Test Scope................................................................................................................................................... 3 2. Description of the Tested Samples .......................................................................................................... 4 2.1 Customer Information .............................................................................................................................. 4 2.2 Identification of EUT ............................................................................................................................... 4 2.3 Spec of EUT (for Bluetooth) .................................................................................................................... 4 2.4 Test Standards List.................................................................................................................................... 4 3. Test Specifications ....................................................................................................................................... 5 3.1 Standard(s) Used ....................................................................................................................................... 5 3.2 Deviations from the Test Specification .................................................................................................... 5 3.3 Test mode ................................................................................................................................................... 5 4. Test Result.................................................................................................................................................... 6 4.1 Antenna Requirement ............................................................................................................................... 6 4.2 Conducted Emission (mains).................................................................................................................... 7 4.3 Hopping Channel Bandwidth................................................................................................................. 10 4.4 Hopping Channel Separation................................................................................................................. 13 4.5 Number of Hopping Frequency ............................................................................................................. 16 4.6 Dwell Time of Each Frequency .............................................................................................................. 18 4.7 Maximum Peak Output Power .............................................................................................................. 23 4.8 Band Edges Emission.............................................................................................................................. 26 4.9 Spurious Radiated Emission .................................................................................................................. 33 5. FCC ID Label ............................................................................................................................................ 47 6. Test Setup ................................................................................................................................................... 48 6.1 Ancillary and Accessory Equipment Used ............................................................................................ 48 6.2 Photographs of the Test Configuration ................................................................................................ 49 6.3 Photographs of the EUT ........................................................................................................................ 51 7. Equipment List.......................................................................................................................................... 54 8. Test Uncertainty ........................................................................................................................................ 55 9. Appendix .......................................................................…

Text truncated - open the document above for the full version.

Report No.: TR-1202-067-01 Page 49 of 57 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch 6.2 Photographs of the Test Configuration 6.2.1 Radiated emission Below 1GHz: Above 1GHz: Report No.: TR-1202-067-01 Page 50 of 57 TDK South China EMC Center SAE Technologies Development (Dongguan) Co., Ltd. Changan Branch 6.2.2 Conducted emission
