YPC-VULKANO1TV place-shifting device

What’s in the box Connections Input connections (from your set-top box) Your STB has output connectors on the back for Component, Composite, or both. (It may also have connectors for HDMI, USB, S-video, and others.) If you have both, use Component for better video quality. Connect your Vulkano to your STB as shown with either Component or Composite Component Composite Output Connections (to your TV) Your TV has input connectors on the back for Component, HDMI, or both. (It may also have connectors for USB, S- video, and others.) If you have both, use HDMI for better video quality. Connect your Vulkano to your TV as shown with either HDMI or Component Component Component Storage Your Vulkano comes with an SD card or a hard disk drive, depending on the model. SD Card - Insert the SD card into your Vulkano as shown Hard disk drive - Connect your Vulkano to your HDD as shown. Power Connect the included power supply as shown Home network Vulkano can work on your home network, whether it is WiFi or Ethernet WiFi - You do not have to do anything. We’ll take care of it later Ethernet - Connect your Vulkano to your router as shown Software Setup TV • Turn on your TV • Use your TV remote control to select HDMI or Component input from your TV’s setup menu; whichever you used • Now, take your Vulkano remote control and follow the on-screen instructions • (Note: some people use their Vulkano without a TV. You can set it up from a PC, if you prefer) PC • On your PC, go to www.monsoonmultimedia.com and download the latest Vulkano Player • Save the Vulkano Player Installation Wizard to your desktop • When it is finished downloading, run the Wizard and follow the on-screen instructions Clients Vulkano clients are available for other devices are available on the website, and from the Apple App Store Notes: 1. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. 3. The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. 4. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Date: Aug 12, 2010 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Vulkano model numbers 010410VS, 010410VK, 010410PS, 010410VP AND FCC ID # Under Process To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Sections 0.457 & 0.459. We have requested that the Product functional block diagram, schematics and Technical description of the product operation required to be submitted with this application be withheld from public review. These are company proprietary information that could never get into the possession of our competitors. Please contact me if there is any information you may need. Sincerely, (Keshava Murthy) Director of Hardware Engineering Monsoon Multimedia Inc. 1730 S.Amphlett Blvd. suite-101 San Mateo, CA 94402, USA Dated: 8/12/10

Date: September 14, 2010 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: SHORT TERM CONFIDENTIALITY REQUEST FOR Vulkano model numbers 010410VS, 010410VK, 010410PS, 010410VP AND FCC ID # Under Process To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, Monsoon Multimedia Inc. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which Monsoon Multimedia Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Monsoon Multimedia Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, (Keshava Murthy) Director of Hardware Engineering Monsoon Multimedia Inc. 1730 S.Amphlett Blvd. suite-101 San Mateo, CA 94402, USA Dated: 9/14/10

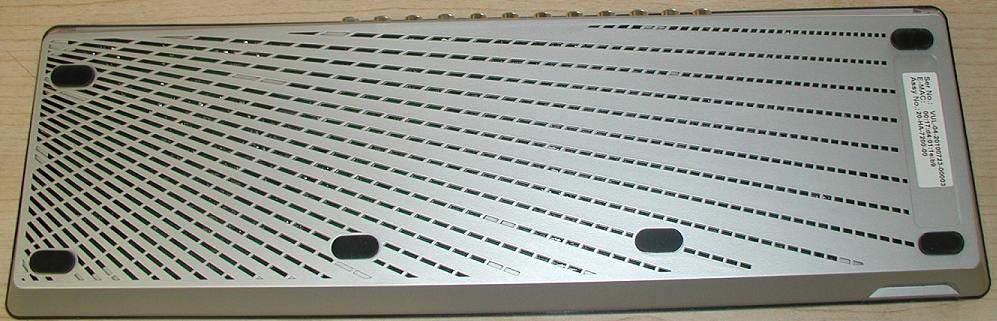

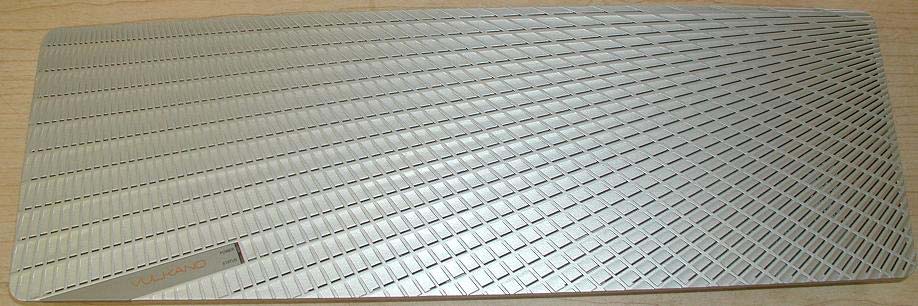

Back View Bottom View Front View Left View Right View Top View Name Plate

vulkano_label_VULK 010410PS_4 vulkano_label_VULK 010410VK_4 vulkano_label_VULK 010410VP_4 vulkano_label_VULK 010410VS_4

Inside, Full Inside, Left Inside, Right

Electromagnetic Compatibility Monsoon Multimedia, Inc Intentional Radiators Vulkano CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82503-FCC247 © 2010, MET Laboratories, Inc. Page 51 of 129 DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2400-2483.5 MHz ; highest conducted power = 0.574 W (27.57 dBm peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 3 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (571.4 mW) G = Antenna Gain (2 numeric) S = (571.4*1.99/ 4*3.14*20.0 2 ) = (1140.25/ 5024) = 0.226mW/cm 2 @ 20cm separation

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory September 21, 2010 Monsoon Multimedia, Inc 1730 S. Amphlett Blvd,Ste 101 San Mateo, CA 94402 Dear Keshava Murthy, Enclosed is the EMC Wireless test report for compliance testing of the Monsoon Multimedia, Inc, Vulkano as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class B Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 7, June 2007 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Sanchez Documentation Department Reference: (\Monsoon Multimedia, Inc\EMCS82503-FCC247 Rev. 1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Monsoon Mult imedia, Inc Cover Page Vulkano CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82503-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page ii of xi DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Monsoon Multimedia, Inc Vulkano Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for a Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMCS82503-FCC247 Rev. 1 September 21, 2010 Prepared For: Monsoon Multimedia, Inc 1730 S. Amphlett Blvd,Ste 101 San Mateo, CA 94402 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Monsoon Mult imedia, Inc Cover Page Vulkano CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82503-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page iii of xi DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Monsoon Multimedia, Inc Vulkano Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for a Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Anderson Soungpanya, Project Engineer Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Monsoon Mult imedia, Inc Report Status Vulkano CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82503-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page iv of xi DOC-EMC702 2/18/2010 Report Status Sheet Revision Report Date Reason for Revision  August 26, 2010 Initial Issue. 1 September 21, 2010 Revised to reflect engineer corrections. Electromagnetic Compatibility Monsoon Mult imedia, Inc Table of Contents Vulkano CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS82503-FCC247 Rev. 1 © 2010, MET Laboratories, Inc. Page v of xi DOC-EMC702 2/18/2010 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................7 F. Support Equipment .............................................................................................................................................7 G. Ports and Cabling Information ............................................................................................................................7 H. …

Text truncated - open the document above for the full version.

CEV AC Power Test Setup REE Setup - 30MHz-1GHz REE Setup 1 REE Setup 2 Setup 15.207 Side 15.207 REE 30M-1GHz Setup Setup
