YQ7-TNCK40HF- RFID read/write device

Type Ident-No. 7030006 7 0300067030006 7030006 Qty 1 11 1 TN-CK40-H1147 TN-CK40-H1147TN-CK40-H1147 TN-CK40-H1147 4015H Warning:Hazardous voltage can cause electrical shock and burns. Disconnect power before proceeding with any work on this equipment. Made in Germany Hans Turck GmbH & Co. KG · Witzlebenstraße 7 · 45472 Mülheim/Ruhr · Germany Phone +49 208 49 52-0 · Fax +49 208 49 52-264 · [email protected]· www.turck.com 10...30 VDC IP67

USER- MANUAL RFID SYSTEM INSTALLATION OF THE BL IDENT- SYSTEM S1583/01 D101583 0207 BL ident 2 D101583 0207BL ident3 Safety Instructions! Before beginning installation work „Disconnect the device from the power supply „Ensure against accidental restart „Verify isolation from the supply „Cover or close off neighbouring units that are live. „The assembly instructions provided for the device are to be complied with „Only suitably qualified personnel according to EN 50 110-1/-2 (VDE 0105 part 100) are authorised to carry out work on this device/system. „When conducting installation work ensure that you are free of electrostatic charge before touching the device. „Connection and signal cables are to be installed so that any inductive or capacitive interference does not impair the automation functions. „The installation of automation devices and their operating elements is to be carried out in such a way as to prevent unintentional operation. „In order to prevent cable or wire breakage on the signal side generating undefined states in the automation devices, appropriate safety measures are to be taken for the I/O coupling on the hardware and software side. „The functional earth (FE) must be connected to the protective earth (PE) or the equipotential bonding. The system installer is responsible for establishing this connection. „Ensure a reliable isolation of the extra-low voltage for the 24 volt supply. Only those power supply units that comply with IEC 60 364-4-41, i.e. HD 384.4.41 S2 (VDE 0100 part 410) are to be deployed. „Fluctuations or deviations of the mains voltage from the nominal value should not exceed the tolerance limits specified in the technical data, otherwise malfunctions and dangerous states may occur. D101583 0207BL ident4 „Devices for mounting in housings or cabinets, desktop or portable units, are only to be operated and controlled with the housing closed. „Measures are to be taken to ensure the correct restarting of a program following interruption due to a voltage drop or failure. Dangerous operating conditions, even short term, should not occur as a result. If required an emergency stop should be carried out. „External measures are to be implemented at those locations where faults in the automation installation could lead to injury to persons or damage to property. These measures must guarantee safe operating conditions even in the event of a fault or malfunction (e.g. by means of independent limit switches or mechanical locking devices etc.). „The electrical installation must be carried out in accordance with the relevant regulations (e.g. in respect of the cable cross sections, fuses and protective earth connections). „All work involving transport, installation, commissioning and maintenance is to be carried out exclusively by qualified personnel (in accordance with IEC 60 364 i.e. HD 384 or DIN VDE 0100 and national accident prevention regulations). „USA Radio Frequency Interference FCC Part 15 Notice: Changes or modifications not expressly approved by TURCK could void the user's authority to operate the equipment 5 Contents D101583 0207BL ident Contents About this manual Documentation concept..............................................................................0 – 2 Description of symbols used ......................................................................0 – 4 Prescribed use ......................................................................................0 – 5 Notes concerning planning / Installation of this product ......................0 – 5 1 The TURCK BL ident System – Overview Schematic representation of the identification system BL ident................1 – 2 Support for BL ident-projects ...............................................................1 – 2 Networking with BL ident systems........................................................1 – 3 Identification systems with radio frequency technology (RFID) ..................1 – 4 Characteristics and fields of application of the BL identsystem.................1 – 5 Degree of protection .............................................................................1 – 5 Service life .............................................................................................1 – 5 Transmission frequency ........................................................................1 – 5 Size ........................................................................................................1 – 6 Read/write time .....................................................................................1 – 6 Compatibility .........................................................................................1 – 7 Areas of application (examples) ............................................................1 – 7 The BL ident-configurator .....................................................................1 – 8 2 TURCK BL ident System – Planning Selection criteria for data carriers and read-write head..............................2 – 2 Transfer zone and read-write distance .......................................................2 – 3 Length of the transfer zone and width offset ..............................................2 – 4 Minimum distance of the data carriers to read-write head, influence of adjacent fields .........................................................................2 – 4 Permissible direction of movement of the data carrier ...............................2 – 4 Reading and writing in static operation ......................................................2 – 4 Reading and writing in dynamic operation (on the fly) ................................2 – 5 Dwell time of the data carrier T d ..................................................................2 – 5 Calculation of the maximum quantity of user data in dynamic operation...................................................................................2 – 5 Minimum distances between two adjacent data carriers ........................…

Text truncated - open the document above for the full version.

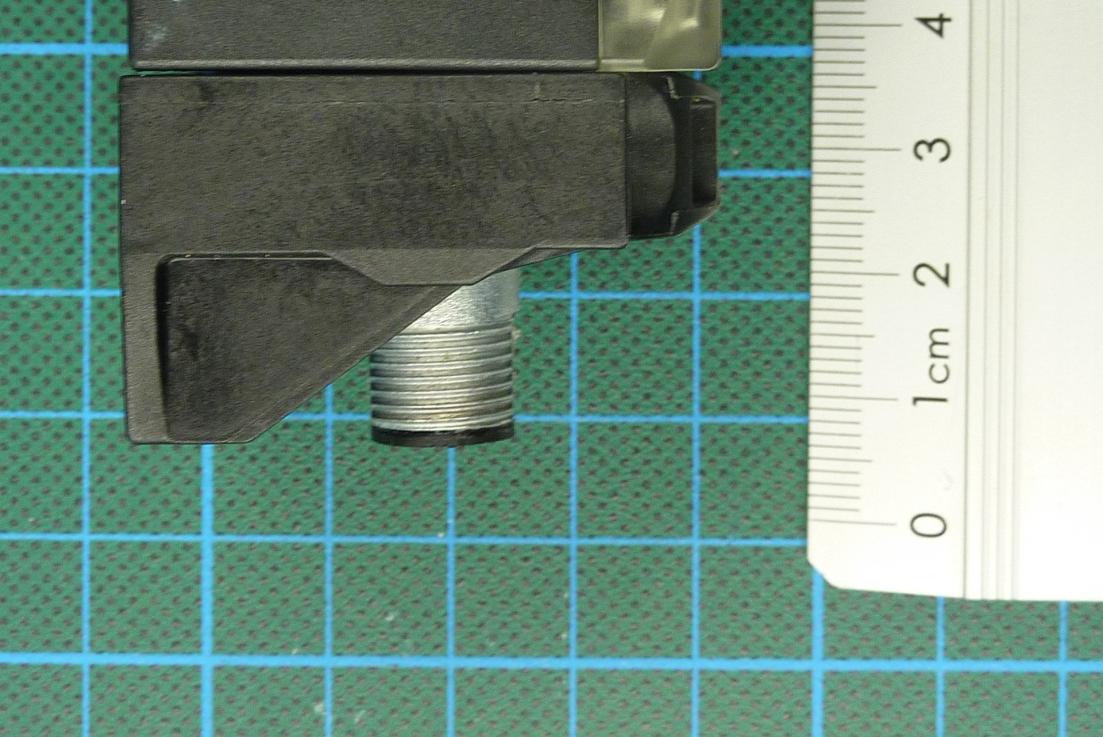

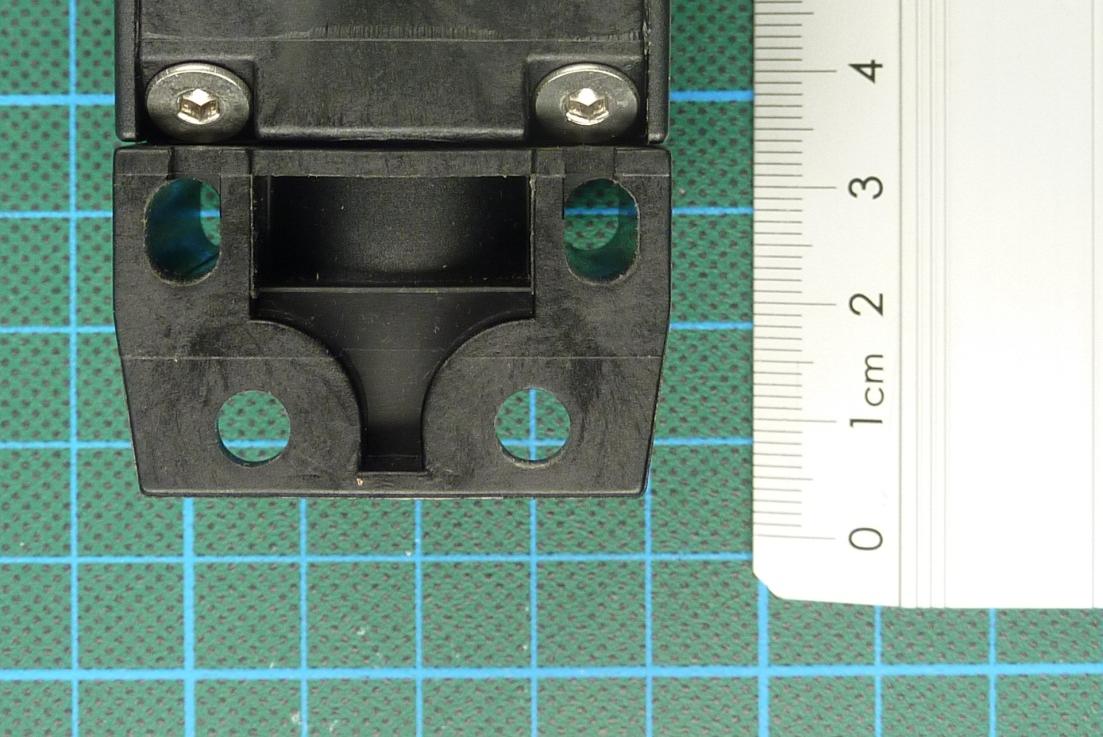

ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 1 of 7 153588_6.JPG: TN-CK40-H1147, frontal view ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 2 of 7 153588_7.JPG: TN-CK40-H1147, right hand side view ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 3 of 7 153588_8.JPG: TN-CK40-H1147, rear view ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 4 of 7 153588_9.JPG: TN-CK40-H1147, left hand side view ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 5 of 7 153588_10.JPG: TN-CK40-H1147, bottom view ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 6 of 7 153588_11.JPG: TN-CK40-H1147, top view ANNEX B EXTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 7 of 7 153588_12.JPG: TAG

Königswinkel 10 32825 Blomberg Germany Phone +49 5235 9500-0 Fax +49 5235 9500-10 Test Report Report Number: F153588E1 Applicant: Werner Turck GmbH & Co. KG Manufacturer: Hans Turck GmbH & Co. KG Equipment under Test (EUT): RFID Reader TN-CK40-H1147 Testengineer: Manuel BASTERT Report Number: F153588E1 Date of issue: 12 November 2015 Order Number: 15-113588 page 2 of 31 REFERENCES [1] ANSI C63.10: 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices [2] FCC 47 CFR Part 15 Radio Frequency Devices [3] RSS-210 Issue 8 (December 2010) Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment [4] RSS-Gen Issue 4 (November 2014) General Requirements and Information for the Certification of Radiocommunication Equipment TEST RESULT The requirements of the tests performed as shown in the overview (chapter 4 of this test report) were fulfilled by the equipment under test. The complete test results are presented in the following. This test report is only valid in its original form. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Test engineer: Manuel BASTERT 12 November 2015 Name Signature Date Authorized reviewer: Bernd STEINER 12 November 2015 Name Signature Date Testengineer: Manuel BASTERT Report Number: F153588E1 Date of issue: 12 November 2015 Order Number: 15-113588 page 3 of 31 Contents: Page 1 Identification ....................................................................................................................................... 4 1.1 Applicant .................................................................................................................................... 4 1.2 Manufacturer.............................................................................................................................. 4 1.3 Test laboratory ........................................................................................................................... 4 1.4 EUT (Equipment Under Test) ..................................................................................................... 5 1.5 Technical data of equipment ...................................................................................................... 5 1.6 Ancillary equipment used for test: .............................................................................................. 5 1.7 Dates ......................................................................................................................................... 5 2 Operational states ............................................................................................................................... 6 3 Additional information ......................................................................................................................... 7 4 Overview ............................................................................................................................................ 7 5 Test results ......................................................................................................................................... 8 5.1 Spectrum mask .......................................................................................................................... 8 5.1.1 Method of measurement ................................................................................................ 8 5.1.2 Test results .................................................................................................................... 9 5.2 20 dB Bandwidth ........................................................................................................................ 10 5.2.1 Method of measurement ................................................................................................ 10 5.2.2 Test results .................................................................................................................... 11 5.3 99 % bandwidth ......................................................................................................................... 12 5.3.1 Method of measurement ................................................................................................ 12 5.3.2 Test results .................................................................................................................... 13 5.4 Frequency tolerance .................................................................................................................. 14 5.4.1 Method of measurement ................................................................................................ 14 5.4.2 Test results (Frequency tolerance) ................................................................................. 15 5.5 Conducted emissions on power supply line ................................................................................ 16 5.5.1 Method of measurement ................................................................................................ 16 5.5.2 Test results (conducted emission measurement on AC mains) ....................................... 17 5.6 Radiated emissions .................................................................................................................... 19 5.6.1 Method of measurement ................................................................................................ 19 5.6.2 Preliminary radiated emission tests .................................................................…

Text truncated - open the document above for the full version.

ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 1 of 5 153588_1.jpg: Test setup shielded chamber ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 2 of 5 153588_2.JPG: Test setup fully anechoic chamber (E-Field) ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 3 of 5 153588_3.JPG: Test setup fully anechoic chamber (H-Field) ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 4 of 5 153588_4.jpg: Test setup open area test site ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F153588E1 Date of issue: 12 November 2015 Order No.: 15-113588 page 5 of 5 153588_5.JPG: Test setup outdoor test site
