YQ7-TNLRQ80L400RFID Reader

read/write head TNLR-Q80L400-H1147 Edition • 2015-08-27T10:30:11+02:00 1 / 7Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com Type codeTNLR-Q80L400-H1147 Ident no.7030204 Mounting conditionsnon-flush, flush mountable Ambient temperature-25...+70 °C Operating voltage19.2...28.8VDC DC rated operational current ð 230 mA Data transferinductive coupling Operating frequency13.56 MHz Radio communication and protocol standardsISO 15693 Read/write distance max.345 mm Output function4-wire, read/write Constructionrectangular, Q80L400 Dimensions400x 80x 25mm Housing materialplastic, PBT, black Material active areaplastic, Black Connectionmale, M12 x 1 Vibration resistance55 Hz (1 mm) Shock resistance30 g (11 ms) IP RatingIP67 MTTF121 years acc. to SN 29500 (Ed. 99) 40 °C Power-on indicationLED green Diagnostic displayFunctional description of yellow range-restrict- ed LED: If the read/write head is supplied with voltage, it briefly checks to see whether its resonance frequency is affected by sur- rounding metal. If this is the case, the reso- nant circuit off-tunes its frequency to reach again the (optimum) resonance frequency. However, this is only possible within a cer- tain range. If too much metal is in the envi- ronment, the read/write head cannot re-tune or the surrounding metal takes too much en- ergy from the field and due to the reduced range the communication between the read/ write head and the data carrier is cut off (the orange range-restricted-LED lights up). If the LED is off, this does not mean conversely, that no reduction in range occurs. The lit LED is rather an indication of too much metal in the environment and a greatly reduced range (about 50% less). ■ For roller conveyors ■ Rectangular, 80 x 400 mm, height 25 mm ■ Active face on top ■ Plastic, PBT-GF30-V0 ■ Powered and operated only via BL ident interface module ■ Male M12 x 1, only for use with BL ident extension cable Connectors .../S2503 Connectors .../S2500 Connectors .../S2501 Functional principle The HF read/write heads operating at a fre- quency of 13.56 MHz form a transmission zone the size of which (0...500 mm) varies, depending on the combination of read/write head and data carrier. The read/write distances mentioned here on- ly represent standard values measured under laboratory conditions. The read/write distances of the data carriers for mounting in metal TW-R**-M(MF) were de- termined in metal. Attainable distances may vary by up to 30 % due to component tolerances, mounting con- ditions, ambient conditions and material quali- ties (especially when mounted in metal) Testing of the application under real operat- ing conditions is therefore essential, especial- ly with read/write on-the-fly! read/write head TNLR-Q80L400-H1147 Edition • 2015-08-27T10:30:11+02:00 2 / 7Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com Packaged quantity1 Special featuresFor roller conveyors (vertical or horizontal ori- entation) read/write head TNLR-Q80L400-H1147 Edition • 2015-08-27T10:30:11+02:00 3 / 7Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com Data carrier DimensionsType designationRead-write distanceTransfer zoneMinimum dis- tance between two read- write heads Ident - no.Recommend- ed (mm) max. [mm]length max. [mm] width offset max. [mm] [mm] TW-R16-B128 6900501 509574205240 TW-R20-B128 6900502 6010286202240 TW-R20-K2 6900505 156470195240 TW-R30-B128 6900503 90152132217240 TW-R30-K2 6900506 70122100208240 TW-R50-B128 6900504 150256230242240 TW-R50-K2 6900507 120216190233240 TW-L49-46-F-B128 7030390 74176149197240 read/write head TNLR-Q80L400-H1147 Edition • 2015-08-27T10:30:11+02:00 4 / 7Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com Data carrier DimensionsType designationRead-write distanceTransfer zoneMinimum dis- tance between two read- write heads Ident - no.Recommend- ed (mm) max. [mm]length max. [mm] width offset max. [mm] [mm] TW-L80-50-P-B128 7030389 136229204207240 TW-R80-M-B128 7030207 407756199240 TW-R80-M-K2 7030205 307764195240 TW-L86-54-C-B128 6900479 200345306242240 read/write head TNLR-Q80L400-H1147 Edition • 2015-08-27T10:30:11+02:00 5 / 7Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com Data carrier longitudinal approach DimensionsType designationRead-write distanceTransfer zoneMinimum dis- tance between two read- write heads Ident - no.Recommend- ed (mm) max. [mm]length max. [mm] width offset max. [mm] [mm] TW-R16-B128 6900501 309541037240 TW-R20-B128 6900502 4010240443240 TW-R20-K2 6900505 306439035240 TW-R30-B128 6900503 6015243466240 TW-R30-K2 6900506 5012241650240 TW-R50-B128 6900504 100256484115240 TW-R50-K2 6900507 9021646695240 TW-R50-90-HT-B128 1542326 70226484115240 TW-R50-90-HT-K2 1542329 6018646695240 read/write head TNLR-Q80L400-H1147 Edition • 2015-08-27T10:30:11+02:00 6 / 7Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com Data carrier longitudinal approach DimensionsType designationRead-write distanceTransfer zoneMinimum dis- tance between two read- write heads Ident - no.Recommend- ed (mm) max. [mm]length max. [mm] width offset max. [mm] [mm] TW-I14-B128 6900526 309541037240 TW-L49-46-F-B128 7030390 6817639474240 TW-L80-50-P-B128 7030389 85229414102240 TW-R80-M-B128 7030207 307739828240 TW-R80-M-K2 7030205 306839032240 TW-R4-22-B128 7030237 208036834240 read/write head TNLR-Q80L400-H1147 Edition • 2015-08-27T10:30:11+02:00 7 / 7Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ F…

Text truncated - open the document above for the full version.

USER- MANUAL RFID SYSTEM INSTALLATION OF THE BL IDENT- SYSTEM S1583/01 D101583 0207 BL ident 2 D101583 0207BL ident3 Safety Instructions! Before beginning installation work „Disconnect the device from the power supply „Ensure against accidental restart „Verify isolation from the supply „Cover or close off neighbouring units that are live. „The assembly instructions provided for the device are to be complied with „Only suitably qualified personnel according to EN 50 110-1/-2 (VDE 0105 part 100) are authorised to carry out work on this device/system. „When conducting installation work ensure that you are free of electrostatic charge before touching the device. „Connection and signal cables are to be installed so that any inductive or capacitive interference does not impair the automation functions. „The installation of automation devices and their operating elements is to be carried out in such a way as to prevent unintentional operation. „In order to prevent cable or wire breakage on the signal side generating undefined states in the automation devices, appropriate safety measures are to be taken for the I/O coupling on the hardware and software side. „The functional earth (FE) must be connected to the protective earth (PE) or the equipotential bonding. The system installer is responsible for establishing this connection. „Ensure a reliable isolation of the extra-low voltage for the 24 volt supply. Only those power supply units that comply with IEC 60 364-4-41, i.e. HD 384.4.41 S2 (VDE 0100 part 410) are to be deployed. „Fluctuations or deviations of the mains voltage from the nominal value should not exceed the tolerance limits specified in the technical data, otherwise malfunctions and dangerous states may occur. D101583 0207BL ident4 „Devices for mounting in housings or cabinets, desktop or portable units, are only to be operated and controlled with the housing closed. „Measures are to be taken to ensure the correct restarting of a program following interruption due to a voltage drop or failure. Dangerous operating conditions, even short term, should not occur as a result. If required an emergency stop should be carried out. „External measures are to be implemented at those locations where faults in the automation installation could lead to injury to persons or damage to property. These measures must guarantee safe operating conditions even in the event of a fault or malfunction (e.g. by means of independent limit switches or mechanical locking devices etc.). „The electrical installation must be carried out in accordance with the relevant regulations (e.g. in respect of the cable cross sections, fuses and protective earth connections). „All work involving transport, installation, commissioning and maintenance is to be carried out exclusively by qualified personnel (in accordance with IEC 60 364 i.e. HD 384 or DIN VDE 0100 and national accident prevention regulations). „USA Radio Frequency Interference FCC Part 15 Notice: Changes or modifications not expressly approved by TURCK could void the user's authority to operate the equipment 5 Contents D101583 0207BL ident Contents About this manual Documentation concept..............................................................................0 – 2 Description of symbols used ......................................................................0 – 4 Prescribed use ......................................................................................0 – 5 Notes concerning planning / Installation of this product ......................0 – 5 1 The TURCK BL ident System – Overview Schematic representation of the identification system BL ident................1 – 2 Support for BL ident-projects ...............................................................1 – 2 Networking with BL ident systems........................................................1 – 3 Identification systems with radio frequency technology (RFID) ..................1 – 4 Characteristics and fields of application of the BL identsystem.................1 – 5 Degree of protection .............................................................................1 – 5 Service life .............................................................................................1 – 5 Transmission frequency ........................................................................1 – 5 Size ........................................................................................................1 – 6 Read/write time .....................................................................................1 – 6 Compatibility .........................................................................................1 – 7 Areas of application (examples) ............................................................1 – 7 The BL ident-configurator .....................................................................1 – 8 2 TURCK BL ident System – Planning Selection criteria for data carriers and read-write head..............................2 – 2 Transfer zone and read-write distance .......................................................2 – 3 Length of the transfer zone and width offset ..............................................2 – 4 Minimum distance of the data carriers to read-write head, influence of adjacent fields .........................................................................2 – 4 Permissible direction of movement of the data carrier ...............................2 – 4 Reading and writing in static operation ......................................................2 – 4 Reading and writing in dynamic operation (on the fly) ................................2 – 5 Dwell time of the data carrier T d ..................................................................2 – 5 Calculation of the maximum quantity of user data in dynamic operation...................................................................................2 – 5 Minimum distances between two adjacent data carriers ........................…

Text truncated - open the document above for the full version.

Long/Short-term Confidentiality Request PHOENIX TESTLAB GmbH Date: 06 May 2015 Product Certification Königswinkel 10 D 32825 Blomberg FCC ID: YQ7-TNLRQ80L400 To Whom it may concerns, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be temporarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Signatory Anton Stang Graduated Certification Specialist PHOENIX TESTLAB GmbH

DECLARATION OF IDENTITY Hereby we: Hans Turck GmbH & Co. KGWitzlebenstr. 7D-45472 Mülheiman der Ruhr (Name of Manufacturer) Basic Model Number:TNLR-Q80L400-H1147 Derivation Model Number:TNLR-Q80L400-H1147L Basic Test Report Number: The Circuit, PCB Layout, Electrical Parts, radio frequency and Outlook of the following product is identical to the basic model: Derivation Model Number:TNLR-Q80L400-H1147L Difference between the basic model and the derivation model:M12 connector on the left side instead of bottom Signature Printed nameMarkus Teubner Date2015-08-25

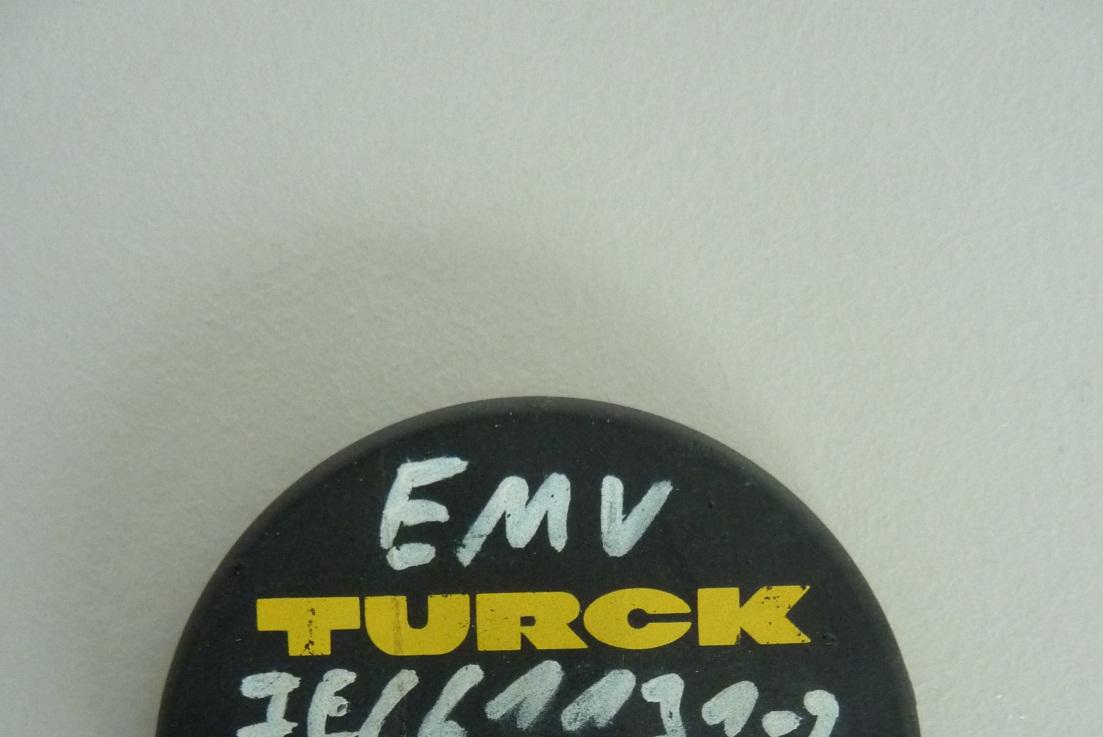

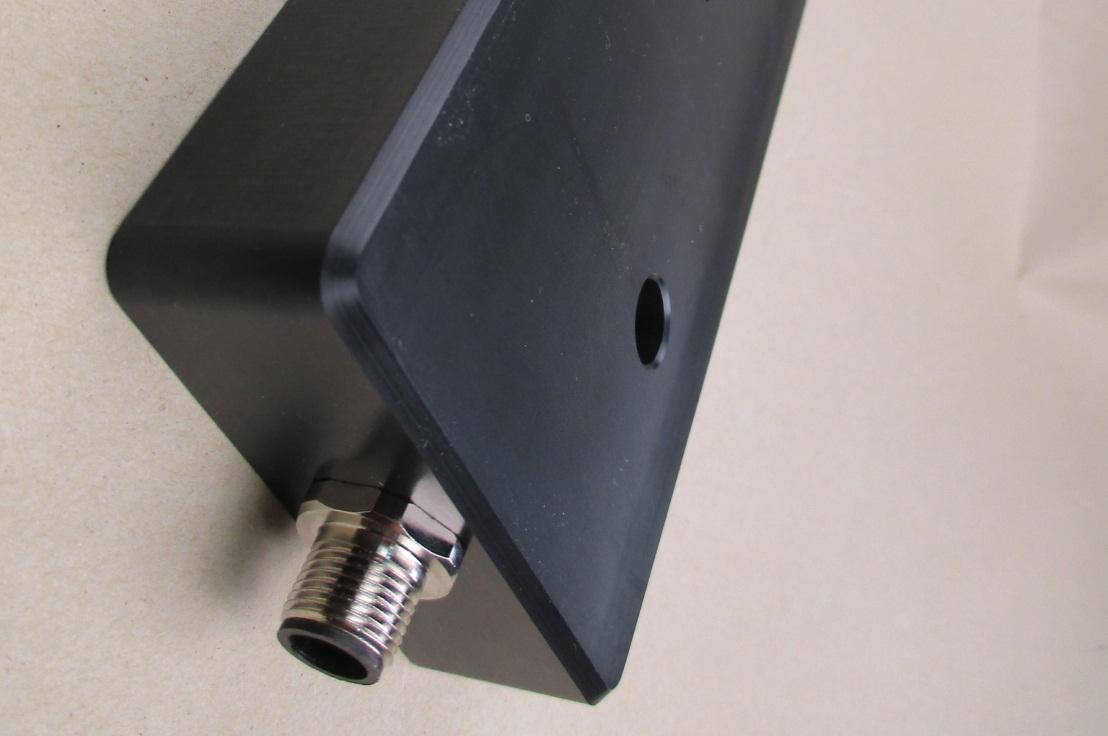

ANNEX B EXTERNALPHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 1 of 3 150254_7.JPG: TNLR-Q80L400-H1147, 3D view 1 ANNEX B EXTERNALPHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 2 of 3 150254_8.JPG: TNLR-Q80L400-H1147, 3D view 2 ANNEX B EXTERNALPHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 3 of 3 150254_9.JPG: TAG

Ty penschild / Aufdruck x:1 Maß- stab Blatt 1 von1 Zeichn. Nr. für Ty p Index ID-Nr. Ersatz fürersetzt durch TNLR-Q80L400-H1147 7030204 Zulassung Freigabe Entwicklung Freigabe erstellt geändert Freigabe Datum Name -Labor CE JA /NEIN S t a n d 0 5 . 9 8

Ty penschild / Aufdruck x:1 Maß- stab Blatt 1 von1 Zeichn. Nr. für Ty p Index ID-Nr. Ersatz fürersetzt durch TNLR-Q80L400-H1147L 7030234 Zulassung Freigabe Entwicklung Freigabe erstellt geändert Freigabe Datum Name -Labor CE JA /NEIN S t a n d 0 5 . 9 8 Lable Location Info M/N [HVIN]: TNLR-Q80L400-H1147L

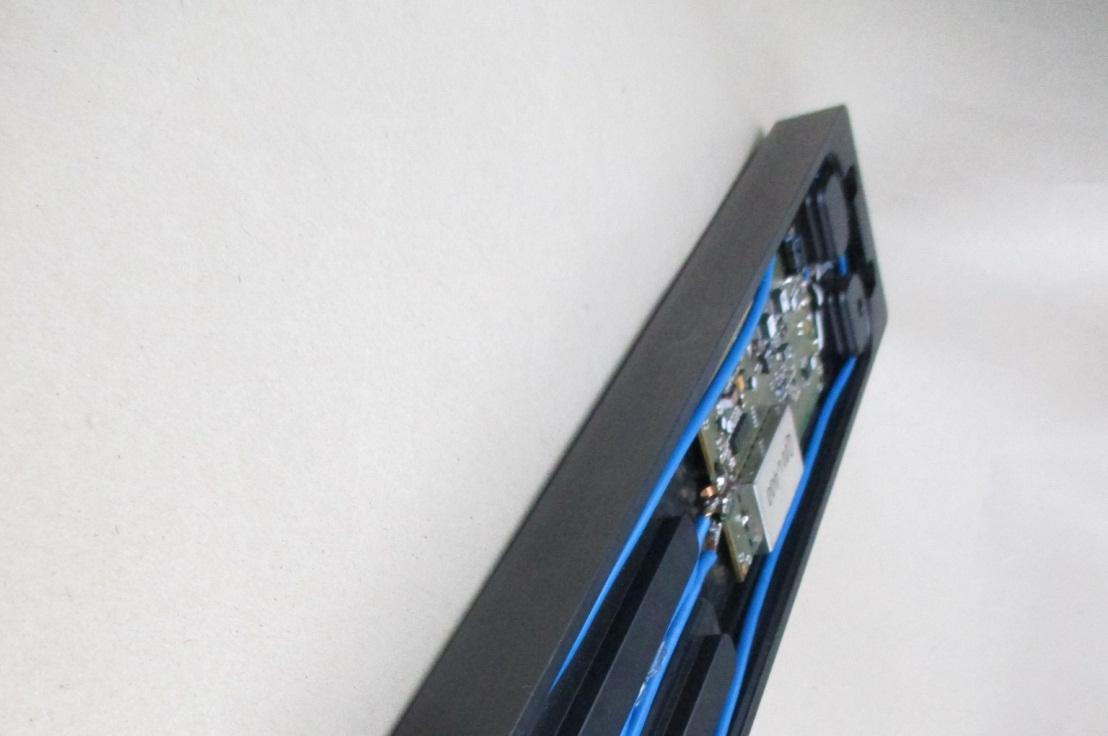

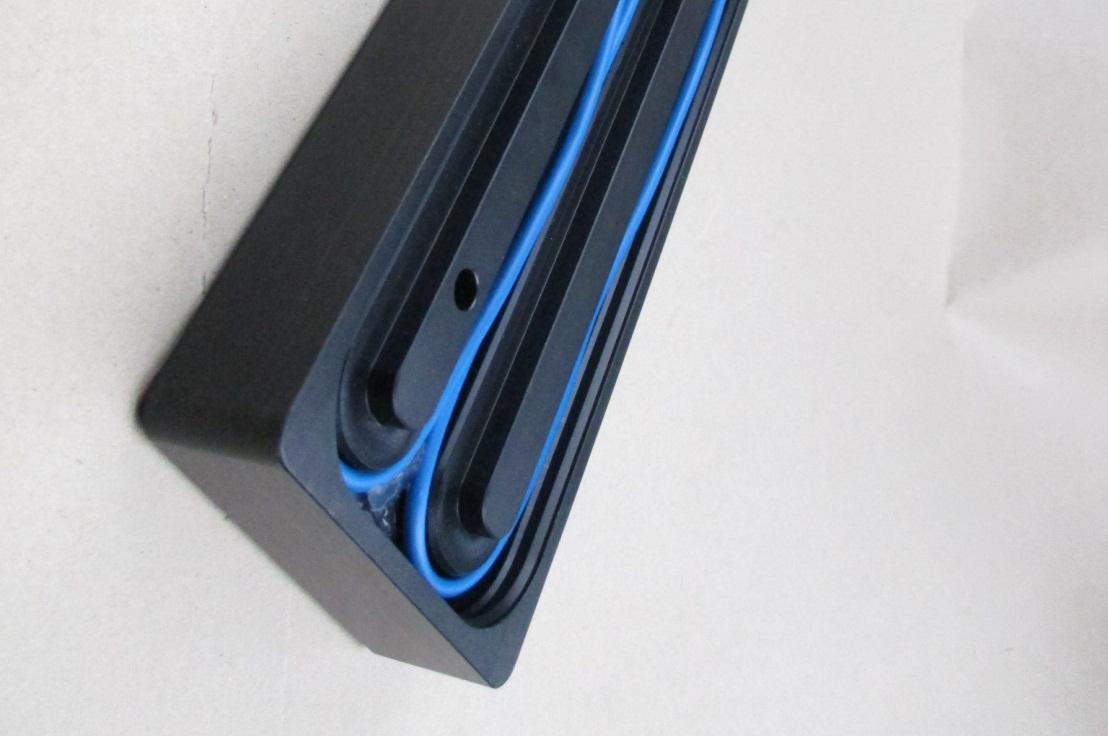

ANNEX C INTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 1 of 3 150254_10.JPG: TNLR-Q80L400-H1147, PCB, top view ANNEX C INTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 2 of 3 150254_11.JPG: TNLR-Q80L400-H1147, PCB, bottom view ANNEX C INTERNAL PHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 3 of 3 150254_12.JPG: TNLR-Q80L400-H1147, PCB, bottom view, shielding removed

Königswinkel 10 32825 Blomberg Germany Phone +49 5235 9500-0 Fax +49 5235 9500-10 Test Report Report Number: F150254E1 Applicant: Werner Turck GmbH & Co. KG Manufacturer: Hans Turck GmbH & Co. KG Equipment under Test (EUT): RFID Reader TNLR-Q80L400-H1147 Laboratory (CAB) accredited by Deutsche Akkreditierungsstelle GmbH (DAkkS) in compliance with DIN EN ISO/IEC 17025 under the Reg. No. D-PL-17186-01-02, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469A-1 Testengineer: Manuel BASTERT Report Number: F150254E1 Date of issue: 22 June 2015 Order Number: 15-110254 page 2 of 30 REFERENCES [1] ANSI C63.4:2014 American National Standard for Methods of Measuring of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. [2] FCC 47 CFR Part 15 Radio Frequency Devices TEST RESULT The requirements of the tests performed as shown in the overview (chapter 4 of this test report) were fulfilled by the equipment under test. The complete test results are presented in the following. RESERVATION This test report is only valid in its original form. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Test engineer: Manuel BASTERT 22 June 2015 Name Signature Date Authorized reviewer: Bernd STEINER 22 June 2015 Name Signature Date Testengineer: Manuel BASTERT Report Number: F150254E1 Date of issue: 22 June 2015 Order Number: 15-110254 page 3 of 30 Contents: Page 1 Identification ....................................................................................................................................... 4 1.1 Applicant .................................................................................................................................... 4 1.2 Manufacturer.............................................................................................................................. 4 1.3 Test laboratory ........................................................................................................................... 4 1.4 EUT (equipment Under Test) ..................................................................................................... 5 1.5 Technical data of equipment ...................................................................................................... 5 1.6 Ancillary equipment used for test: .............................................................................................. 5 1.7 Dates ......................................................................................................................................... 5 2 Operational states and physical boundaries ........................................................................................ 6 3 Additional information ......................................................................................................................... 6 4 Overview ............................................................................................................................................ 6 5 Test results ......................................................................................................................................... 7 5.1 Spectrum mask .......................................................................................................................... 7 5.1.1 Method of measurement ................................................................................................ 7 5.1.2 Test results .................................................................................................................... 8 5.2 20 dB Bandwidth ........................................................................................................................ 9 5.2.1 Method of measurement ................................................................................................ 9 5.2.2 Test results .................................................................................................................... 10 5.3 Frequency tolerance .................................................................................................................. 11 5.3.1 Method of measurement ................................................................................................ 11 5.3.2 Test results .................................................................................................................... 12 5.4 Conducted emissions on power supply line ................................................................................ 13 5.4.1 Method of measurement ................................................................................................ 13 5.4.2 Test results .................................................................................................................... 14 5.5 Radiated emissions .................................................................................................................... 16 5.5.1 Method of measurement ................................................................................................ 16 5.5.2 Preliminary radiated emission tests ................................................................................ 23 5.5.3 Final radiated emission tests .......................................................................................... 26 6 Test equipment and ancillaries used for tests ...................................................................................... 29 7 Report history .........................…

Text truncated - open the document above for the full version.

ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 1 of 6 150254_1.JPG: Test setup shielded chamber ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 2 of 6 150254_2.JPG: Test setup fully anechoic chamber (E-Field) ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 3 of 6 150254_3.JPG: Test setup fully anechoic chamber (H-Field) ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 4 of 6 150254_4.JPG: Test setup open area test site ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 5 of 6 150254_5.JPG: Test setup outdoor test site ANNEX A TEST SETUP PHOTOS Examiner: Manuel BASTERT Test Report No.: F150254E1 Date of issue: 22 June 2015 Order No.: 15-110254 page 6 of 6 150254_6.JPG: Test setup temperature chamber
