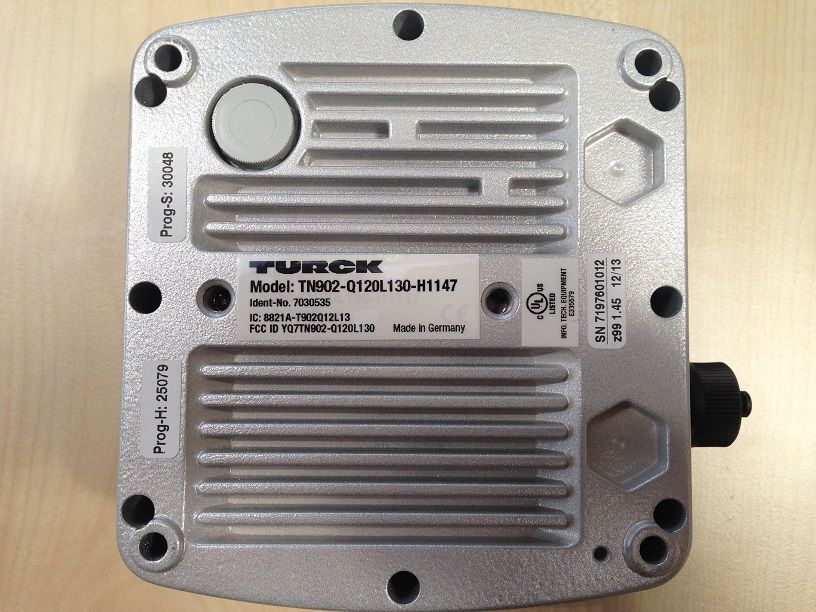

YQ7TN902-Q120L130UHF RFID read/write device

Gerätekurzbeschreibung • UHF-Schreib-Lese-Kopf (Transceiver) zum drahtlosen Datenaustausch mit Datenträgern (TAGs) • Arbeitsfrequenz: 902...928 MHz • Schutzart nach IEC/EN 60529: IP67 • Nicht-bündige Einbaulage • Anschluss der Schreib-Lese-Köpfe an die BL ident®-Interfacemodule über konfektionierte Leitungen mit M12 × 1-Steckverbindern (siehe Fig. 2 und 3) • Funk- und Protokollstandards: ISO 18000-6C, EN 302208, EPCglobal Class 1 Gen2 LED-Anzeigen (Fig. 1) Farbe Status Funktion grün an Betriebsspannung grün leuchtet Datenträger erfolgreich kurz auf gelesen gelb an Transceiver eingeschaltet rot an Betriebsstörung, Fehler, Reset Pinbelegung (Fig. 2 und 3) 1 Betriebsspannung + 3 Betriebsspannung – 4 Daten 2 Daten Bestimmungsgemäßer Betrieb Beachten Sie für den bestimmungsgemäßen Betrieb unbedingt die nationalen und inter- nationalen Vorschriften und Bestimmungen. RFID-System BL ident® Schreib-Lese-Kopf TN902-Q120L130-H1147 RFID system BL ident® Read/write head TN902-Q120L130-H1147 Device description • UHF read/write head (transceiver) for wireless data exchange with data carriers (TAGs). • Working frequency: 902...928 MHz • Protection class IEC/EN 60529: IP67 • Non-flush mounting • Connection of read/write heads to BL ident® interface modules via pre- moulded cables with M12 × 1 connectors (see Fig. 2 and 3) • Radio and protocol standards: ISO 18000-6C, EN 302208, EPCglobal Class 1 Gen2 LED indications (Fig. 1) Color Status Function green on Operating voltage green lights up Reading of data carrier shortly successfull yellow on Transceiver on red on Failure on, Reset Pin assignment (Fig. 2 and 3) 1 Operating voltage + 3 Operating voltage – 4 Data 2 Data Correct usage For correct usage please observe and follow the national and international regulations and directives strictly. Système RFID BL ident® Tête d‘écriture-de lecture TN902-Q120L130-H1147 Description brève de l‘appareil • Tête d‘écriture-de lecture UHF (Transceiver) pour l‘échange de données sans fil avec les étiquettes électroniques (TAGs) • Fréquence de travail: 902...928 MHz • Mode de protection suivant IEC/EN 60529: IP67 • Montage non-blindé • Raccordement des têtes d‘écriture-de lecture aux modules d’interfaces BL ident® par des câbles confectionnés avec connecteurs M12 × 1 (voir Fig. 2 et 3) • Normes de protocoles et radio: ISO 18000-6C, EN 302208, EPCglobal Class 1 Gen2 Visualisations par LED (Fig. 1) Coul. Statut Fonction vert on tension de service vert s‘allume étiquette électronique brièvem. lue correctement jaune on transceiver est activé rouge on perturbation de fonctionnement, Reset Raccordement des broches (Fig. 2 et 3) 1 tension de service + 3 tension de service – 4 données 2 données Fonctionnement selon les dispositions Son fonctionnement selon les dispositions implique le respect des prescriptions et dispositions nationales et internationales. Fig. 1Fig. 3     130 120 60 M12 LED Fig. 2                 für Leitungen/for cables/ pour câbles .../S2500 für Leitungen/for cables/ pour câbles .../S2501 für Leitungen/for cables/ pour câbles .../S2503         TN902-Q120L130-H1147 D500031 2014/08 *D500031ßß0814* Mounting and Installation Mounting and installation must be carried out in accordance with the applicable regulations. The operator is responsible for compliance with the regulations. All installations must be carried out observing the regulations of EMC protection. The devices have to be protected against rapid temperature fluctuation, heavy contamination, electrostatic charge and mechanical damage. No modifications or expansions can be made to the devices unless explicitely allowed by the manufacturer. Maintenance and fault clearance No maintenance required. Defective devices should be replaced, repair is not possible. Contin- ued use of damaged devices is not allowed. Montage und Installation Führen Sie die Montage und Installation den gültigen Vorschriften entsprechend durch. Dafür sind Sie als Betreiber verantwortlich. Führen Sie sämtliche Installationen EMV- gerecht durch. Die Geräte müssen vor Wärme- strahlung, schnellen Temperaturschwankun- gen, starker Verschmutzung, elektrostatischer Aufladung und mechanischer Beschädigung geschützt werden. Nehmen Sie keine Änderungen oder Erweiterun- gen an den Geräten vor, wenn diese nicht explizit durch den Hersteller erlaubt sind. Wartung und Störungsbeseitigung Eine Wartung ist nicht erforderlich. Defekte Ge- räte sind auszutauschen, eine Reparatur ist nicht möglich. Mechanisch beschädigte Geräte dürfen nicht betrieben oder weiterverwendet werden. Montage et Installation Le montage et l’installation doivent être effec- tués conformément aux prescriptions locales valables, dont le respect est la responsabilité de l’exploitant. Toutes les installations doivent être effectuées conformément à la CEM. Les appareils doivent être protégés contre le rayonnement thermique, les variations de tem- pérature brusques, la pollution forte, la charge électrostatique et l‘endommagement mécanique. Des modifications ou extensions ne peuvent pas être apportées aux appareils, lorsque celles-ci ne sont pas autorisées explicitement par le fabricant. Entretien et relève de dérangements Un entretien n‘est pas requis. Les appareils défec- tueuses sont à échanger car une réparation est impossible. Des appareils endommagés mécani- quement ne peuvent pas être activés ou utilisés. Irrtümer und Änderungen vorbehalten / Subject to change without notice / Sous réserve de modifications • © Hans Turck GmbH & Co. KG 2014 Hans Turck GmbH & Co. KG • Witzlebenstraße 7 • 45472 Mülheim/Ruhr • Germany • Tel. +49 208 4952-0 • Fax +49 208 4952-264 • [email protected] • www.turck.com Internet: www.turck.com → www.turck.de FCC/IC Digital Device Limitations FCC ID: YQ7TN902-Q120L130 IC ID: 8821A-T902Q12L13 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not caus…

Text truncated - open the document above for the full version.

USER MANUAL RFID-SYSTEM INSTALLATION OF THE BL IDENT® UHF-SYSTEMS Sense it! Connect it! Bus it! Solve it! D101831 0713 BLident® Installation of the UHF System 3 1General Information ................................................................................................................. 5 1.1Intended purpose of this documentation .............................................................................................. 6 1.2Meaning of the symbols used ................................................................................................................ 6 1.3Safety notes ........................................................................................................................................... 6 1.3.1Intended use ................................................................................................................................................................................................ 7 1.3.2Engineering/installation instructions for the product .................................................................................................................. 7 1.3.3Safety instructions for RFID systems– minimum permissible distances................................................................................ 7 – Minimum distances to the read/write head acc. to ETSI (Europe) ...................................................................................... 8 – Minimum distances to the read/write head acc. to FCC (USA) ............................................................................................. 8 1.4TURCK Service ........................................................................................................................................ 8 1.5Relevant documents .............................................................................................................................. 9 2The TURCK BL ident® UHF System ........................................................................................... 11 2.1BL ident® – Modular RFID system..........................................................................................................12 2.1.1BL ident® system concept...................................................................................................................................................................... 12 2.1.2BL ident® data carriers............................................................................................................................................................................. 12 2.1.3BL ident® read/write heads ................................................................................................................................................................... 12 2.1.4BL ident® interfaces.................................................................................................................................................................................. 12 – Gateways (BL20 and BL67) .............................................................................................................................................................. 12 – Interface modules: electronic and base modules .................................................................................................................. 13 – Combination of gateways and interface modules ................................................................................................................. 14 –BL compact interfaces ....................................................................................................................................................................... 16 2.2Schematic representation of the BL ident® UHF identification system ................................................ 19 2.2.1Networking with BL ident® UHF systems ......................................................................................................................................... 20 2.3Identification systems with radio frequency technology (RFID).......................................................... 20 2.4Features and application areas of the BL ident® system....................................................................... 20 2.4.1Degree of protection.............................................................................................................................................................................. 20 2.4.2Lifespan....................................................................................................................................................................................................... 21 2.4.3Transmission frequency ........................................................................................................................................................................ 21 2.4.4Mounting types........................................................................................................................................................................................ 22 – Data carriers ......................................................................................................................................................................................... 22 – Read/write heads ............................................................................................................................................................................... 22 2.4.5Memory ....................................................................................................................................................................................................... 22 2.5Read/write time in the sensing range of the UHF read/write head ...................................................... 22 2.6User data areas of the UHF data carrier variants ................................................................................. 23 2.7General information on the U…

Text truncated - open the document above for the full version.

Bank: Commerzbank Lemgo General Manager: Dr.-Ing. Holger Altmaier Legal Form: GmbH IBAN: DE 24476400510226043800 Headquarter: Blomberg/Lippe BIC: COBADEFFXXX Register of Companies: Amtsgericht Lemgo HRB 5233 Tax-No.: 313/5781/0160 Our VAT-No.: DE 162977933 PHOENIX TESTLAB GmbH • Königswinkel 10 • D-32825 Blomberg, Germany Königswinkel 10 32825 Blomberg, Germany Phone +49(0)5235-9500-0 Fax +49(0)5235-9500-20 [email protected] www.phoenix-testlab.de 18 July 2014 Dr. Altmaier / KT Additional declaration part according to FCC 15.247 for a 902 MHz to 928 MHz FHSS devices 1. Frequency range The frequency range of this device is 902.75 to 927.25 MHz as declared by the applicant. 2. Examples of hopping sequences Example of a 50 hopping sequence (channel 0 to 49): 26, 25, 1, 48, 47, 3, 49, 35, 33, 13, 32, 30, 5, 4, 45, 38, 24, 8, 22, 39, 17, 18, 2, 12, 6, 19, 7, 29, 23, 9, 31, 27, 15, 16, 10, 44, 14, 34, 28, 21, 42, 11, 46, 20, 43, 37, 36, 40, 0, 41. 3. Equally average use of frequencies in data mode All 50 channels are evenly used in the order set down in clause 2. 4. The receiver input bandwidth The maximum IF bandwidth of the receiver is 2.36 MHz centered at 0 Hz IF frequency (direct conversion) followed by analog and digital filtering in the receiver. The bandwidth of the filter depends on the tag data rate on the air interface and software settings. FCC Federal Communications Commission

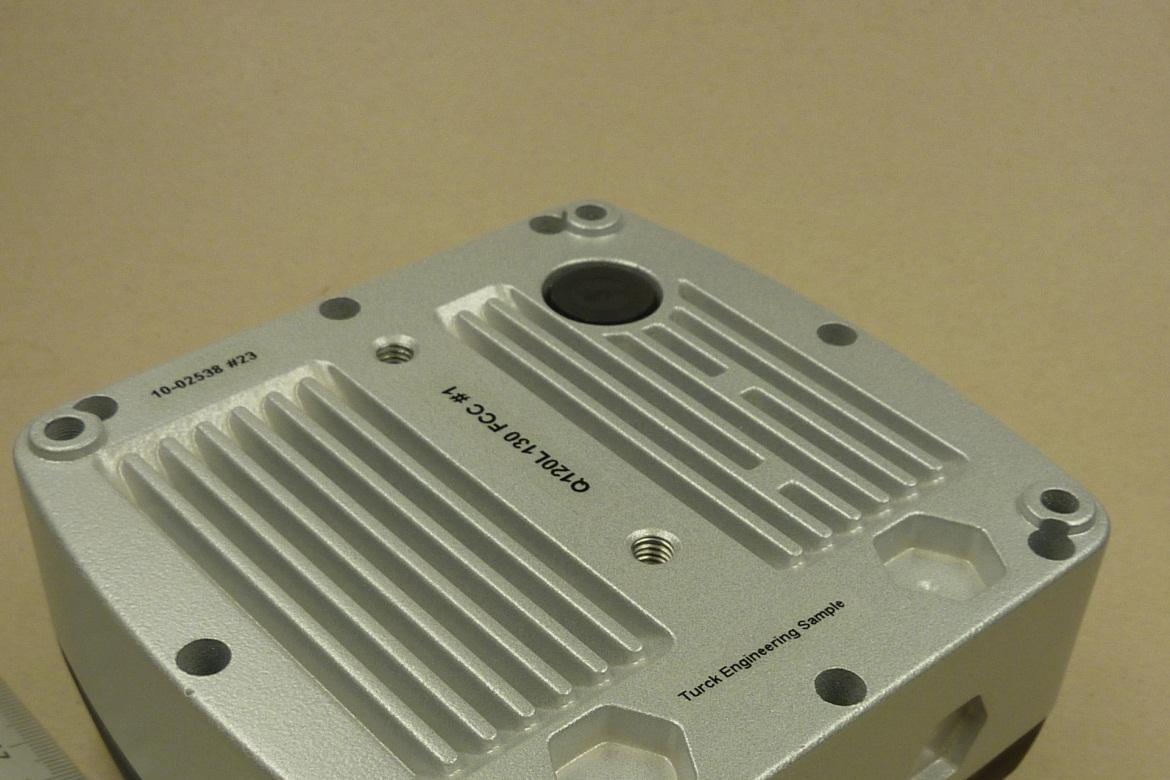

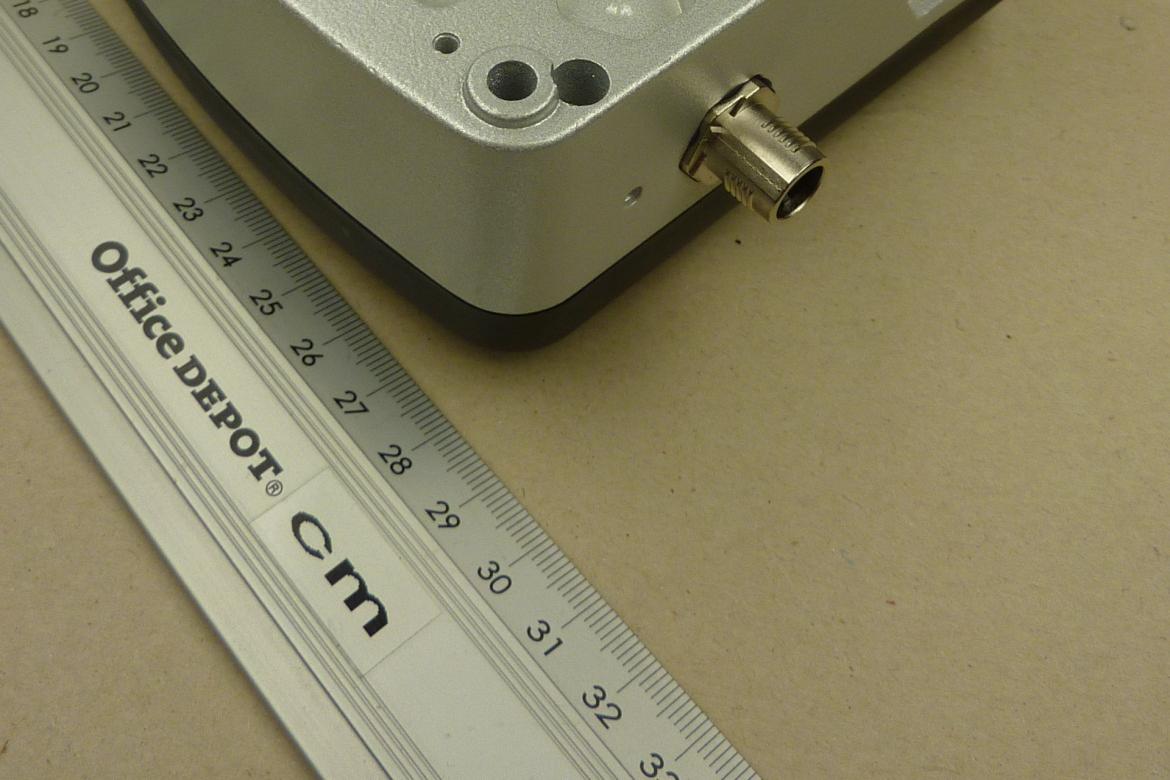

ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 1 of 2 142568_2.JPG: TN902-Q120L130-H1147, 3-D-view 1 ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 2 of 2 142568_1.JPG: TN902-Q120L130-H1147, 3-D-view 2

ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 1 of 8 142568_12.JPG: TN902-Q120L130-H1147, internal view 1 (cover removed) ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 2 of 8 142568_9.JPG: TN902-Q120L130-H1147, internal view 2 (antenna removed) ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 3 of 8 142568_10.JPG: TN902-Q120L130-H1147, main PCB, top view ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 4 of 8 142568_11.JPG: TN902-Q120L130-H1147, main PCB, bottom view ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 5 of 8 142568_6.JPG: TN902-Q120L130-H1147, coupler PCB, top view ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 6 of 8 142568_5.JPG: TN902-Q120L130-H1147, coupler PCB, bottom view ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 7 of 8 142568_4.JPG: TN902-Q120L130-H1147, antenna PCB, top view ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 8 of 8 142568_7.JPG: TN902-Q120L130-H1147, antenna PCB, bottom view

Calculation: RF-Exposure Type identification: TN902-Q120L130-H1147 In accordance to the CFR Part 47, §1.1310 S: Limit for power density according to CFR Part 47, §1.1310: 6 W/m 2 P: 0.661 W G: 3.15 dBi = 2.07 D: Duty cycle: 100 % = 1 R: Distance in what the limit of S has to be reached: 0.2 m 222 72.2 )2.0(4 107.2661.0 4m W m W S R DGP S ˜˜ ˜˜ Ÿ ˜˜ ˜˜ SS The value for the “General population / Uncontrolled Exposure” of the power density is below the limit of CFR Part 47, §1.1310.

Königswinkel 10 32825 Blomberg Germany Phone: +49 (0) 52 35 95 00-0 Fax: +49 (0) 52 35 95 00-10 Test Report Report Number: F142568E1 Applicant: Werner Turck GmbH & Co. KG Manufacturer: Werner Turck GmbH & Co. KG Equipment under Test (EUT): TN902-Q120L130-H1147 Laboratory (CAB) accredited by Deutsche Akkreditierungsstelle GmbH (DAkkS) in compliance with DIN EN ISO/IEC 17025 under the Reg. No. D-PL-17186-01-02, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469A-1 Test engineer: Thomas KÜHN Report Number: F142568E1 Date of issue: 18 July 2014 Order Number: 14-112568 page 2 of 46 REFERENCES [1] ANSI C63.4-2009 American National Standard for Methods of Measuring of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. [2] FCC CFR 47 Part 15 (July 2014) Radio Frequency Devices [3] FCC Public Notice DA 00-705 (March 2000) [4] RSS-210 Issue 8 (December 2010) Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment [5] RSS-Gen Issue 3 (December 2010) General Requirements and Information for the Certification of Radio Apparatus TEST RESULT The requirements of the tests performed as shown in the overview (clause 3) were fulfilled by the equipment under test. The complete test results are presented in the following. RESERVATION This test report is only valid in its original form. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Test engineer: Thomas KÜHN 18 July 2014 Name Signature Date Authorized reviewer: Bernd STEINER 18 July 2014 Name Signature Date Test engineer: Thomas KÜHN Report Number: F142568E1 Date of issue: 18 July 2014 Order Number: 14-112568 page 3 of 46 Contents: Page 1 Identification ............................................................................................................................................. 4 1.1 Applicant ............................................................................................................................................. 4 1.2 Manufacturer ....................................................................................................................................... 4 1.3 Test laboratory .................................................................................................................................... 4 2 EUT (Equipment Under Test) ................................................................................................................... 5 2.1 Technical data of equipment ............................................................................................................... 5 2.2 Dates ................................................................................................................................................... 6 2.3 Operational states ............................................................................................................................... 6 3 Overview .................................................................................................................................................. 7 4 Test results ............................................................................................................................................... 8 4.1 20 dB bandwidth ................................................................................................................................. 8 4.1.1 Method of measurement (20 dB bandwidth) ............................................................................ 8 4.1.2 Test results (20 dB bandwidth) ................................................................................................. 9 4.2 Carrier frequency separation ............................................................................................................ 11 4.2.1 Method of measurement (carrier frequency separation) ........................................................ 11 4.2.2 Test results (carrier frequency separation) ............................................................................. 12 4.3 Number of hopping frequencies ........................................................................................................ 14 4.3.1 Method of measurement (number of hopping frequencies) ................................................... 14 4.3.2 Test results (number of hopping frequencies) ........................................................................ 15 4.4 Dwell time .......................................................................................................................................... 16 4.4.1 Method of measurement (dwell time) ..................................................................................... 16 4.4.2 Test results (dwell time) .......................................................................................................... 17 4.5 Maximum peak output power ............................................................................................................ 18 4.5.1 Method of measurement (maximum peak output power) ....................................................... 18 4.5.2 Test results (maximum peak output power) ........................................................................... 19 4.6 Radiated emissions ........................................................................................................................... 21 4.6.1 Method of measurement (radiated emissions) .........................................................…

Text truncated - open the document above for the full version.

ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 1 of 7 142568_b.JPG: TN902-Q120L130-H1147, test set-up fully anechoic chamber ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 2 of 7 142568_c.JPG: TN902-Q120L130-H1147, test set-up fully anechoic chamber ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 3 of 7 142568_e.JPG: TN902-Q120L130-H1147, test set-up fully anechoic chamber ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 4 of 7 142568_a.JPG: TN902-Q120L130-H1147, test set-up fully anechoic chamber ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 5 of 7 142568_d.JPG: TN902-Q120L130-H1147, test set-up fully anechoic chamber ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 6 of 7 142568_f.JPG: TN902-Q120L130-H1147, test set-up open area test site ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F142568E1 Date of issue: 18 July 2014 Order No.: 14-112568 page 7 of 7 142568_i.JPG: TN902-Q120L130-H1147, test shielded chamber
