YQ7TN902-Q175L200UHF RFID read/write device

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 04.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 02.05.2013 FCC ID: YQ7TN902-Q175L200 IC: 8821A-T902Q17L20 Subject: Compliance Statement Manual Dear Sirs, We hereby assure that the following caution statements are included in a prominent location of the manual: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This equipment complies with FCC/IC exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. CAN ICES-3 (A)/NMB-3(A) Applicant’s Company address : Signature : ____________________________ Job Title and Dept. : Uwe Dollitz PHOENIX TESTLAB GmbH Graduated Certification Specialist International Radio Type Approval Koenigswinkel 10 32825 Blomberg, Germany

Königswinkel 10 D-32825 Blomberg, Germany Phone +49 (0) 52 35 95 00-0 Fax +49 (0) 52 35 95 00-20 [email protected] www.phoenix-testlab.de 15. März 2013 Dr. Altmaier-KT Bank: Stadtsparkasse Blomberg General Manager: Dr.-Ing. Holger Altmaier Legal Form: GmbH Routing Code: 476 512 25 Headquarter: Blomberg/Lippe Account No.: 113 720 Register of Companies: Amtsgericht Lemgo HRB 5233 Swift-Code: WELA DE D1 BLO Our VAT-No.: DE 162977933 Additional declaration part according to FCC 15.247 for a 902 MHz to 928 MHz FHSS devices 1. Frequency range The frequency range of this device is 902.75 to 927.25 MHz as declared by the applicant. 2. Examples of hopping sequences 50 channel hopping sequence (channel 0 to 49): 26, 25, 1, 48, 47, 3, 49, 35, 33, 13, 32, 30, 5, 4, 45, 38, 24, 8, 22, 39, 17, 18, 2, 12, 6, 19, 7, 29, 23, 9, 31, 27, 15, 16, 10, 44, 14, 34, 28, 21, 42, 11, 46, 20, 43, 37, 36, 40, 0, 41 3. Equally average use of frequencies in data mode All 50 channels are evenly used in the order set shown in clause 2. 4. The receiver input bandwidth The maximum IF bandwidth of the receiver is 2.36 MHz centered at 0 Hz IF frequency (direct conversion) follwed by analog and digital filtering in the the receiver. The bandwidth of the filter depends on the tag data rate on the air interface and software settings. FCC Federal Communications Commission PHOENIX TESTLAB GmbH • Königswinkel 10 • D-32825 Blomberg

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 02.01.2012 Datum: 00.00.0000 Seite 1 von 1 Long/Short-term Confidentiality Request PHOENIX TESTLAB GmbH Date: 15 April 2013 Product Certification Königswinkel 10 D 32825 Blomberg FCC ID: YQ7TN902-Q175L200 To Whom it may concerns, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be temporarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Applicant’s Company address : Signature : ____________________________ Job Title and Dept. : Uwe Dollitz PHOENIX TESTLAB GmbH Graduated Certification Specialist International Radio Type Approval Koenigswinkel 10 32825 Blomberg, Germany

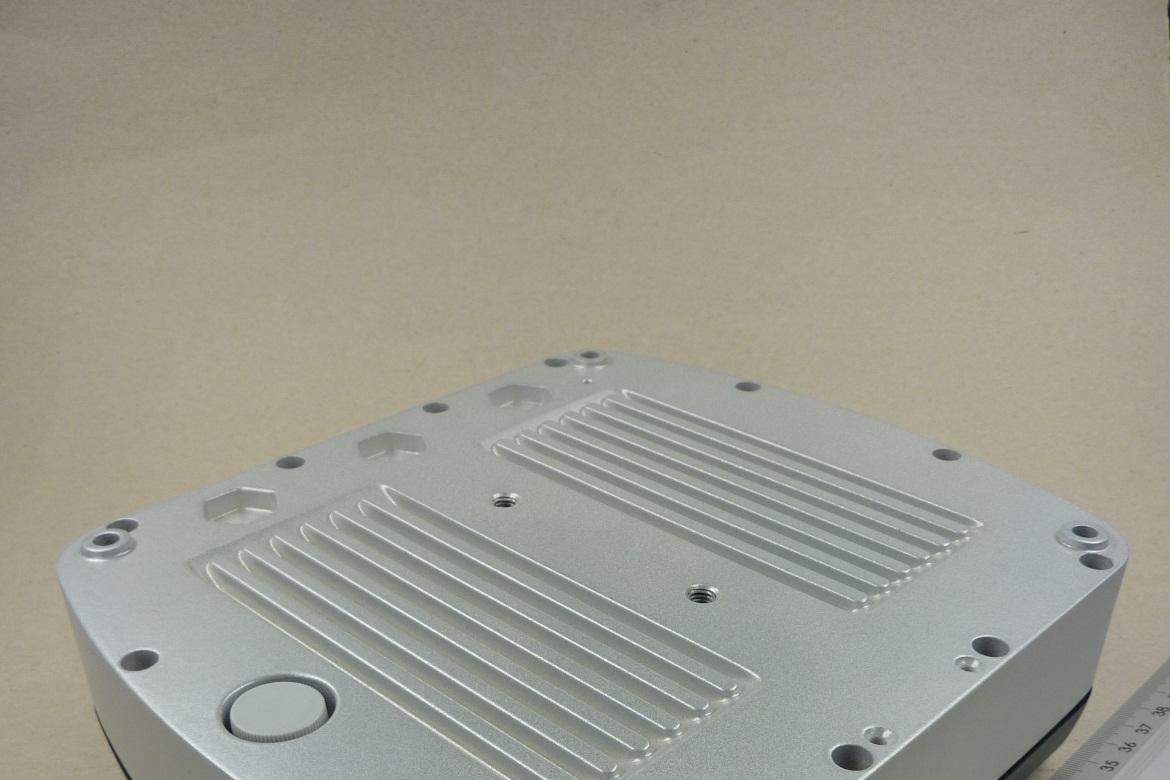

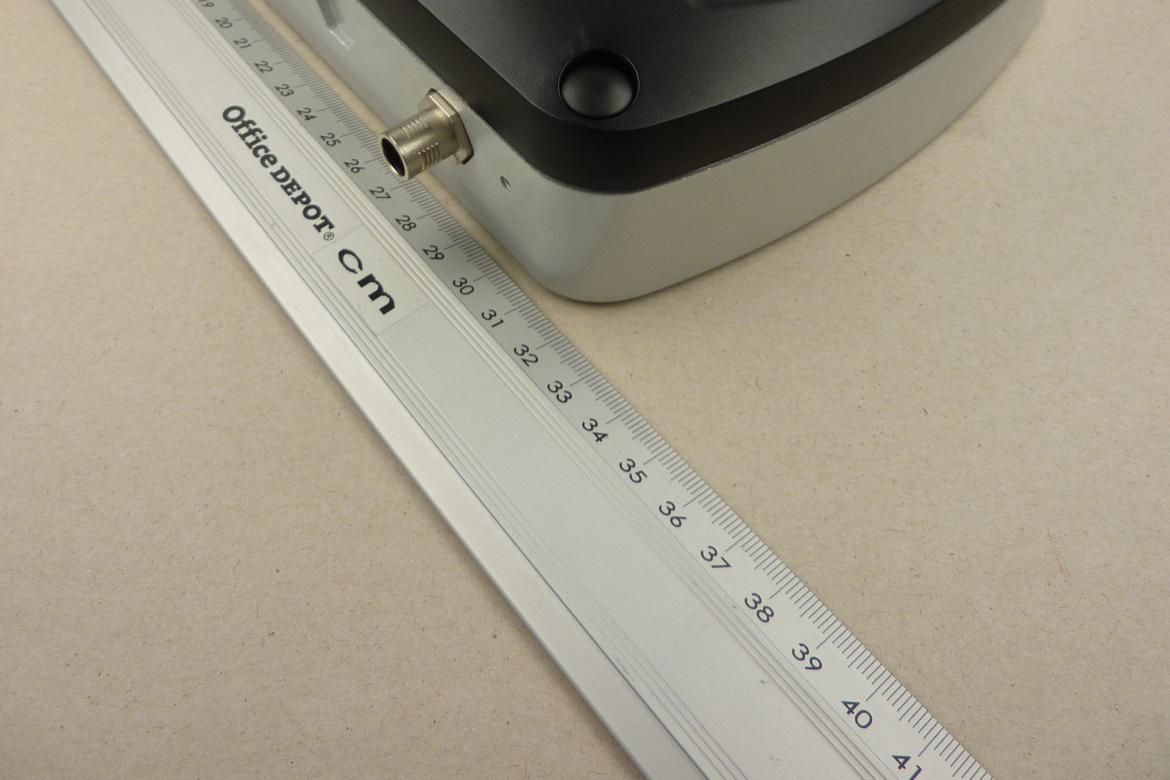

ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 1 of 2 122887_w.JPG: TN902-Q175L200-H1147, 3-D-view 1 ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 2 of 2 122887_x.JPG: TN902-Q175L200-H1147, 3-D.view 2

ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 1 of 8 122887_o.JPG: TN902-Q175L200-H1147, internal view 1 (cover removed) ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 2 of 8 122887_p.JPG: TN902-Q175L200-H1147, internal view 2 (antenna removed) ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 3 of 8 122887_q.JPG: TN902-Q175L200-H1147, main PCB, top view ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 4 of 8 122887_r.JPG: TN902-Q175L200-H1147, main PCB, bottom view ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 5 of 8 122887_s.JPG: TN902-Q175L200-H1147, coupler PCB, top view ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 6 of 8 122887_t.JPG: TN902-Q175L200-H1147, coupler PCB, bottom view ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 7 of 8 122887_v.JPG: TN902-Q175L200-H1147, antenna PCB, top view ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 8 of 8 122887_u.JPG: TN902-Q175L200-H1147, antenna PCB, top view

Calculation: RF-Exposure Type identification: TN902-Q175L200-H1147 In accordance to the CFR Part 47, §1.1310 S: Limit for power density according to CFR Part 47, §1.1310: 6 W/m 2 P: 0.661 W G: 3.15 dBi = 2.07 D: Duty cycle: 100 % = 1 R: Distance in what the limit of S has to be reached: 0.2 m 222 72.2 )2.0(4 107.2661.0 4m W m W S R DGP S ˜˜ ˜˜ Ÿ ˜˜ ˜˜ SS The value for the “General population / Uncontrolled Exposure” of the power density is below the limit of CFR Part 47, §1.1310.

Read/write head TN902-Q175L200-H1147 Edition • 2012-11-09T08:28:38+01:00 1 / 4Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com TypeTN902-Q175L200-H1147 Ident-No.7030457 Mounting conditionnon-flush Ambient temperature-25...+50 °C Operating voltage12...24VDC Data transferalternating electromagnetic field Working frequency902 ... 928 MHz Radio communication and protocol standardsISO 18000-6C EPCglobal Gen 2 Channel spacing500 kHz Output power1 W (ERP), adjustable Antenna polarizationRHCP Antenna HPBW90° Read/write distance max.4000 mm Output function4-wire, read/write Designrectangular Dimensions200x 175x 60mm Housing materialaluminium, AL, silver Material active facePlastic, ABS, black Connectionmale, M12 x 1 Vibration resistance55 Hz (1 mm) Shock resistance30 g (11 ms) Protection classIP67 MTTF51 years acc. to SN 29500 (Ed. 99) 40 °C Operating voltageLED green / yellow / red Diagnostic displaydifferent settings n Rectangular, height 60 mm n Active face in front n Plastic, ABS n Every read/write head can communicate with a number of different TURCK data carriers. n Powered and operated only via BL ident interface module n Male M12 x 1, only for use with BL ident extension cable Connectors .../S2503 Connectors .../S2500 Connectors .../S2501 Functional principle The UHF read/write heads form a transmis- sion zone, the size of which varies depending on the combination of read/write head and da- ta carrier. The read/write distances mentioned here on- ly represent standard values measured under laboratory conditions. Due to component tolerances, mounting con- ditions, ambient conditions and material influ- ences (especially metal), attainable distances may deviate. Therefore testing of the application under re- al operating conditions is indispensable (espe- cially with read/write on-the-fly)! Read/write head TN902-Q175L200-H1147 Edition • 2012-11-09T08:28:38+01:00 2 / 4Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com Data carrier DimensionsType designationMax. read distance [m] Ident - no.airOn metal TW902-928-Q27-M-B112 7030406 TW902-928-Q14L60-M-B110 7030408 TW865-928-Q20L58-B110 7030375 TW860-960-Q25L77-B-B112 7030458 TW860-960-Q27L97-M-B112 7030464 Read/write head TN902-Q175L200-H1147 Edition • 2012-11-09T08:28:38+01:00 3 / 4Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com Data carrier DimensionsType designationMax. read distance [m] Ident - no.airOn metal TW902-928-Q47L51-M-B110 7030407 TW902-928-R50-B110 7030404 TW860-960-L73-14-C-B110 7030378 TW860-960-L97-15-F-B44 7030524 TW865-928-L76-18-21-F-M-B110 7030380 Read/write head TN902-Q175L200-H1147 Edition • 2012-11-09T08:28:38+01:00 4 / 4Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com Accessories Type codeIdent-No.Dimension drawing RH-Q240L280/ Q280L640 7030296Mounting bracket for UHF RFID read/write heads TNxxx-Q240L280-H1147 and TNxxx-Q280L640- H1147

Königswinkel 10 32825 Blomberg Germany Phone: +49 (0) 52 35 95 00-0 Fax: +49 (0) 52 35 95 00-10 Test Report Report Number: F122887E4 Applicant: Hans Turck GmbH & Co. KG Manufacturer: Hans Turck GmbH & Co. KG Equipment under Test (EUT): TN902-Q175L200-H1147 Laboratory (CAB) accredited by Deutsche Gesellschaft für Akkreditierung mbH in compliance with DIN EN ISO/IEC 17025 under the Reg. No. DGA-PL-105/99-22, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469A-1 Test engineer: Thomas KÜHN Report Number: F12287E4 Date of issue: 14 March 2013 Order Number: 12-1122887 page 2 of 49 REFERENCES [1] ANSI C63.4-2009 American National Standard for Methods of Measuring of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. [2] FCC CFR 47 Part 15 (January 2013) Radio Frequency Devices [3] FCC Public Notice DA 00-705 (March 2000) [4] RSS-210 Issue 8 (December 2010) Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment [5] RSS-Gen Issue 3 (December 2010) General Requirements and Information for the Certification of Radio Apparatus TEST RESULT The requirements of the tests performed as shown in the overview (clause 3) were fulfilled by the equipment under test. The complete test results are presented in the following. RESERVATION This test report is only valid in its original form. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Test engineer: Thomas KÜHN 14 March 2013 Name Signature Date Authorized reviewer: Bernd STEINER 14 March 2013 Name Signature Date Test engineer: Thomas KÜHN Report Number: F12287E4 Date of issue: 14 March 2013 Order Number: 12-1122887 page 3 of 49 Contents: Page 1 IDENTIFICATION ..................................................................................................................................... 4 1.1 Applicant ............................................................................................................................................. 4 1.2 Manufacturer ....................................................................................................................................... 4 1.3 Test laboratory .................................................................................................................................... 4 2 EUT (Equipment Under Test) ................................................................................................................... 5 2.1 Technical data of equipment ............................................................................................................... 5 2.2 Operational states ............................................................................................................................... 6 3 OVERVIEW .............................................................................................................................................. 7 4 TEST RESULTS ....................................................................................................................................... 8 4.1 20 dB bandwidth ................................................................................................................................. 8 4.1.1 Method of measurement (20 dB bandwidth) ............................................................................ 8 4.1.2 Test results (20 dB bandwidth) ................................................................................................. 9 4.2 Carrier frequency separation ............................................................................................................ 11 4.2.1 Method of measurement (carrier frequency separation) ........................................................ 11 4.2.2 Test results (carrier frequency separation) ............................................................................. 12 4.3 Number of hopping frequencies ........................................................................................................ 14 4.3.1 Method of measurement (number of hopping frequencies) ................................................... 14 4.3.2 Test results (number of hopping frequencies) ........................................................................ 15 4.4 Dwell time .......................................................................................................................................... 16 4.4.1 Method of measurement (dwell time) ..................................................................................... 16 4.4.2 Test results (dwell time) .......................................................................................................... 17 4.5 Maximum peak output power ............................................................................................................ 18 4.5.1 Method of measurement (maximum peak output power) ....................................................... 18 4.5.2 Test results (maximum peak output power) ........................................................................... 19 4.6 Radiated emissions ........................................................................................................................... 21 4.6.1 Method of measurement (radiated emissions) ....................................................................... 21 4.6.2 Test results (radiated emissions) ............................................................................................ 26 4.6.2.1 Preliminary ra…

Text truncated - open the document above for the full version.

ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 1 of 8 122887_16.JPG: TN902-Q175L200-H1147, test set-up fully anechoic chamber ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 2 of 8 122887_17.JPG: TN902-Q175L200-H1147, test set-up fully anechoic chamber ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 3 of 8 122887_15.JPG: TN902-Q175L200-H1147, test set-up fully anechoic chamber ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 4 of 8 122887_21.JPG: TN902-Q175L200-H1147, test set-up fully anechoic chamber ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 5 of 8 122887_19.JPG: TN902-Q175L200-H1147, test set-up fully anechoic chamber ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 6 of 8 122887_20.JPG: TN902-Q175L200-H1147, test set-up fully anechoic chamber ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 7 of 8 122887_18.JPG: TN902-Q175L200-H1147, test set-up open area test site ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Thomas KÜHN Test Report No.: F122887E4 Date of issue: 14 March 2013 Order No.: 12-112887 page 8 of 8 122887_22.JPG: TN902-Q175L200-H1147, test set-up shielded chamber
