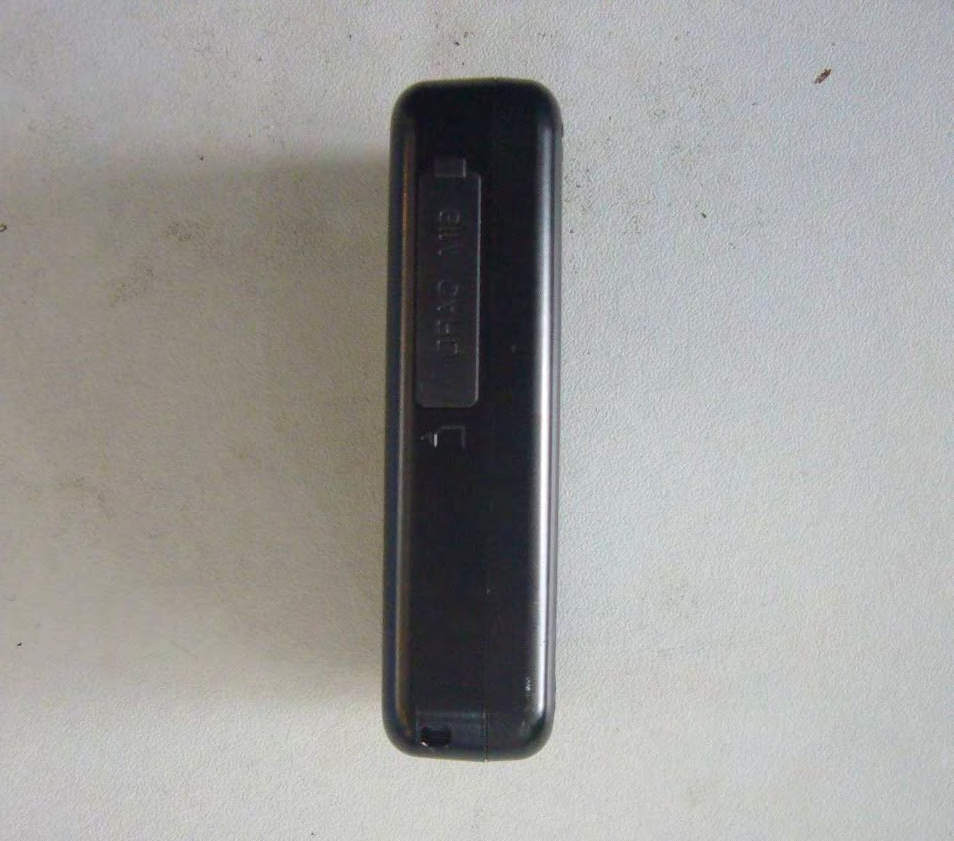

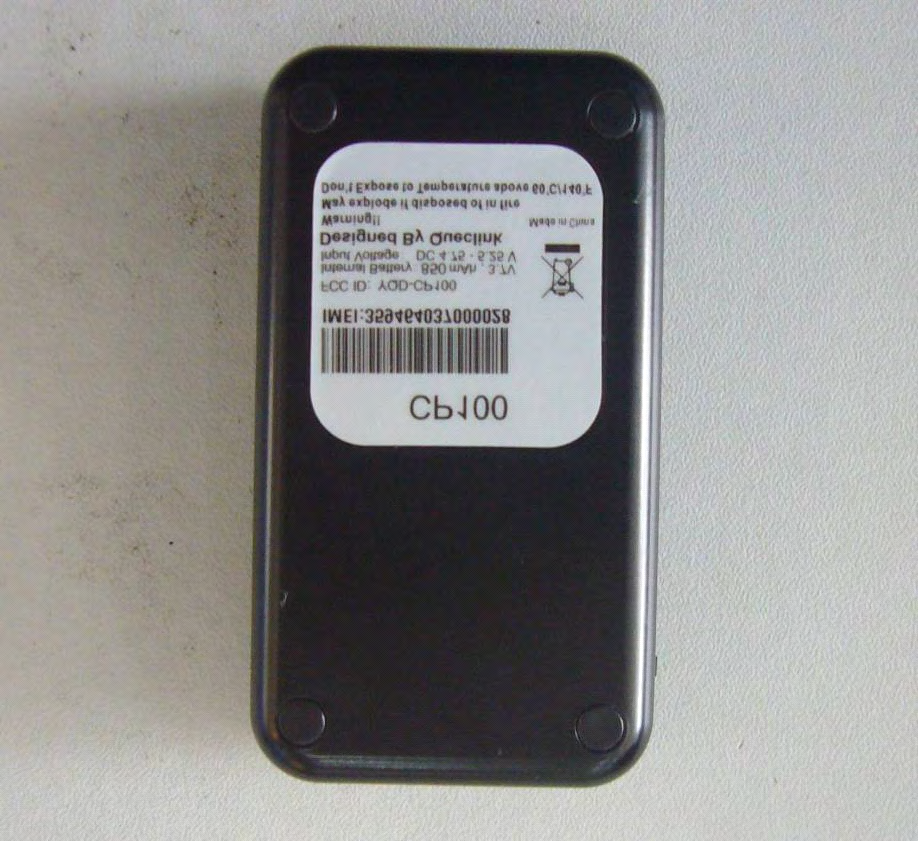

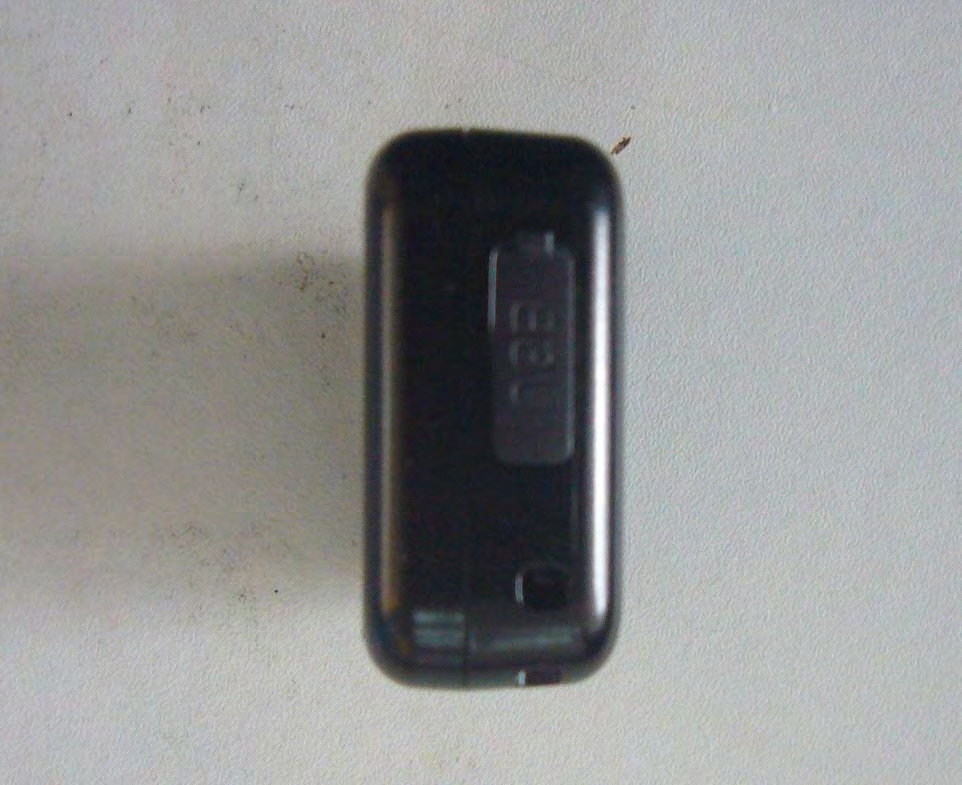

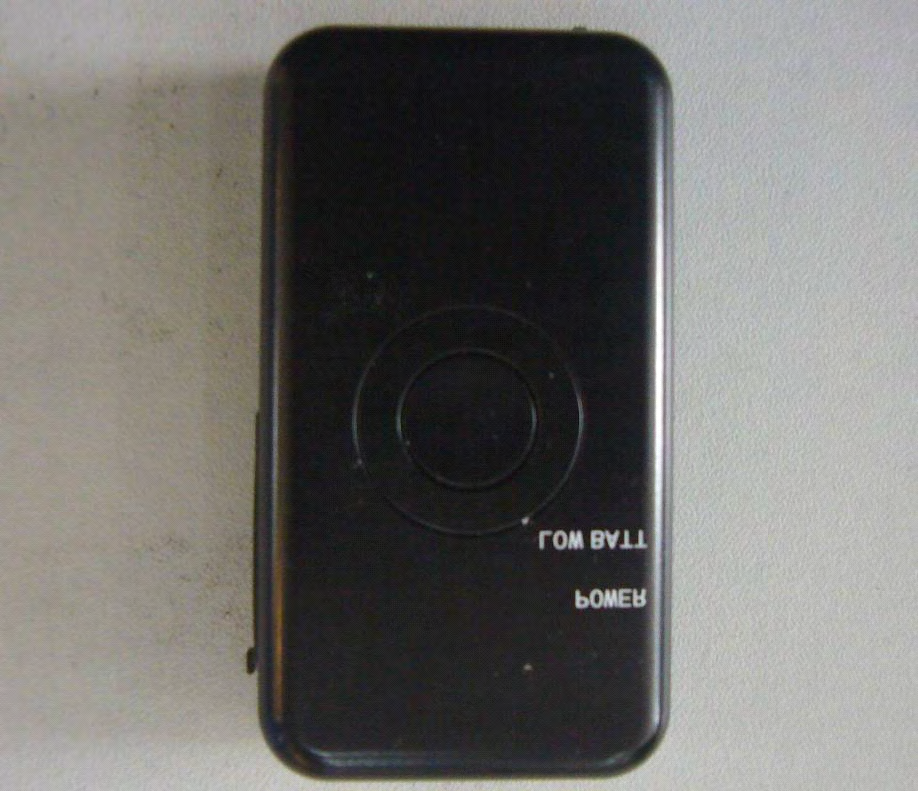

YQD-CP100GSM/GPRS/WiFi/GPS Tracker

CP100 GPS Locator With Compact Size Super Sensitivity and High Accuracy Water Resistance Quad Band GSM/GPRS Low Power Consumption WIFI IEEE 802.11g/b Compliant Embedded Full-Featured @Track Protocol CP100 is a powerful GPS Tracker designed for student, pet and asset tracking. With superior receive sensitivity, fast TTFF (Time to First Fix) and Quad-band GSM frequencies 850/900/1800/1900 its location can be monitored or periodically reported to a backend server or other device. Based on the embedded @Track protocol, the CP100 can communicate with the backend server through the WIFI/GPRS/GSM network (or SMS) to report Emergency Alerts, Multi Cell ID , Multi WIFI MAC Address ,Low Battery and scheduled GPS positions along with several other advanced reporting features. System Integrators can easily setup their custom tracking platforms to communicate with the CP100 based on the @Track protocol. Water Resistance. Built in uBlox GPS chipset with -165dBm tracking sensitivity , –147 dBm autonomous sensitivity for fast TTFF and high accuracy. Built in MTK WIFI chipset with IEEE 802.11 b/gCompliant. Low power consumption. Quad band GSM/GPRS frequencis 850/900/1800/1900 Fully power management. Can be connected to external DC power or battery. Embedded full-featured @Track protocol Certificated with PTCRB/FCC AdvantagesAdvantages RoHS Compliant GPS Locator With Compact Size Queclink Wireless Solutions Address :Room 501, Building 9, No.99, Tianzhou Road, Shanghai , China Tel :+86 21 51082965 Fax:+86 21 54451990 Web:http://www.queclink.com/ Email : [email protected] Copyright C 2010 Queclink Wireless Solutions Company Limited , All Rights 69mm * 39.5mm * 17mm 60 g GPS Specifications GPS ChipsetuBlox All-In-One GPS Receiver Sensitive, Fast and Accurate Sensitivity Autonomous-148dBm Hot start -160dBm Tracking -165dBm Position Accuracy Without Aid: 3.0 m 2D-RMS DGPS : 2.5 m TTFF (Open Sky) Cold start 35s average Warm start <35s Hot start <1.2 s General Specifications 69mm * 39.5mm * 17mm Dimension: Weight Backup Battery Standby Time Li-Polymer 850 mAh , 3.7 V 5V DC External DC Voltage Air Interface Protocol Transmit Protocol Scheduled Timing Report Report Position follows a pre-set fix interval and report interval TCP,UDP,SMS Low Battery Alarm Alarm when backup battery is low Report when the device is powered on Power On Report SOS alarm when Power key is pressed SOS/Emergency Alarm Without reporting :100 to 200 Hours 5 minutes reporting: 48 to 72 Hours 10 minutes reporting: 72 to 96 Hours External Battery Voltage Water Resistance 3. 4V to 4. 2V DC Follow IPX5 Standard Mini USB Connector Power Button SIM Card Holder Include external power and UART For power on and power off. Can be disabled by the air interface protocol. Support 1.8V/3V SIM Card. GPRS GSM Specifications Frequency Quad-Band: 850/900/1800/1900MHz Compliant to GSM phase 2/2+ -Class 4 (2W @ 850/900MHz) -Class 1 (1W @ 1800/1900MHz) GPRS multi-slot class 12 GPRS mobile station class B 5 deg 33.0dBm ± 2dBm Max Out RF Power Dynamic Input Range -15 ~ -102 dBm Receiving Sensitivity Stability Of Frequency Max Frequency Error Class II RBER2ˁ˄-102dBm˅ Greater than 2.5ppm ± 0.1ppm RMS Phase Error CP100 User Interface Protocol WIFI Specifications WIFI Specifications WIFI Chipset MTK MAC/BB WLAN Chip. WIFI Frequency 2.4 12G - 2.462GHz. WIFI Compatible IEEE 802.11b/gCompliant.

GSM/GPRS/WIFI/GPS Tracker CP100 User Manual TRACCP100UM001 Revision: 1.01 http://www.queclink.com [email protected] CP100 User Manual TRACCP100UM001 - 1 - Document Title CP100 User manual Ve r s i o n 1.01 Date 2011-3-3 Status Release Document Control ID TRACCP100UM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession. Furthermore, system validation of this product designed by Queclink within a larger electronic system remains the responsibility of the customer or the customer’s system integrator. All specifications supplied herein are subject to change. Copyright This document contains proprietary technical information which is the property of Queclink Limited., copying of this document and giving it to others and the using or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights reserved in the event of grant of a patent or the registration of a utility model or design. All specification supplied herein are subject to change without notice at any time. Copyright © Queclink Wireless Solutions Ltd. 2011 CP100 User Manual TRACCP100UM001 - 2 - Contents Contents ............................................................................................................................................2 0. Revision history ............................................................................................................................3 1. Introduction ...................................................................................................................................4 2. Specification...................................................................................................5 3. Product Overview .........................................................................................................................6 2.1. Appearance ..........................................................................................................................6 2.2. Buttons/Mini USB/SIM-Card Interface Description ...........................................................6 2.3. LEDs Description ................................................................................................................6 4. Getting Started ..............................................................................................................................8 3.1. Parts List..............................................................................................................................8 3.2. Battery Charging .................................................................................................................8 3.3. Install SIM Card ..................................................................................................................8 3.4. Turn on/Turn off ..................................................................................................................9 5. Troubleshooting and Safety info .................................................................................................10 4.1. Troubleshooting.................................................................................................................10 4.2. Safety info .........................................................................................................................10 CP100 User Manual TRACCP100UM001 - 3 - 0. Revision history Revision Date Author Description of change 1.01 2011-3-3 Johnson JiangInitial CP100 User Manual TRACCP100UM001 - 4 - 1. Introduction CP100 is a powerful GPS Tracker designed for student, pet and asset tracking. With superior receive sensitivity, fast TTFF (Time to First Fix ) and Dual-band GSM frequencies 850 / 1900MHz, its location can be monitored or periodically reported to a backend server or other device . Based on the embedded CP100@ Track protocol , the CP100 can communicate with the backend server through the GPRS/GSM/ WIFI network (or SMS) to report emergency alerts, low battery and scheduled GPS positions along with several other advanced reporting features. System Integrators can easily setup their custom tracking platforms to communicate with the CP100 based on the CP100@Track protocol. This device complies with part 22 and part 24,part 15.247 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CP100 User Manual TRACCP100UM001 - 5 - 2. Product Overview GSM/GPS/WIFI Specifications GSM Frequency Dual-Band: 850/1900MHz GPS Chipset uBlox All-In-One GPS Receiver Sensitive, Fast and Accurate GPS Sensitivity Cold start: -147dBm Reacquisition: -160dBm Tracking: -160dBm Position Accuracy Autonomous: < 2.5 m SBAS: 2.0 m TTFF (Open Sky) Cold start 29s Wa r m s t a r t < 2 9 s Hot start <1s WIFI Chipset MTK MAC/BB WLAN Chip . WIFI Frequency 2.412G – 2.462GHz . WIFI Compatible IEEE 802.11g/b Compliant . User Interfaces Mini USB Connector Include external power and UART SIM Card Holder Support 1.8V/3V SIM Card. Power Button For power on . Gerneral Specifications Dimension 69mm* 39.5mm * 17mm Weight 60g Backup Battery Li-ion 850mAh , 3.7V Standby Time Full work 2 hours when power off above one month in emergency Charge Voltage 5V DC External Battery Voltage 3.4 V to 4.2 V DC CP100 User Manual TRACCP100UM001 - 6 - 3. Product Overview 3.…
