GPS Locator GL100M User Manual TRACGL100MUM001 Revision: 1.00 http://www.queclink.com [email protected] GL100M User manual TRACGL100MUM001 - 1 - Document Title GL100M User Manual Ve r s i o n 1.00 Date 2011-09-16 Status Release Document Control ID TRACGL100MUM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession. Furthermore, system validation of this product designed by Queclink within a larger electronic system remains the responsibility of the customer or the customer’s system integrator. All specifications supplied herein are subject to change. This device complies with part 15B, of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Copyright This document contains proprietary technical information which is the property of Queclink Limited., copying of this document and giving it to others and the using or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights reserved in the event of grant of a patent or the registration of a utility model or design. All specification supplied herein are subject to change without notice at any time. Copyright © Queclink Wireless Solutions Ltd. 2011 GL100M User manual TRACGL100MUM001 - 2 - Contents Contents ............................................................................................................................................2 0. Revision history ............................................................................................................................3 1. Introduction ...................................................................................................................................4 2. Product Overview .........................................................................................................................5 2.1. Appearance ..........................................................................................................................5 2.2. Buttons/Mini USB Interface Description ............................................................................5 2.3. Two Triple-Color LEDs Description ...................................................................................6 3. Getting Started ..............................................................................................................................7 3.1. Parts List..............................................................................................................................7 3.2. Battery Charging .................................................................................................................7 3.3. Install SIM Card ..................................................................................................................7 3.4. Turn on/Turn off ..................................................................................................................8 3.5. Operating on function key ...................................................................................................8 4. Troubleshooting and Safety info ...................................................................................................9 4.1. Troubleshooting...................................................................................................................9 4.2. Safety info .........................................................................................................................10 GL100M User manual TRACGL100MUM001 - 3 - 0. Revision history Revision Date Author Description of change 1.00 2011-09-16 Cid Xu Initial GL100M User manual TRACGL100MUM001 - 4 - 1. Introduction GL100M is a powerful GPS locator which is designed for vehicle, pets and asserts tracking. With superior receiving sensitivity, fast TTFF and GSM frequencies 850/900/1800/1900. Its location can be real time or schedule tracked by backend server or specified terminals. Based on the embedded @Track protocol, GL100M can communicate with the backend server through GPRS/GSM network, and transfer reports of emergency, Geo-fencing, device status and scheduled GPS position etc... Service provider is easy to setup their tracking platform based on the functional @Track protocol. GL100M User manual TRACGL100MUM001 - 5 - 2. Product Overview 2.1. Appearance 2.2. Buttons/Mini USB Interface Description Button /Mini USB Interface Description Power Key z Turn on GL100M z Turn off GL100M (If power key is enabled). Function Key z Geo-Fence mode Long press the key to enable/disable Geo-Fence ID0 z Geo-Fence in current position mode Long press the key to enable/disable Geo-Fence ID0. If enable Geo-Fence ID0, using the current position as the centre of Geo-Fence 0. z SOS mode (default) GL100M User manual TRACGL100MUM001 - 6 - Long press the key to active SOS alarm Mini USB interface Plug in the AC-DC power adapter to this interface for charging battery. 2.3. Two Triple-Color LEDs Description There are two triple-color LEDs in GL100M. Each LED shows red, green and blue to indicate different state of GL100M. For better understanding, we call them Red LED 1, Green LED 1, Blue LED 1 and Red LED 2, Green LED 2, Blue LED 2. Light Color event State The power key has been pressedlight, It will be off after the key released. The…

Text truncated - open the document above for the full version.

FCC Confidentiality Letter Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Queclink Wireless Solutions Co.,Ltd would like the following documents regarding this submission for FCC ID: YQD-GL100M to be kept confidential. 1 Block Diagrams 2 Operation Description 3 Tune-Up procedure 4 Schematics 5 Part List The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Queclink Wireless Solutions Room 501, Building 9, No.99 Tianzhou Road Shanghai, China 200233 Tel: +86-21-51082965 Fax: +86-21-54451990

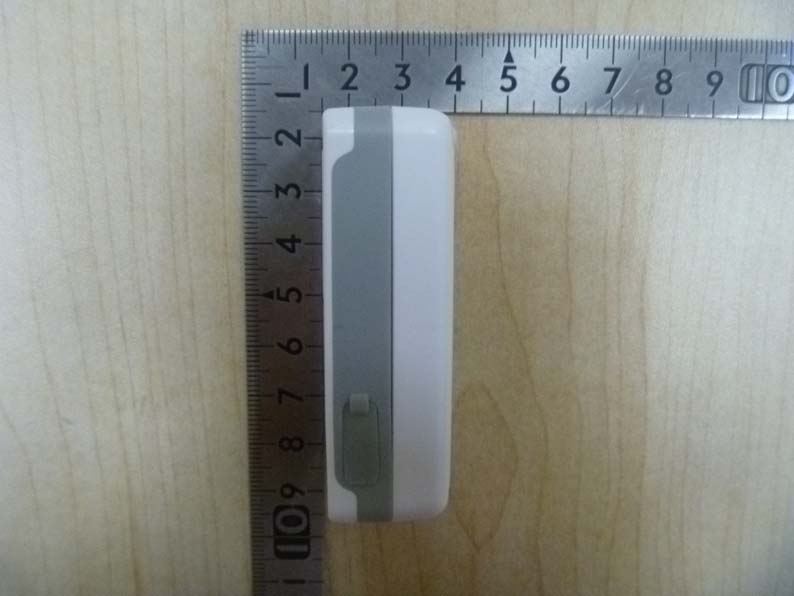

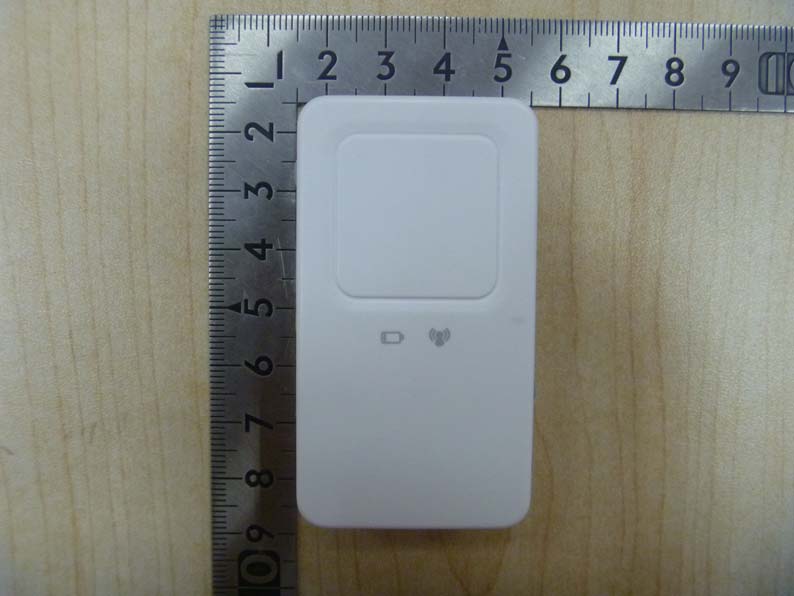

External Photos for GL100M Front View Back View Left View Right View To p Vi e w Bottom View

GL100M Label 27.4mm 27.4mm

Internal Photos for GL100M To p Vi e w - 1 To p Vi e w - 2 GPS Antenna GSM Antenna Bottom View-1 Bottom View-2

Report No.: 11AS031R-HP-US-P03V01 Page: 1 of 90 SAR Test Report Product Name : GPS Locator Model No. : GL100M FCC ID : YQD-GL100M Applicant : Queclink Wireless Solutions Co., Ltd Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Date of Receipt : 20/10/2011 Date of Test : 26/10/2011 Issued Date : 28/10/2011 Report No. : 11AS031R-HP-US-P03V01 Report Version : V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 11AS031R-HP-US-P03V01 Page: 2 of 90 Test Report Certification Issued Date: 28/10/2011 Report No.: 11AS031R-HP-US-P03V01 Product Name : GPS Locator Applicant : Queclink Wireless Solutions Co., Ltd Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Manufacturer : Queclink Wireless Solutions Co., Ltd Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Model No. : GL100M FCC ID : YQD-GL100M Brand Name : Queclink EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) Body: 1.45 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Robin Wu) Approved By : (Engineering Supervisor: Marlin Chen) Report No.: 11AS031R-HP-US-P03V01 Page: 3 of 90 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No.: 11AS031R-HP-US-P03V01 Page: 4 of 90 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................6 1.1. EUT Description ..................................................................................................6 1.2. Test Environment.................................................................................................7 2. SAR Measurement System ......................................................................................8 2.1. DASY5 System Description.................................................................................8 2.1.1. Applications .....................................................................................................9 2.1.2. Area Scans ......................................................................................................9 2.1.3. Zoom Scan (Cube Scan Averaging) ................................................................9 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ...........................................9 2.2. DASY5 E-Field Probe........................................................................................10 2.2.1. Isotropic E-Field Probe Specification .............................................................10 2.3. Boundary Detection Unit and Probe Mounting Device...................................... 11 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................ 11 2.5. Robot.................................................................................................................12 2.6. Light Beam Unit .................................................................................................12 2.7. Device Holder ....................................................................................................13 2.8. SAM Twin Phantom...........................................................................................13 3. Tissue Simulating Liquid .......................................................................................14 3.1. The composition of the tissue simulating liquid .................................................14 3.2. Tissue Calibration Result...................................................................................15 3.3. Tissue Dielectric Parameters for Head and Body Phantoms .............................16 4. SAR Measurement Procedure ...............................................................................17 4.1. SAR System Validation......................................................................................17 4.1.1. Validation Dipoles ..........................................................................................17 4.1.2. Validation Result ............................................................................................18 4.2. SAR Measurement Procedure...............................................…

Text truncated - open the document above for the full version.

Report No.: 11AS031R-HP-US-P03V01 Page: 66 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 67 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 68 of 90 Appendix E. Dipole Calibration Data Report No.: 11AS031R-HP-US-P03V01 Page: 69 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 70 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 71 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 72 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 73 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 74 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 75 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 76 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 77 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 78 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 79 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 80 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 81 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 82 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 83 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 84 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 85 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 86 of 90 Appendix F. DAE Calibration Data Report No.: 11AS031R-HP-US-P03V01 Page: 87 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 88 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 89 of 90 Report No.: 11AS031R-HP-US-P03V01 Page: 90 of 90

FCC Part22H&24E Test Report Product Name : GPS Locator Model No. : GL100M FCC ID : YQD-GL100M Applicant : Queclink Wireless Solutions Co., Ltd Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Date of Receipt : 20/10/2011 Test Date : 20/10/2011~26/10/2011 Issued Date : 28/10/2011 Report No. : 11AS031R-HP-US-P07V01 Report Version : V 1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 11AS031R-HP-US-P07V01 Page: 2 of 67 Test Report Certification Issued Date : 28/10/2011 Report No. : 11AS031R-HP-US-P07V01 Product Name : GPS Locator Applicant : Queclink Wireless Solutions Co., Ltd Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Manufacturer : Queclink Wireless Solutions Co., Ltd Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Model No. : GL100M FCC ID : YQD-GL100M EUT Voltage : DC 3.4-4.2V Brand Name : Queclink Applicable Standard : FCC CFR Title 47 Part 2, TIA/EIA 603-C FCC Part22 Subpart H, FCC Part24 Subpart E Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Robin Wu) Approved By : (Engineering Supervisor: Marlin Chen) Report No.: 11AS031R-HP-US-P07V01 Page: 3 of 67 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3 rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No.: 11AS031R-HP-US-P07V01 Page: 4 of 67 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 6 1.1. EUT Description ......................................................................................................... 6 1.2. Mode of Operation...................................................................................................... 7 1.3. Tested System Details ................................................................................................ 8 1.4. Configuration of Tested System .................................................................................. 9 1.5. EUT Exercise Software............................................................................................. 10 2. Technical Test ........................................................................................................... 11 2.1. Summary of Test Result............................................................................................ 11 2.2. Test Environment...................................................................................................... 12 3. Peak Output Power .................................................................................................. 13 3.1. Test Equipment......................................................................................................... 13 3.2. Test Setup................................................................................................................. 14 3.3. Limit ..........................................................................................................................14 3.4. Test Procedure ......................................................................................................... 14 3.5. Uncertainty ............................................................................................................... 16 3.6. Test Result................................................................................................................ 17 3.7. Test Photograph....................................................................................................... 19 4. Modulation Characteristic ......................................................................................... 22 4.1. Test Equipment......................................................................................................... 22 4.2. Test Setup................................................................................................................. 22 4.3. Limit ...................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 11AS031R-HP-US-P07V01 Page: 51 of 67 Channel 810 Report No.: 11AS031R-HP-US-P07V01 Page: 52 of 67 Report No.: 11AS031R-HP-US-P07V01 Page: 53 of 67 7.7. Test Photograph Description: Conducted Spurious Emission Measurement Setup Description: ERP Test Setup Report No.: 11AS031R-HP-US-P07V01 Page: 54 of 67 Description: Substitution Antenna for ERP Test Description: EIRP Test Setup Report No.: 11AS031R-HP-US-P07V01 Page: 55 of 67 Description: Substitution Antenna for EIRP Test Report No.: 11AS031R-HP-US-P07V01 Page: 56 of 67 8. Frequency Stability Under Temperature & Voltage Variations 8.1. Test Equipment Frequency Stability Under Temperature & Voltage Variations / TR-7 Instrument Manufacturer Type No. Serial No Cali. Due Date PSA Series Spectrum Analyzer Agilent E4440A MY49420184 2012.04.10 Radio Communication Tester R&S CMU 200 117088 2012.04.29 Dual Directional Coupler Agilent 778D 20160 2012.04.20 10dB Coaxial Coupler Agilent 87300C MY44300299 2012.04.20 DC Power Supply IDRC CD-035-020PR 977272 2012.09.22 Temperature & Humidity Chamber Gaoyu TH-1P-B WIT-05121302 2012.01.19 Temperature/Humidity Meter Zhicheng ZC1-2 AC6-TH 2012.01.14 8.2. Test Setup Report No.: 11AS031R-HP-US-P07V01 Page: 57 of 67 8.3. Limit The frequency stability shall be sufficient to ensure that the fundamental emission stays within the authorized frequency block. Limit < ± 2.5 ppm 8.4. Test Procedure Frequency Stability Under Temperature Variations: The equipment under test was connected to an external AC or DC power supply and input rated voltage. RF output was connected to a frequency counter or spectrum analyzer via feed through attenuators. The EUT was placed inside the temperature chamber. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and measure EUT 20°C operating frequency as reference frequency. Turn EUT off and set the chamber temperature to -30°C(EUT Spec). After the temperature stabilized for approximately 30 minutes recorded the frequency. Repeat step measure with 10°C increased per stage until the highest temperature of +50°C reached. Frequency Stability Under Voltage Variations: Set chamber temperature to 20°C. Use a variable AC power supply / DC power source to power the EUT and set the voltage to rated voltage. Set the spectrum analyzer RBW low enough to obtain the desired frequency resolution and recorded the frequency. Reduce the input voltage to specify extreme voltage variation (±15%) and endpoint, record the maximum frequency change. 8.5. Uncertainty The measurement uncertainty is defined as ± 10 Hz. Report No.: 11AS031R-HP-US-P07V01 Page: 58 of 67 8.6. Test Result Product GPS Locator Test Item Frequency Stability Under Temperature & Voltage Variations Test Mode Mode 1: GPRS 850 Link Date of Test 2011/10/23 Test Site TR-7 Frequency Stability under Temperature Deviation Temperature Interval (°C) Test Frequency (MHz) (Hz) (ppm) Limit (ppm) -30 836.40 -32 -0.04 < ± 2.5 -20 836.40 -28 -0.03 < ± 2.5 -10 836.40 -22 -0.03 < ± 2.5 0 836.40 -24 -0.03 < ± 2.5 10 836.40 -16 -0.02 < ± 2.5 20 836.40 -19 -0.02 < ± 2.5 30 836.40 -27 -0.03 < ± 2.5 40 836.40 -30 -0.04 < ± 2.5 50 836.40 -38 -0.04 < ± 2.5 Frequency Stability under Voltage Deviation DC Voltage (V) Test Frequency (MHz) (Hz) (ppm) Limit (ppm) 4.200 836.40 -28 -0.03 < ± 2.5 3.800 836.40 -22 -0.03 < ± 2.5 3.400 836.40 -30 -0.04 < ± 2.5 Report No.: 11AS031R-HP-US-P07V01 Page: 59 of 67 Product GPS Locator Test Item Frequency Stability Under Temperature & Voltage Variations Test Mode Mode 2: GPRS 1900 Link Date of Test 2011/10/23 Test Site TR-7 Frequency Stability under Temperature Deviation Temperature Interval (°C) Test Frequency (MHz) (Hz) (ppm) Limit (ppm) -30 1880.00 -41 -0.02 < ± 2.5 -20 1880.00 -36 -0.02 < ± 2.5 -10 1880.00 -33 -0.02 < ± 2.5 0 1880.00 -24 -0.01 < ± 2.5 10 1880.00 -31 -0.02 < ± 2.5 20 1880.00 -36 -0.02 < ± 2.5 30 1880.00 -37 -0.02 < ± 2.5 40 1880.00 -44 -0.02 < ± 2.5 50 1880.00 -46 -0.02 < ± 2.5 Frequency Stability under Voltage Deviation DC Voltage (V) Test Frequency (MHz) (Hz) (ppm) Limit (ppm) 4.200 1880.00 -41 -0.02 < ± 2.5 3.800 1880.00 -33 -0.02 < ± 2.5 3.600 1880.00 -39 -0.02 < ± 2.5 Report No.: 11AS031R-HP-US-P07V01 Page: 60 of 67 9. Attachment ¾ EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 11AS031R-HP-US-P07V01 Page: 61 of 67 (3) EUT Photo (4) EUT Photo Report No.: 11AS031R-HP-US-P07V01 Page: 62 of 67 (5) EUT Photo (6) EUT Photo Report No.: 11AS031R-HP-US-P07V01 Page: 63 of 67 (7) EUT Photo (8) EUT Photo Report No.: 11AS031R-HP-US-P07V01 Page: 64 of 67 (9) EUT Photo (10) EUT Photo Report No.: 11AS031R-HP-US-P07V01 Page: 65 of 67 (11) EUT Photo (12) EUT Photo Report No.: 11AS031R-HP-US-P07V01 Page: 66 of 67 (13) EUT Photo (14) EUT Photo Report No.: 11AS031R-HP-US-P07V01 Page: 67 of 67 (15) EUT Photo (16) EUT Photo

Test Set-up photos for GL100M Conducted Output Power： Spurious Emission/ERP Test: Spurious Emission/ERP Test: Spurious Emission/EIRP Test: Spurious Emission/EIRP Test:
