YQD-GL300USGPS LOCATOR

GSM/GPRS/GPS Tracker GL300 User Manual TRACGL300UM001 Revision: 1.00 http://www.queclink.com [email protected] GL300 User Manual Document Title GL300 User manual Ve r s i o n 1.00 Date 2013-06-25 Status Release Document Control ID TRACGL300UM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession. Furthermore, system validation of this product designed by Queclink within a larger electronic system remains the responsibility of the customer or the customer’s system integrator. All specifications supplied herein are subject to change. Copyright This document contains proprietary technical information which is the property of Queclink Limited., copying of this document and giving it to others and the using or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights reserved in the event of grant of a patent or the registration of a utility model or design. All specification supplied herein are subject to change without notice at any time. Copyright © Queclink Wireless Solutions Ltd. 2013 TRACGL300UM001 - 1 - GL300 User Manual TRACGL300UM001 - 2 - Contents Contents ............................................................................................................................................2 0. Revision history............................................................................................................................3 1. Introduction................................................................................................................................... 4 2. Product Overview.........................................................................................................................5 2.1. Appearance..........................................................................................................................5 2.2. Buttons/Mini USB Interface Description............................................................................5 2.3. LEDs Description................................................................................................................6 2.4. External Power Interface.....................................................................................................6 2.4.1. External DC Charger Interface..................................................................................6 2.4.2. External Battery Interface.........................................................................................7 2.5. Ignition Detection................................................................................................................7 2.6. External Input Interface.......................................................................................................8 3. Getting Started..............................................................................................................................9 3.1. Parts List..............................................................................................................................9 3.2. Battery Charging.................................................................................................................9 3.3. GL300 External Cable Interface........................................................................................10 3.4. Install SIM Card................................................................................................................10 3.5. Turn on/Turn off................................................................................................................ 11 4. Troubleshooting and Safety info.................................................................................................12 4.1. Troubleshooting.................................................................................................................12 4.2. Safety info.........................................................................................................................13 GL300 User Manual 0. Revision history Revision Date Author Description of change 1.00 2013-06-25 Tony PEI Add the FCC warnings in Introduction TRACGL300UM001 - 3 - GL300 User Manual 1. Introduction GL300 is a powerful GPS Tracker designed for asset, vehicle, and pet tracking. With superior receive sensitivity, fast TTFF (Time to First Fix) and Quad band GSM frequencies 850/900/1800/1900, its location can be continuously monitored or periodically reported to a backend server or other device. Based on the embedded @Track protocol, the GL300 can communicate with the backend server through the GPRS/GSM network (or SMS) to report emergency alerts, Geo-Fence boundary crossings, low battery and scheduled GPS positions along with several other advanced reporting features. System integrators can easily setup their custom tracking platforms to communicate with the GL300 based on the @Track protocol. This device complies with Part 15 of the FCC Rules. Its operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference …

Text truncated - open the document above for the full version.

Queclink Wireless Solutions Co., Ltd Data: 2013-10-25 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:YQD-GL300US Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram GL300--block diagram.pdf Schematic Diagram GL300--schematic.pdf Circuit Description GL300_Operational description.pdf Part list GL300_ Partlist.pdf Tune-up Procedure Tune-up procedure.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Sincerely, Company Name: Queclink Wireless Solutions Co., Ltd Signature: Name and Title: Wei Peng Manager

Queclink Wireless Solutions Co., Ltd FCC ID: YQD-GL300US POWER OF ATTORNEY 2013-10-25 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd（Zenger Zhang） on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd （Zenger Zhang）on our behalf shall have the same effect as acts of our own. This authorization expires on (2014-10-24). This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Queclink Wireless Solutions Co., Ltd, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Company Name: Queclink Wireless Solutions Co., Ltd Signature: Name and Title: Wei Peng Manager

Queclink Wireless Solutions Co., Ltd USB port declaration Current Date: 2013-11-04 Dear Sir/Madam, Subject: Declaration Letter about USB port *WE (Queclink Wireless Solutions Co., Ltd) HEREBY DECLARED THAT Product Description: GPS Locator Model No.: GL300 FCC ID: YQD-GL300US The USB port is just to charge the internal battery of GL300 and firmware upgrading and customers can use it to charge only. Mini USB interface 1. Connect a 5V DC adapter can power GL300 and charge the internal battery 2. Connect a 3.7V Li-ion or Li-Polymer battery can power GL300 3. Backend server developer or administrator can use the Data_Cable_M to configure GL300 Sincerely, Company Name: Queclink Wireless Solutions Co., Ltd Signature: Name and Title: Wei Peng Manager

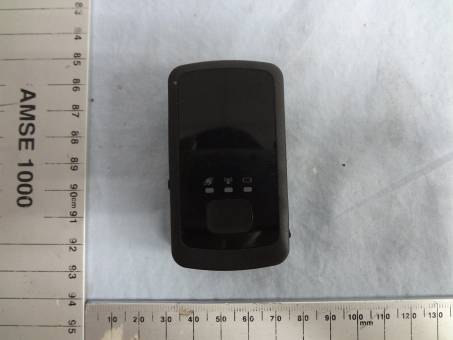

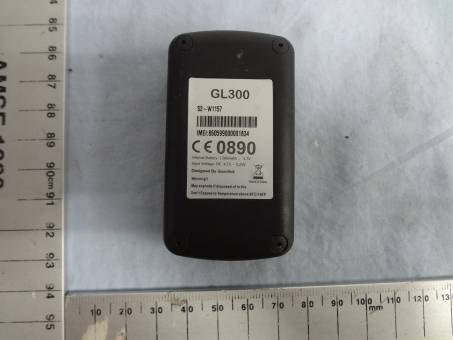

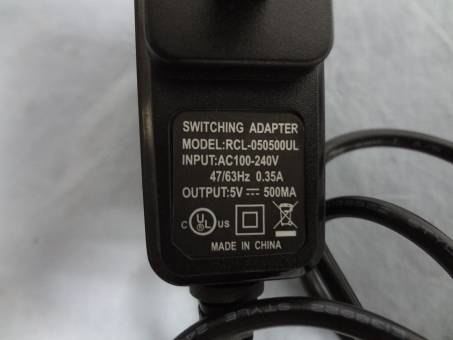

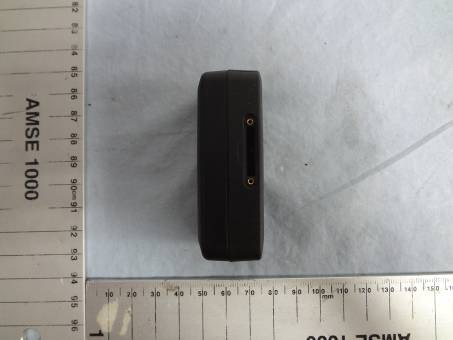

SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix A Page: 1 of 6 Page 1 of 6 GL300_External Photos Application No.: SHEM1306001020RF Applicant: Queclink Wireless Solutions Co., Ltd Address of Applicant: Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Equipment Under Test (EUT): Product Name: GPS Locator Brand Name: Queclink Model No.: GL300 FCC ID: YQD-GL300US SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix A Page: 2 of 6 Page 2 of 6 1 Contents Page 1 CONTENTS..........................................................................................................2 2 EXTERNAL PHOTOS........................................................................................3 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix A Page: 3 of 6 Page 3 of 6 2 External Photos SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix A Page: 4 of 6 Page 4 of 6 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix A Page: 5 of 6 Page 5 of 6 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix A Page: 6 of 6 Page 6 of 6 End

Size: 33.9mm*23.9mm

SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix B Page: 1 of 7 Page 1 of 7 GL300_Internal Photos Application No.: SHEM1306001020RF Applicant: Queclink Wireless Solutions Co., Ltd Address of Applicant: Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Equipment Under Test (EUT): Product Name: GPS Locator Brand Name: Queclink Model No.: GL300 FCC ID: YQD-GL300US SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix B Page: 2 of 7 Page 2 of 7 1 Contents Page 1 CONTENTS.......................................................................................................... 2 2 INTERNAL PHOTOS ......................................................................................... 3 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix B Page: 3 of 7 Page 3 of 7 2 Internal Photos SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix B Page: 4 of 7 Page 4 of 7 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix B Page: 5 of 7 Page 5 of 7 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix B Page: 6 of 7 Page 6 of 7 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM1306001020RF －Appendix B Page: 7 of 7 Page 7 of 7 E EE En nn nd dd d

SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM130800439901 Appendix A Detailed System Validation Results System Performance Check 835 MHz Body System Performance Check 1900 MHz Body Date/Time: 2013-10-15 14:01:07 Test Laboratory: SGS-SAR Lab System Performance Check 835MHz Body DUT: Dipole 835MHz; Type: D835V2; Serial: 4d105 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL835 Medium parameters used: f = 835 MHz; σ = 0.986 mho/m; ε r = 55.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(6.02, 6.02, 6.02); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=15mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.47 mW/g d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.8 V/m; Power Drift = -0.029 dB Peak SAR (extrapolated) = 3.75 W/kg SAR(1 g) = 2.54 mW/g; SAR(10 g) = 1.66 mW/g Maximum value of SAR (measured) = 2.75 mW/g 0 dB = 2.75mW/g Date/Time: 2013-10-14 9:04:52 Test Laboratory: SGS-SAR Lab System Performance Check 1900 MHz Body DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d028 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL1900 Medium parameters used: f = 1900 MHz; σ = 1.56 mho/m; ε r = 52; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(4.91, 4.91, 4.91); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 7.31 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.1 V/m; Power Drift = 0.075 dB Peak SAR (extrapolated) = 18.1 W/kg SAR(1 g) = 9.67 mW/g; SAR(10 g) = 4.96 mW/g Maximum value of SAR (measured) = 11.0 mW/g 0 dB = 11.0mW/g

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM130800439901 Page : 1 of 37 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 COVER PAGE FCC SAR TEST REPORT Application No.: SZEM1308004399RF(SHEM1306001020RF) Applicant: Queclink Wireless Solutions Co., Ltd Manufacturer: Queclink Wireless Solutions Co., Ltd Product Name: GPS Locator Model No.(EUT): GL300 FCC ID: YQD-GL300US Standards: IEEE Std C95(1991) IEEE1528(2003) Date of Receipt: 2013-08-09 Date of Test: 2013-10-14 to 2013-10-15 Date of Issue: 2013-11-01 Test Result : PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM130800439901 Page: 2 of 37 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Frequency Band Test position Test mode Max average SAR1- g(W/kg) Conducted power (dBm) Scaling Factor Scaled SAR(W/kg) SAR limit (W/kg) verdict GSM850 Body GPRS 3TS 0.631 31.2 1.202 0.759 1.6 PASS GSM1900 Body GPRS 3TS 1.34 27.9 1.148 1.539 1.6 PASS Remark: The maximum Scaled SAR value of Body is 1.539W/kg. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM130800439901 Page: 3 of 37 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Contents Page 1 COVER PAGE ..............................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM130800439901 Appendix B Detailed Test Results GSM850 for Body GSM1900 for Body Date/Time: 2013-10-15 16:41:53 Test Laboratory: SGS-SAR Lab GL300 GSM850 GPRS 3TS 190CH Back side 0mm DUT: GL300; Type: GSM850; Serial: NA Communication System: GSM850-GPRS Mode(3up); Frequency: 836.6 MHz;Duty Cycle: 1:2.77 Medium: MSL835 Medium parameters used: f = 837 MHz; σ = 0.991 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(6.02, 6.02, 6.02); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.308 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.7 V/m; Power Drift = -0.022 dB Peak SAR (extrapolated) = 0.754 W/kg SAR(1 g) = 0.357 mW/g; SAR(10 g) = 0.204 mW/g Maximum value of SAR (measured) = 0.415 mW/g 0 dB = 0.415mW/g Date/Time: 2013-10-15 17:05:49 Test Laboratory: SGS-SAR Lab GL300 GSM850 GPRS 3TS 190CH Front side 0mm DUT: GL300; Type: GSM850; Serial: NA Communication System: GSM850-GPRS Mode(3up); Frequency: 836.6 MHz;Duty Cycle: 1:2.77 Medium: MSL835 Medium parameters used: f = 837 MHz; σ = 0.991 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(6.02, 6.02, 6.02); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.625 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.5 V/m; Power Drift = -0.180 dB Peak SAR (extrapolated) = 1.45 W/kg SAR(1 g) = 0.631 mW/g; SAR(10 g) = 0.338 mW/g Maximum value of SAR (measured) = 0.711 mW/g 0 dB = 0.711mW/g Date/Time: 2013-10-15 18:09:26 Test Laboratory: SGS-SAR Lab GL300 GSM850 GPRS 3TS 190CH Top side 0mm DUT: GL300; Type: GSM850; Serial: NA Communication System: GSM850-GPRS Mode(3up); Frequency: 836.6 MHz;Duty Cycle: 1:2.77 Medium: MSL835 Medium parameters used: f = 837 MHz; σ = 0.991 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(6.02, 6.02, 6.02); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.516 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.3 V/m; Power Drift = -0.180 dB Peak SAR (extrapolated) = 1.64 W/kg SAR(1 g) = 0.609 mW/g; SAR(10 g) = 0.279 mW/g Maximum value of SAR (measured) = 0.689 mW/g 0 dB = 0.689mW/g Date/Time: 2013-10-15 18:44:47 Test Laboratory: SGS-SAR Lab GL300 GSM850 GPRS 3TS 190CH Bottom side 0mm DUT: GL300; Type: GSM850; Serial: NA Communication System: GSM850-GPRS Mode(3up); Frequency: 836.6 MHz;Duty Cycle: 1:2.77 Medium: MSL835 Medium parameters used: f = 837 MHz; σ = 0.991 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(6.02, 6.02, 6.02); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.022 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.38 V/m; Power Drift = -0.121 dB Peak SAR (extrapolated) = 0.045 W/kg SAR(1 g) = 0.023 mW/g; SAR(10 g) = 0.012 mW/g Maximum value of SAR (measured) = 0.026 mW/g 0 dB = 0.026mW/g Date/Time: 2013-10-15 19:07:29 Test Laboratory: SGS-SAR Lab GL300 GSM850 GPRS 3TS 190CH Left side 0mm DUT: GL300; Type: GSM850; Serial: NA Communication System: GSM850-GPRS Mode(3up); Frequency: 836.6 MHz;Duty Cycle: 1:2.77 Medium: MSL835 Medium parameters used: f = 837 MHz; σ = 0.991 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(6.02, 6.02, 6.02); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.217 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.3 V/m; Power Drift = -0.180 dB Peak SAR (extrapolated) = 0.318 W/kg SAR(1 g) = 0.199 mW/g; SAR(10 g) = 0.131 mW/g Maximum value of SAR (measured) = 0.215 mW/g 0 dB = 0.215mW/g Date/Time: 2013-10-15 19:28:50 Test Laboratory: SGS-SAR Lab GL300 GSM850 GPRS 3TS 190CH Right side 0mm DUT: GL300; Type: GSM850; Serial: NA Communication System: GSM850-GPRS Mode(3up); Frequency: 836.6 MHz;Duty Cycle: 1:2.77 Medium: MSL835 Medium parameters used: f = 837 MHz; σ = 0.991 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(6.02, 6.02, 6.02); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW:…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM130800439901 Appendix C Calibration certificate D835V2-4d105(2012-11-26) D1900V2-5d028(2012-11-27) DAE3-SN 569(2012-11-27) ES3-SN 3088(2012-11-26)

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5678 [email protected] Report No.: SHEM130600102001 Page 1 of 39 Tony Wu E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page FCC REPORT Application No. : SHEM1306001020RF Applicant: Queclink Wireless Solutions Co., Ltd FCC ID: YQD-GL300US Equipment Under Test (EUT): NOTE: The following sample(s) submitted was/were identified on behalf of the client as Product Name: GPS Locator Brand Name: Queclink Model: GL300 Added Model: N/A Standards: 47 CFR Part 22 subpart H (2012) 47 CFR Part 24 subpart E (2012) Date of Receipt: June 06, 2013 Date of Test: June 20, 2013 to June 26, 2013 Date of Issue: July 03, 2013 Test Result: PASS * *In the configuration tested, the EUT (Equipment under test) complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM130600102001 Page 2 of 39 2 Version Revision Record Version Chapter Date Modifier Remark 00 / July 03, 2013 / Original Authorized for issue by: Engineer Eddy Zong Print Name Clerk Susie Liu Print Name Reviewer Keny Xu Print Name SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM130600102001 Page 3 of 39 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under t…
