YQD-GV300CGPS Locator

GV300C User manual TRACGV3SUM001 - 1 - CDMA2000-1X/GPS Tracker GV300C User Manual Application Notes: TRACGV300CUM001 Revision: 1.01 Hhttp://www.queclink.com [email protected] GV300C User manual TRACGV300CUM001 - 2 - Document Title GV300C User Manual Version 1.01 Date 2013-11-14 Status Release Document Control ID TRACGV300CUM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession. Furthermore, system validation of this product designed by Queclink within a larger electronic system remains the responsibility of the customer or the customer’s system integrator. All specifications supplied herein are subject to change. WARNING: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must acce pt any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance cou ld void the user’s authority to operate the equipment. FCC RF Exposure Statement: For the product,under normal use condition is at least 20cm away from the body of the user,the user must keeping at least 20cm distance to the product. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. GV300C User manual TRACGV300CUM001 - 3 - -Consult the dealer or an experienced radio/TV technician for help. Copyright This document contains proprietary technical information which is the property of Queclink Limited., copying of this document and giving it to others and the using or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights reserved in the event of grant of a patent or the registration of a utility model or design. All specification supplied herein are subject to change without notice at any time. Copyright © Shanghai Queclink Wireless Solutions Co., Ltd. 2013 Contents Contents ............................................................................................................................................ 3 0. Revision History ....................................................................................................................... 6 1. Introduction ............................................................................................................................... 7 1.1 Reference .................................................................................................................. 7 1.2 Terms and Abbreviations ........................................................................................... 7 2. Product Overview ..................................................................................................................... 8 2.1. Check Part List .......................................................................................................... 8 2.2. Parts List ................................................................................................................... 9 2.3. Interface Definition ................................................................................................. 10 2.4. GV300C User Cable Colour ................................................................................... 11 3. Getting Started ........................................................................................................................ 12 3.1. Opening the Case .................................................................................................... 12 3.2. Closing the Case ...................................................................................................... 12 3.3. Installing the Internal Backup Battery..................................................................... 13 3.4. Switch ON the Backup Battery ............................................................................... 13 3.5. Installing the External GPS Antenna (Optional) ..................................................... 14 3.5.1. GPS Antenna Specification ............................................................................. 14 3.6. Power Connection ................................................................................................... 15 3.7. Ignition Detection .................................................................................................... 16 3.8. Digital Inputs ........................................................................................................... 17 3.9. Analog Inputs .......................................................................................................... …

Text truncated - open the document above for the full version.

Attestation letter We hereby declaration that, the model of GPS Locator YQD-GV300C does not have the potential to be used as a Class B computer peripheral and cannot exchange data with a PC through the USB port. We ensure that the port is only for power and will not be changed later on to provide data connectivity and will never be used to deliver data. Sincerely, {Signed by Company Counsel or Company Officer} Wei Peng Queclink Wireless Solutions Co.,Ltd Room 501, Building 9, No.99 Tianzhou Road Shanghai, China 200233 Tel: +86-21-51082965 Fax: +86-21-54451990

Report No. : UL12620131226FCC004-3 Page: 1 of 5 RF Exposure Evaluation Declaration Product Name : GPS Locator Model No. : GV300C FCC ID: YQD-GV300C Applicant : Shanghai Simcom Ltd. Address : Building A, SIM Technology Building, No.633, Jinzhong Road,Changning District, Shanghai P.R. China Date of Receipt : 26/12/2013 Issued Date : 07/01/2014 Report No. : UL12620131226FCC004-3 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of Unilab Corporation. Report No. : UL12620131226FCC004-3 Page: 2 of 5 RF Exposure Evaluation Declaration Issued Date : 07/01/2014 Report No. : UL12620131226FCC004-3 Product Name : GPS Locator Applicant : Queclink Wireless Solutions Co.,Ltd Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Manufacturer : Queclink Wireless Solutions Co.,Ltd. Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Model No. : GV300C EUT Voltage Extreme Low:8,Nominal:12,Extreme High:32 Brand Name : Queclink Applicable Standard : FCC OET Bulletin 65 Supplement C (Edition 01-01) Test Result : Complied Performed Location : Unilab (Shanghai) Co.,Ltd. FCC 2.948 register number is 714465 No.1350, Lianxi Road, Pudong New District, Shangha, China TEL:+86-21-5027-5125/FAX:+86-21-5027-5126-876 Documented By : (Technical Engineer: Andy Wei) Reviewed By : (Senior Engineer: Forest Cao) Approved By : (Supervisor: Eva Wang) Report No. : UL12620131226FCC004-3 Page: 3 of 5 1. EUT Description Product Name: GPS Locator Model Name: GPS Locator Hardware Version: 1.03 Software Version: MRN RF Exposure Environment: Uncontrolled CDMA2000 Support Band: CDMA2000 BC0/BC1 Tx Frequency Range: CDMA2000 BC0: 824.70 MHz to 848.31MHz CDMA2000 BC1: 1851.25MHz to 1908.75MHz Rx Frequency Range: CDMA2000 BC0: 869.70 MHz to 893.31MHz CDMA2000 BC1: 1931.25MHz to 2153.75MHz Type of modulation: QPSK Antenna Type: Connector Antenna Peak Gain: CDMA2000 BC0/BC1: 1dBi GPS: 0.5dBi Report No. : UL12620131226FCC004-3 Page: 4 of 5 2. RF Exposure Evaluation 2.1 Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range(MHz) Electric Filed Strength (V/m) Magnetic Filed Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A)Limits for Occupation/Control Exposures 300-1500 -- --F/3006 1500-100,000 -- --56 (B)Limits for General Occupation/UnControlled Exposures 300-1500 -- --F/15006 1500-100,000 -- --130 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*Pi*R2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 2.2.Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 22°Cand 45％ RH. Report No. : UL12620131226FCC004-3 Page: 5 of 5 2.3.Test Result of RF Exposure Evaluation This device is evaluated by mobile device with general population/uncontrolled exposure condition For this device, the calculation is using the most conservative values, and the results are as follows: Test Mode ERP (dBm) EIRP (dBm) Peak EIRP (mW) Calculated RF Exposure at d = 20cm (mW/cm2) MPE Limit (mW/cm2) CDMA2000 BC0 21.10 23.25 211.35 0.05 0.55 CDMA2000 BC1 / 24.75 298.54 0.06 1.00 Test Mode Antenna Gain (dBi) Maximum Output Power (dBm) Maximum Output Power From Antenna (mW) Calculated RF Exposure at d = 20cm (mW/cm2) MPE Limit (mW/cm2) CDMA2000 BC0 1 25 398.11 0.08 0.55 CDMA2000 BC1 1 25 398.11 0.08 1.00 This device can pass RF exposure limit.

Queclink Wireless Solutions Co.,Ltd Room 501, Building 9, No.99 Tianzhou Road Shanghai, China 200233 Tel: +86-21-51082965 Fax: +86-21-54451990 Jan. 02, 2014. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YQD-GV300C. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram YQD-GV300C_BlcokDiagram.pdf Schematic Diagram YQD-GV300C _SchematicDiagram.pdf Circuit Description YQD-GV300C _CircuitDescription.pdf Parts List YQD-GV300C_Parts List Tune up Information YQD-GV300C_Tune up Information The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Queclink Wireless Solutions Co.,Ltd <SIGNATURE of APPLICANT > Wei Peng ---------------------------------------------- (Manager)

Queclink Wireless Solutions Co.,Ltd Room 501, Building 9, No.99 Tianzhou Road Shanghai, China 200233 Tel: +86-21-51082965 Fax: +86-21-54451990 FCC ID:YQD-GV300C POWER OF ATTORNEY Jan. 02,2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize UniLab (Shanghai) Co., Ltd. (Ms. Rita.Wang Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by UniLab (Shanghai) Co., Ltd. (Ms. Rita.Wang Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on (Jan. 02,2015). This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Queclink Wireless Solutions Co.,Ltd, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Queclink Wireless Solutions Co.,Ltd <SIGNATURE> Wei Peng (PERSON ON RECORD AT THE FCC FOR THAT GRANTEE CODE) Manager (TITLE)

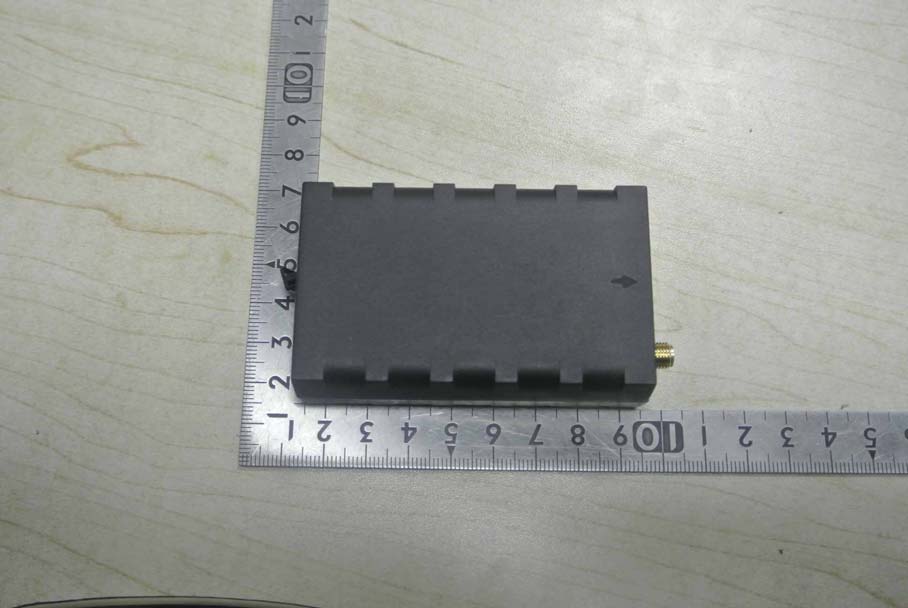

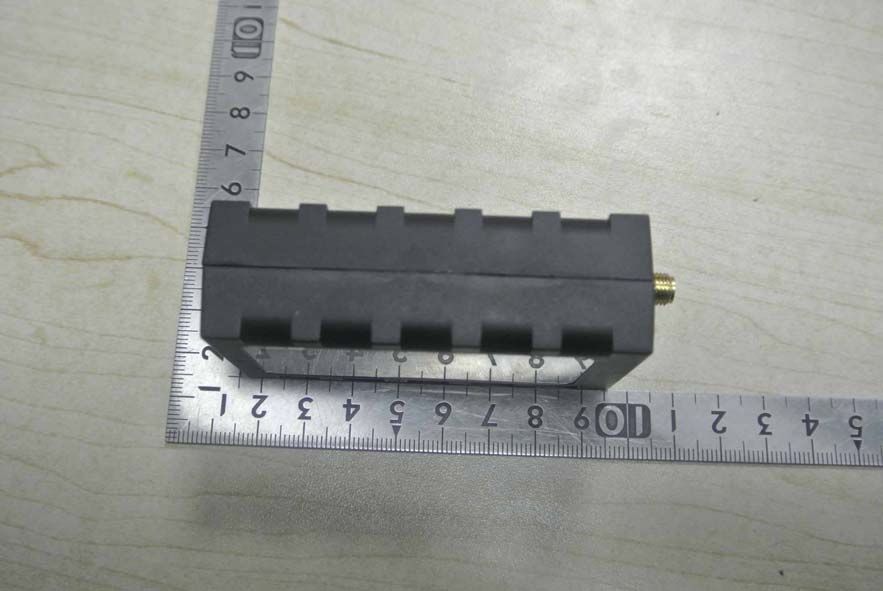

Model Name: GV300C Report Number: UL12620131226FCC004 Page 1 of 5 EUT PHOTOS View of EUT-1 View of EUT-2 Model Name: GV300C Report Number: UL12620131226FCC004 Page 2 of 5 View of EUT-3 View of EUT-4 1 Model Name: GV300C Report Number: UL12620131226FCC004 Page 3 of 5 View of EUT-5 View of EUT-6 Model Name: GV300C Report Number: UL12620131226FCC004 Page 4 of 5 View of EUT-7 View of EUT-8 1 Model Name: GV300C Report Number: UL12620131226FCC004 Page 5 of 5

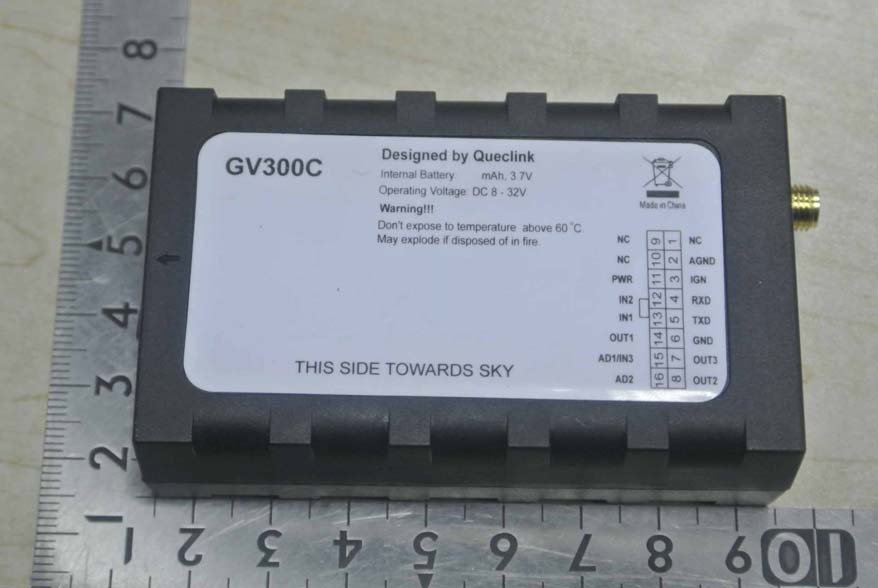

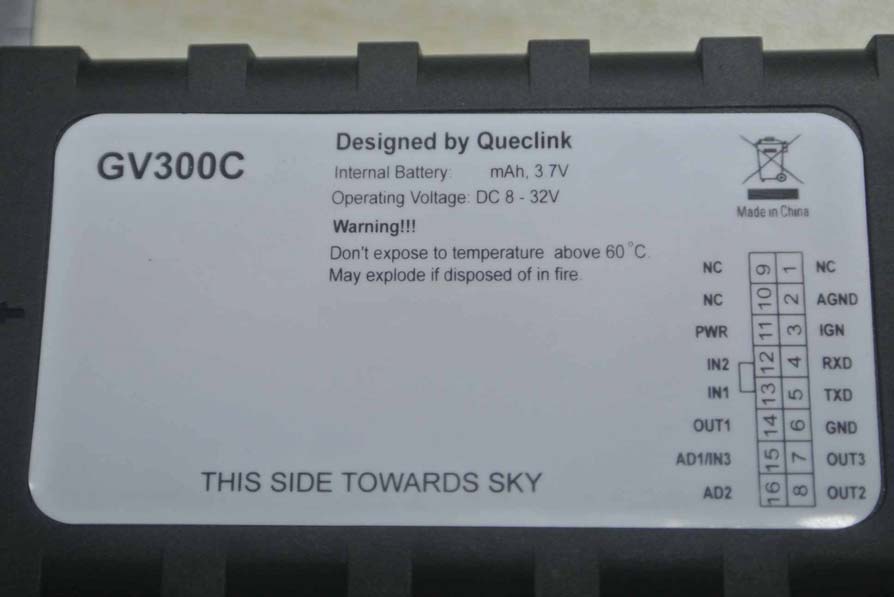

YQD-GV300C Label Location

Model Name: GV300C Report Number: UL12620131226FCC004 Page 1 of 6 View of EUT-1 View of EUT-2 1 Model Name: GV300C Report Number: UL12620131226FCC004 Page 2 of 6 View of EUT-3 View of EUT-4 Model Name: GV300C Report Number: UL12620131226FCC004 Page 3 of 6 View of EUT-5 View of EUT-6 Model Name: GV300C Report Number: UL12620131226FCC004 Page 4 of 6 View of EUT-7 View of EUT-8 Model Name: GV300C Report Number: UL12620131226FCC004 Page 5 of 6 View of EUT-9 Model Name: GV300C Report Number: UL12620131226FCC004 Page 6 of 6 View of EUT-10 CDMA Antenna(TX/RX) GPS Antenna(RX)

RF Test Report Test in accordance with Federal Communications Commission(FCC) CFR TITLE 47, Parts 2, 22, 24 Product Name : GPS Locator Model No. : GV300C FCC ID : YQD-GV300C Applicant : Queclink Wireless Solutions Co.,Ltd Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Date of Receipt : 12-26-2013 Test Date : 01-07-2014~12-26-2013 Issued Date : 01-07-2014 Report No. : UL12620131226FCC004-2 Report Version : V1.0 Notes： The test results only relate to these samples which have been tested. Partly using this report will not be admitted unless been allowed by Unilab. Unilab is only responsible for the complete report with the reported stamp of Unilab. Unilab(Shanghai) Co.,Ltd. Report No. : UL12620131226FCC004-2 Page 2 of 41 Page: 2 of 41 Test Report Certification Issued Date : 01-07-2014 Report No. : UL12620131226FCC004-2 Product Name : GPS Locator Applicant : Queclink Wireless Solutions Co.,Ltd Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Manufacturer : Queclink Wireless Solutions Co.,Ltd. Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Model No. : GV300C EUT Voltage : Extreme Low:8, Nominal:12, Extreme High:32 Brand Name : Queclink FCC ID: YQD-GV300C Applicable Standard : FCC CFR Title 47 Part 2; FCC CFR Title 47 Part 22 Subpart H; FCC CFR Title 47 Part24 Subpart E; ANSI/TIA-603-D-2010; FCC KDB 971168 D01 Power Meas. License Digital Systems v02 Test Result : Complied Performed Location : Unilab (Shanghai) Co., Ltd. FCC 2.948 register number is 714465 No. 1350, Lianxi Rd. Pudong New District, Shanghai, China TEL: +86-21-50275125 FAX: +86-21-50275126 Documented By : (Technical Engineer: Andy Wei) Reviewed By : (Senior Engineer: Forest Cao) Approved By : (Supervisor: Eva Wang) Unilab(Shanghai) Co.,Ltd. Report No. : UL12620131226FCC004-2 Page 3 of 41 Page: 3 of 41 TABLE OF CONTENTS SUMMARY OF TEST RESULT ....................................................................................................................................... 4 1. General Information ........................................................................................................................................ 5 1.1. EUT Description ...................................................................................................................................... 5 1.2. Mode of Operation ................................................................................................................................. 7 1.3. Tested System Details .......................................................................................................................... 9 1.4. Configuration of Tested System ........................................................................................................... 9 1.5. EUT Exercise Software ......................................................................................................................... 8 2. Technical Test ..................................................................................................................................................... 9 2.1. Test Environment .................................................................................................................................... 9 3. Peak Output Power ......................................................................................................................................... 10 3.2. Test Setup .............................................................................................................................................. 10 3.3. Limit ......................................................................................................................................................... 11 3.4. Test Procedure ...................................................................................................................................... 12 3.5. Uncertainty ............................................................................................................................................. 12 3.6. Test Result ............................................................................................................................................. 13 4. Occupied Bandwidth ........................................................................................................................................ 17 4.1. Test Equipment ..................................................................................................................................... 17 4.2. Test Setup .............................................................................................................................................. 17 4.3. Limit ......................................................................................................................................................... 18 4.4. Test Procedure ...................................................................................................................................... 18 4.5. Uncertainty ............................................................................................................................................. 18 4.6. Test Result ............................................................................................................................................. 19 5.Spurious Emission At Antenna Terminals (+/- 1MHz) ................................................................................. 23 5.1. Test Equipment ..................................................................................................................................... 23 5.2. Test Setup .............................................................................................................................................. 23 5.3. Limit .............................................................................................................................................…

Text truncated - open the document above for the full version.

Product Name: GPS Locator Test Setup Photos Model Name: GV300C Report Number: UL12620131226FCC004-4 Page 1 of 3 TEST SETUP PHOTOS for Part 22&24 Occupied Bandwidth, Conducted Power Measurement, Spurious Emission At Antenna Terminals (+/- 1MHz), Conducted Spurious Emission Measurement Setup Product Name: GPS Locator Test Setup Photos Model Name: GV300C Report Number: UL12620131226FCC004-4 Page 2 of 3 Frequency Stability Under Temperature & Voltage Variations Setup Radiated Spurious Measurement(below 30MHz) Setup Product Name: GPS Locator Test Setup Photos Model Name: GV300C Report Number: UL12620131226FCC004-4 Page 3 of 3 ERP Test, Radiated Spurious Measurement(30MHz to 1GHz) Setup EIRP Test, Radiated Spurious Measurement (Above 1GHz) Setup
