GV55LITE User manual TRACGV3SUM001 - 1 - GPS Locator GV55 User Manual TRACGV55LITEUM001 Revision: 1.01 Hhttp://www.queclink.com [email protected] GV55 User manual TRACGV55LITEUM001 - 2 - Document Title GV55 User Manual Version 1.01 Date 2012-7-31 Status Release Document Control ID TRACGV55UM001 General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession. Furthermore, system validation of this product designed by Queclink within a larger electronic system remains the responsibility of the customer or the customer’s system integrator. All specifications supplied herein are subject to change. WARNING: Users must maintain a separation distance of at least 20cm from the EUT to satisfy RF exposure compliance. Copyright This document contains proprietary technical information which is the property of Queclink Limited., copying of this document and giving it to others and the using or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights reserved in the event of grant of a patent or the registration of a utility model or design. All specification supplied herein are subject to change without notice at any time. GV55 has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. This device complies with part 15B, part 22 and part 24 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference, including interference that may cause undesired operation. Power Output is ERP for Part 22 and EIRP for Part 24.End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. GV55 FCC IDENTIFIER: YQD-GV55 Copyright © Shanghai Queclink Wireless Solutions Co., Ltd. 2012 GV55 User manual TRACGV55LITEUM001 - 3 - Contents Contents ............................................................................................................................................3 1 Introduction ....................................................................................................................................7 1.1. Reference.............................................................................................................................7 1.2. Terms and Abbreviations .....................................................................................................7 2 Product Overview ..........................................................................................................................8 2.1. Check Part List ....................................................................................................................8 2.2. Parts List..............................................................................................................................9 2.3. Interface Definition .............................................................................................................9 2.4. GV55 User Cable Colour ..................................................................................................10 3 .Getting Started ............................................................................................................................ 11 3.1. Opening the Case .............................................................................................................. 11 3.2. Closing the Case................................................................................................................ 11 3.3. Installing a SIM Card ........................................................................................................12 3.4. Power Connection .............................................................................................................12 3.5. Ignition Detection..............................................................................................................13 3.6. Digital Inputs.....................................................................................................................13 3.7. Digital Outputs ..................................................................................................................14 3.8. Device Status LED ............................................................................................................15 GV55 User manual TRACGV55LITEUM001 - 4 - Table Index TA B L E 1. GV55 PROTOCOL REFERENCE.................................................................................. 7 TA B L E 2. TERMS AND ABBREVIATIONS .................................................................................. 7 TA B L E 3. PART LIST ......................................................................................................................9 TA B L E 4. DESCRIPTION OF 6 PIN CONNECTIONS.................................................................. 9 TA B L E 5. GV55 USER CABLE COLOUR DEFINITION ........................................................... 10 TA B L E 6. ELECTRICAL CHARACTERISTICS OF IGNITION DETECTION ......................... 13 TA B L E 7. ELECTRICAL CHARACTERISTICS OF THE DIGITAL INPUTS ........................... 13 TA B L E 8. ELECTRICAL CHARACTERISTICS OF DDIGITAL OUTPUTS ............................. 14 TA B L E 9. DEFINITION OF DEVICE STATUS AND LED ......................................................... 16 GV55 User manual TRACGV55LITEUM001 - 5 - Figure Index FIGURE 1. APPEARANCE OF GV55 ......................................…

Text truncated - open the document above for the full version.

Attestation Letter We hereby declaration that, the model of GPS locator GV55 does not have the potential to be used as a Class B computer peripheral and cannot exchange data with a PC through the USB port. We ensure that the port is only for developers debug only and will not be changed later on to provide data connectivity and will never be used to deliver data. Sincerely, {Signed by Company Counsel or Company Officer} We i P e n g Queclink Wireless Solutions Room 501, Building 9, No.99 Tianzhou Road Shanghai, China 200233 Tel: +86-21-51082965 Fax: +86-21-54451990

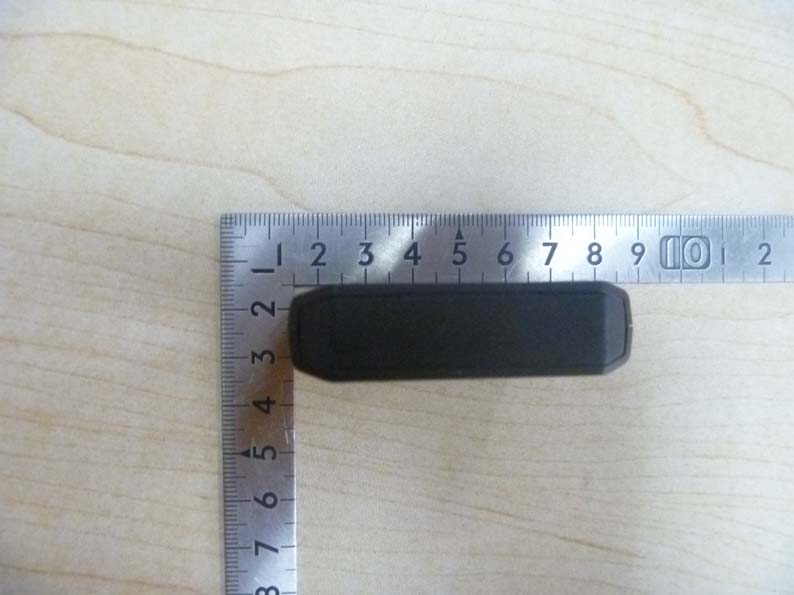

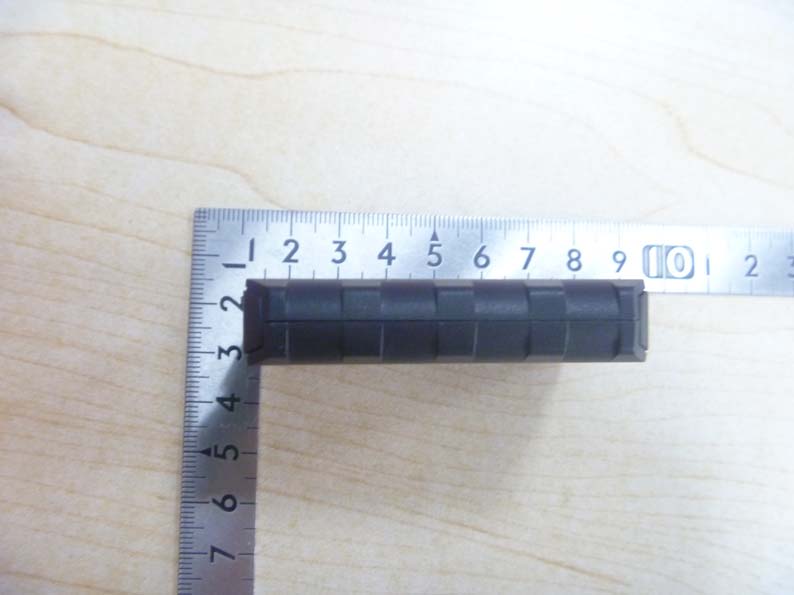

External Photos for GV55 Front View Back View Left View Right View To p Vi e w Bottom View

GV55 Label Size: 43mm*30.1mm

Internal Photos for GV55 To p Vi e w - 1 To p Vi e w - 2 GPS Antenna GSM Antenna Bottom View-1 Bottom View-2

RF Exposure Evaluation Declaration Product Name : GPS Locator Model No. : GV55 FCC ID : YQD-GV55 Applicant : Queclink Wireless Solutions Co., Ltd Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai, China Date of Receipt : 30/07/2012 Issued Date : 09/08/2012 Report No. : UL126F2202 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of Unilab Corporation. Report No. : UL126F2202 Page: 3 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 F/1500 6 1500-100,000 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the Report No. : UL126F2202 Page: 4 of 4 MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 25°Cand 62％ RH. 1.3. Test Result of RF Exposure Evaluation Product : GPS Locator Test Item : RF Exposure Evaluation Test Site : FACT-3 Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is -3dBi for 824~894MHz band; -1dBi for 1850~1990MHz band. Output Power into Antenna & RF Exposure Evaluation Distance: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) Limit Power Density (mW/cm2) GSM850 824~849 1832.314 0.1827 0.55 PCS1900 1850~1910 1037.528 0.1640 1 END OF THE REPORT

FCC Part22H&24E Test Report Product Name : GPS Locator Model No. : GV55 FCC ID : YQD-GV55 Applicant : Queclink Wireless Solutions Co., Ltd Address : Room 501, Building 9, No 99, TianZhou Road, Shanghai,China Date of Receipt : 30/07/2012 Test Date : 30/07/2012~07/08/2012 Issued Date : 09/08/2012 Report No. : UL126F2201 Report Version : V 1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of Unilab Corporation. Report No： UL126F2201 Page: 3 of 60 Laboratory Information We, Unilab (shanghai) Co.,Ltd, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025 EN 45001 and specified testing scope: China : CMA USA : FCC Report No： UL126F2201 Page: 4 of 60 TABLE OF CONTENTS Description Page 1. General Information....................................................................................................6 1.1. EUT Description.......................................................................................................6 1.2. Mode of Operation...................................................................................................7 1.3. Tested System Details.............................................................................................8 1.4. Configuration of Tested System...............................................................................9 1.5. EUT Exercise Software...........................................................................................10 2. Technical Test............................................................................................................11 2.1. Summary of Test Result..........................................................................................11 2.2. Test Environment....................................................................................................12 3. Peak Output Power ...................................................................................................13 3.1. Test Equipment.......................................................................................................13 3.2. Test Setup...............................................................................................................14 3.3. Limit.........................................................................................................................15 3.4. Test Procedure........................................................................................................15 3.5. Uncertainty..............................................................................................................16 3.6. Test Result..............................................................................................................17 3.7. Test Photograph......................................................................................................19 4. Modulation Characteristic...........................................................................................22 4.1. Test Equipment.......................................................................................................22 4.2. Test Setup...............................................................................................................22 4.3. Limit.........................................................................................................................23 4.4. Test Procedure........................................................................................................23 4.5. Uncertainty..............................................................................................................23 4.6. Test Result..............................................................................................................24 4.7. Test Photograph......................................................................................................27 5. Occupied Bandwidth..................................................................................................28 5.1. Test Equipment.......................................................................................................28 5.2. Test Setup...............................................................................................................28 5.3. Limit.........................................................................................................................29 5.4. Test Procedure........................................................................................................29 5.5. Uncertainty..............................................................................................................29 5.6. Test Result..............................................................................................................30 5.7. Test Photograph......................................................................................................31 6. Spurious Emission At Antenna Terminals (+/- 1MHz)...............................................32 6.1. Test Equipment.......................................................................................................32 6.2. Test Setup...............................................................................................................32 6.3. Limit.........................................................................................................................33 6.4. Test Procedure..................................................................................…

Text truncated - open the document above for the full version.

Test Set-up photos for GV55 Spurious Emission/ERP Test: Spurious Emission/ERP Test: Spurious Emission/EIRP Test: Spurious Emission/EIRP Test:
