YQD-WTH300Temperature and Humidity Sensor

PRODUCTSPECIFICATION WTH300TemperatureandHumiditySensorBeacon ProductNameWTH300Temperatureandhumiditysensorbeacon OrderingCodeWTH300 FirmwareVersionV1.1.0 HardwareVersionV1.0.0 ConfigurationAppAvailable(iOS&Android) SDKKitsAvailable CloudPlatformAvailablefortesting CertificationFCC LaunchedTimeOctober-25-2016 RemarksNULL 1/4 1.INTRODUCTION Morethanwaterproofandportable,WTH300isonetypeofhighprecisiondigitaltemperatureandhumidity indicator(thermo-Hygrometer).Itcanconverttheenvironmentaltemperatureandhumidityinto correspondentdigitalsignal.Byconnectingtowirelessnetwork,itcanuploadtemperatureandhumidity datatotheserver.Selectedhighqualityintegrateddigitaltemperatureandhumiditysensormoduleisused forWTH300,whichensuresthetransmitter’sgoodlong-termstability,lowlatencyandabilitytoresist chemicalcontamination,thuspossessingexcellentrepeatability. 2.ADVANTANGES -IP66waterprooflevel -Over100metersbroadcastingrange -Over3yearsbatterylifetime -Ultra-lowpowerconsumptionchipsetnRF52832 -High-accuracydigitaltemperatureandhumiditysensorinside -Veryfaststart-upandmeasurementtime -Real-timedataconverting,storinganduploading -Excellentsecuritymechanism -Supportingthecustomizationservicesuchaslogo,firmwareandother 3.WTH300PICTURES FrontViewSideViewInsideStructure 4.APPLICATION Itcanbeusedtomeasureenvironmentaltemperatureandhumidityinfieldssuchasindustrial inspection,civilinspection,machinemanufacture,environmentalprotectionandmeteringsoon. Soitsapplicationoccasionscover:laboratory,cleanworkshop,collectionplace,home,agricultural greenhouse,weatherstation,nationaldefenseandscienceresearch,postsandcommunications, tobacco,chemistryandengineering,environmentalprotection,archiveandlibrary,serverroom, storage,medicaltreatmentandpublichealth,hotel,foodstoreroom,andgrainreserve. 5.PHYSICALPROPERTY ModelWTH300 WaterproofLevelIP66 CasematerialABS CasecolorWhite Productsize70.6*38*17.8mm Unitweight43g Batterytype2*FR03Li-Febattery Voltage3V DataIndicationN/A,needtoaccessdatabyapporgateway Averagepowerconsumption35uA TransmissionRangeMax100minopenspace Assemble3Madhesive 6.TECHNICALPARAMETER ItemValueErrorrange Range -40°C~70°C dependsonbatteryworkingenvironment TemperatureMeasure 10°C~50°C±0.5°C MeasureAccuracy ≤10°C或≥50°C±2°C Resolution 0.05°C --- Range0%RH~100%RH--- HumidityMeasure0%RH~90%RH±2.5%RH MeasureAccuracy≥90%RH±3.5%RH Resolution0.05%RH--- Sampling ---Oncepersecond--- Period 3/4 7. ELECTRICAL PROPERTY Static Current <3uA（power consumption under power-off status） Peak Current<8mA Average Current<35uA (not including power consumption on data transmission ) Battery TypeFR03 Battery Capacity1250mAH LifetimeOver 3 years 8. ENVIRONMENTAL PROPERTY Working temperature -40°C~+70°C Storage temperature 10°C~+25°C，≤65%RH NOTE: The version is just for reference. It is subject to any changes without prior notification. MINEW reserves the final right of interpretation. 4 / 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

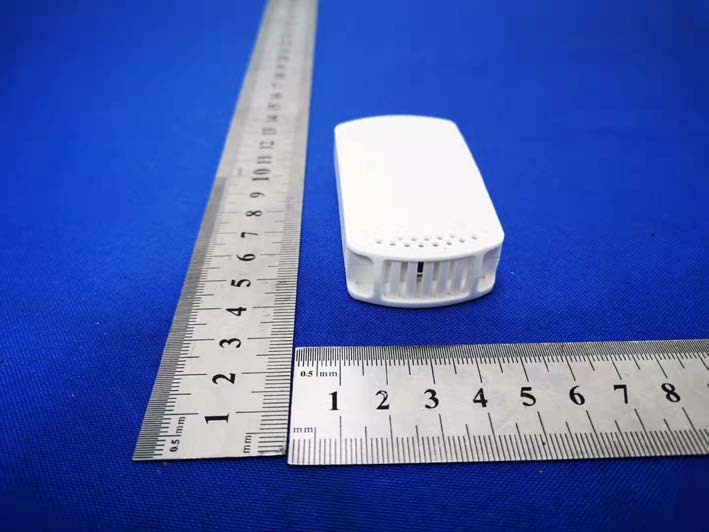

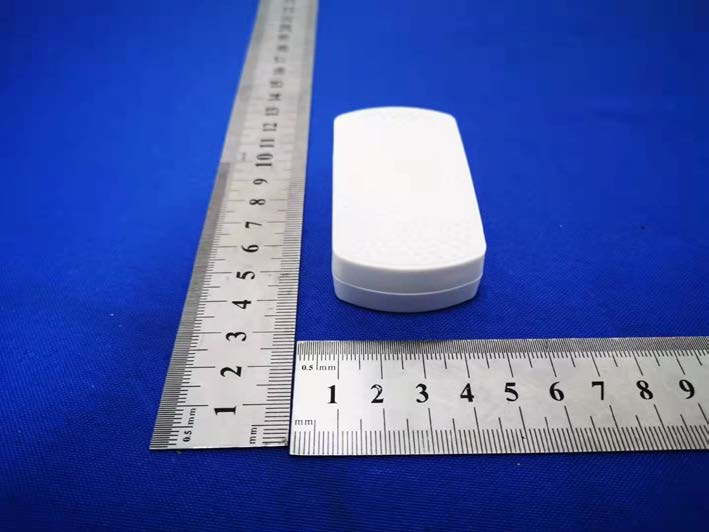

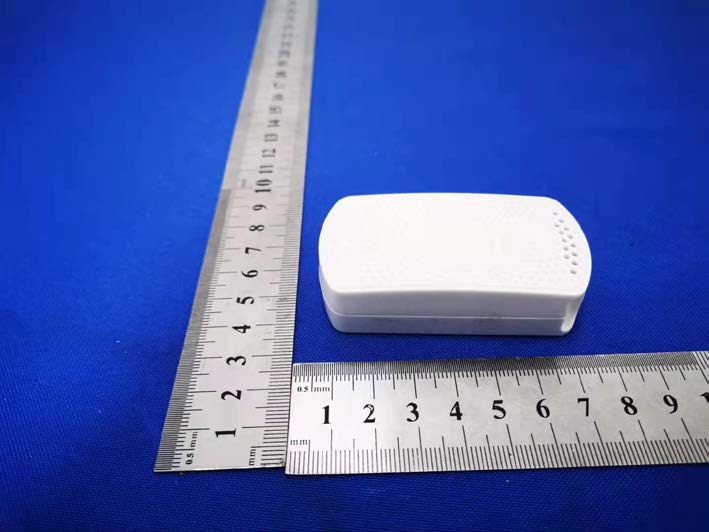

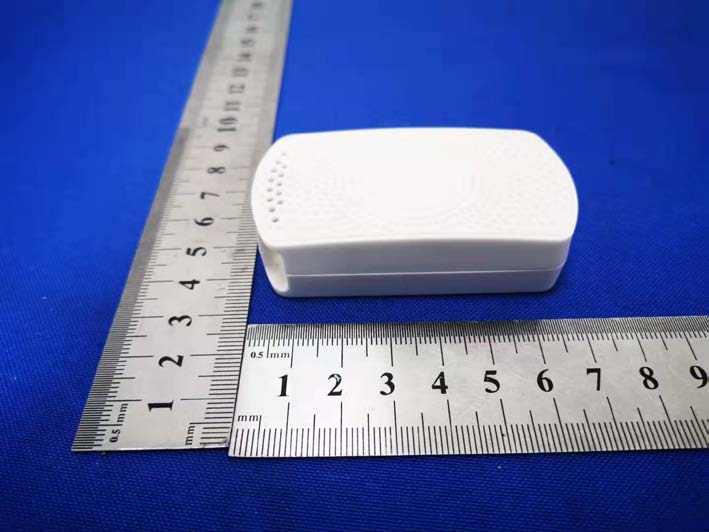

External Photos

Model: WTH300 FCC ID: YQD-WTH300 Label Location

Internal Photos ANT

Shenzhen BCTC Testing Co., Ltd. FCC ID:YQD-WTH300 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 2.761.89 3±14.00 2.51 <50.778603.00YES 2.442.91.95 3±14.002.51<50.784743.00YES 2.4802.72 1.873±14.002.51<50.791143.00YES GFSK Conclusion: For the max result : 0.79114W/Kg ≤ FCC Limit 3.0 for 1g SAR.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002689E Test Report FCC: YQD-WTH300 Product Name: Temperature and Humidity Sensor Trademark: Queclink Model Name : WTH300 Prepared For : Queclink Wireless Solutions Co.,Ltd Address : 3 Floor, Building 2, No.717 Yishan Road, Xuhui District, shanghai 200233, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Dec. 27, 2019 to Dec. 31, 2019 Date of Report : Dec. 31, 2019 Report No.: BCTC1912002689E Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-0 07 Ver.：A.0 Page 1 of 37 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002689E TEST RESULT CERTIFICATION Applicant’s name ................. : Queclink Wireless Solutions Co.,Ltd Address ................................. : 3 Floor, Building 2, No.717 Yishan Road, Xuhui District, shanghai 200233, China Manufacture's Name ............ : Queclink Wireless Solutions Co.,Ltd Address ................................. : 3 Floor, Building 2, No.717 Yishan Road, Xuhui District, shanghai 200233, China Product description Product name ............................ : Temperature and Humidity Sensor Trademark ................................. : Queclink Model and/or type reference : WTH300 Standards ............................. : FCC Part15.247 ANSI C63.10:2013 KDB558074 D01 15.247 Meas Guidance v05r02 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Cai Fangzhong Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 37 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002689E Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 11 3.1.2 TEST PROCEDURE 11 3.1.3 DEVIATION FROM TEST STANDARD 11 3.1.4 TEST SETUP 12 3.1.5 EUT OPERATING CONDITIONS 12 3.1.6 TEST RESULTS 12 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 15 3.2.5 EUT OPERATING CONDITIONS 16 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 17 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 18 3.3 RADIATED BAND EMISSION MEASUREMENT AND RESTRICTED BANDS OF OPERATION 21 3.3.1 TEST REQUIREMENT: 21 3.3.2 TEST PROCEDURE 21 3.3.3 DEVIATION FROM TEST STANDARD 22 3.3.4 TEST SETUP 22 3.3.5 EUT OPERATING CONDITIONS 22 4 . POWER SPECTRAL DENSITY TEST 24 4.1 APPLIED PROCEDURES / LIMIT 24 Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 37 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002689E Table of Contents Page 4.1.1 TEST PROCEDURE 24 4.1.2 DEVIATION FROM STANDARD 24 4.1.3 TEST SETUP 24 4.1.4 EUT OPERATION CONDITIONS 24 4.1.5 TEST RESULTS 25 5 . BANDWIDTH TEST 27 5.1 APPLIED PROCEDURES / LIMIT 27 5.1.1 TEST PROCEDURE 27 5.1.2 DEVIATION FROM STANDARD 27 5.1.3 TEST SETUP 27 5.1.4 EUT OPERATION CONDITIONS 27 5.1.5 TEST RESULTS 28 6 . PEAK OUTPUT POWER TEST 30 6.1 APPLIED PROCEDURES / LIMIT 30 6.1.1 TEST PROCEDURE 30 6.1.2 DEVIATION FROM STANDARD 30 6.1.3 TEST SETUP 30 6.1.4 EUT OPERATION CONDITIONS 30 6.1.5 TEST RESULTS 31 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 32 7.1 APPLICABLE STANDARD 32 7.2 TEST PROCEDURE 32 7.3 DEVIATION FROM STANDARD 32 7.4 TEST SETUP 32 7.5 EUT OPERATION CONDITIONS 32 8 . ANTENNA REQUIREMENT 35 8.1 STANDARD REQUIREMENT 35 8.2 EUT ANTENNA 35 9 . EUT TEST PHOTO 36 10 . EUT PHOTO 37 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 37 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002689E 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (d), 15.205 Radiated Spurious Emission PASS 15.247 (e) Power Spectral Density PASS 15.205 Restricted Band of Operation PASS 15.247(d) Band Edge (Out of Band Emissions) PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Te s t Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 37 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC1912002689E 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add.: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 3 3m chamber Radiated spurious emission(18GHz-40GHz) U=3.34dB 4 Conducted Adjacent channel power U=1.3…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Radiated Measurement Photos
