USER’S MANUAL: SUPREMEVISION LARGE AREA FM WIRELESS TRANSMITTER Model No.: SV‐301FT Important Safety Instructions Read all instructions in this guide before installing and using the equipment. Use the supplied power supply with the equipment. Plug the power supply into an appropriate, grounded power outlet. Keep the equipment away from water and moisture. Avoid dropping anything on the equipment. Do not attempt to service the unit yourself. Contact your dealer or Supreme Audio directly for maintenance and replacements. Introduction Thanks for purchasing the SUPREMEVISION FM wireless transmitter. This system is very reliable and easy to use. It is supported by a professional technical team who will ensure that, in the unlikely event that you strike any problems, you will be satisfied. Set the transmitter into any frequency freely ranged from 88.1 MHz to 107.9MHz. The transmitter is compatible with all FM receivers worldwide. Technical Specifications FM Wireless Transmitter Frequency 88.1MHz – 107.9MHz Output Power -10dbm Frequency space 50KHz Channel TBD Audio Sampling analog Current Draw DC9V 180mA Audio Frequency Response 50Hz~15KHz Mute audio mute when signal lost Transmittion Method FM Audio Input / Output Line Input, Digital Inputs (Coax. & Optical) Charge Power 9V power adapter Configurations 1. ON/OFF Switch 2. Color TFT Display 3. Lock button 4. UP button 5. DOWN button 6. Digit 0‐9 & Decimal Button 7. Mode button (used to choose the audio source inputs, that is, coaxial input, fiber input or line input) 8. Memo button (used to memorize a new frequency) 9. ANT‐A (front antenna) 10. Set button 11. Enter button (used to confirm a new frequency) 12. ANT‐B (rear antenna) 13. DC/9V power input Jack 14. Antenna selection switch (used to choose the front or rear antenna) 15. Digital optical input jack 16. Digital coaxial input jack 17. Line input jack Programming Procedures Unlock by pressing the “LOCK” button till the lock icon disappears. The cursor defaults to the first digit. As you enter a digit for the new Frequency the cursor automatically moves to the right until you have entered all digits. Then press “Enter”. The decimal point is done automatically. If you make a mistake, you can start again or use the “UP”/ “Down” buttons to correct. Once you press “Enter”, the cursor will go away, and if you need to change, press “SET and start again. After inserting the wanted frequency, press “Enter” and then “Memory” to memorize the Frequency. Then the setting is done. “Mode” button: choose the inputs (digital coaxial input, digital fiber input or line input) The antenna selection switch: it has two depths. When you push it once, it goes deeper, and the system will use the front antenna. When you push it again, it is shallower, then the system chooses the rear antenna. Trouble Shooting Guide 1. When a STATIC INTERFERENCE occurs, please go through the following procedures to eliminate the problems. a. Sound level on TV or other audio source equipment may be too high. Check the equipment and adjust the sound level as needed. b. Check to see if any outside sources are using the same frequency as the transmitter. Either locate and remove the outside interference, or set the transmitter to a different channel to avoid that frequency. c. Check the antenna installation. Make sure the antenna selection is correct. Switch to the rear antenna if the front one doesn’t work, vice versa. Check the audio source cable. d. Make sure the transmitter mode is correct and the receiver channel number is correct. e. Check the sound by connecting it to a different transmitter. Listen from a receiver to see if the sound improves. f. Make sure the transmitter has power by checking the AC power cord: Is it plugged into a nearby outlet and into the transmitter? g. Make sure that the antenna is upright and not located near a power cord or any metal objects. h. If the problem continues, unplug the power cord for five minutes, then plug in again 2. When a NOISY SOUND occurs, please go through the following procedures to eliminate the problems. a. Make sure there are no major internal obstructions, such as metal support posts, between antenna and receiver. b. Make sure the antenna and receivers are installed so they are within the distance range. c. Make sure that the antenna is upright and not located near a power cord, audio cable, or any metal objects. d. Make sure the sound level on the TV or other audio source equipment connected to the transmitter is set to a reasonable, medium level. e. Try changing the transmitter to a different frequency to see if the sound quality improves. Some will be received better than others. It is suggested 300K frequency space to ensure the audio quality. f. Make sure no other wireless transmitters are using the same frequency at the facility. The user is encouraged to use our Tri‐band wireless receiver to do an auto‐scanning in the field before the installation to find out the frequencies being used. Avoid using the frequencies being used whenever you install a new transmitter. g. Check to see if any outside sources are using the same frequency as the transmitter. Either locate and remove the outside interference, or change the transmitter to a different frequency to avoid that frequency. 3. When there is NO SOUND, please go through the following procedures to eliminate the problems. a. Make sure the transmitter and the receiver frequency matches. b. Sound from the TV or other audio sources may be too low or muted. Check the equipment and increase the sound or un‐mute as needed. c. Make sure the transmitter mode and the audio input jacks match. Check the audio cable to the TV “OUTPUT” not “INPUT”. d. Check the sound from the TV or other audio sources by connecting it to a different transmitter. Listen from a receiver to see if the sound improves. e. Make sure the transmitter has power by checking the AC power cord: Is it plugged into a nearby outlet and into the transmitter? In case t…

Text truncated - open the document above for the full version.

Authorization Letter Number: CF101 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name Supreme Audio. Inc Addresss 155 Troy Rd, PO Box 550, Marlborough, NH 03455-0550 City Marlborough Country Unite States declare that the following representative (agent): Name (person) Mark Zhu Company name Shenzhen Certification Technology Service Co.,Ltd Addresss 3F, Bldg.27, Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, Shenzhen 518055, Guangdong, P.R. China City Shenzhen, Guangdong Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description FM Wireless Transmitter Type or Model(s) SV-301FT Tradename or Brand(s) We also authorize Teleconformity to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Marlborough August 21, 2010 William Heyman Director Shenzhen August 21, 2010 Mark Zhu Manage

FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Supreme Audio. Inc Addresss 155 Troy Rd, PO Box 550, Marlborough, NH 03455-0550 City Marlborough Country Unite States request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: YQE SV-301FT of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Marlborough August 21, 2010 William Heyman Director

Shenzhen Certification Technology Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guang dong, P.R. China. 1) How does this device operate? Plug into IPod & similar device and powered from adapter.. 2) Provide information on the device and its antenna. FM modulated audio transmitter operating in the range 98.1 MHz - 107.9 MHz. Antenna: Type: Detachable Swivel; Model: RC400/G4 Economy ; Pattern: Omni-directional ; Max. Gain: 2dBi ; Connection: reverse-BNC. 3) How is it installed? The EUT will direct plug into IPod unique connector. And power supply by 9Vdc adapter. 4) What test procedure was used? Operating condition is according to ANSI C63.4-2003 5) If tested in a car, how was it configured/tested? N/A 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. EUT was adjusted to work at the selected channels: 88.1 MHz, 98.1 MHz, and 107.9 MHz. The EUT will not allow operation below 88.1 MHz and will not allow operation above 107.9 MHz. 7) Was the bandwidth properly tested with maximum audio input? Emissions from the intentional radiator shall be confined within a band 200 kHz wide centered on the operation frequency. The 200 kHz band shall lie wholly within the frequency range of 88 ± 108 MHz. Setup the EUT and simulators as shown in the report. Enable RF signal and confirm EUT active. Modulate output capacity of EUT up to specifications. No audio test tone(s) were used for testing. Testing was performed with an external and audio source connected (Ipod: MP3 player) playing, with the maximum possible volume set. The audio source was active during and after measurements. 8) Provide the test report. Test Report Submitted. (Mark Zhu) General Manager Date: May 5, 2010

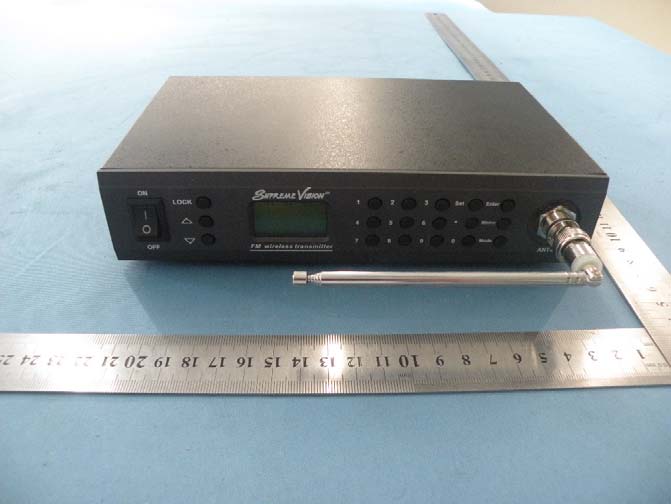

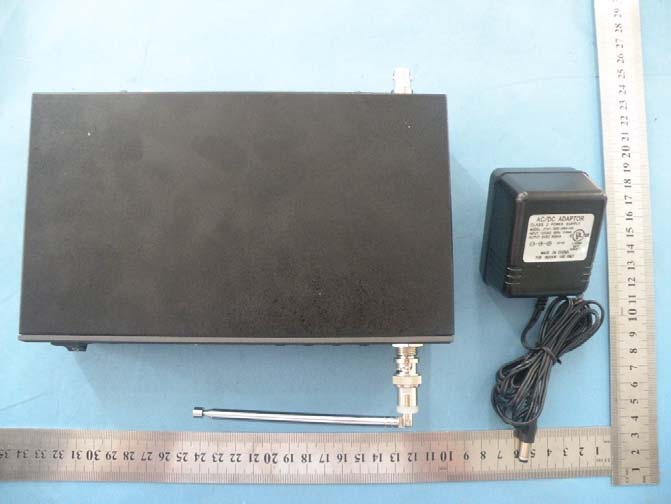

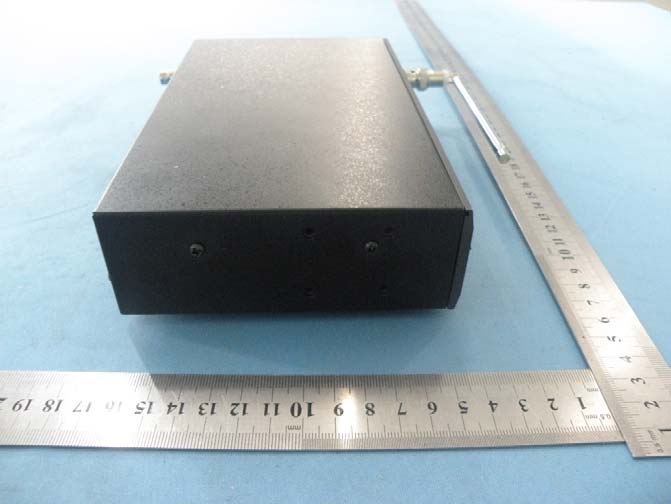

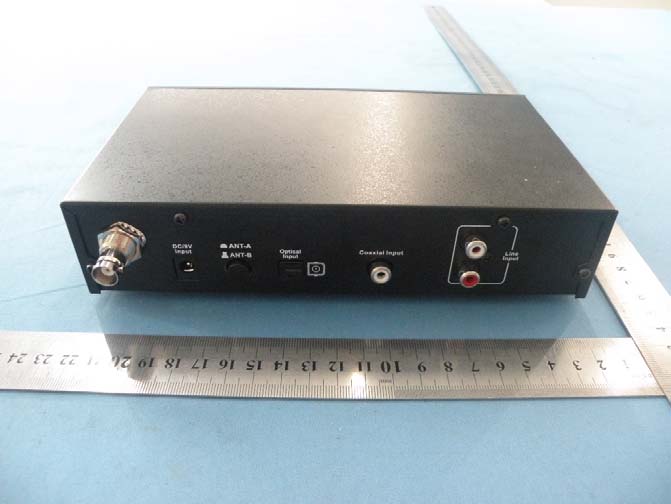

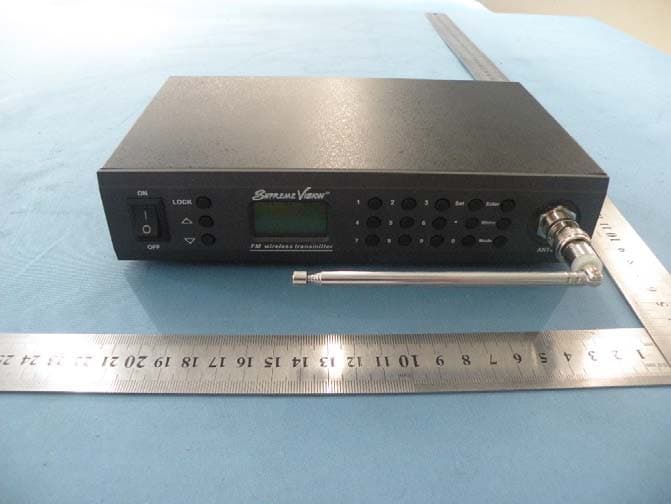

Full View To p Vi e w To p Vi e w Bottom View Front View Left View Rear View Right View

FCC ID: YQESV-301FT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

To p Vi e w Bottom View ANTENNA To p Vi e w Bottom View

SCANRECO INDUSTRIELEKTRONIK AB VAT nr SE556245004801 Page 1 of 4 Prepared by Product name/number Andrei Sazonov Document responsible (approved by) Checked Date: YYYY-MM-DD Release File Name 2010-07-08 (A) G4 Antenna Circuit diagram Pattern and Peak gain.doc Page 1 of 4 G4 Antenna Circuit diagram, Pattern and Peak gain Contents 1 Circuit diagram of antenna for RC400/G4 Economy and RC400/G4 Handy..... 1 2 Circuit diagram of antenna for RC400/G4 PWM: .............................................. 1 3 RC400/G4 Economy Antenna Pattern ................................................................ 2 4 RC400/G4 Economy Antenna Peak Gain ........................................................... 2 5 RC400/G4 Handy Antenna Pattern..................................................................... 3 6 RC400/G4 Handy Antenna Peak Gain................................................................ 3 7 RC400/G4 PWM Antenna Diagram and Peak Gain ........................................... 4 8 Revision history .................................................................................................. 4 1 Circuit diagram of antenna for RC400/G4 Economy and RC400/G4 Handy 2 Circuit diagram of antenna for RC400/G4 PWM: Transmitter Internal λ/4 monopole antenna Receiver λ/4 whip monopole antenna SCANRECO INDUSTRIELEKTRONIK AB VAT nr SE556245004801 Page 2 of 4 Prepared by Product name/number Andrei Sazonov Document responsible (approved by) Checked Date: YYYY-MM-DD Release File Name 2010-07-08 (A) G4 Antenna Circuit diagram Pattern and Peak gain.doc Page 2 of 4 3 RC400/G4 Economy Antenna Pattern ‐65 ‐60 ‐55 ‐50 ‐45 ‐40 ‐35 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 4 RC400/G4 Economy Antenna Peak Gain RC400/G4 Economy Antenna Peak Gain is 2 dBi SCANRECO INDUSTRIELEKTRONIK AB VAT nr SE556245004801 Page 3 of 4 Prepared by Product name/number Andrei Sazonov Document responsible (approved by) Checked Date: YYYY-MM-DD Release File Name 2010-07-08 (A) G4 Antenna Circuit diagram Pattern and Peak gain.doc Page 3 of 4 5 RC400/G4 Handy Antenna Pattern ‐55 ‐50 ‐45 ‐40 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 6 RC400/G4 Handy Antenna Peak Gain RC400/G4 Handy Antenna Peak Gain is 0 dBi SCANRECO INDUSTRIELEKTRONIK AB VAT nr SE556245004801 Page 4 of 4 Prepared by Product name/number Andrei Sazonov Document responsible (approved by) Checked Date: YYYY-MM-DD Release File Name 2010-07-08 (A) G4 Antenna Circuit diagram Pattern and Peak gain.doc Page 4 of 4 7 RC400/G4 PWM Antenna Diagram and Peak Gain RC400/G4 Handy Antenna has classical circle diagram with Peak Gain 3,15 dBi 8 Revision history Release Date: YYYY-MM-DD Edited By Changes (A) 2010-07-08 Andrei Sazonov First creation of document

Shenzhen Certification Technology Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guang dong, P.R. China. FCC ID: YQESV-301F Page 1 of 31 TEST REPORT FCC ID: YQESV-301FT Applicant : Supreme Audio. Inc Address : 155 Troy Rd, PO Box 550, Marlborough, NH 03455-0550 Equipment under Test (EUT): Name : FM Wireless Transmitter Model : SV-301FT Standards : FCC Part15.239 Report No. : STE100809619 Date of Test : August 12-17, 2010 Date of Issue : August 19, 2010 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.:STE100809619 FCC ID: YQESV-301F Page 2 of 31 TABLE OF CONTENT Description Page 1 General Information -------------------------------------------------------------------- 3 1.1 Description of Device (EUT)------------------------------------------------------------------ 3 1.2 Description of Test Facility-------------------------------------------------------------------- 4 2 Test Equipment List -------------------------------------------------------------------- 4 3 Test Procedure -------------------------------------------------------------------------- 5 4 Summary of Measurement ----------------------------------------------------------- 6 5 POWER LINE CONDUCTED EMISSION ---------------------------------------- 7 5.1 Conducted Emission Limits(15.209&249)-------------------------------------------------- 7 5.3 Test Setup------------------------------------------------------------------------------------------ 7 5.3 Test Procedure------------------------------------------------------------------------------------ 8 5.4 Test Resluts---------------------------------------------------------------------------------------- 8 6 Radiated Emission Test --------------------------------------------------------------10 6.1 Radiated Emission Limits(15.209&239)--------------------------------------------------- 10 6.2 Test Setup for Emission measurement ---------------------------------------------------- 11 6.3 Test Procedure ---------------------------------------------------------------------------------- 12 6.4 Test Condition ----------------------------------------------------------------------------------- 13 7 Bandwidth Test -------------------------------------------------------------------------19 7.1 Limit for Bandwidth ----------------------------------------------------------------------------- 19 7.2 Method of measurement ---------------------------------------------------------------------- 19 7.3 Test Setup----------------------------------------------------------------------------------------- 19 7.4 Test Results--------------------------------------------------------------------------------------- 19 8 Band Edge Test ------------------------------------------------------------------------21 8.1 Test Limit ----------------------------------------------------------------------------------------- 21 8.2 Test Procedure --------------------------------------------------------------------------------- 21 8.3 Test Results ------------------------------------------------------------------------------------- 21 9 Antenna Requirement ----------------------------------------------------------------23 9.1 Standard requirement -------------------------------------------------------------------------- 23 9.2 Result ---------------------------------------------------------------------------------------------- 23 10 Photographs of Test Setup ----------------------------------------------------------24 11 Photographs of EUT ------------------------------------------------------------------26 Report No.:STE100809619 FCC ID: YQESV-301F Page 3 of 31 1 General Information 1.1 Description of Device (EUT) Trade Name : N/A EUT : FM Wireless Transmitter Model No. : SV-301FT Type of Antenna : Type: Detachable Swivel; Model: RC400/G4 Economy ; Pattern: Omni-directional; Max. Gain: 2dBi ; Connection: reverse-BNC Operation Frequency : 88.1-107.9MHZ(All turning channels is manually verified Which will be only between 88MHZ~108MHZ) Modulation type FM Power Supply : DC 9V Supply by adapter Rated RF output Power 57.84 dBuV(PK detector) Applicant : Supreme Audio. Inc Address : 155 Troy Rd, PO Box 550, Marlborough, NH 03455-0550 Manufacturer : SHENZHEN ALCORS TECHNOLOGY CO., LTD Address : Room0304, 3/F, 3063# Buxin dongxiao Road luohu shenzhen guangdong china Report No.:STE100809619 FCC ID: YQESV-301F Page 4 of 31 1.2 Description of Test Facility Shenzhen Certification Technology Service Co.,Ltd. 3F, Bldg.27, Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, Shenzhen 518055, Guangdong, P.R. China FCC Registered No.:305283 2 Test Equipment List Equipment Manufacture Model No. Serial No. Last cal. Cal Interval 3m Semi-Anechoic ETS-LINDGREN N/A SEL0017 16/06/20101Year Spectrum analyzer Agilent E4443A MY46185649 06/06/20101Year Receiver R&S ESCI 100492 04/06/20101Year Receiver R&S ESCI 101202 07/01/20101Year Bilog Antenna Sunol JB3 A121206 04/06/20101Year L.I.S.N. R&S ESH3-Z5 100305 16/06/20101Year Horn Antenna EMCO 3115 640201028-0 6 04/06/20101Year Power Meter Anritsu ML2487A 6K00001491 23/02/20101Year ETS Horn Antenna ETS 3160 SEL0076 12/08/20091Year Active Loop Antenna Beijing Daze ZN30900A SEL0097 15/06/20101Year Cab…

Text truncated - open the document above for the full version.

Radiated Emission Test Setup in Chamber Conducted Emission Test Setup
