YRN-AGC-0060RFCar audio(Bluetooth)

FCC ID : YRN-AGC-0060RF FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful inter- ference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter- ference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Change attribute -5 to +5to validate Parameters are : Bass, Treble, Balance, Fader (and go back to previous screen) MENU RADIO TEXT PUSH RADIOTEXT Return to current Audio source Tempo .. Current FM station nameXXXXXXXXXXXXYYYYYYYYYY Radio text displays up to 64 charactersRadio text of the current FM radiostation listenedIf no information available, display "Nomessage" Settings LOW - 300 mVMID - 600 mVHIGH - 1200 mVRenault values) Audio Bass, Treble, Balance, Fader AUX IN LOW/MID/HI SPEED VOLUME Set 0 - 5 (0 is OFF) Switch to the other line PUSH To validate (and go back toprevious screen) Speed vol. 01 2 OO Switch to the other line PUSH To validate (and go back toprevious screen) PUSH PUSH PUSH PUSH MID LOW A UX IN OO HIGH A UDIO BASS TREBLE BALANCE TREBLE PUSH PUSH Loudness Set Option On/Off Sets appropriate parameter (Onor Off) Loudness ON OFF O Switch to the other line PUSH To validate (and go back top revious screen ) BACK PUSH Language List of Languages Switch to the other line PUSH To validate (and go back top revious screen ) Language Language1 Language2 Language3 OO PUSH BACK RENAULT Parameters are : AF, TA, REG, PTY31 RDS OPTIONS PUSH BACK Set options RDS AF TA REG PUSH TA ON OFF O Switch to the other line PUSH To validate (and go back top revious screen ) Pair Device MOBILE PHONE Ready to Pair screen PUSH Ready to Pair Pin: 1234 Pairing Connecting... Pair OK - Connection ANICALL HC2300 CONNECTED Cell phone input of pin Return to current Audio source Max Devices screen MAX devices already paired Remove one before pairing a new one Max Devices Question Delete a Phone Now? YES NO NISSAN & RENAULT PIN : 1234 BAD PIN INPUT - AUDIO DEVICE with pin code Pin code : 3 5 _ _ 0123456789 VALIDATE Pairing Connecting... Pair OK - Connection ANIAUDIO DEVICE CONNECTED Return to current Audio source BAD PIN INPUT - Renault:The user has to enter the 4 digit pin code of itsBluetooth audio device Pairing Failed Pairing Failed Pair Device in Menu ** ** AUDIO DEVICE without pin code Connecting... ConnectionAUDIO DEVICE CONNECTED Return to current Audio source Default audio parameters Set default audio parameters (yes / No) Sets adefault audio parameters(yes or no) Switch to the other line PUSH To validate (and go back toprevious screen) BACK PU S H Reinitializeaudioparameters YES NO O Select Device PUSH BACK List of Paired Devices NISSAN : When no device connected RENAULT : with or without connected device PUSH Connecting... Connection Device B CONNECTED Return to current Audio source Delete device List of Paired Devices (When nodevice connected) PUSH Deleted PUSH OO Device A Device B Device C OO Device A Device B Device C Device B DELETED Renault:A n icon is located near of the device name, to show the user the type of device :1) Phone2) Audio device (A2DP)3) Phone with audio capabilities Bluetooth PUSH ON/OFF Bluetooth OFFON O PUSH BACK BACK

DAEWOO IS CORPORATION 7F, Namkwang Centlex Bldg., 440-4, Cheongcheon2-dong, Bupyeong-gu, Incheon-si, Korea Date: Nov. 15, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Technical Manager Geoffrey Do of MOVON CORPORATION and hereafter referred to as MOVON CORPORATION , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these m atters. Any and all acts carried out by Technical Manager Geoffrey Do of MOVON CORPORATION on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing MOVON CORPORATION as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; DAEWOO IS CORPORATION 7F, Namkwang Centlex Bldg., 440-4, Cheongcheon2-dong, Bupyeong-gu, Incheon-si, Korea e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jungjin Hong DAEWOO IS CORPORATION REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

DAEWOO IS CORPORATION 7F, Namkwang Centlex Bldg., 440-4, Cheongcheon2-dong, Bupyeong-gu, Incheon-si, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: YRN-AGC-0060RF To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operation Description Parts List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Jungjin Hong DAEWOO IS CORPORATION Nov. 15, 2010

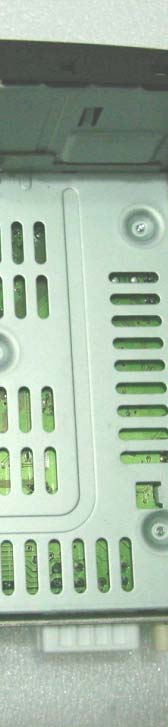

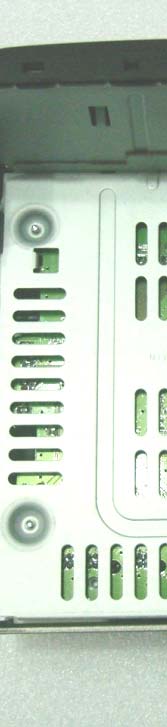

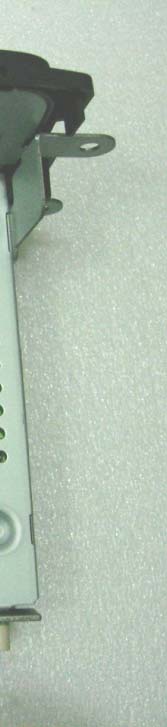

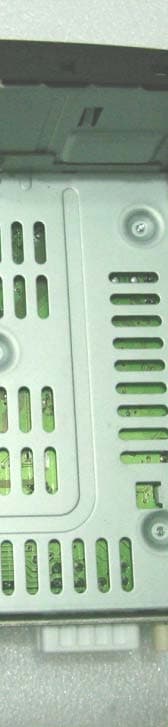

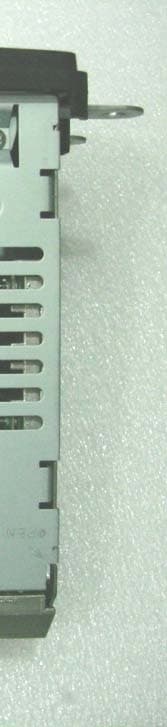

Model : AGC-0060RF External photos of EUT Mode T o Bo l : AGC-0 op view of ottom view 0060RF f EUT w of EUT Mode F r Re l : AGC-0 ront view o ear view o 0060RF of EUT of EUT Mode S i l : AGC-0 ide view o 0060RF of EUT

Model : AGC-0060RF Internal photos of EUT Mode In n RF l : AGC-0 ner view o F module 0060RF of EUT of EUT Mode T o Bo l : AGC-0 op view of ottom view 0060RF f front PCB w of front B PCB Chipp Antenna Mode T o Bo l : AGC-0 op view of ottom view 0060RF f main PCB w of main B PCB Mode T o Bo l : AGC-0 op view of ottom view 0060RF f CDP PCB w of CDP P B PCB

MOVON CORPORATION Report Number: 0022-01-06/10 Page : (49) of (50) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 13. RF exposure evaluation 13.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) Limits for maximum permissible exposure (MPE) 13.2. Friis transmission formula Pd = (PoutxG)/(4xpixR 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.141 6 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- F/300 6 1 500 – 100 000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- F/1 500 6 1 500 – 100 000 -- -- 1 30 MOVON CORPORATION Report Number: 0022-01-06/10 Page : (50) of (50) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 13.3. Test result of RF exposure evaluation Test Item ： RF Exposure evaluation data Test Mode ： Normal operation 13.4. Output power into antenna & RF exposure evaluation distance Operating mode Frequency (㎒) Output average power to antenna (㏈m) Antenna gain (㏈i) Power density at 20㎝ (㎽/㎠) Limit (㎽/㎠) GFSK 2 402 - 4.28 - 10.85 0.000 006 1 2 441 - 4.01 - 10.85 0.000 006 2 480 - 4.21 - 10.85 0.000 006 8DPSK 2 402 - 4.81 - 10.85 0.000 005 1 2 441 - 4.74 - 10.85 0.000 005 2 480 - 5.67 - 10.85 0.000 004 ※ Remark The power density Pd (5th column) at a distance of 20 ㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠.

MOVON CORPORATION Report Number:0022-01-06/10 Page : (1) of (50) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. FCC Part 15 Subpart B&C §15.247 Test Report Equipment Under Test Car Audio Model Name AGC-0060RF Applicant DAEWOO IS CORPORATION FCC ID YRN-AGC-0060RF Manufacturer DAEWOO IS CORPORATION Date of Test(s) 2010.09.24 ~ 2010.10.15 Date of Issue 2010.11.10 In the configuration tested, the EUT complied with the standards specified above. Issue to Issue by DAEWOO IS CORPORATION 7F, Namkwang Centlex Bldg., 440-4 Cheongcheon2-dong, Bupyeong-gu, Incheon-si, Korea Tel.: +82 32 363 3086 Fax: +82 32 363 3120 MOVON CORPORATION 194-1, Geumeo-ri, Pogok-eup, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea, 449-812 Tel.: +82 31 338 8837 Fax: +82 31 338 8847 MOVON CORPORATION Report Number:0022-01-06/10 Page : (2) of (50) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Revision history RevisionDate of issue DescriptionRevised by -- Nov. 10, 2010 Initial -- MOVON CORPORATION Report Number:0022-01-06/10 Page : (3) of (50) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. Table of contents 1.ATTESTATION OF TEST RESULTS ............................................................................. 4 2.EUT DESCRIPTION ........................................................................................................ 5 3.INFORMATION ABOUT THE FHSS CHARACTERISTICS ............................................ 5 4.MEASUREMENT EQUIPMENT ...................................................................................... 6 5.TRANSMITTER RADIATED SPURIOUS EMISSIONS AND CONDUCTED SPURIOUS EMISSIONS .................................................................................................................. 7 6.RECEIVER RADIATED SPURIOUS EMISSIONS ........................................................ 24 7.20໒ BANDWIDTH MEASUREMENT ........................................................................ 27 8.MAXIMUM PEAK OUTPUT POWER MEASUREMENT ............................................... 32 9.HOPPING CHANNEL SEPARATION ........................................................................... 37 10.NUMBER OF HOPPING FREQUENCY ...................................................................... 40 11.TIME OF OCCUPANCY(DWELL TIME) ..................................................................... 43 12.ANTENNA REQUIREMENT ....................................................................................... 48 13.RF EXPOSURE EVALUATION .................................................................................. 49 MOVON CORPORATION Report Number:0022-01-06/10 Page : (5) of (50) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 2. EUT Description Kind of product Car Audio Model AGC-0060RF Serial Number N/A Power supply DC 13.5 V Frequency range 2 402 ໬ ~ 2 480 ໬ Modulation technique GFSK, 8DPSK Number of channels 79 Operating conditions - 30 ଇ ~ + 80 ଇ Antenna gain - 10.85໒i ( M a x . ) 2.1. Details of modification None 3. Information about the FHSS characteristics 3.1. Pseudorandom frequency hopping sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 3.2. Medium access protocol The manufacturer declares that the device uses Bluetooth protocol. It confirmed that Medium access protocol is implemented. 3.3. Occupied hops while the equipment is operating While the equipment is operating (transmitting and/or receiving) each channel of the hopping sequence is occupied at least once during four times the product of the dwell time per hop and the number of channels. MOVON CORPORATION Report Number:0022-01-06/10 Page : (6) of (50) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 4. Measurement equipment EquipmentManufacturerModel Calibration due. EMI Test Receiver R&S ESIB26 2010-12-28 Signal Generator R&S SMA100A 2011-10-22 Spectrum Analyzer R&S FSV-40 2011-10-22 Horn Antenna R&S HF906 2010-12-18 Power Meter Agilent E4416A 2010-11-26 Power Sensor Agilent 9327A 2010-11-26 Ultra Broadband Antenna R&S HL562 2011-11-30 Power Amplifier MITEQ AM-1431 2011-01-07 Power Amplifier MITEQ AFS43-01002600 2011-01-07 High Pass Filter Wainwright WHK3.0/18G-10SS 2010-11-26 Bluetooth Tester TESCOM TC-3000B 2010-11-26 Directional Coupler Narda 26733 2010-11-26 Controller INNCO CO2000 N/A Antenna Master INNCO MA4000 N/A ଖGRemark; Support equipment DescriptionManufacturerModel Serial number N/A MOVON CORPORATION Report Number:0022-01-06/10 Page : (7) of (50) The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without the written approval of MOVON CORPORATION. 5. Transmitter radiated spurious emissions and conducted spurious emissions 5.1. Test setup 5.1.1. Transmitter radiated spurious emissions T…
