YROG150IMobile Phone

1 WARNING： Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed 3 and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more 4 of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit 5 different from that to which the receiver is connected. † Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and 6 2) this device must accept any interference received, including interference that may cause undesired operation of the device. 7 The following are the suggested text on SAR information Specific Absorption Rate (SAR) information The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. This model (FCC ID: YROG150I) has also been tested against this SAR limited. The highest SAR value reported under this standard during product certification for use at the ear is 1.122 W/kg. There are no body 8 worn configurations (e.g. belt-clips, holsters or similar accessories), then body SAR is not required. 9 G150I Dual SIM Cards on line GSM Digital Mobile Phone User Guide 10 1. REMOVAL OF SIM CARD................................................................................................................11 2. REMOVE OF THE MEMORY CARD..............................................................................................11 3. REMOVAL OF THE BATTERY........................................................................................................11 4. BATTERY CHARGING......................................................................................................................11 5. DIALING..............................................................................................................................................11 6. INPUT METHODS............................................................................................................................. 12 7. GUIDE TO MENU OPERATIONS................................................................................................... 13 8. TECHNICAL INFORMATION.......................................................................................................... 23 11 1. Removal of SIM card „ Turn off the phone; remove the battery and unplug other external power sources. „ When you need to remove the SIM card, please first turn off the phone, remove the battery, then remove the SIM card 2. Remove of the Memory Card „ Turn off the phone; remove the battery and unplug other external power sources. „ When you need to remove the Memory card, please first turn off the phone, remove the battery, then remove the Memory card. 3. Removal of the Battery „ When removing the battery follow the following steps: ①Push the battery cover towards bottom and remove; ②Break out the battery from the mobile-phone; Warning: You must turn off your mobile phone before removing the battery. 4. Battery Charging „ Plug the charger into the electrical outlet. „ Plug the charger connector into the charge interface of the phone. „ The mobile phone and charger will become warm during charging and this is normal. „ When charging is complete, unplug the charge connector from the electrical outlet and the mobile phone. 5. Dialing „ Making Domestic Calls Use the number keys to input number, then press the dial key to dial the call via SIM card 1/2 You can input domestic calls in this order: Area code phone number dial key „ Making International calls For making international calls you should press the * key to switch, until the international phone prefix “+” appears on the screen. This will allow you to make an international call in any 12 country regardless of what the international call prefix is. — You can input international calls in this order: + Country code area code telephone number dial key After entering the prefix, enter the country code and full number you wish to call. „ Emergency Calls If you are located within a network area (you can find this out by referring to the network strength indicator located on the upper left-hand corner of your mobile phone screen), even if you do not have a SIM card, you will be able to transmit emergency calls. „ Receiving Calls You can select the different mode to receive calls. If the earphones are already plugged in, you can use the button located on the earphones to pick up the phone. If it is inconvenient to press the button, then you can set the“Auto” as “On”, with the earphones plugged in, and the phone will automatically pick up. If you have set the “Any Key”, you can pick up the call by pressing any key other than the hang-up key, right soft key. „ Ending a Call You can press the hang-up key or right soft key to refuse an incoming call. During a call you can press the hang-up key to end a call. You can also cancel a call you have just dialed by pressing the hang-up key or right soft key. 6. Input Methods „ General outline This mobile phone provides various input methods for multinational lan…

Text truncated - open the document above for the full version.

Tommy Leung

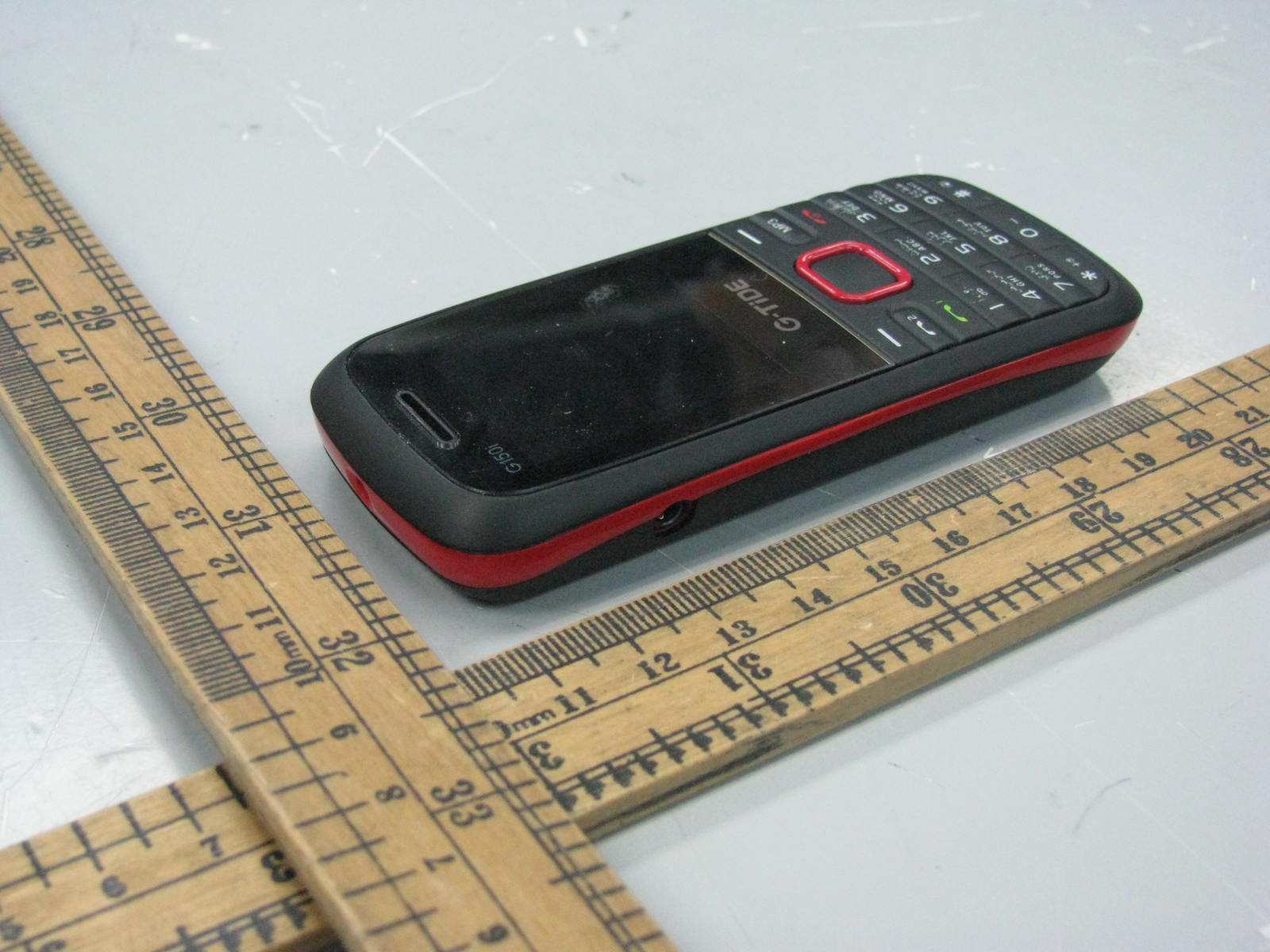

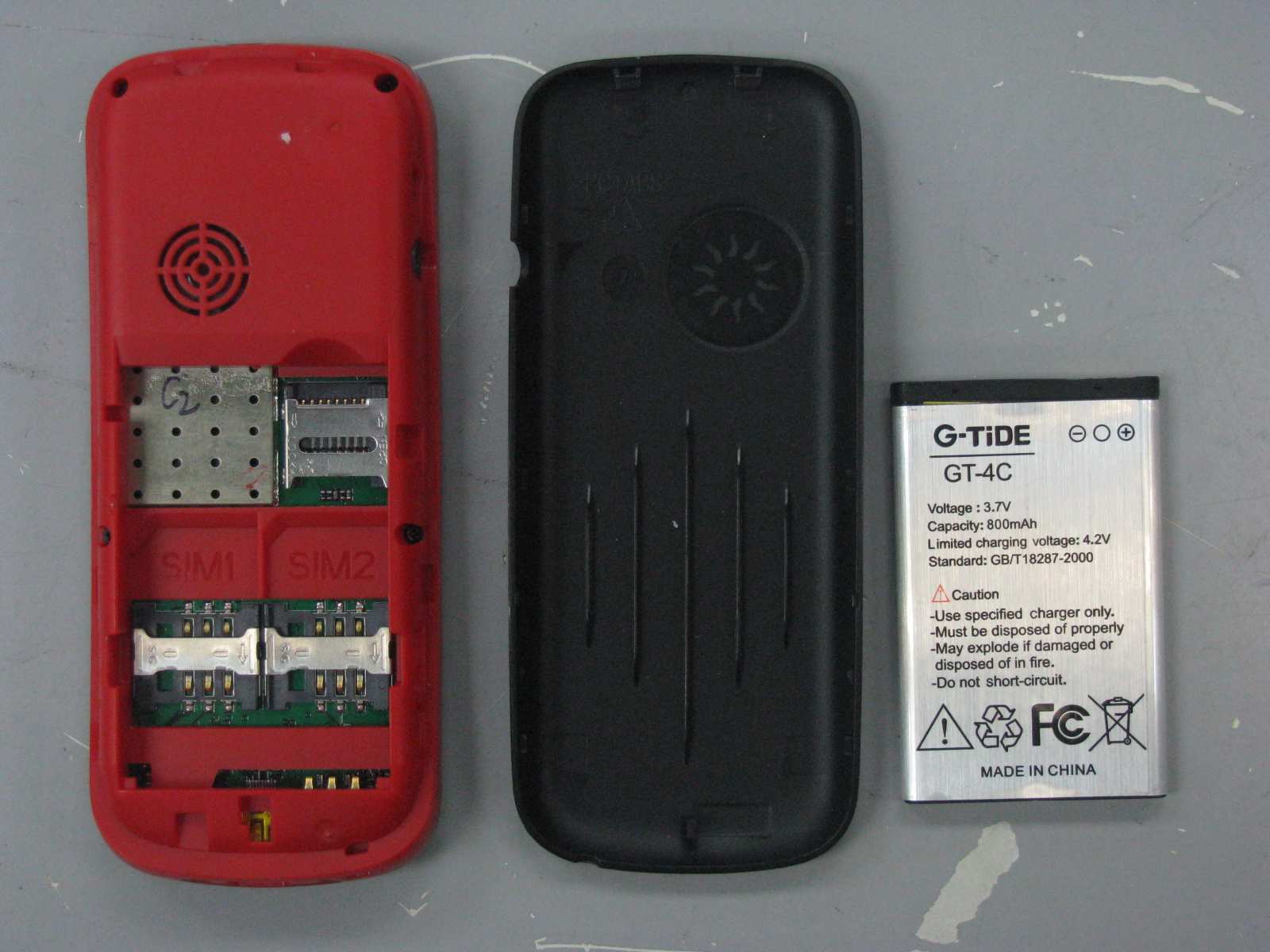

External Photos:

*L)&&ODEHODUWZRUNDQGORFDWLRQ

Internal photos

Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 1/6 Issue: B Date: 2010/10/05 1 DIPOLE 835 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 2/6 Issue: B Date: 2010/10/05 2 DIPOLE 835 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPC99 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPC99 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2010 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 3/6 Issue: B Date: 2010/10/05 3 PRODUCT DESCRIPTION Dimension: L=161 mm/ h=89.8mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2010 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 835 MHz head liquid. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 4/6 Issue: B Date: 2010/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 835 MHz: -24.77 dB. -24,77 -40 -35 -30 -25 -20 -15 -10 -5 0 0,7350,8350,935 Frequency (GHz) S11 (dB) Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 5/6 Issue: B Date: 2010/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2010 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2009 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2009 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-20 10 Probe SATIMO Bretagne (SN:EP37) CF (30.41,29.18,32.33) Date of calibration: 19-06-2010 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 18 09 08) Head Liquid Values: eps’ : 41,20 sigma : 0,872 Distance between the center of the dipole and the liquid (set with a spacer) 15 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 835 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 6,364 W/Kg + 2,64 % 9,805 W/Kg + 3,21 % Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 6/6 Issue: B Date: 2010/10/05 6 SAR MEASUREMENT PLOTS Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 1/26 Issue: A Date: 2010/10/06 1 COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 2/26 Issue: A Date: 2010/10/06 2 COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 12/02/2009 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 24/09/20 10 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 3/26 Issue: A Date: 2010/10/06 3 PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 4/26 Issue: A Date: 2010/10/06 4 MEASUREMENT PROCEDURE Pr…

Text truncated - open the document above for the full version.

Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 1/6 Issue: B Date: 2010/10/05 1 DIPOLE 1900 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 2/6 Issue: B Date: 2010/10/05 2 D I P O LE 1900 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPF102 OBJECT: COMOSAR IEEE REFERENC2E DIPOLE M ANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPF102 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 23/09/2010 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 3/6 Issue: B Date: 2010/10/05 3 P R O D UCT DESCRIPTION Dimension: L=72 mm/ h=41.7 mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2010 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 1900 MHz head liquid. Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 4/6 Issue: B Date: 2010/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 1900 MHz: -25.11 dB -25,11 -35 -30 -25 -20 -15 -10 -5 0 1,81,9 2,0 Freq uency (GHz) S11 (dB) Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 5/6 Issue: B Date: 2010/10/05 5 S A R MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2010 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2009 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2009 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-2010 Probe SATIMO Bretagne (SN:EP37) CF (35.35,34.93,37.42) Date of calibration: 19-06-2010 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 19 09 08) Head Liquid Values: eps’ : 39,80 sigma : 1,45 Distance between the center of the dipole and the liquid (set with a spacer) 10 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 1900 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 20,16 W/Kg + 1 ,82 % 39,18 W/Kg + 2,83 % Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 6/6 Issue: B Date: 2010/10/05 6 SAR MEASUREMENT PLOTS

SZ11050006S01 Page 2 of 77 DIRECTORY 1. TESTING LABORATORY.......................................................................................................4 1.1. Identification of the Responsible Testing Laboratory.........................................................4 1.2. Identification of the Responsible Testing Location..............................................................4 1.3. Accreditation Certificate........................................................................................................4 1.4. List of Test Equipments..........................................................................................................4 2. TECHNICAL INFORMATION ...............................................................................................5 2.1. Identification of Applicant.....................................................................................................5 2.2. Identification of Manufacturer..............................................................................................5 2.3. Equipment Under Test (EUT)................................................................................................5 2.3.1. Photographs of the EUT..................................................................................................5 2.3.2. Identification of all used EUTs........................................................................................5 2.4. Applied Reference Documents...............................................................................................6 2.5. Device Category and SAR Limits..........................................................................................6 2.6. Test Environment/Conditions................................................................................................7 3. SPECIFIC ABSORPTION RATE (SAR) ................................................................................8 3.1. Introduction.............................................................................................................................8 3.2. SAR Definition.........................................................................................................................8 4. SAR MEASUREMENT SETUP ...............................................................................................9 4.1. The Measurement System......................................................................................................9 4.2. Probe........................................................................................................................................9 4.3. Phantom................................................................................................................................. 11 4.4. Device Holder........................................................................................................................ 11 5. TISSUE SIMULATING LIQUIDS.........................................................................................12 6. UNCERTAINTY ASSESSMENT ...........................................................................................13 6.1. UNCERTAINTY EVALUATION FOR HANDSET SAR TEST......................................13 6.2. UNCERTAINTY FOR SYSTEM PERFORMANCE CHECK........................................14 7. SAR MEASUREMENT EVALUATION ...............................................................................16 7.1. System Setup..........................................................................................................................16 7.2. Validation Results..................................................................................................................16 8. OPERATIONAL CONDITIONS DURING TEST ................................................................17 8.1. Informations on the testing..................................................................................................17 SZ11050006S01 Page 3 of 77 8.2. Measurement procedure.......................................................................................................17 8.3. Description of interpolation/extrapolation scheme............................................................18 9. TEST RESULTS LIST .............................................................................................................19 ANNEX A ACCREDITATION CERTIFICATE ..........................................................................20 ANNEX B EUT SETUP PHOTOS ................................................................................................21 ANNEX C GRAPH TEST RESULTS ...........................................................................................24 Change History Issue Date Reason for change 1.0 May 16, 2011 First edition 1.1 Jun. 2, 2011 Secondly edition SZ11050006S01 Page 4 of 77 1. Testing Laboratory 1.1. Identification of the Responsible Testing Laboratory Company Name: Shenzhen Morlab Communications Technology Co., Ltd. Department: Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China Responsible Test Lab Manager: Mr. Shu Luan Telephone: +86 755 86130268 Facsimile: +86 755 86130218 1.2. Identification of the Responsible Testing Location Name: Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China 1.3. Accreditation Certificate Accredited Testing Laboratory: No. CNAS L3572 (Annex A) 1.4. List of Test Equipments No. Instrument Type Cal. Date Cal. Due 1 PC Dell (Pentium IV 2.4GHz, SN:X10-23533) (n.a) (n.a) 2 Network Emulator Rohde&Schwarz (CMU200, SN:105894) 2010-9-26 1year 3 Voltmeter Keithley (2000, SN:1000572) 2010-9-24 1year 4 Synthetizer Rohde&Schwarz (SML_03, SN:101868) 2010-9-24 1year 5 Amplifier Nucl udes (ALB216, SN:10800) 2010-9-24 1year 6 Power Meter Rohde&Schwarz (NRVD, SN:101066) 2010-9-24 1year …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES GSM 850 A Offset10.5 dB LVL Ref 30 dBm 100 kHz/Center836.6 MHzSpan1MHz 1PK VIEW Att 40 dB * * 3DB RBW3kHz VBW 10 kHz SWT115 ms * DemoDemo 26.Apr 11 15:43 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker1[T1] 25.58 dB m 836.615000000 MHz OBW240.000000000 k Hz T1 Temp 1 [T1 OBW] 9.18 dB m 836.480000000 MHz T2 Temp 2 [T1 OBW] 10.37 dB m 836.720000000 MHz GSM 1900 A Offset10.5 dB LVL Ref 30 dBm 100 kHz/Center1.88GHzSpan1MHz 1PK VIEW Att 40 dB * * 3DB RBW3kHz VBW 10 kHz SWT 115 ms * DemoDemo 26.Apr11 15:47 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker1[T1] 20.69 dB m 1.880060000 GHz OBW240.000000000 k Hz T1 Temp 1 [T1 OBW] 6.88 dB m 1.879880000 GHz T2 Temp 2 [T1 OBW] 5.81 dB m 1.880120000 GHz

INTERTEK TESTING SERVICES GSM 850 A Offset 10.5 dB LVL Att 60 dBRef 40 dBm 150 kHz/Center824 MHzSpan1.5 MHz * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz 1 PK MAXH DemoDemo 26.Apr 11 15:42 -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -13.94 dBm 823.996250000 MHz -13dBmL A Offset 10.5 dB LVL Att 60 dBRef 40 dBm 150 kHz/Center849 MHzSpan1.5 MHz * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz 1 PK MAXH DemoDemo 26.Apr 11 15:45 -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -13.05 dBm 849.018750000 MHz -13dBmL INTERTEK TESTING SERVICES GSM 1900 A Offset 10.5 dB LVL Ref 40 dBmAtt 60 dB 150 kHz/Center1.85 GHzSpan1.5 MHz * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz 1 PK VIEW DemoDemo 26.Apr 11 15:47 -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -14.26 dBm 1.849985000 GHz -13dBmL A Offset 10.5 dB LVL Ref 40 dBmAtt 60 dB 160 kHz/Center1.91 GHzSpan1.6 MHz * 3DB RBW 3 kHz SWT 180 ms * VBW 10 kHz 1 PK VIEW DemoDemo 26.Apr 11 15:50 -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -17.81 dBm 1.910024000 GHz -13dBmL

Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com 16 May, 2011 Z.T.S. International Industrial Co., Ltd. 12 BC, Jinrun Building, Chegongmiao, Shennan Road, Futian, Shenzhen, China Tel.: (86) 755-8709477 Fax: (86) 755-82709446 Dear Mr.Guocai Wu: Enclosed you will find your file copy of an Original Grant of Part 22 and Part 24 Certification report (FCC ID: YROG150I). Model: G150i. For your reference, TCB will normally take another 2 weeks for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Leung Wai Leung, Tommy Deputy General Manager Enclosure Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com List of Exhibits Exhibit Type File Description Filename Test Report Test Report report.pdf Operational Description Technical Description descri.pdf Test Setup Photo Radiated Emission Test Configuration config photos.pdf Test Report Bandwidth Plot 99% bw.pdf Test Report Spurious Emissions cspurious.pdf Test Report Bandedge Plot be.pdf RF Exposure Info SAR Report sar report 1 of 3.pdf sar report 2 of 3.pdf sar report 3 of 3.pdf External Photos External Photo external photos.pdf Internal Photos Internal Photo internal photos.pdf ID Label/Location Info Label Artwork and Location label.pdf Cover Letter Label Location Justification justification.pdf Block Diagrams Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf User Manual User Manual manual.pdf Part List/Tune Up Info Tune Up Procedure tuneup.pdf Part List/Tune Up Info Part List partlist.pdf Cover Letter Letter of Agency letter of agency.pdf Cover Letter Confidentiality Request request.pdf • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 22H&24E_a Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com TEST REPORT Report Number: SZ11040410-1 Application for Original Grant of 47 CFR Part 22 and Part 24 Certification Mobile Phone FCC ID: YROG150I Prepared and Checked by: Approved by: Billy Li Leung Wai Leung, Tommy Project Engineer Deputy General Manager 15 May, 2011 16 May, 2011 INTERTEK TESTING SERVICES TRF: FCC 22H&24E_a Test Report Number: SZ11040410-1 Page 1 of 18 FCC ID: YROG150I GENERAL INFORMATION Applicant Name: Z.T.S. International Industrial Co., Ltd Applicant Address: 12 BC, Jinrun Building, Chegongmiao, Shennan Road, FCC Specification Standard: FCC Part 22: 2010 FCC Part 24: 2010 FCC ID: YROG150I FCC Model(s): G150i Type of EUT: GSM 850/1900 Transceiver Description of EUT: Mobile Phone Serial Number: N/A Sample Receipt Date: 25 April, 2011 Date of Test: 29 April, 2011 Report Date: 16 May, 2011 Environmental Conditions: Temperature: 25 ± 10°C Humidity: 10 to 90% INTERTEK TESTING SERVICES TRF: FCC 22H&24E_a Test Report Number: SZ11040410-1 Page 2 of 18 FCC ID: YROG150I Table of Contents 1.0 Summary of Test Results..................................................................................................................................3 1.1 Statement of Compliance................................................................................................................................3 2.0 General Description............................................................................................................................................4 2.1 Product Description...........................................................................................................................................4 2.3 Test Methodology..............................................................................................................................................5 2.4 Test Facility........................................................................................................................................................5 3.0 System Test Configuration................................................................................................................................6 3.1 Justification.........................................................................................................................................................6 3.3 Details of EUT and Description of Accessories......................................................................................…

Text truncated - open the document above for the full version.
