YROG151IMobile Phone

1 WARNING： Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. .. . This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. 2 The following are the suggested text on SAR information Specific Absorption Rate (SAR) information The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. This model (FCC ID: YROG151I) has also been tested against this SAR limited. The highest SAR value reported under this standard during product certification for use at the ear is 0.878 W/kg. There are no body worn configurations (e.g. belt-clips, holsters or similar accessories), then body SAR is not required. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits, and the shielded cables is marketed with the mobile phone, don’t use others. GPRS: Class B 3 Photo for reference only,All rights reserve. Table of Contents Attention and Precautions ....................................................................................................5 1 Safety Precautions........................................................................................................5 1.1 Road safety comes first.......................................................................................................5 1.2 Swtich off your phone in hospitals......................................................................................5 1.3 Switch off your phone in aircrafts.......................................................................................5 1.4 Swtich off your phone when refuelling...............................................................................5 1.5 Swtich off your phone when close to blasting area.............................................................5 2 Precautions When Using Phone...................................................................................5 2.1 Interference........................................................................................................................5 2.2 Use sensibly........................................................................................................................5 2.3 Use qualified servicing........................................................................................................5 2.4 Waterproof ..........................................................................................................................5 2.5 Emergency calls...................................................................................................................5 3 Precautions When Using Batteries...............................................................................5 4 Precautions for children ...............................................................................................6 Description of keypad keys..................................................................................................6 Getting Started .....................................................................................................................6 1. Installing the SIM Card and the Battery ..........................................................................6 2. Removing the Battery and the SIM Card.........................................................................7 3. Charging Battery ..............................................................................................................7 4. Inserting and removing memory card ..............................................................................7 5. Switch on/off phone .........................................................................................................8 6. Unlocking SIM card.........................................................................................................8 7. Unloking phone................................................................................................................8 Basic Functions ....................................................................................................................8 1 Making a call................................................................................................................8 1.1 Making domestic calls..........................................................................................................9 1.2 Dialing extension number of fixed-line telephone..............................................................9 1.3 Dialing international calls...................................................................................................9 1.4 Dialing phone numbers in the…

Text truncated - open the document above for the full version.

FCC ID:YROG151I 2011-5-25

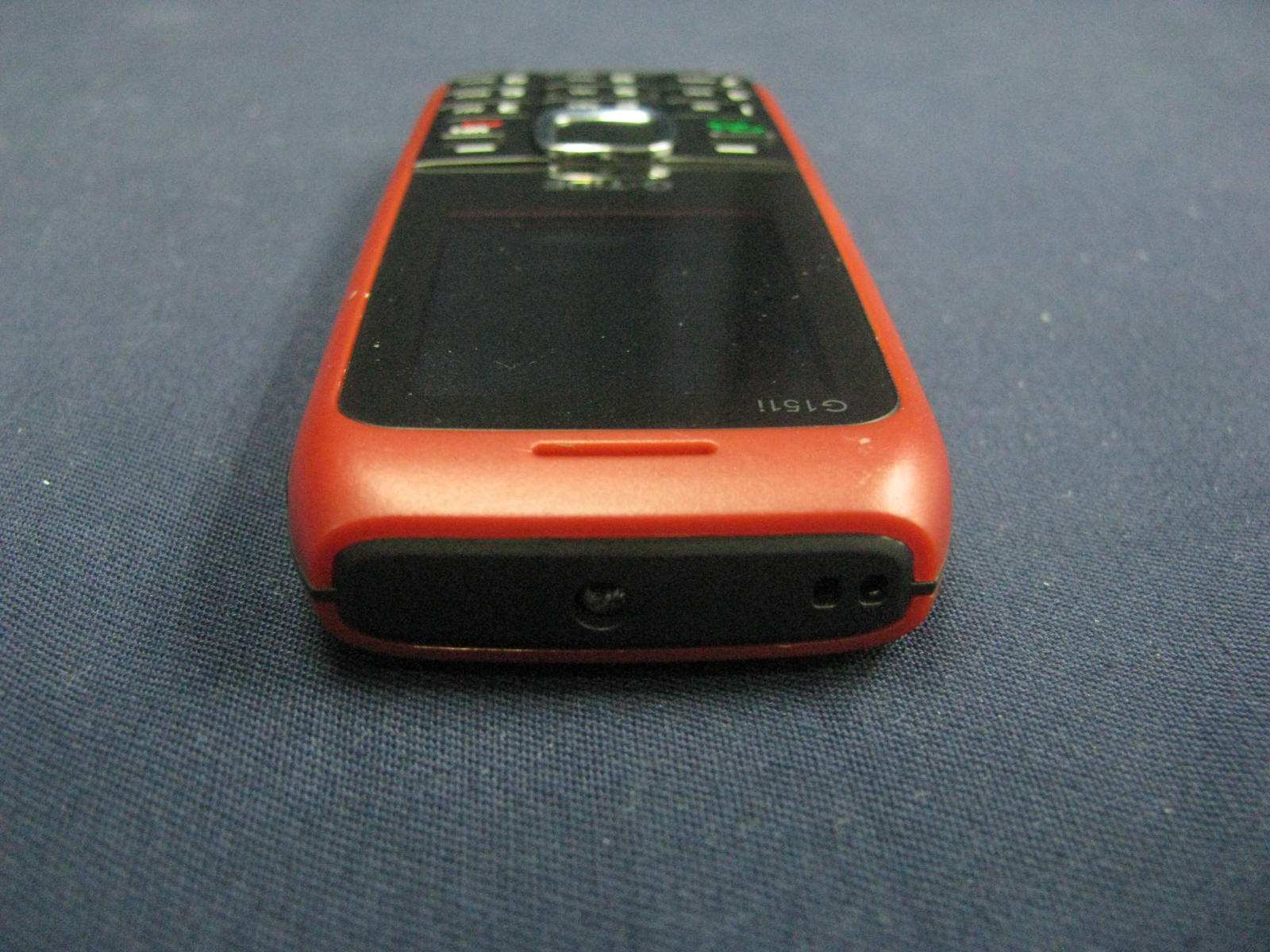

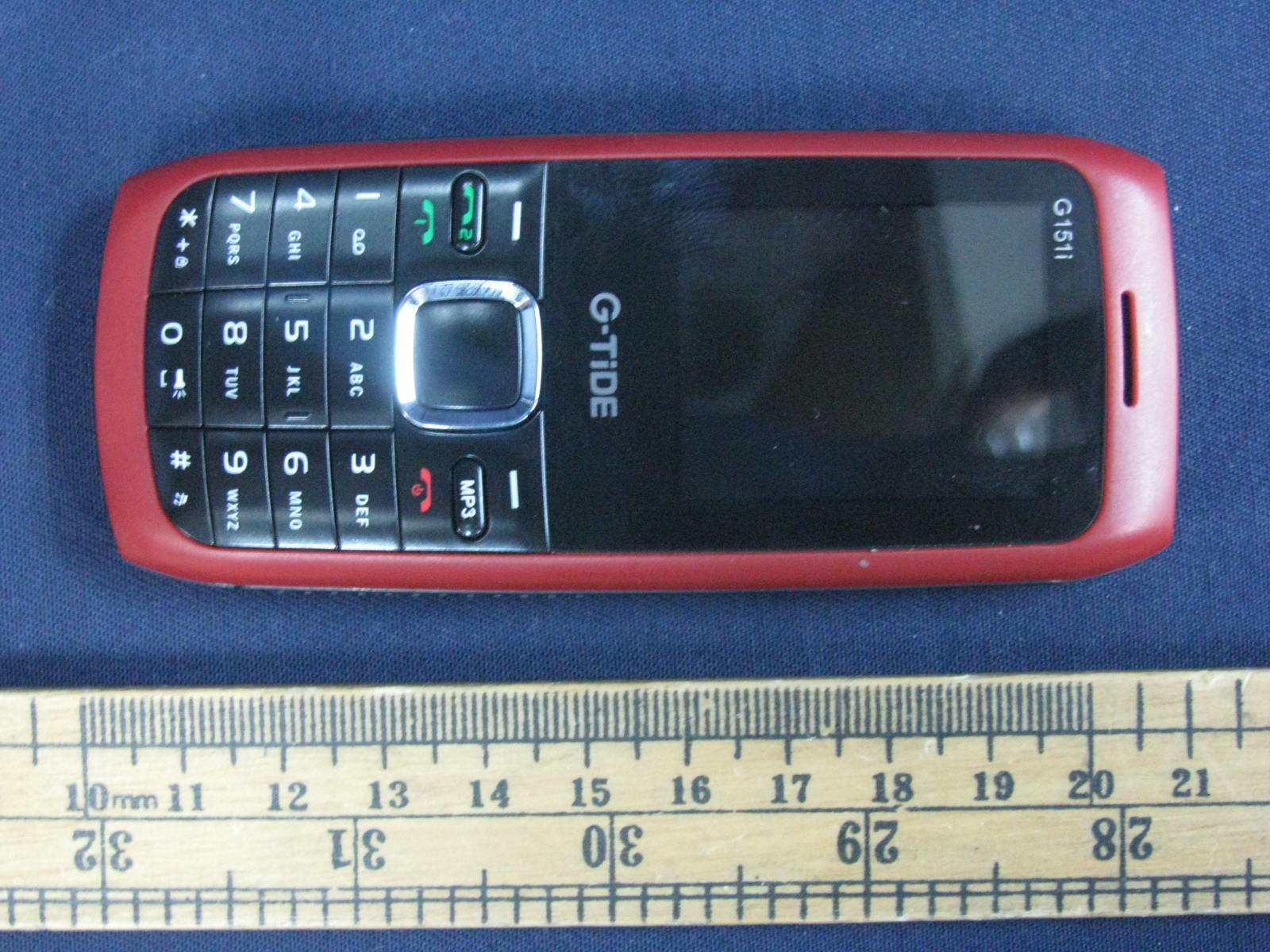

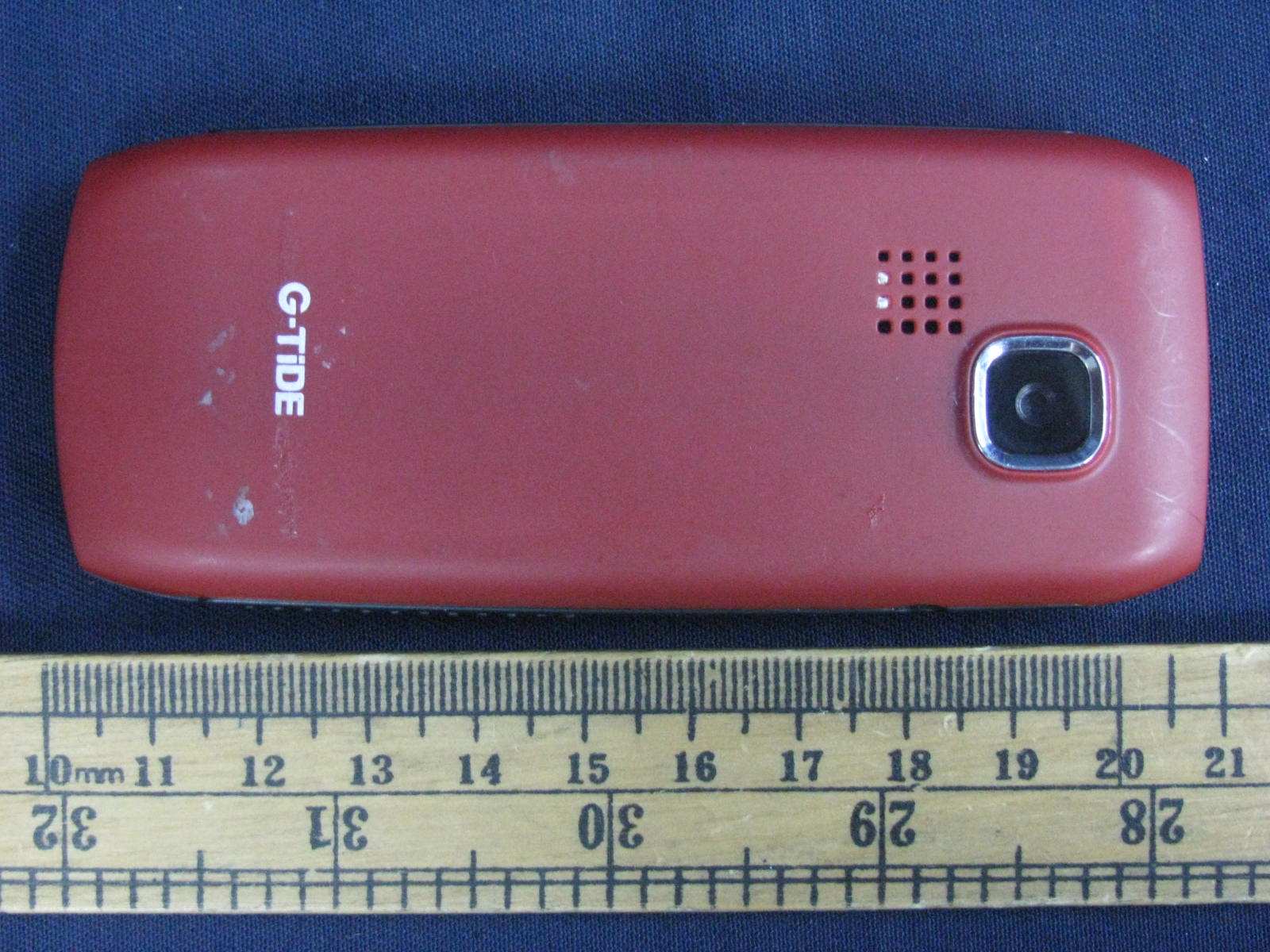

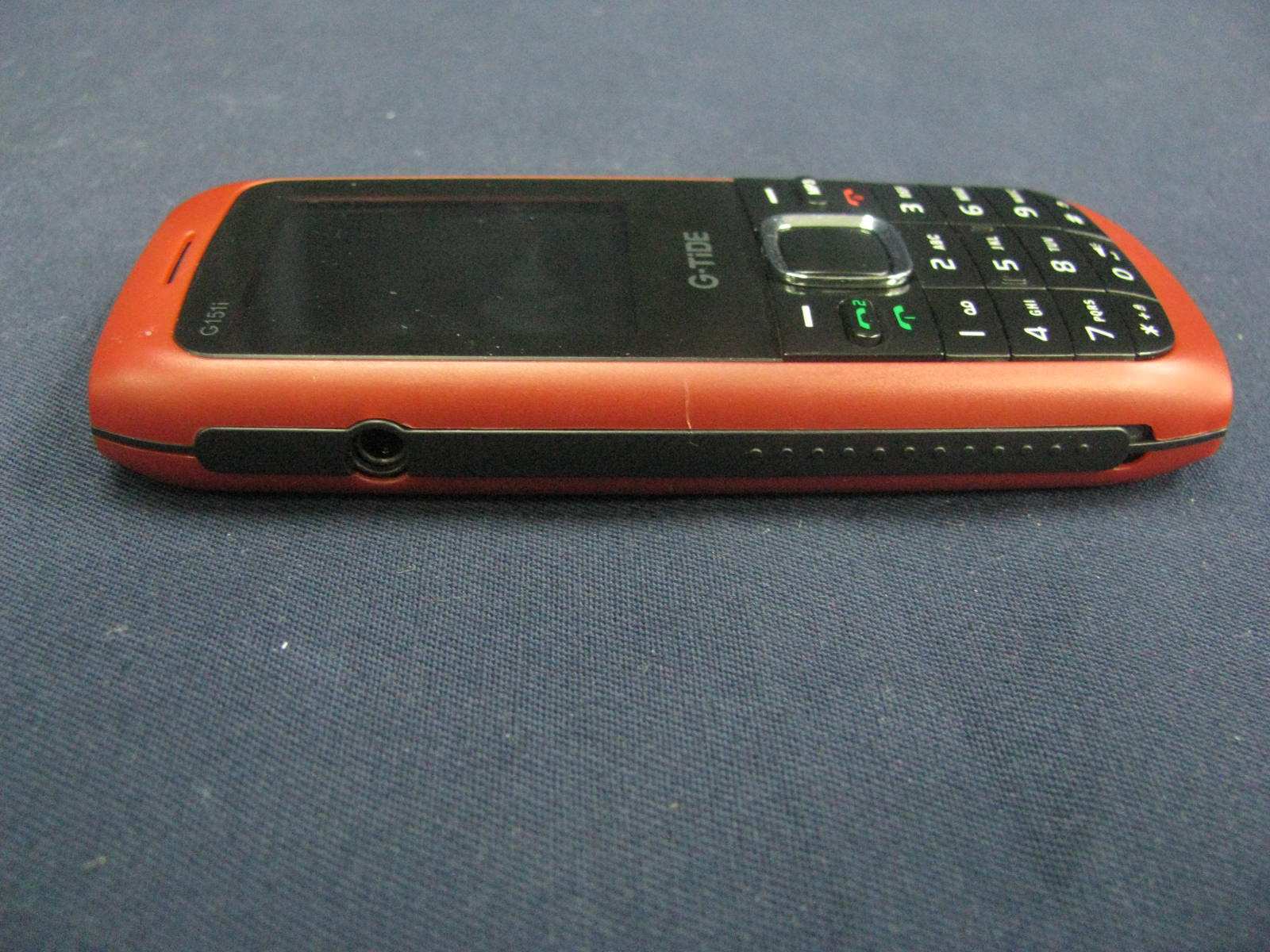

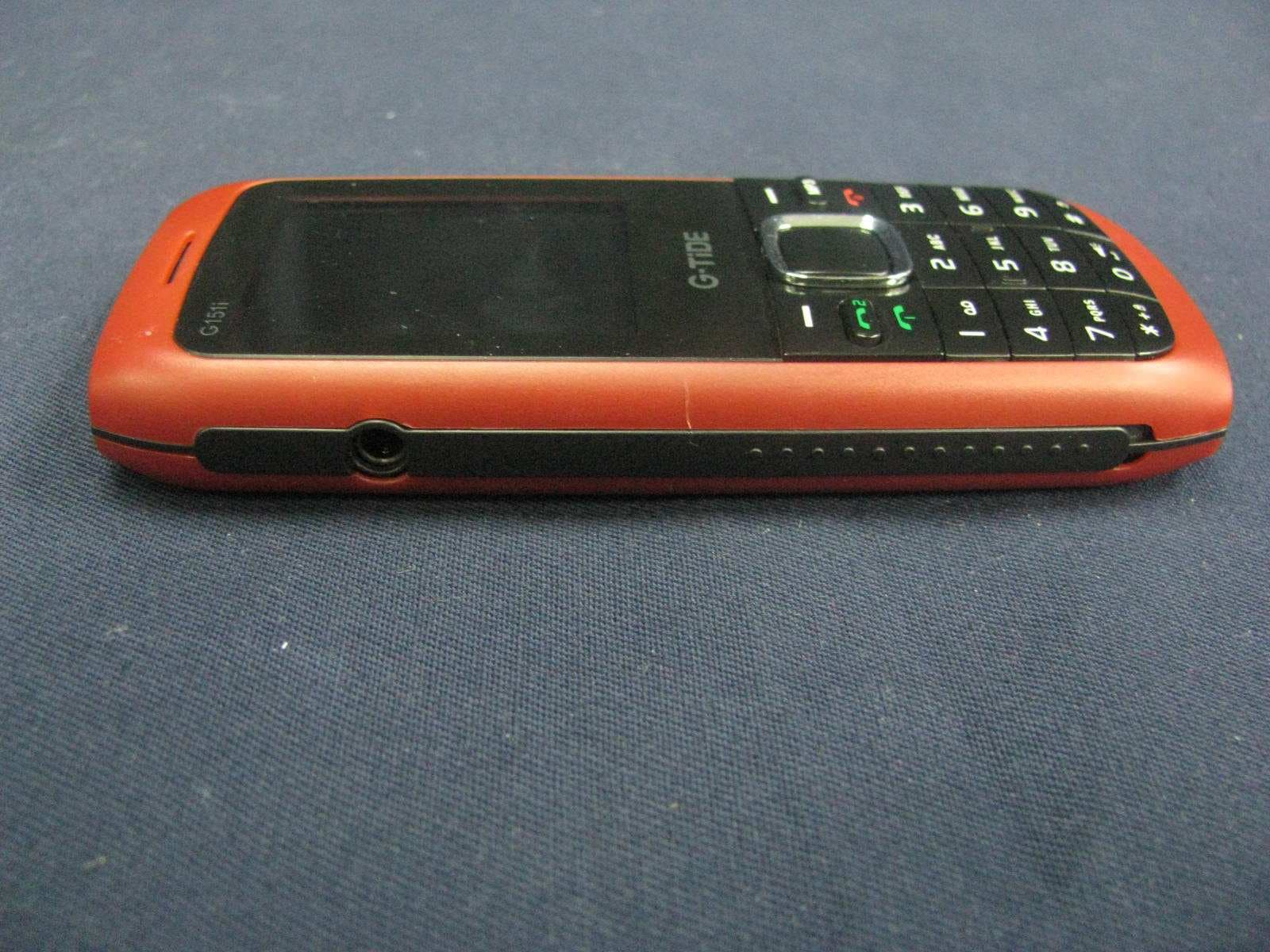

INTERTEK TESTING SERVICES External Photos: INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES

Label artwork and Location Label Size： 17*17mm Label Size： 15*6mm

INTERTEK TESTING SERVICES Internal photos INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES INTERTEK TESTING SERVICES

SAR evaluation considerations for handsets with multiple transmitters and antennas Procedure: FCC KDB 648474 v01r05 SAR evaluation considerations for handsets with multiple transmitters and antennas. Equipment: A mobile phone contains GSM850/1900 transmitter and Bluetooth transmitter with FCC ID YROG151I. Measurement data: The closest distance between the GSM850/1900 antenna and Bluetooth antenna is 33mm. The maximum output power of Bluetooth transmitter is 0.971 mW. The maximum SAR value for GSM850/1900 transmitter is 0.878 W/kg (1-g). Conclusion: Based on the output power of Bluetooth transmitter, antenna separation and the SAR value of GSM850/1900 transmitter, stand-alone Bluetooth SAR evaluation is not required. The sum of 1-g SAR is 0.878 W/kg + 0 W/kg = 0.878 W/kg, which is less than 1.6 W/kg. Therefore, simultaneous transmission SAR evaluation is not required.

Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 1/6 Issue: B Date: 2010/10/05 1 DIPOLE 835 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 2/6 Issue: B Date: 2010/10/05 2 DIPOLE 835 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPC99 OBJECT: COMOSAR IEEE REFERENCE DIPOLE MANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPC99 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 2 3/09/2010 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 3/6 Issue: B Date: 2010/10/05 3 PRODUCT DESCRIPTION Dimension: L=161 mm/ h=89.8mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2010 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 835 MHz head liquid. Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 4/6 Issue: B Date: 2010/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 835 MHz: -24.77 dB. -24,77 -40 -35 -30 -25 -20 -15 -10 -5 0 0,7350,8350,935 Frequency (GHz) S11 (dB) Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 5/6 Issue: B Date: 2010/10/05 5 SAR MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2010 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2009 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2009 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-20 10 Probe SATIMO Bretagne (SN:EP37) CF (30.41,29.18,32.33) Date of calibration: 19-06-2010 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 18 09 08) Head Liquid Values: eps’ : 41,20 sigma : 0,872 Distance between the center of the dipole and the liquid (set with a spacer) 15 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 835 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 6,364 W/Kg + 2,64 % 9,805 W/Kg + 3,21 % Ref: CR-280-3-08-SATB-B COMOSAR Dipole 835 MHz Calibration Report Page: 6/6 Issue: B Date: 2010/10/05 6 SAR MEASUREMENT PLOTS Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 1/26 Issue: A Date: 2010/10/06 1 COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 2/26 Issue: A Date: 2010/10/06 2 COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 12/02/2009 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 24/09/20 10 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 3/26 Issue: A Date: 2010/10/06 3 PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report Page: 4/26 Issue: A Date: 2010/10/06 4 MEASUREMENT PROCEDURE Pr…

Text truncated - open the document above for the full version.

Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 1/6 Issue: B Date: 2010/10/05 1 DIPOLE 1900 MHZ CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO. Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 2/6 Issue: B Date: 2010/10/05 2 D I P O LE 1900 MHz CALIBRATION REPORT DATE: 19/02/2009 REFERENCE: SN 36/08 DIPF102 OBJECT: COMOSAR IEEE REFERENC2E DIPOLE M ANUFACTURER: SATIMO SERIAL NUMBER: SN 36/08 DIPF102 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 23/09/2010 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 3/6 Issue: B Date: 2010/10/05 3 P R O D UCT DESCRIPTION Dimension: L=72 mm/ h=41.7 mm / d=3.6 mm CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION DATE OF CALIBRATION Vector Network Analyzer HP8753D (SN: 5410A08882) 10-05-2010 MEASUREMENT PROCEDURE We placed the dipole under the flat part of SAM phantom fill with 1900 MHz head liquid. Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 4/6 Issue: B Date: 2010/10/05 4 Calibration was performed according to IEEE Std P1528-2003 and OET bulletin 65 Supplement C (Ed. 01-01) VSWR at 1900 MHz: -25.11 dB -25,11 -35 -30 -25 -20 -15 -10 -5 0 1,81,9 2,0 Freq uency (GHz) S11 (dB) Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 5/6 Issue: B Date: 2010/10/05 5 S A R MEASUREMENT EQUIPEMENT Voltmeter Keithley (2000, SN:1000572) Date of calibration: 01-07-2010 Signal generator Rohde&Schwarz (SML_03, SN:101868) Date of calibration: 15-11-2009 Power amplifier Nuclétudes (ALB216, SN:10800) Date of calibration: 24-10-2009 Power meter Rohde&Schwarz (NRVD, SN:101066) Date of calibration: 04-07-2010 Probe SATIMO Bretagne (SN:EP37) CF (35.35,34.93,37.42) Date of calibration: 19-06-2010 SAR MEASUREMENT CONDITION Software OpenSAR V3 Phantom SATIMO Bretagne (SN: SN_20_07_SAM42) Liquid SATIMO Bretagne (Last Calibration: 19 09 08) Head Liquid Values: eps’ : 39,80 sigma : 1,45 Distance between the center of the dipole and the liquid (set with a spacer) 10 mm Area scan resolution dx=8mm/dy=8mm Zoom scan resolution dx=8mm/dy=8m/dz=5mm Frequency 1900 MHz Input power 30 dBm Expanded uncertainty (K=1) 8.09% SAR MEASUREMENT RESULT 10g 1g SAR measured Liquid : HL Input power : 1W 20,16 W/Kg + 1 ,82 % 39,18 W/Kg + 2,83 % Ref: CR-280-5-08-SATB-C COMOSAR Dipole 1900 MHz Calibration Report Page: 6/6 Issue: B Date: 2010/10/05 6 SAR MEASUREMENT PLOTS

SZ11050176S01 Page 2 of 78 DIRECTORY 1. TESTING LABORATORY.......................................................................................................4 1.1. Identification of the Responsible Testing Laboratory.........................................................4 1.2. Identification of the Responsible Testing Location..............................................................4 1.3. Accreditation Certificate........................................................................................................4 1.4. List of Test Equipments..........................................................................................................4 2. TECHNICAL INFORMATION ...............................................................................................5 2.1. Identification of Applicant.....................................................................................................5 2.2. Identification of Manufacturer..............................................................................................5 2.3. Equipment Under Test (EUT)................................................................................................5 2.3.1. Photographs of the EUT..................................................................................................5 2.3.2. Identification of all used EUT.........................................................................................5 2.4. Applied Reference Documents...............................................................................................6 2.5. Device Category and SAR Limits..........................................................................................6 2.6. Test Environment/Conditions................................................................................................7 3. SPECIFIC ABSORPTION RATE (SAR) ................................................................................8 3.1. Introduction.............................................................................................................................8 3.2. SAR Definition.........................................................................................................................8 4. SAR MEASUREMENT SETUP ...............................................................................................9 4.1. The Measurement System......................................................................................................9 4.2. Probe........................................................................................................................................9 4.3. Phantom................................................................................................................................. 11 4.4. Device Holder........................................................................................................................ 11 5. TISSUE SIMULATING LIQUIDS.........................................................................................12 6. UNCERTAINTY ASSESSMENT ...........................................................................................13 6.1. UNCERTAINTY EVALUATION FOR HANDSET SAR TEST......................................13 6.2. UNCERTAINTY FOR SYSTEM PERFORMANCE CHECK........................................14 7. SAR MEASUREMENT EVALUATION ...............................................................................16 7.1. System Setup..........................................................................................................................16 7.2. Validation Results..................................................................................................................16 8. OPERATIONAL CONDITIONS DURING TEST ................................................................17 8.1. Informations on the testing..................................................................................................17 SZ11050176S01 Page 3 of 78 8.2. Measurement procedure.......................................................................................................18 8.3. Description of interpolation/extrapolation scheme............................................................18 9. MEASUREMENT OF CONDUCTED OUTPUT POWER .................................................19 10. TEST RESULTS LIST .............................................................................................................20 ANNEX A ACCREDITATION CERTIFICATE ..........................................................................21 ANNEX B EUT SETUP PHOTOS ................................................................................................22 ANNEX C GRAPH TEST RESULTS ...........................................................................................25 Change History Issue Date Reason for change 1.0 Jun 20, 2011 First edition SZ11050176S01 Page 4 of 78 1. Testing Laboratory 1.1. Identification of the Responsible Testing Laboratory Company Name: Shenzhen Morlab Communications Technology Co., Ltd. Department: Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China Responsible Test Lab Manager: Mr. Shu Luan Telephone: +86 755 86130268 Facsimile: +86 755 86130218 1.2. Identification of the Responsible Testing Location Name: Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory Address: 3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China 1.3. Accreditation Certificate Accredited Testing Laboratory: No. CNAS L3572 (see Annex A) 1.4. List of Test Equipments No. Instrument Type Cal. Date Cal. Due 1 PC Dell (Pentium IV 2.4GHz, SN:X10-23533) (n.a) (n.a) 2 Network Emulator Rohde&Schwarz (CMU200, SN:105894) 2010-9-26 1year 3 Voltmeter Keithley (2000, SN:1000572) 2010-9-24 1year 4 Synthetizer Rohde&Schwarz (SML_03, SN:101868) 2010-9-24 1year 5 Amplifier Nucl udes (ALB216, SN:10800) 2010-9-24 1yea…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES GSM 850 A Offset 10 dB LVL Ref 35 dBm 100 kHz/Center836.6 MHzSpan1 MHz 1 PK VIEW Att 40 dB * * 3DB RBW 3 kHz VBW 10 kHz SWT 115 ms * Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 24.41 dBm 836.617500000 MHz OBW247.500000000 kHz T1 Temp 1 [T1 OBW] 10.53 dBm 836.477500000 MHz T2 Temp 2 [T1 OBW] 9.18 dBm 836.725000000 MHz GSM 1900 A Offset 10 dB LVL Ref 35 dBm 100 kHz/Center1.88 GHzSpan1 MHz 1 PK VIEW Att 40 dB * * 3DB RBW 3 kHz VBW 10 kHz SWT 115 ms * Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 20.98 dBm 1.880022500 GHz OBW245.000000000 kHz T1 Temp 1 [T1 OBW] 7.92 dBm 1.879877500 GHz T2 Temp 2 [T1 OBW] 4.97 dBm 1.880122500 GHz INTERTEK TESTING SERVICES GPRS 850 A Offset 10 dB LVL Ref 35 dBm 100 kHz/Center836.6 MHzSpan1 MHz 1 PK VIEW Att 40 dB * * 3DB RBW 3 kHz VBW 10 kHz SWT 115 ms * Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 25.16 dBm 836.617500000 MHz OBW242.500000000 kHz T1 Temp 1 [T1 OBW] 11.00 dBm 836.480000000 MHz T2 Temp 2 [T1 OBW] 10.01 dBm 836.722500000 MHz GPRS 1900 A Offset 10 dB LVL Ref 35 dBm 100 kHz/Center1.88 GHzSpan1 MHz 1 PK VIEW Att 40 dB * * 3DB RBW 3 kHz VBW 10 kHz SWT 115 ms * Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 20.10 dBm 1.879995000 GHz OBW245.000000000 kHz T1 Temp 1 [T1 OBW] 5.71 dBm 1.879877500 GHz T2 Temp 2 [T1 OBW] 7.83 dBm 1.880122500 GHz

INTERTEK TESTING SERVICES GSM 850 A Offset 10 dB LVL Ref 38 dBmAtt 60 dB 150 kHz/Center824 MHzSpan1.5 MHz * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz 1 PK MAXH Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -13.30 dBm 823.996250000 MHz -13dBmL A Offset 10 dB LVL Att 60 dBRef 38 dBm 150 kHz/Center849 MHzSpan1.5 MHz * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz 1 PK MAXH Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -13.17 dBm 849.026250000 MHz -13dBmL INTERTEK TESTING SERVICES GSM 1900 A Offset 10 dB LVL Att 60 dBRef 38 dBm 150 kHz/Center1.85 GHzSpan1.5 MHz * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz 1 PK VIEW Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -17.88 dBm 1.849970000 GHz -13dBmL A Offset 10 dB LVL Att 60 dBRef 38 dBm 160 kHz/Center1.91 GHzSpan1.6 MHz * 3DB RBW 3 kHz SWT 180 ms * VBW 10 kHz 1 PK VIEW Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -16.32 dBm 1.910020000 GHz -13dBmL INTERTEK TESTING SERVICES GPRS 850 A Offset 10 dB LVL Ref 38 dBmAtt 60 dB 150 kHz/Center824 MHzSpan1.5 MHz * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz 1 PK MAXH Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -13.63 dBm 823.977500000 MHz -13dBmL A Offset 10 dB LVL Att 60 dBRef 38 dBm 150 kHz/Center849 MHzSpan1.5 MHz * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz 1 PK MAXH Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -14.95 dBm 849.003750000 MHz -13dBmL INTERTEK TESTING SERVICES GPRS 1900 A Offset 10 dB LVL Ref 38 dBmAtt 60 dB 150 kHz/Center1.85 GHzSpan1.5 MHz * 3DB RBW 3 kHz SWT 170 ms * VBW 10 kHz 1 PK VIEW Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -16.73 dBm 1.849981250 GHz -13dBmL A Offset 10 dB LVL Att 60 dBRef 38 dBm 160 kHz/Center1.91 GHzSpan1.6 MHz * 3DB RBW 3 kHz SWT 180 ms * VBW 10 kHz 1 PK VIEW Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -18.02 dBm 1.910008000 GHz -13dBmL

INTERTEK TESTING SERVICES GSM 850 A Offset 10 dB LVL Ref 35 dBmAtt 40 dB * 89.9 MHz/Start1 MHzStop900 MHz * 3DB RBW 100 kHz * VBW 300 kHz SWT 90 ms 1 PK MAXH Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 32.68 dBm 837.070000000 MHz -13dBm A Offset 10 dB LVL Ref 35 dBmAtt 40 dB * 820 MHz/Start800 MHzStop9 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 820 ms 1 PK MAXH Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 32.60 dBm 820.500000000 MHz -13dBm INTERTEK TESTING SERVICES GSM 1900 A Offset 10.5 dB LVL Ref 35 dBmAtt 40 dB * 194.9 MHz/Start1 MHzStop1.95 GHz * 3DB RBW 1 MHz * VBW 3 MHz SWT 10 ms 1 PK VIEW Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 28.75 dBm 1.881785000 GHz -13dBm A Offset 10.5 dB LVL Ref 30.5 dBmAtt 30 dB * 1.77 GHz/Start1.8 GHzStop19.5 GHz * * 3DB RBW 1 MHz VBW 3 MHz SWT 360 ms 1 PK MAXH Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 28.90 dBm 1.870800000 GHz -13dBm INTERTEK TESTING SERVICES GPRS 850 A Offset 10 dB LVL Ref 35 dBmAtt 40 dB * 89.9 MHz/Start1 MHzStop900 MHz * 3DB RBW 100 kHz * VBW 300 kHz SWT 90 ms 1 PK MAXH Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 31.85 dBm 837.070000000 MHz -13dBm A Offset 10 dB LVL Ref 35 dBmAtt 40 dB * 820 MHz/Start800 MHzStop9 GHz * * 3DB RBW 100 kHz VBW 300 kHz SWT 820 ms 1 PK MAXH Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 31.70 dBm 820.500000000 MHz -13dBm INTERTEK TESTING SERVICES GPRS 1900 A Offset 10.5 dB LVL Ref 35 dBmAtt 40 dB * 194.9 MHz/Start1 MHzStop1.95 GHz * 3DB RBW 1 MHz * VBW 3 MHz SWT 10 ms 1 PK VIEW Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 28.77 dBm 1.881785000 GHz -13dBm A Offset 10.5 dB LVL Ref 30.5 dBmAtt 30 dB * 1.77 GHz/Start1.8 GHzStop19.5 GHz * * 3DB RBW 1 MHz VBW 3 MHz SWT 360 ms 1 PK MAXH Intertek -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] 28.88 dBm 1.870800000 GHz -13dBm

Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com 16 June, 2011 Z.T.S. International Industrial Co., Ltd. 12 BC, Jinrun Building, Chegongmiao, Shennan Road, Futian, Shenzhen, China Tel.: (86) 755-8709477 Fax: (86) 755-82709446 Dear Mr.Guocai Wu: Enclosed you will find your file copy of an Original Grant of Part 22 and Part 24 Certification report (FCC ID: YROG151I). Model: G151i. For your reference, TCB will normally take another 2 weeks for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Leung Wai Leung, Tommy Deputy General Manager Enclosure Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com List of Exhibits Exhibit Type File Description Filename Test Report Test Report report.pdf Operational Description Technical Description descri.pdf Test Report Bandwidth Plot 99% bw.pdf Test Report Spurious Emissions cspurious.pdf Test Report Bandedge Plot be.pdf RF Exposure Info SAR Report sar report 1 of 3.pdf sar report 2 of 3.pdf sar report 3 of 3.pdf Cover Letter SAR Justification sar justification.pdf External Photos External Photo external photos.pdf Internal Photos Internal Photo internal photos.pdf ID Label/Location Info Label Artwork and Location label.pdf Cover Letter Label Location Justification label justification.pdf Schematics Circuit Diagram circuit.pdf User Manual User Manual manual.pdf Part List/Tune Up Info Tune Up Procedure tuneup.pdf Part List/Tune Up Info Part List partlist.pdf Cover Letter Letter of Agency letter of agency.pdf Cover Letter Confidentiality Request request.pdf • The test results reported in this test report shall refer only to the sample a…
