YS7FC-368MWIRELESS DIGITAL REMOTE CONTROL SWITCH
Zhongshan City Aifeier Electrical Factory
Click to zoom
Application Details
- Equipment Class
- DSC - Part 15 Security/Remote Control Transmitter
- Date of Grant
- Sep 23, 2010
- Application Purpose
- Original Equipment
- Date of Application
- Sep 23, 2010
- Equipment Note
- WIRELESS DIGITAL REMOTE CONTROL SWITCH
- Frequency Range
- 433.92000000 - 433.92000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
Digital wireless remote control switch manual First, the product uses: The digital wireless remote control switch is widely used in multi-tube lamp or light fixture, can choose for different home appliances products, you only need the remote control, can easily master the home electrical appliances or lighting systems. Second, the technical parameters: 1, Voltage: DC12V Battery. 2, the operating frequency: 433.92MHz. 3, Modulation: ASK modulation. 4, Control distance: <20 meters. 5, ambient temperature: -10 ~ +60 . Third Features: 1, using the manual function (wall switch), the time interval of each switch can not exceed 3 seconds. 2, ON, OFF key is fully open, the whole key. FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
External Photos

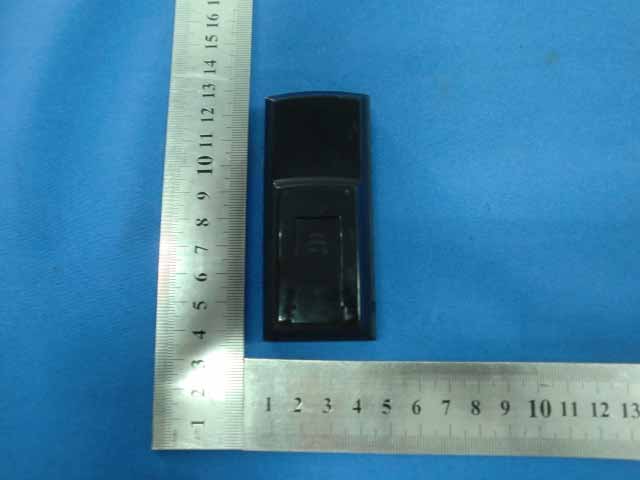

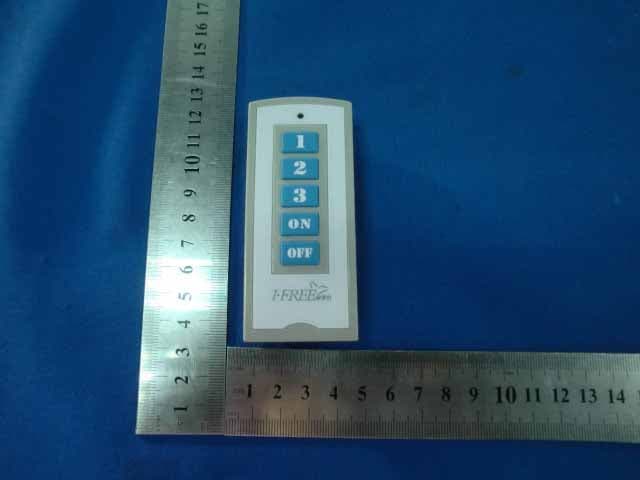

External Photo for model: FC-368M, FC-226, FC-468M, FC-328, FC-338 External Photo for model: FC-368M, FC-226, FC-468M, FC-328, FC-338 External Photo for model: FC-368M, FC-226, FC-468M, FC-328, FC-338
ID Label/Location Info
FCC ID LABEL FCC ID:YS7FC-368M This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location
Internal Photos
Internal Photo for model: FC-368M, FC-226, FC-468M, FC-328, FC-338 Internal Photo for model: FC-368M, FC-226, FC-468M, FC-328, FC-338 Antenna Internal Photo for model: FC-368M, FC-226, FC-468M, FC-328, FC-338 Internal Photo for model: FC-368M, FC-226, FC-468M, FC-328, FC-338
Operational Description
Circuit description Transmitter: Power Supply IC for high frequency power supply circuit and encoding, encoding data IC received a key code, the output of high-frequency signals of different pulse-width modulation circuit by IC sent a signal to be transmitted out. Collection, the 1 group, 2 group, 3 groups, each group separate independent switches. ON, OFF button is fully open, the whole key.
Test Report
FCC PART 15.231 EMI MEASUREMENT AND TEST REPORT For Zhongshan City Aifeier Electrical Factory No.8, Erxiang, A Street, Cross bar arch Road, SanSha Market, Henglan Town, Zhongshan City FCC ID:YS7FC-368M Sep. 17, 2010 This Report Concerns: Original Report Equipment Type Wireless Digital Remote Control Switch Test Engineer: Eric Li Report No.: BST10090770R-3 Receive EUT Date/Test Date: Sep.13,2010/ Sep.13,2010- Sep.17,2010 Reviewed By: Christina Deng Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road,Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. Zhongshan City Aifeier Electrical Factory FCC ID: YS7FC-368M BST FCC ID REPORT : BST10090770R-3 Page 2/15 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL...........................................................................................................................5 4. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 5. TEST EQUIPMENT USED .......................................................................................................7 6. CONDUCTED POWER LINE TEST .......................................................................................8 6.1. Test Equipment .................................................................................................................8 6.2. Test Procedure ..................................................................................................................8 6.3. Test Setup..........................................................................................................................8 6.4. Configurating of the EUT .................................................................................................8 6.5. EUT Operating Condition...............................................................................................10 6.6. Conducted Power line Emission Limits..........................................................................10 6.7. Conducted Power Line Test Result.................................................................................10 7. RADIATION EMISSIONS ......................................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................11 7.5. Radiated Emission Test Result .......................................................................................12 8. 20B BANDWIDTH....................................................................................................................13 8.1. Test Equipment ...............................................................................................................13 8.2. Test Procedure ................................................................................................................13 8.3. FCC 15.231(c) 20B Bandwidth Limit.............................................................................13 8.4. Test Result ......................................................................................................................13 9. DEACTIVATION TESTING...................................................................................................14 9.1. Test Equipment ...............................................................................................................14 9.2. Test Procedure ................................................................................................................14 9.3. Deactivation Requirement ..............................................................................................14 9.4. Test Result ......................................................................................................................14 10. ANTENNA REQUIREMENT .................................................................................................15 10.1. STANDARD APPLICABLE...............................................…
Text truncated - open the document above for the full version.
Contact Information
Applicant
Ruiwen Wu(General Manager)
Test Firm
emitel (Shenzhen) LimitedLouis Lin
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 433.92 MHz - 433.92 MHz | - |
