YS7FC-368MRWIRELESS DIGITAL REMOTE CONTROL SWITCH

Digital wireless remote control switch manual First, the product uses: The digital wireless remote control switch is widely used in multi-tube lamp or light fixture, can choose for different home appliances products, you only need the remote control, can easily master the home electrical appliances or lighting systems. Second, the technical parameters: 1, Input voltage: AC220V ± 10%, 50Hz/60Hz. 2, the output voltage: AC220V ± 10%, 50Hz/60Hz. 3, each load: incandescent ≤ 1000W, energy-saving lamps ≤ 200W. 4, the operating frequency: 433.92MHz. 5, Modulation: ASK modulation. 6, the receiver sensitivity:-103dB. 7, Control distance: <20 meters. 8, ambient temperature: -10 ~ +60 . Third, the installation: Please correct wiring diagram wiring products. Antenna to be straightened. IV Features: 1, using the manual function (wall switch), the time interval of each switch can not exceed 3 seconds. 2, the remote control transmitter 1,2,3 corresponding to the number keys on the receiver 1, group 2, group 3 groups, each group separate independent switch. Anten Black Subsection Switch Black Red 220VAC L N N White Blue yellow FCC NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with fcc’s RF exposure guidelines: This device and its antennas must operate with a separation distance of at least 20cm from all persons.

Drive Control CPU High Frequency Signal Receptor Power Circuit Crystal Oscillator6.7458MHz

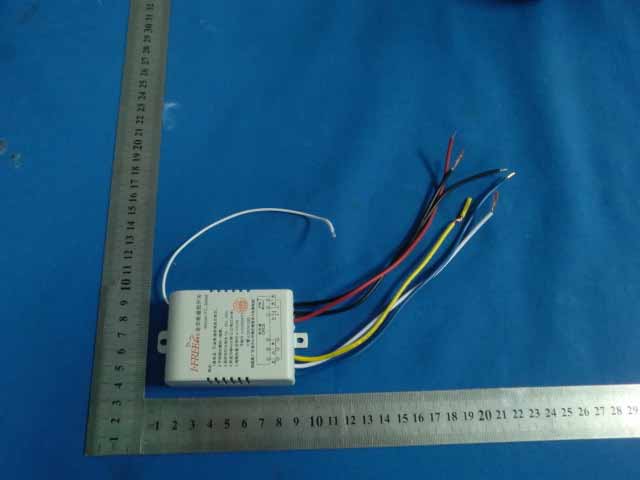

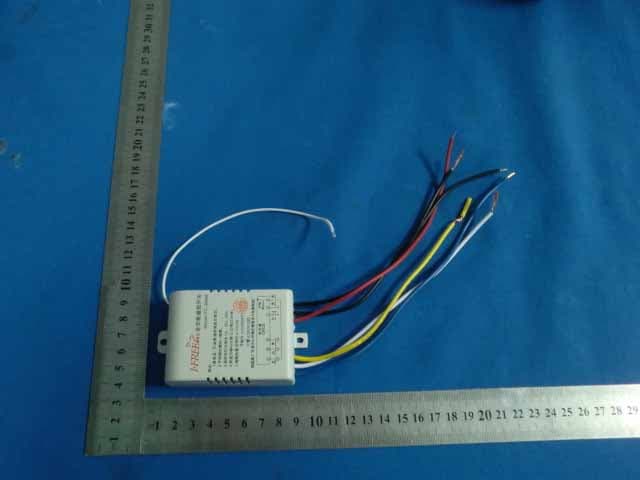

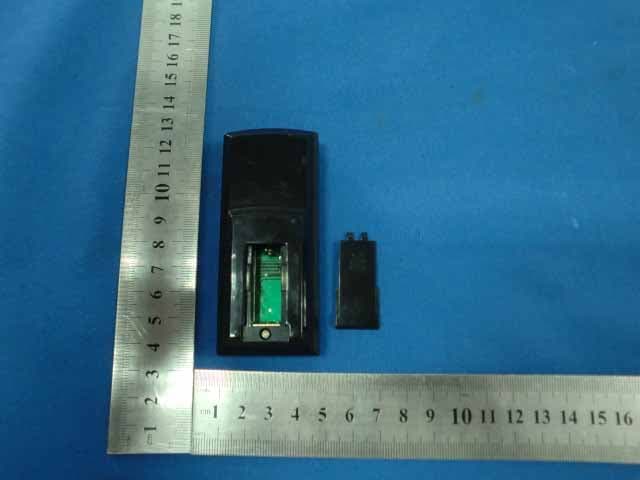

External Photo for model: FC-368M, FC-226, FC-468M, FC-328, FC-338 External Photo for model: FC-368M, FC-226, FC-468M, FC-328, FC-338

FCC ID LABEL FCC ID:YS7FC-368MR This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location

Internal Photo for model: FC-368M, FC-226, FC-468M, FC-328, FC-338 Internal Photo for model: FC-368M, FC-226, FC-468M, FC-328, FC-338 Antenna

Circuit description Receiver: Electricity through the RC filter circuit buck rectifier, regulator circuit to relay through, CPU, high-frequency signal receiver circuitry. CPU is the main control IC, high-frequency receiver to the signal processing, so effective number on the output relays to control high drive lights OFF.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA C2155/400V C11104 C1104 D44007D54007 D74007D64007 220V-N220V-L Q19013 K1 220V-L C7 470U/25V C8 220U/16V R410K R1 10K DV1 11V R6 510K 5V D84148 VCC R775R C9104 OUT2 C3222 C5222 C4222 C6222 DV2 11V R875R DV3 11V R975R DV45.1V R10 470R C10 220U/16V Q39013 K3 220V-L R3 10K OUT3 Q29013 K2 220V-L R2 10K OUT1 1234 5678 U1 单片机 GND DAT DAT VCC ANT J1JST R5 2.2K 5V 1 ANT VCCVCC VCC R1110KR1218K FC-368FCC 原理图 5A/250VFUSE1 D2 4148 D1 4148D3 4148 产品型号产品名称 版本号 日期 制图审核 批准 数码无线遥控开关 FC-368FCC A/0 2010.08.24 李国禾李国禾 L13.5mH CC1 0.1uF/280V
