YS9-PD223TOCCATA BLUETOOTH KEYBOARD CASE

PADACS

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: May 18, 2011
Application Purpose: Original Equipment
Date of Application: May 18, 2011
Equipment Note: TOCCATA BLUETOOTH KEYBOARD CASE
Frequency Range: 2402.00000000 - 2480.00000000
Company: PADACS
Country: Australia

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 5-Jan-2011 Sheet of File: E:\Protel\pr otel\shimy\ 软软软软软 \keyboard.ddbDrawn By: BATTEEYCHARGERBATTEEY 4V DC-DC 3V BCM2042PA_48_V3 CONNECT CONNECT LED POWER LED 3V KEY MATRIX ROW(R0--R7) COL(C0--C7) BATTEEY CHARGER

Cover Letter(s)

PADACS FCC ID: YS9-PD22 3 POWER OF ATTORNEY May 18, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, PADACS, hereby authorize Most Technology Service Co., Ltd. (Terry YANG/ Manager) located at No.5, Langshan 2nd Rd., North Hi-Tech Industrial Park ,Nanshan, Shenzhen, Guangdong ,China on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on May 31 , 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, PADACS are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Name:Raaj Menon Title: CEO Company: PADACS Date: May 18, 2011

External Photos

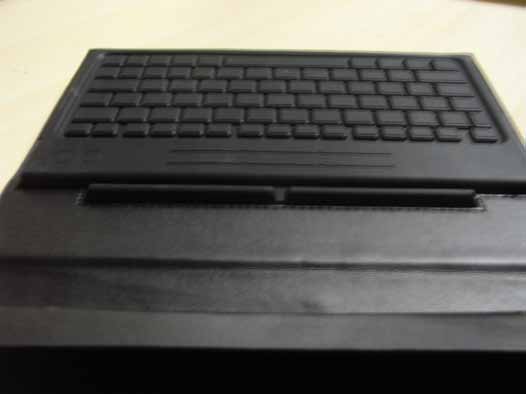

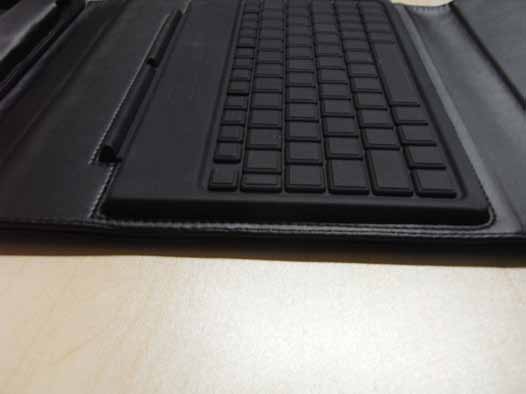

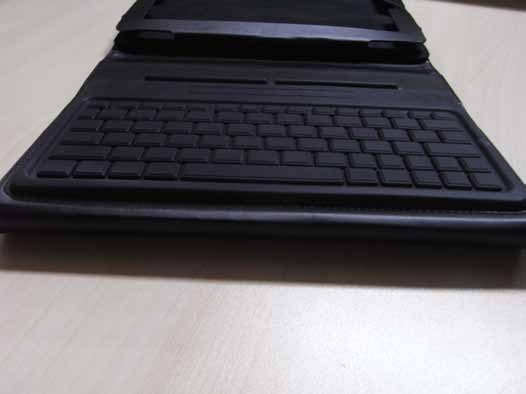

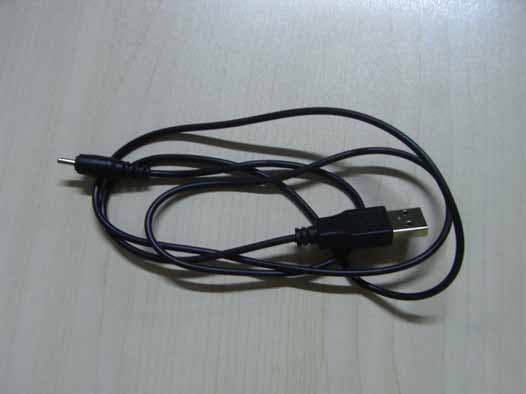

FCC ID: YS9-PD223 Report No.: MOST110425F1 FRONT VIEW OF SAMPLE FCC ID: YS9-PD223 Report No.: MOST110425F1 BACK VIEW OF SAMPLE LEFT VIEW OF EUT FCC ID: YS9-PD223 Report No.: MOST110425F1 RIGHT VIEW OF EUT TOP VIEW OF EUT FCC ID: YS9-PD223 Report No.: MOST110425F1 RIGHT VIEW OF EUT PHOTO OF USB CABLE

ID Label/Location Info

FCC ID Label Sample for FCC ID: YS9-PD223 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

FCC ID: YS9-PD223 Report No.: MOST110425F1 INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE - 2 FCC ID: YS9-PD223 Report No.: MOST110425F1 INTERNAL PHOTO OF SAMPLE - 3 INTERNAL PHOTO OF SAMPLE - 4

Operational Description

APPLICANT: PADACS FCC ID: YS9-PD223 The theory of Bluetooth Keyboard Case PD223: 1. MCU & RF module: responsible for communication with receiver to PC. 2. MCU crystal frequency is 24MHz. 3. RF m odule crystal frequency is 24MHz. 4. Power circuit: to provide steady power to around circuit. 5. LED display: display current state of PD223. 6. The antenna of equipment is on the PCB. 7. The antenna gain is 0dBi.
