YUG-C52001Blue tooth device

• Turn on the ClamCase keyboard before use. ! When in tablet mode, the keyboard automatically turns o to avoid unintentional key strokes. Manual Pairing: On your ClamCase keyboard press and hold the Bluetooth key for 5 seconds. The pairing LED will begin flashing. ClamCase Air Keyboard CutCopyPaste Bluetooth iosMediaVolumeLock Caps Lock Home BatteryBluetooth • Press the battery key. • The LED will flash to indicate battery life. • Press any key to wake your ClamCase from sleep mode. • Turn your ClamCase o and then back on. • Recharge the ClamCase battery. • Re-establish a Bluetooth connection between your ClamCase and iPad. • Verify your iPad’s Bluetooth feature is turned on. Note: The device has no ad-hoc function. This device complies with part 15 of the FCC rules. Operation is subject to th e following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes and modifications to this equipment. Such changes and modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct eth interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. CANADA Industry Canada Statement: This device complies with ICES-003 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Avis d’Industrie Canada: Cet appareil est conforme à la norme ICES-003 des règlements d’Industrie Canada. Son fonctionnement est sujet aux deux conditions suivantes: 1) Cet appareil ne doit pas provoquer d’interférences et 2) Cet appareil doit accepter toutes les interférences, y compris celles pouvant entra?ner son dysfonctionnement. Avis d’Industrie Canada sur l’exposition aux Rayonnements: Cet appareil est conforme aux limites d’exposition aux rayonnements d’Industrie Canada pour un environnement non contr?lé.

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name CLAMCASE, LLC Addresss 7095 HOLLYWOOD BLVD. , SUITE 444, , HOLLYWOOD, CA 90028 , CA request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: YUG -C52001 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) United States 2014-09-30 John Schoenith CEO

Declaration of Authorization We Name: CLAMCASE, LLC Address: 7095 HOLLYWOOD BLVD. , SUITE 444, , HOLLYWOOD, City: Hollywood Country: United States Declare that: Name (Representative Agent): Vita Agent Company name: Shenzhen STS Test Services Co., Ltd. Address: Room 506, Gushu 2nd Road, Xixiang, Baoan District, City: Shenzhen Country: China is authorized to apply for Certification of the following products(s): Product description: Media hub for Android Type Designation – FCC ID: YUG-C52001 IC ID: 9422A-C52001 Trademark: CLAMCASE on our behalf. Date:2014-10-06 Name: John Schoenith Function: CEO Signature:_________________________________ Notes: (1): Required for FCC application. (2): For FCC it must be the Grantee Code “owner” or “authorized agent”.

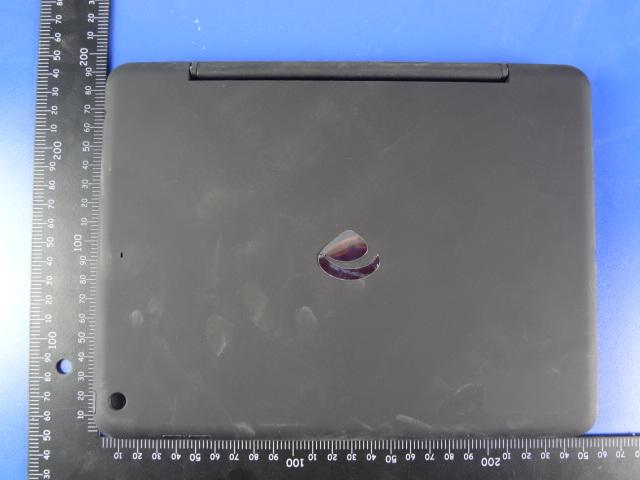

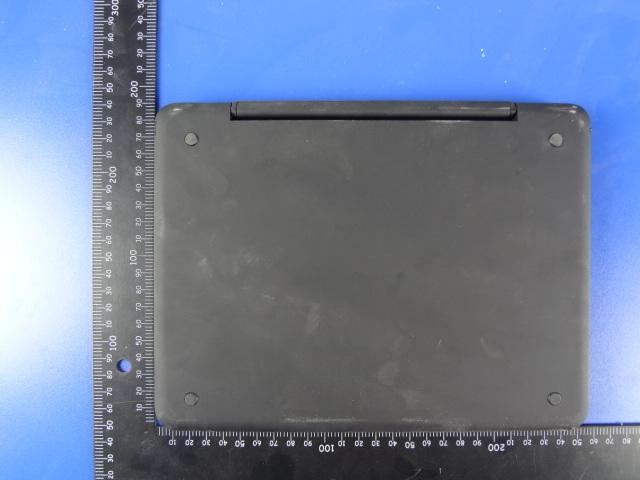

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

IPAD ACCESSORY WITH KB AND BT RADIO Brand name: CLAMCASE Model: C52001 FCC ID: YUG-C52001 IC ID: 9422A-C52001 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label

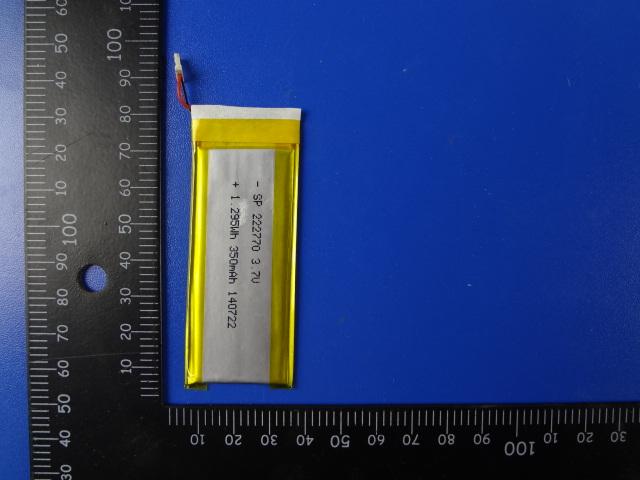

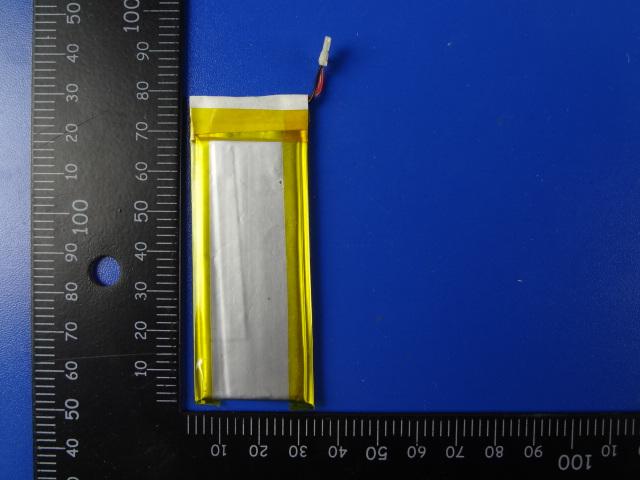

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 BT Antenna Photo 3 Photo 4 BT Antenna

FCC ID : YUG-C52001 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID : YUG-C52001 Maximum measured transmitter power. BT frequency Maximum Peak Conducted Output Power Max Antenna Gain GHz dBm dBi 2.480 -2.014 3.85 Remark: The best case gain of the antenna is 0dBi. 3.85 dBi logarithmic terms convert to numeric result is nearly 2.43 -2.014 dbm=0.629 mw BT: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.629/5*√2.480≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. FCC RADIO TEST REPORT FCC ID: YUG-C52001 IC ID: 9422A-C52001 Of Product Name: IPAD ACCESSORY WITH KB AND BT RADIO Brand Name: CLAMCASE Model No.: C52001 Series Model: N/A Test Report Number: STS1409043F01 Issued for CLAMCASE, LLC 7095 HOLLYWOOD BLVD. , SUITE 444, , HOLLYWOOD, CA 90028 , CA Issued by Shenzhen STS Test Services Co., Ltd. 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 6119 6328 FAX: +86-755 6119 6328 E-mail:[email protected] STSLAB - Radio Test Report Report No.: STS1409043F01 Page 2 of 45 TEST RESULT CERTIFICATION Applicant’s name ................. : CLAMCASE, LLC Address .................................. : 7095 HOLLYWOOD BLVD. , SUITE 444, , HOLLYWOOD, CA 90028 , CA Manufacture's Name ............ : CLAMCASE, LLC Address .................................. : 7095 HOLLYWOOD BLVD. , SUITE 444, , HOLLYWOOD, CA 90028 , CA Product description Product name ...........................: IPAD ACCESSORY WITH KB AND BT RADIO Band name ...............................: CLAMCASE Model and/or type reference .............................. : C52001 Serial Model ........................... : N/A Standards ............................. : FCC Part15.247 Test procedure ............................. : ANSI C63.10-2013 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ......................................... : Date (s) of performance of tests ............ : Sep 21, 2014 ~Sep 27, 2014 Date of Issue ........................................ : Sep 28, 2014 Test Result ........................................... : Pass Testing Engineer : (Tony Liu) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Report No.: STS1409043F01 Page 3 of 45 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESU LTS (ABOVE 1000 MHZ) 24 4. CONDUCTED SPURIOUS EMISSIONS 26 4.1 REQUIREMENT 26 4.1.2 TEST PROCEDURE 26 4.1.2 DEVIATION FROM STANDARD 26 4.1.3 TEST SETUP 26 4.1.4 EUT OPERATION CONDITIONS 26 4.1.5 TEST RESULTS 27 5. NUMBER OF HOPPING CHANNEL 30 5.1 APPLIED PROCEDURES / LIMIT 30 5.1.1 TEST PROCEDURE 30 Report No.: STS1409043F01 Page 4 of 45 Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 30 5.1.3 TEST SETUP 30 5.1.4 EUT OPERATION CONDITIONS 30 5.1.5 TEST RESULTS 31 6. AVERAGE TIME OF OCCUPANCY 32 6.1 APPLIED PROCEDURES / LIMIT 32 6.1.1 TEST PROCEDURE 32 6.1.2 DEVIATION FROM STANDARD 32 6.1.3 TEST SETUP 32 6.1.4 EUT OPERATION CONDITIONS 32 6.1.5 TEST RESULTS 33 7.1 APPLIED PROCEDURES / LIMIT 35 7.1.1 TEST PROCEDURE 35 7.1.2 DEVIATION FROM STANDARD 35 7.1.3 TEST SETUP 35 7.1.4 EUT OPERATION CONDITIONS 35 7.1.4 TEST RESULTS 36 8.1 APPLIED PROCEDURES / LIMIT 38 8.1.1 TEST PROCEDURE 38 8.1.2 DEVIATION FROM STANDARD 38 8.1.3 TEST SETUP 38 8.1.4 EUT OPERATION CONDITIONS 38 8.1.5 TEST RESULTS 39 9. PEAK OUTPUT POWER TEST 41 9.1 APPLIED PROCEDURES / LIMIT 41 9.1.1 TEST PROCEDURE 41 9.1.2 DEVIATION FROM STANDARD 41 9.1.3 TEST SETUP 41 9.1.4 EUT OPERATION CONDITIONS 41 9.1.5 TEST RESULTS 42 10. ANTENNA REQUIREMENT 43 10.1 STANDARD REQUIREMENT 43 10.2 EUT ANTENNA 43 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Report No.: STS1409043F01 Page 5 of 45 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(d) Conducted Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: STS1409043F01 Page 6 of 45 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China FCC Registration No.: 842334 IC Registration No.: 12108A 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Report No.: STS1409043F01 Page 7 of 45 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment IPAD ACCESSORY WITH KB AND B…

Text truncated - open the document above for the full version.

Part 15 C Radiated Measurement Photos Blow 1GHz Above 1GHz Conducted Measurement Photos
