YUQ-YF30MV01CZ Smart

Precautions Précautions Precauciones Vorsichtsmaßnahmen Precauzioni Precauções 注意事项 注意事項 使用上の注意 YF30 SP-FTR6_YF30_�レコーション.indd 1SP-FTR6_YF30_�レコーション.indd 12023/03/15 10:212023/03/15 10:21 SP-FTR6_YF30_�レコーション.indd 2SP-FTR6_YF30_�レコーション.indd 22023/03/15 10:212023/03/15 10:21 1 Engilish ■ MANUFACTURER: CITIZEN WATCH CO., LTD 6-1-12, Tanashi-cho, Nisih-Tokyo-shi, Tok yo 188 - 8511, Japan www.citizenwatch-global.com/support/index.html ■ EUROPEAN AUTHORIZED REPRESENTATIVE: CITIZEN WATCH EUROPE G.M.B.H. Hans-Duncker-Straße 8, D-21035, Hamburg, Germany ■ US AUNTHORIZED REPRESENTATIVE CITIZEN WATCH COMPANY OF AMERICA, INC 350 Fifth Avenue, 29th Floor, New York NY 10118, USA https://www.citizenwatch.com/ Hereinafter, “CITIZEN Group”, “We”, and “we” shall refer to a whole group consisting of Citizen Watch Co., Ltd. and its subsidiaries. SP-FTR6_YF30_�レコーション.indd 1SP-FTR6_YF30_�レコーション.indd 12023/03/15 10:212023/03/15 10:21 2 Water resistance This product has waterproof for use in everyday life. It resists water such as sweat in daily life, splash during face-washing or rain, but it cannot be used under conditions where water pressure largely changes. Water penetration may cause overheating of the battery and result in low temperature burn. Water-related use Minor exposure to water (washing face, rain, etc.)OK Swimming and general washing workNO Skin diving, marine sportsNO Scuba diving using an air tankNO Saturation diving using helium gasNO Operate the crown or button when the watch is wetNO SP-FTR6_YF30_�レコーション.indd 2SP-FTR6_YF30_�レコーション.indd 22023/03/15 10:222023/03/15 10:22 3 SAFETY NOTICES SUMMARY Keep these instructions. • Do not attempt to open, disassemble or tamper with the Product. Substances contained in this product and/or its battery may damage the environment and/or human health if handled and disposed of improperly. • Do not use the Product in circumstances that could cause a dangerous situation, such as using the Product while operating heavy machinery or driving a moving vehicle in a manner that might cause you to take your eyes off the road or become so absorbed in the activity that your ability to concentrate on the act of driving becomes impaired. • Do not expose the Product to extremely high or low temperatures, direct sunlight for an extended period of time, or to high water pressure. • Never allow children to play with the product; the small components may be a choking hazard! • The Product is not intended for use where the failure of the Product could lead to death, personal injury, or severe environmental damage. • Maps, directions, and other GPS or navigation data, including data relating to your current location, may be unavailable, inaccurate, or incomplete. • Do not wear or clean your Product while you are charging it. • Product is capable of producing light and loud noises which may be damaging to eyes and hearing, if used too closely. • In hospitals, clinics or health care facilities, aircraft and areas with potentially explosive atmospheres, including fueling areas, below decks on boats or in facilities where fuel or chemicals are transferred or stored, comply with the SP-FTR6_YF30_�レコーション.indd 3SP-FTR6_YF30_�レコーション.indd 32023/03/15 10:222023/03/15 10:22 4 instructions provided by the relevant personnel. Avoid areas where the air contains chemicals or particles, such as grain, dust, or metal powders. • To avoid radio interference, do not use when in a blasting area or where “two-way radios” or “electronic devices” are in use. • Extended exposure to magnetic sources may cause your product to malfunction. • The product cannot guarantee connection in all conditions, therefore do not solely rely for emergancy calls. IMPORTANT HEALTH PRECAUTIONS Your use of the Product is solely at your own risk. We do not make any representations, warranties or promises about the accuracy, reliability or effectiveness of any of the Product’s functions or services, including without limitation, the number of steps you’ve taken, calories burned, sleep quality or duration, heart rate (if applicable), and other information. The Product is intended to provide a reasonable approximation of information such as pace, steps, calories burned, distance covered, heart rate and sleep. However, the Product relies on the accuracy of the information you input, uses algorithms that are not necessarily perfect and is subject to other factors beyond our control. For instance while the heart rate monitor may typically provide an accurate estimate of a user’s heart rate, there are inherent limitations with the technology that may cause some of the heart rate readings to be inaccurate under certain circumstances, such as the fit of the device, physiology of the user and the type and intensity of the activity. We do not guarantee that the information provided by the Product is 100% accurate. The Product will not precisely track each calorie burned or each step taken, and will not precisely report pace, distance covered, heart rate, or sleep. SP-FTR6_YF30_�レコーション.indd 4SP-FTR6_YF30_�レコーション.indd 42023/03/15 10:222023/03/15 10:22 5 The Product, including its operating system and any heart rate sensors located on the Product (if applicable), is not a medical device and is intended for general wellness/fitness purposes only. It is not designed or intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation, treatment, or prevention of disease. Always seek the advice of a qualified medical professional before starting or making any changes to your exercise, sleep, or nutrition, as doing so may cause severe harm or death. Prolonged rubbing and pressure can irritate the skin. Please take special care to keep the device clean as the combination of sweat and dirt may also cause skin irritation. Product should be kept more than 20cm away from implanted medical devices to minimize potential for RF interference. ■ PERSONS WITH IMPLANTED MEDICAL DEVICES SHOULD: The Product contains components…

Text truncated - open the document above for the full version.

CFR 47 §2.911 (d)(5) Attestation Date: February 17, 2023 FCC ID: YUQ-YF30MV01 To: Federal Communications Commission 45 L Street NE Washington, DC 20554 USA CITIZEN WATCH CO., LTD. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. CITIZEN WATCH CO., LTD. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Fumio Takagi CITIZEN WATCH CO., LTD.

CFR 47 §2.911 (d)(7) Agent Designation Attestation Date: February 17, 2023 FCC ID: YUQ-YF30MV01 To: Federal Communications Commission 45 L Street NE Washington, DC 20554 USA CITIZEN WATCH CO., LTD. (“t he applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. U. S. Agent Information: Contact Person: PETTER YEUNG Company Name: CITIZEN WATCH COMPANY OF AMERICA, INC Company Address: 350 Fifth Avenue, 29th Floor, New York NY 10118, USA Email: [email protected] Sincerely yours, Fumio Takagi CITIZEN WATCH CO., LTD.

Letter of Authorization Date: February 17, 2023 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant: CITIZEN WATCH CO., LTD. FCC ID: YUQ-YF30MV01 To whom it may concern: We, the undersigned, hereby authorize Miki Murasato of Consumer, Medical & Information Technologies Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Fumio Takagi CITIZEN WATCH CO., LTD.

Request for Confidentiality Date: February 17, 2023 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant : CITIZEN WATCH CO., LTD. FCC ID : YUQ-YF30MV01 To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Fumio Takagi CITIZEN WATCH CO., LTD.

Request for Short-Term Confidentiality Date: February 17, 2023 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : YUQ-YF30MV01 Applicant : CITIZEN WATCH CO., LTD. To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization based on the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ Fumio Takagi CITIZEN WATCH CO., LTD.

Special Power of Attorney To whom it may concern: I, Daisuke Iri of CITIZEN WATCH CO., LTD. hereby appoint Fumio Takagi of CITIZEN WATCH CO., LTD. to represent me to act on my behalf to do any and all of the following: Sign the following documents on my behalf and apply to FCC for the products - Letter of agency and anti-drug - Confidentiality cover letters - Any other application document that requires a signature by grantee. The rights, powers and authority in fact to exercise any and all of the rights and powers herein granted shall commence and be in full force and effective from Jan 18, 2023 unless specifically extended or terminated by either party. Date: Jan 18, 2023 Place: Japan Daisuke Iri CITIZEN WATCH CO., LTD.

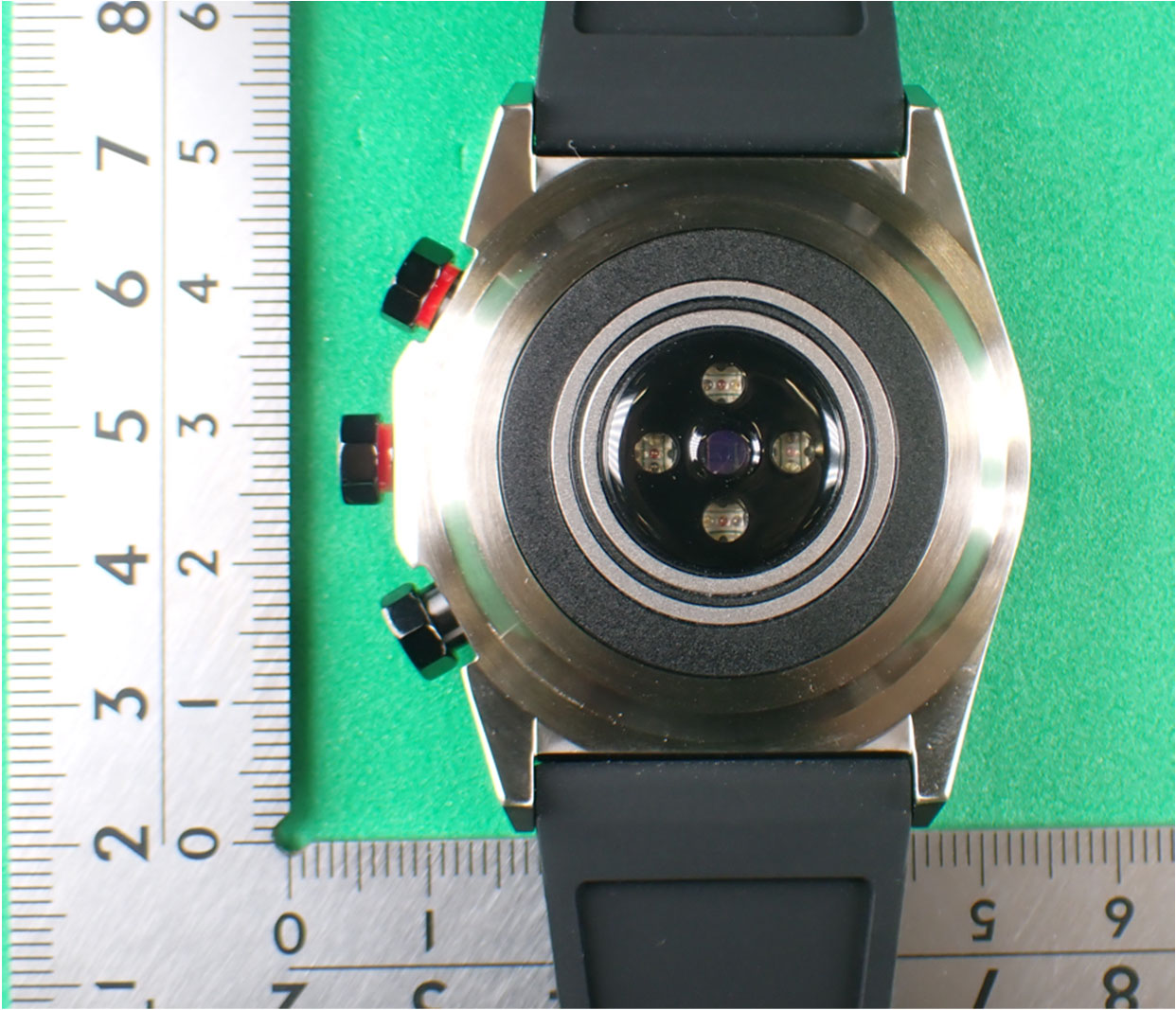

6-1-12, Tanashi-Cho, Nishi-Tokyo-Shi, Tokyo 188-8511, JAPAN Tel: +81-42-468-4910 Fax: +81-42-468-4686 Doc. No. YF30MV-06 Rev.1.0 Date:2022.10.17 External View Front side Back side 6-1-12, Tanashi-Cho, Nishi-Tokyo-Shi, Tokyo 188-8511, JAPAN Tel: +81-42-468-4910 Fax: +81-42-468-4686 Right Side Left Side Top Side Bottom Side *Watch straps are optional accessories.

6-1-12, Tanashi-Cho, Nishi-Tokyo-Shi, Tokyo 188-8511, JAPAN Tel: +81-42-468-4910 Fax: +81-42-468-4686 Doc. No. YF30MV-09 Rev.1.1 Date:2023.03.20 Label View 6-1-12, Tanashi-Cho, Nishi-Tokyo-Shi, Tokyo 188-8511, JAPAN Tel: +81-42-468-4910 Fax: +81-42-468-4686 Label View on E-ink display (Model) FCC/ISED： 日本国電波法： 007-0000000はサンプルの為、認可取得後、正式な認可番号を表示する。 技適マークおよび技適番号の表示手順は、附属書「使用上の注意（9カ国語版）」 34 ページに記載。または、次頁参照のこと。 6-1-12, Tanashi-Cho, Nishi-Tokyo-Shi, Tokyo 188-8511, JAPAN Tel: +81-42-468-4910 Fax: +81-42-468-4686 ・How to display certification number (1) Push 3H button for 3seconds. (2) Setting menu is displayed, then push 4H button, and 3H button. (3) Certification numbers is displayed. (4) Push 4H button, other certification numbers are displayed. 6-1-12, Tanashi-Cho, Nishi-Tokyo-Shi, Tokyo 188-8511, JAPAN Tel: +81-42-468-4910 Fax: +81-42-468-4686 "This device does not require special accessories or supplemental plug-ins to access the information."

6-1-12, Tanashi-Cho, Nishi-Tokyo-Shi, Tokyo 188-8511, JAPAN Tel: +81-42-468-4910 Fax: +81-42-468-4686 Doc. No. YF30MV-07 Rev.1.0 Date:2022.10.17 Internal View φ38.38 mm t=5.84 mm Weight: 7.4g Front Back 6-1-12, Tanashi-Cho, Nishi-Tokyo-Shi, Tokyo 188-8511, JAPAN Tel: +81-42-468-4910 Fax: +81-42-468-4686 The parts related to RF response are composed of surface-mounted, it cannot be easily modified or take apart. Antenna line RF IC (U3) Antenna pattern 6-1-12, Tanashi-Cho, Nishi-Tokyo-Shi, Tokyo 188-8511, JAPAN Tel: +81-42-468-4910 Fax: +81-42-468-4686 TOP BOTTOM RFIC

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 2023/2/17 FCC ID: YUQ-YF30MV01 To whom it may concern, We, UL Japan, Inc., hereby declare that CZ Smart, model : YF30MV-01 (FCC ID: YUQ-YF30MV01) of CITIZEN WATCH CO., LTD. is exempt from RF exposure SAR evaluation with RF Exposure Compliance requirements of the KDB 447498 D01 General RF Exposure Guidance. (It is necessary to comply of FCC section 2.1093 in reality, however, it is exempted by KDB 447498 D01.) KDB 447498D01 has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined by: [(measured maximum average output power(mW))/(Minimum separation distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and < 7.5 for 10g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation) and the measured maximum average output power was 1 mW So for this device: 1 mW [measured maximum average output power] / 5 mm [minimum separation distance] * ( √ 2.48) = 0.3 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Kazutaka Takeyama Leader

This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: ORBHJP-WTW-P21120333 R1Page: 1 of 9Report Format Version 3.0.0 Cancels and replaces report no.: ORBHJP-WTW-P21120333, Dated: March.16, 2022 3D Antenna Measurement Summary Report REPORT NO.: ORBHJP-WTW-P21120333 R1 MODEL NAME:DW14xx TESTED DATE:2022.3.9 ISSUED:2022.5.6 APPLICANT:Fossil Group, Inc. ADDRESS :901 S. Central Expressway, Richardson, Tx 75080, USA MANUFACTURER:Fossil Group, Inc. ISSUED BY:Bureau Veritas Consumer Products Service (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories. ADDRESS:Bureau Veritas Consumer Products Service(Hong Kong) Limited, Taoyuan Branch Mobile Communication Laboratory TEST LOCATION:No.19, Hwa Ya 2nd Rd., Kwei shan Dist., Taoyuan City, Taiwan (R.O.C) This report should not be used by the client to claim product certification, approval, or endorsement by TAF, CTIA or any government agencies.  Report No.: ORBHJP-WTW-P21120333 R1 Page: 2 of 9 Report Format Version 3.0.0 Cancels and replaces report no.: ORBHJP-WTW-P21120333, Dated: March.16, 2022  RELEASE CONTROL RECORD REPORT NO. REASON FOR CHANGE DATE ISSUED ORBHJP-WTW-P21120333 Original release 2022.3.16 ORBHJP-WTW-P21120333 R1 Correct Issued LAB information 2022.5.6 TABLE OF CONTENTS GENERAL INFORMATION ................................................................................................................................. 3 1. Test Equipment List ..................................................................................................................................... 4 2. Measurement Uncertainty .......................................................................................................................... 4 3. Testing Setup Photo ................................................................................................................................... 5 4. Antenna Radiation Performance ................................................................................................................ 5 5. 3D Antenna Patterns .................................................................................................................................. 6 APPENDIX. DUT photographs .......................................................................................................................... 9 Report No.: ORBHJP-WTW-P21120333 R1Page: 3 of 9Report Format Version 3.0.0 Cancels and replaces report no.: ORBHJP-WTW-P21120333, Dated: March.16, 2022 GENERAL INFORMATION APPLICANT:Fossil Group, Inc. MANUFACTURER:Fossil Group, Inc. MODEL NAME:DW14xx Test Standard: ANSI/IEEE Std. 149 1979. PREPARED BY :, DATE :2022.5.6 Leo Chen / Engineer APPROVED BY :, DATE :2022.5.6 Johnny Liu / Supervisor  Report No.: ORBHJP-WTW-P21120333 R1 Page: 4 of 9 Report Format Version 3.0.0 Cancels and replaces report no.: ORBHJP-WTW-P21120333, Dated: March.16, 2022  1. Test Equipment List TYPE OF EQUIPMENT MODEL NUMBER SERIAL NUMBER CALIBRATION DUE DATE ETS Anechoic Chamber AMS-8500 N/A N/A Multi-Axis Positioning System ETS 2090-OPTI N/A N/A Horn Antenna ETS 3164-06 N/A N/A Switch Control Agilent 3499A N/A N/A Network Analyzer E5071C MY46104190 2022/5/30 2. Measurement Uncertainty Expanded Uncertainty for Measurement (k=2 or 95.45% Confidence Level) at Passive antenna test over frequency range:. FREQUENCY RANGE MEASUREMENT UNCERTAINTY 780~2200 MHz 1.57 dB 2200~3000 MHz 1.75 dB 3000~6000 MHz 4.17 dB  Report No.: ORBHJP-WTW-P21120333 R1 Page: 5 of 9 Report Format Version 3.0.0 Cancels and replaces report no.: ORBHJP-WTW-P21120333, Dated: March.16, 2022  3. Testing Setup Photo 4. Antenna Radiation Performance Frequency 2402 2408 2480 Peak Gain (dBi) -2.51 -1.54 -1.15 Average Gain (dBi) -9.76 -8.68 -7.84 Efficiency (%) 10.57 13.56 16.44   Report No.: ORBHJP-WTW-P21120333 R1 Page: 6 of 9 Report Format Version 3.0.0 Cancels and replaces report no.: ORBHJP-WTW-P21120333, Dated: March.16, 2022  5. 3D Antenna Patterns 2402MHz Total Response (dB) -25 0 -20 -15 -10 -5 Y X Z Az i muth = 0. 0 Elevation = 0.0 Roll = 0.0 Total Response (dB) -25 0 -20 -15 -10 -5 Z X Y Azi muth = 180. 0 Elevation = -90.0 Roll = -90.0 Total Response (dB) -25 0 -20 -15 -10 -5 Y Z X Azi muth = 90. 0 Elevation = 0.0 Roll = -90.0  Report No.: ORBHJP-WTW-P21120333 R1 Page: 7 of 9 Report Format Version 3.0.0 Cancels and replaces report no.: ORBHJP-WTW-P21120333, Dated: March.16, 2022  2440MHz Total Response (dB) -30 0 -25 -20 -15 -10 -5 X Y Z Az i muth = 0. 0 Elevation = 0.0 Roll = 0.0 Total Response (dB) -30 0 -25 -20 -15 -10 -5 Z X Y Azi muth = 180. 0 Elevation = -90.0 Roll = -90.0 Total Response (dB) -30 0 -25 -20 -15 -10 -5 Z Y X Azi muth = 90. 0 Elevation = 0.0 Roll = -90.0  Report No.: ORBHJP-WTW-P21120333 R1 Page: 8 of 9 Report Format Version 3.0.0 Cancels and r…

Text truncated - open the document above for the full version.

Test Report No. : 14488012S-A-R1 Page : 1 of 38 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 RADIO TEST REPORT Test Report No. 14488012S-A-R1 Customer CITIZEN WATCH CO., LTD. Description of EUT CZ Smart Model Number of EUT YF30MV-01 FCC ID YUQ-YF30MV01 Test Regulation FCC Part 15 Subpart C Test Result Complied (Refer to SECTION 3) Issue Date February 17, 2023 Remarks- Representative Test Engineer Approved By Yohsuke Matsuzawa Engineer Kazutaka Takeyama Leader CERTIFICATE 1266.03 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cov er Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 21.0 Test Report No. : 14488012S-A-R1 Page : 2 of 38 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 14488012S-A This report is a revised version of 14488012S-A. 14488012S-A is replaced with this repor t. Revision Test Report No. Date Page Revised Contents - (Ori ginal) 14488012S-A December 28, 2022 - 1 14488012S-A-R1 February 17, 2023 Correction of “Description of EUT” (P.1, P.5, P.10, P.11) From: H ybrid Smart Watch To: CZ Smart  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio tes t related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc. Shonan EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided from the custome r for this report is identified in Section 1.  For test report(s) referred in this report, the latest version (includin g any revisions) is always referred. Test Report No. : 14488012S-A-R1 Page : 3 of 38 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics En gineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Develo pment Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technolo gy BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectriques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Vert. Vertical Hori. Horizontal WLAN Wireless LAN Test Report No. : 14488012S-A-R1 Page : 4 of 38 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 CONTENTS PAGE SECTION 1: Customer Information ...................................................................................................... 5 SECTION 2: Equipment Under Test (EUT) .......................................................................................... 5 SECTION 3: Test Specification, Procedures & Results ....................................................................... 6 SECTION 4: Operation of EUT during testing ..................................................................................... 9 SECTION 5: …

Text truncated - open the document above for the full version.

Test Report No. : 14488012S-A-R1 Page : 35 of 38 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 APPENDIX 3: Photographs of Test Setup Conducted Emission Front Side Test Report No. : 14488012S-A-R1 Page : 36 of 38 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Radiated Spurious Emission Front Rear (Below 1 GHz) Rear (Above 1 GHz) Test Report No. : 14488012S-A-R1 Page : 37 of 38 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Pre-check of Worst Case Position X-axis Y-axis Z-axis Test Report No. : 14488012S-A-R1 Page : 38 of 38 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Antenna Terminal Conducted Tests Photo 1 Photo 2 End of Report
