YVDRSU3Asset Tracking Equipment

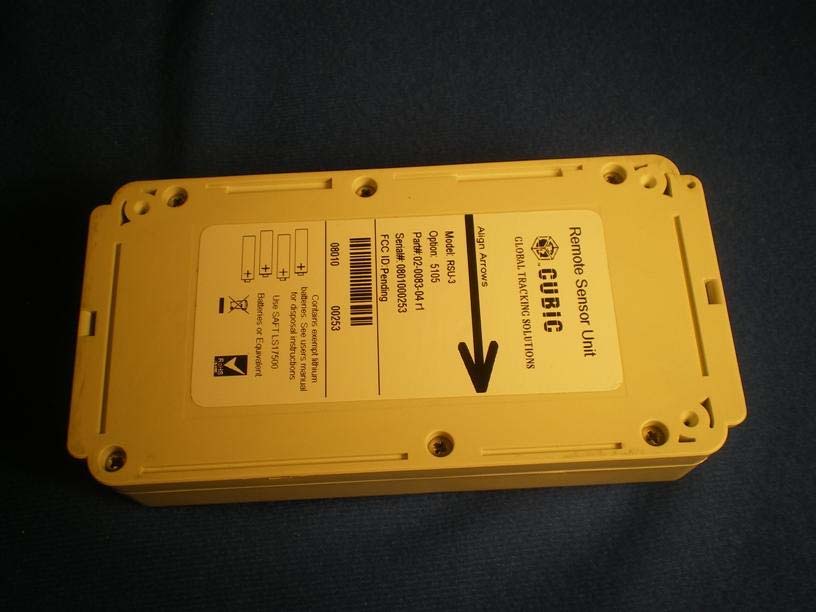

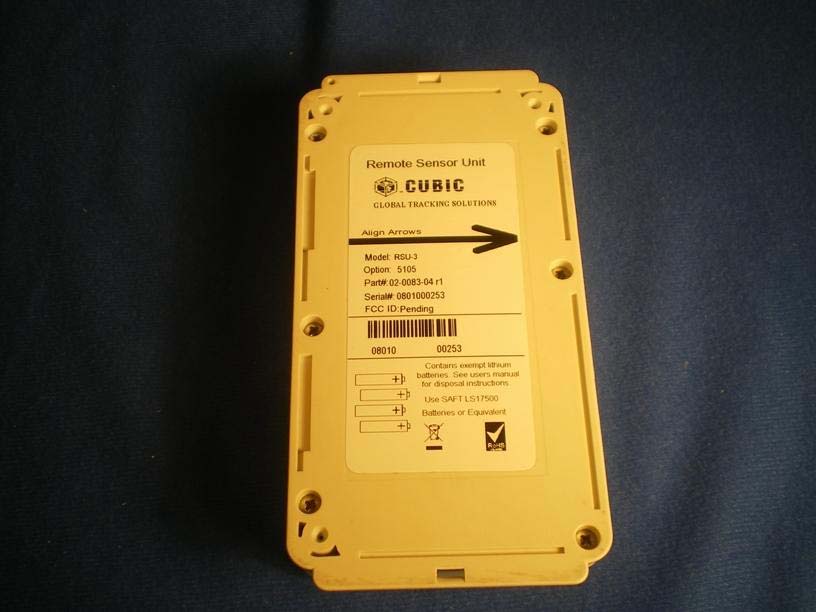

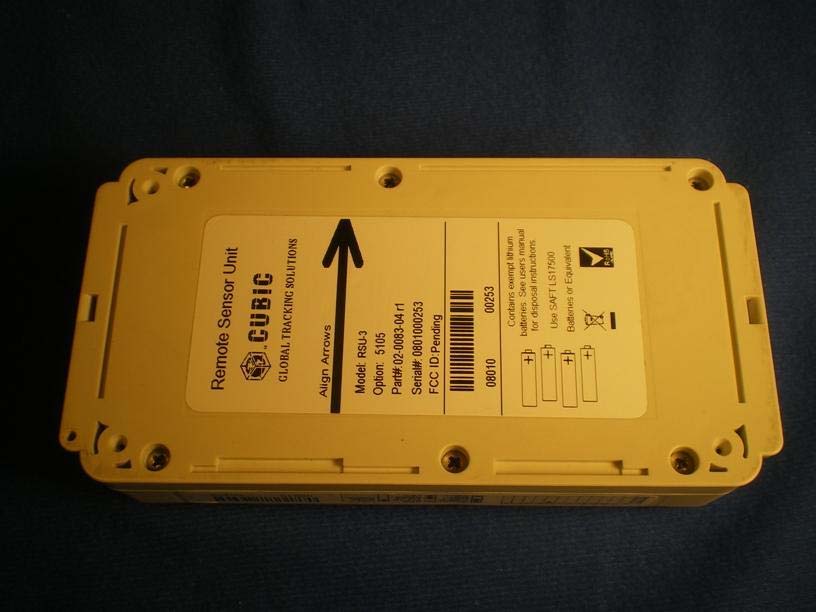

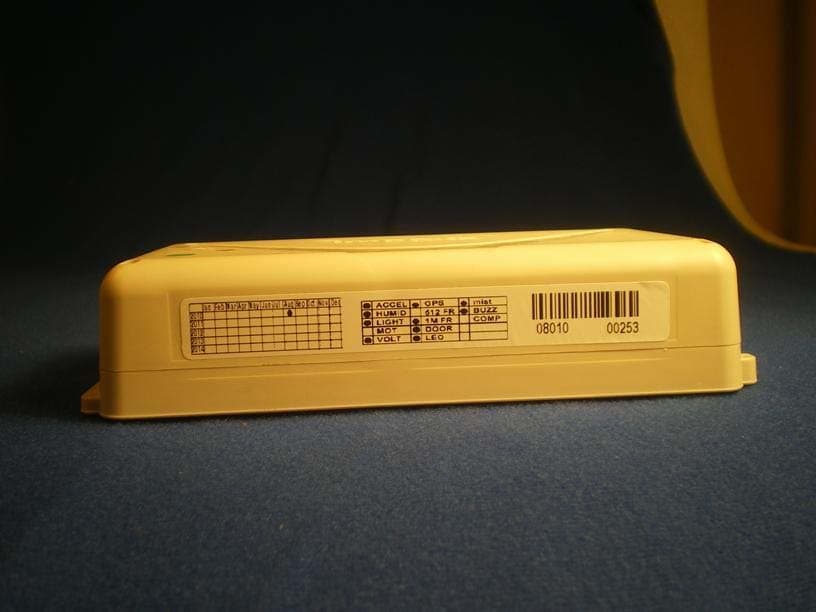

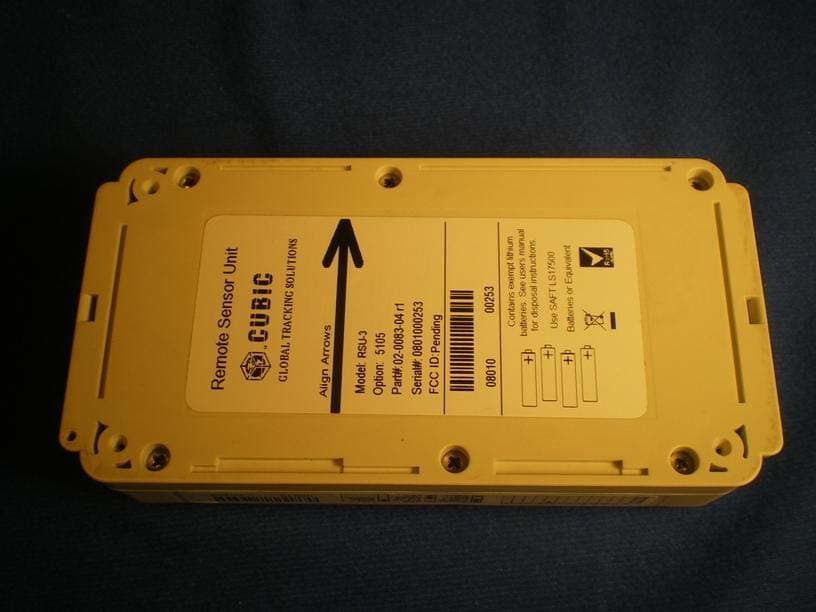

RSU-3 User Guide November 14, 2010 Cubic Global Tracking Solutions 2570 West El Camino Real, Suite 100 Mountain View, CA 94040 USA http://www.impeva.com Copyright © 2010 by Cubic GTS 2 RSU-3 User Guide Cubic GTS Proprietary and Company Confidential Information Notice of Ownership Use of this information shall be limited to persons having a need to know, within the appropriate project organizations, as defined within the nondisclosure agreement (NDA) between Cubic Global Tracking Solutions and its customers. Disclosure of the material in this document to outside organizations shall only be made with the written consent of an authorized Cubic GTS corporate officer. This document contains information that is considered proprietary and confidential to Cubic Global Tracking Solutions (CGTS). No information contained in this document may be released, re-printed, or redistributed without the permission of CGTS. The information contained in this document is subject to change without notice. If you have questions or comments about this document, please direct them to [email protected]. Copyright © 2010 by Cubic GTS Revision History Revision Date Author(s) Notes 1.0 11/14/10 Bryan Shah Initial release. Copyright © 2009-2010 by Cubic GTS RSU-3 User Guide 3 Cubic GTS Proprietary and Company Confidential Information 1 Table of Contents 2 REGULATORY COMPLIANCE ........................................................................................................ 4 3 INTRODUCTION TO THE CGTS MESH NETWORK ................................................................. 5 3.1 REMOTE SENSOR UNIT.............................................................................................................................. 5 3.2 CGTS MESH NETWORK OVERVIEW ......................................................................................................... 5 3.3 THE DEVICE MANAGEMENT CENTER ..................................................................................................... 5 3.4 CGTS MESH NETWORK OPERATION ....................................................................................................... 5 3.4.1 RSU Network Processes ......................................................................................................................... 6 4 REMOTE SENSOR UNIT .................................................................................................................. 7 4.1 RSU .............................................................................................................................................................. 7 4.2 RSU LEDS ................................................................................................................................................... 7 4.3 RSU SAMPLING AND REPORTING BEHAVIOR ........................................................................................ 7 4.4 INSTALLING A RSU .................................................................................................................................... 8 4.5 CONFIGURING A RSU ................................................................................................................................. 8 4.6 MAINTAINING A RSU................................................................................................................................. 8 4.6.1 Replacing a RSU Battery ....................................................................................................................... 8 4.7 RSU 2.4GHZ ANTENNA PATTERN ......................................................................................................... 8 4.8 RSU SENSOR CHARACTERISTICS ............................................................................................................. 9 Copyright © 2010 by Cubic GTS 4 RSU-3 User Guide Cubic GTS Proprietary and Company Confidential Information 2 Regulatory Compliance FCC STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. Changes or modifications not expressly approved by Cubic Global Tracking Solutions for compliance could void the user’s authority to operate the equipment. EUROPEAN UNION: This product complies with the R&TTE Directive and the EMC Directive (89/336/EEC) issued by the Commission of the European Community This product has been tested to verify compliance to the following European Standards: EN 300 328 – Technical Requirements for Radio Equipment EN 301 489 –EMC Emissions and Immunity INDUSTRY CANADA: This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Copyright © 2009-2010 by Cubic GTS RSU-3 User Guide 5 Cubic GTS Proprietary and Company Confidential Information 3 Introduction to the CGTS mesh network The CGTS mesh network enables end-to-end security and management of your mobile assets through continuous monitoring and near real-time reporting. Cubic GTS designed the Next Generation Wireless Communication for Logistics Applications (NGWC) mesh network to meet the U.S. Army NGWC requirements. The Overview section explains the CGTS mesh network operation. 3.1 Remote Sensor Unit The Remote Sensor Unit (RSU) provides identification, security and sensor monitoring. The remote sensor can measure temperature, humidity, motion, light, battery charge, shock, and door state. A RSU al…

Text truncated - open the document above for the full version.

11/12/2010 Title: RSB Antenna Pattern Free Air 4 Batteries Author: Daniel Bartlett Doc Num: 6709021v1 Elevation Plane Phi=0 Elevation Plane Phi=90 Normalized to Max signal From all orientations 11/12/2010 Title: RSB Antenna Pattern Free Air 4 Batteries Author: Daniel Bartlett Doc Num: 6709021v1 Elevation Plane Phi=0 Elevation Plane Phi=90 Normalized to Max signal From individual orientation

Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2400-2483.5 MHz; highest field strength Measured = 97.28 dBuV/m, therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 1 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (41.4mW) G = Antenna Gain (63.1 numeric) S = (1.27*1.2589/ 4*400) = 0.0031807 mW/cm2

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory February 9, 2011 Cubic Global Tracking Solutions 2570 W El Camino Real Suite 100 Mountain View, CA 94040-1309 Dear Bryan Shah, Enclosed is the EMC Wireless test report for compliance testing of the Cubic Global Tracking Solutions, RSU- 3 as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class B Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 7, June 2007 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Cubic Global Tracking Solutions\EMC82776A-FCC247 Rev. 2) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Cubic Global Tracking Solutions Cover Page RSU-3 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMC82776A-FCC247 Rev. 2 © 2011, MET Laboratories, Inc. Page ii of viii DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Cubic Global Tracking Solutions RSU-3 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMC82776A-FCC247 Rev. 2 February 9, 2011 Prepared For: Cubic Global Tracking Solutions 2570 W El Camino Real Suite 100 Mountain View, CA 94040-1309 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave Baltimore, MD 21230 Electromagnetic Compatibility Cubic Global Tracking Solutions Cover Page RSU-3 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMC82776A-FCC247 Rev. 2 © 2011, MET Laboratories, Inc. Page iii of viii DOC-EMC702 2/18/2010 Electromagnetic Compatibility Criteria Test Report for the Cubic Global Tracking Solutions Minifly2 – Bluetooth, Model: AB185 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Manasi Bhandiwad, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Cubic Global Tracking Solutions Report Status RSU-3 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMC82776A-FCC247 Rev. 2 © 2011, MET Laboratories, Inc. Page iv of viii DOC-EMC702 2/18/2010 Report Status Sheet Revision Report Date Reason for Revision  December 30, 2010 Initial Issue. 1 January 3, 2011 Revised to reflect customer corrections. 2 February 9, 2011 Revised to reflect engineer corrections. Electromagnetic Compatibility Cubic Global Tracking Solutions Table of Contents RSU-3 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMC82776A-FCC247 Rev. 2 © 2011, MET Laboratories, Inc. Page v of viii DOC-EMC702 2/18/2010 Table of Contents I. Executive Summary ................................................................................................................................................. 1 A. Purpose of Test ................................................................................................................................................... 2 B. Executive Summary ............................................................................................................................................ 2 II. Equipment Configuration ....................................................................................................................................... 3 A. Overview ............................................................................................................................................................. 4 B. References ........................................................................................................................................................... 5 C. Test Site .............................................................................................................................................................. 5 D. Description of Test Sample ................................................................................................................................. 6 E. Equipment Configuration .................................................................................................................................... 7 F. Support Equipment .............................................................................................................................…

Text truncated - open the document above for the full version.

Photograph 1. Radiated Emission, Test Setup Photograph 2. Radiated Spurious Emissions, Test Setup 1 Photograph 3. Radiated Spurious Emissions, Test Setup 2
