YVJSL24CFL

User Manual Dear Customer, Thank you for buying ZHEJIANG Joinan Lighting CO., LTD (ZHEJIANG JIUYang PHOTOELECTRIC CO.,LTD )CFL. Please read carefully the product instruction before using! The models of use only on 120 volt, 60Hz circuit. The wattage marked on the lamp. And the operating Frequency is more than 50kHz and less than 60kHz Features Energy Saves up to 75% compared to common incandescent Lamps One years limited warrant; Rapid on/off with silent operation; Reduces Carbon Dioxide Electromagnetic Volume Consumes natural resources Generate less heat in the building Note & Attention Always turn-off power before re-lamping; Avoid installing lamp by gripping the glass tube; Do not use with electronic timers Reliable operating temperature -15°C~50°C Not suitable for damp surroundings or sealed occasions Risk of electric shock-use in dry locations For best result use in proper voltage range as mentioned on lamp base Applications: Home, Office, Hotel, Shop, Restaurant...and so on lighting Warning: For use in 120V/60HZ circuits only. Do not expose to moisture or water. Not for use in totally enclosed recessed luminaries. Do not open-no user-serviceable parts inside. Do not use with dimmer. To install or remove, handle bulb by grasping base--Do not grasp glass portion. This bulb is not intended for use with:emergency Exit Fixtures or Emergency Exit Lights,Photocells,and electronic timers. And enclosed fixtures is required for outdoor use. Optimum operating temperatures -18'C (-15'F) to 50'C (122'F). Starting temperature -18'C (-15'F). This bulb complies with Part 18 of FCC Rules (ICES-005 CLASS B),but may cause interference to radios,Tvs,Wireless phones and Remote controls. If interference occurs,Move Bulb away from affected device, or plug device into another outlet. Do not install this product near maritime safety equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. FCC Information 1.This device complies with Part 18 of the FCC Rules. 2.Information on the following matters shall be provided to the user in the Instruction manual: (a) The interference potential of the device or system; (b) Maintenance of the system; (c) Simple measures that can be taken by the user to correct interference; (d) Manufacturers of RF lighting devices must provide an advisory statement, either on the product packaging or with other user documentation, similar to the following: This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating is between 0.43kHz and 30kHz. Variations of this language are permitted provided all the points of the statement are addressed SL24 and may be presented in any legible font or text style. . CORRECT WAY WRONG WAY (JUST GRASP BASE PLASTIC PART) (DO NOT GRASP GLASS PART) Don't TOUCH GLASS AND BASE HEAD.

Company: Zhejiang Joinan Lighting Co., LTD Address: 18 XINGGONG 7TH RD SHANGYU TOWN JIANGSHAN,ZHEJIANG,CHINA Tel: +86-570-4352051 Fax: +86-570-4352000 FCC Confidential Authorization Date: 2012-8-13 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: YVJSL24 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Detailed Circuit Schematics of EUT--- (Long term) ƒ Block Diagram--- (Long term) ƒ Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Title: Manager Typed or Printed Name: Zhixiong Shao

Company: Zhejiang Joinan Lighting Co., LTD Address: 18 XINGGONG 7TH RD SHANGYU TOWN JIANGSHAN,ZHEJIANG,CHINA Tel: +86-570-4352051 Fax: +86-570-4352000 FCC Authorization Date: 2012-8-13 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Zhejiang Joinan Lighting Co., LTD , the undersigned, Hereby authorizes Bay Area Compliance Laboratory Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Typed or Printed Name: Title: Engineer Zhixiong Shao ,

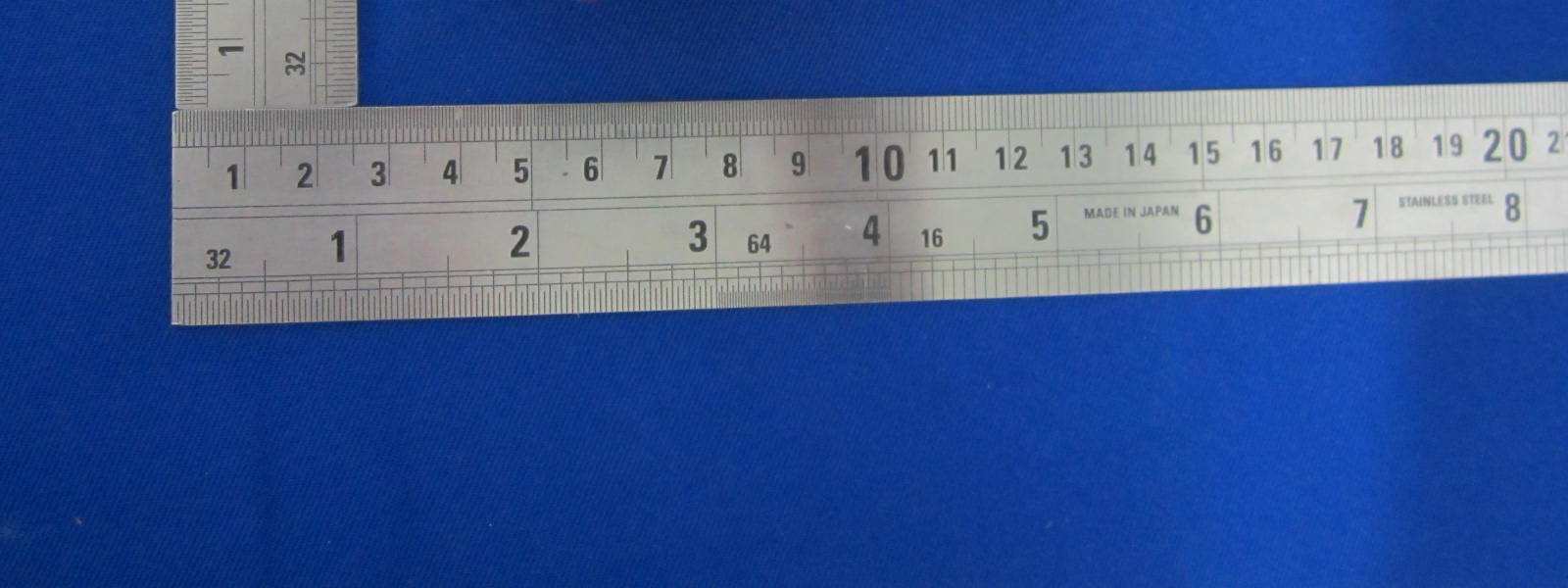

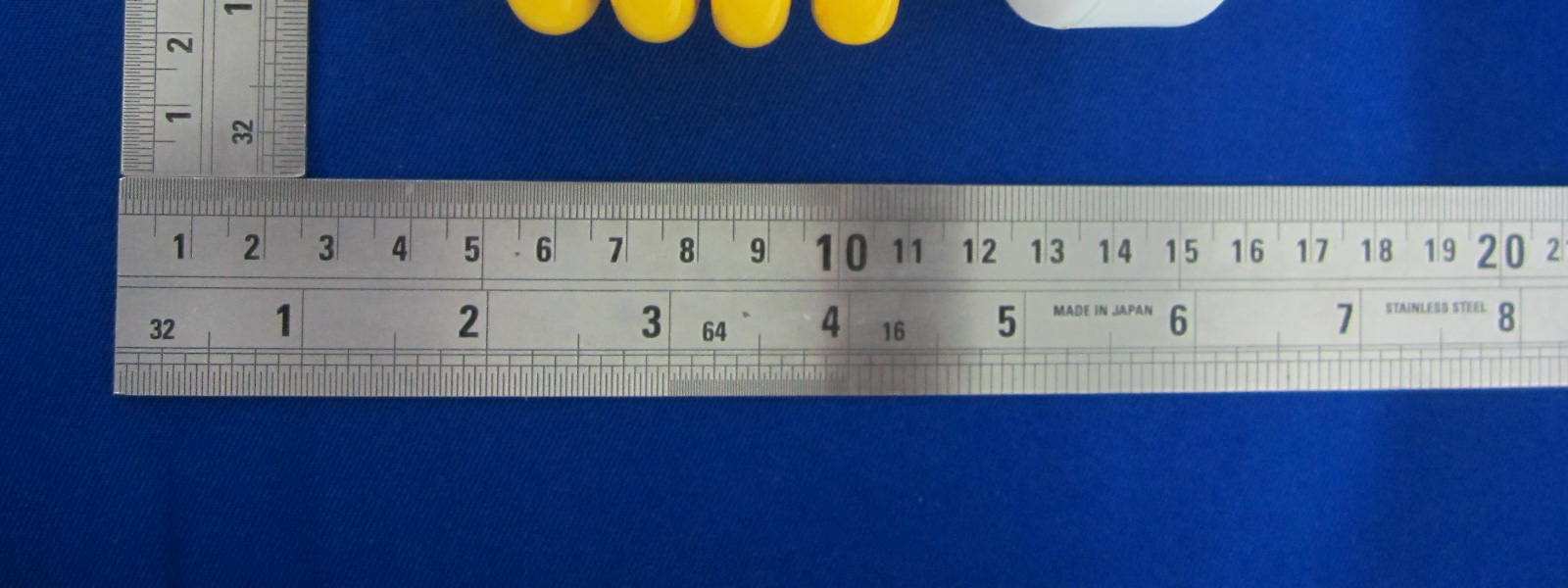

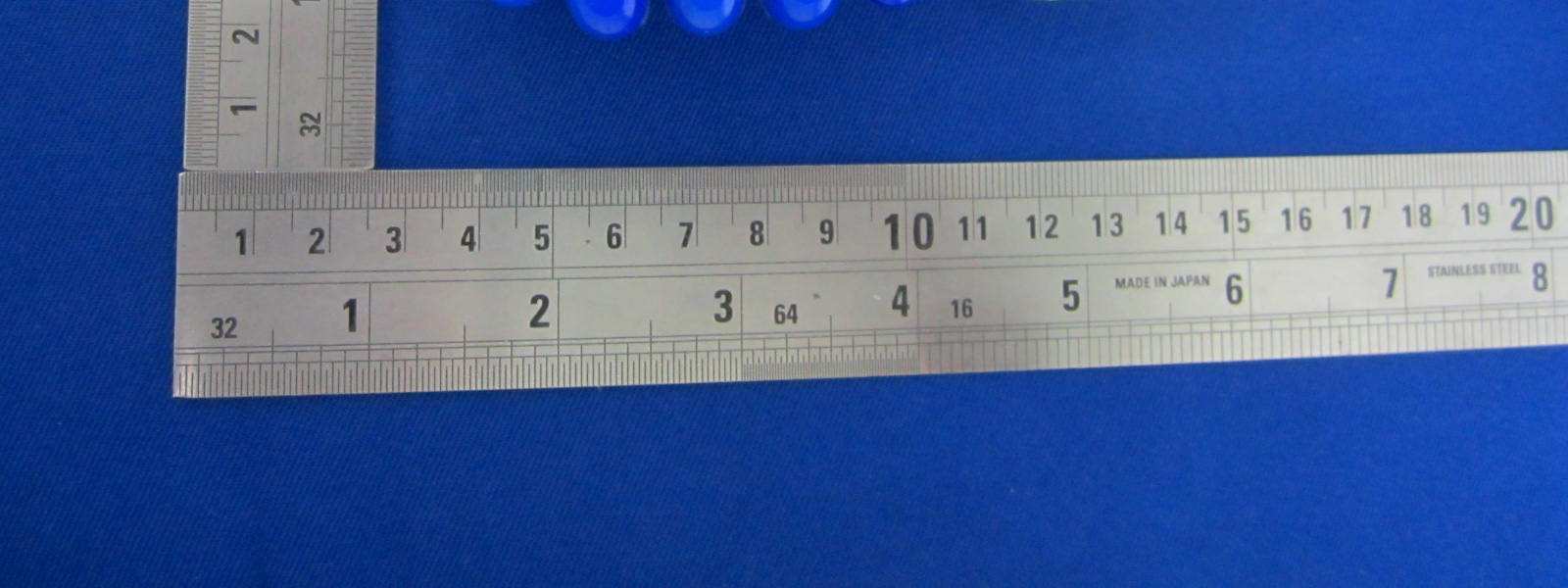

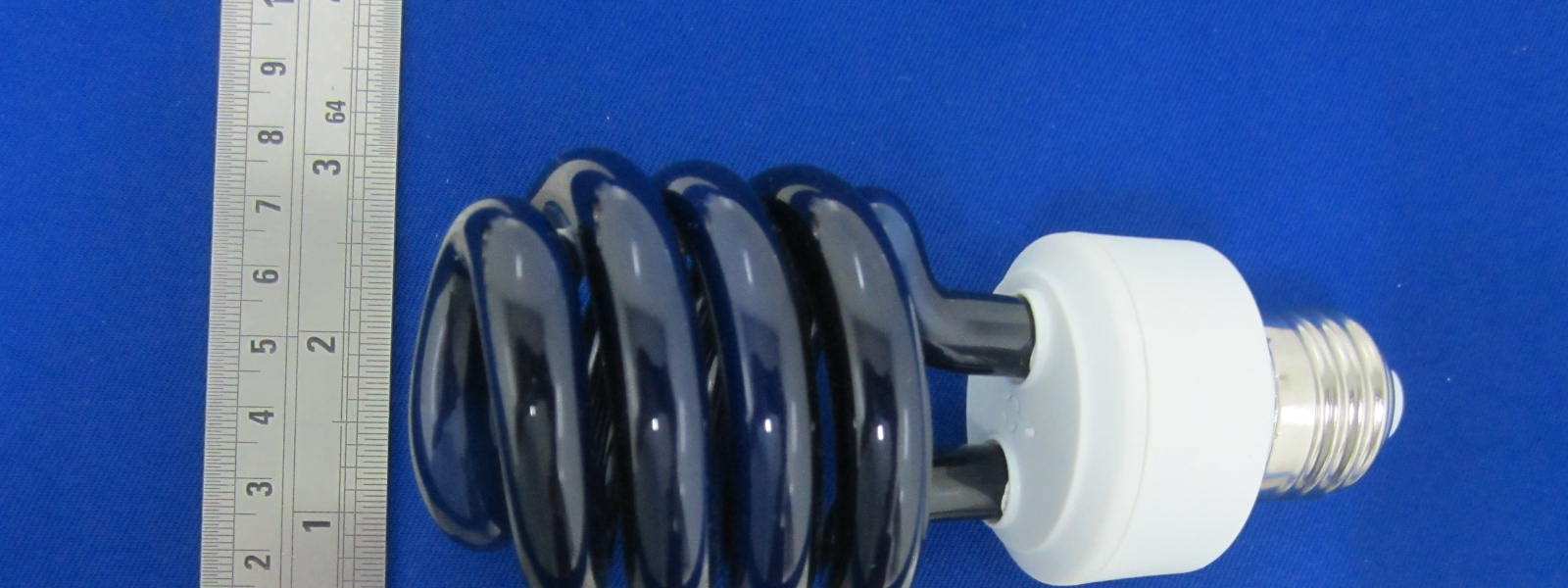

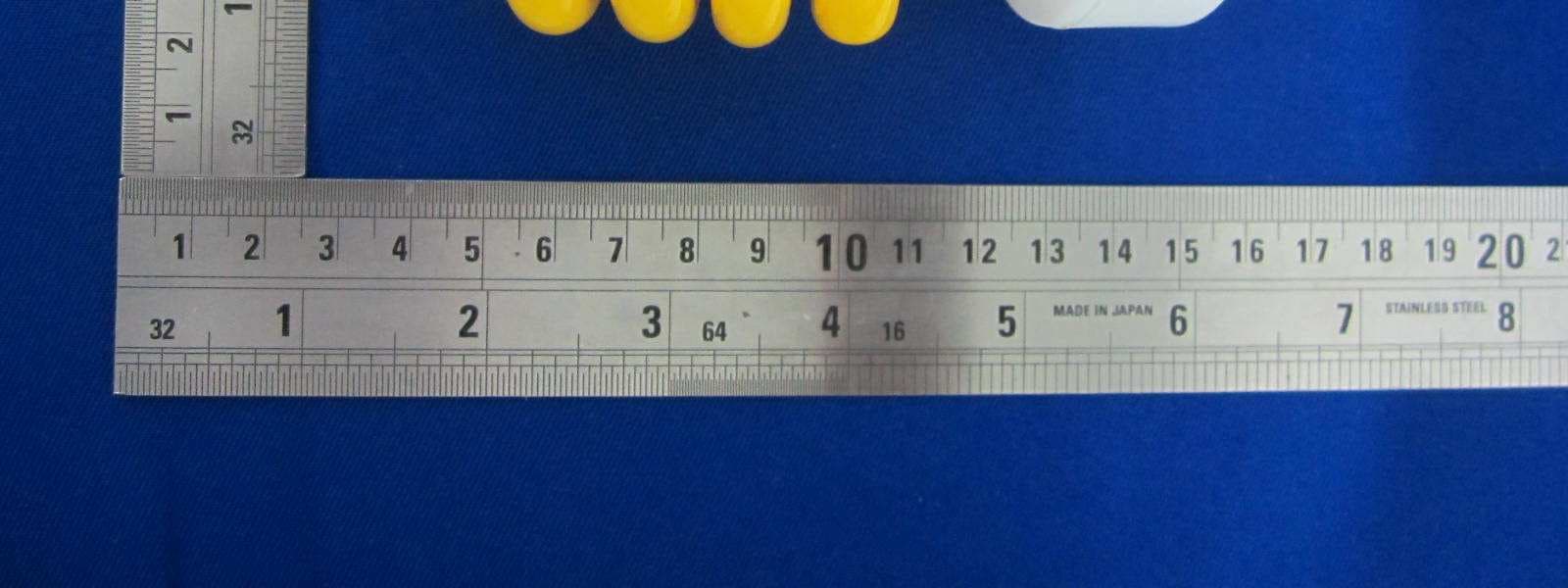

EXHIBIT B - EUT EXTERNAL PHOTOGRAPH EUT - GREEN View EUT - Port View EUT –BLUE View EUT –RED View EUT - YELLOW View EUT - BLB View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT –Main Board Top View EUT –Main Board Bottom View

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 18 TEST REPORT For Zhejiang Joinan Lighting Co., LTD 18 XINGGONG 7TH RD SHANGYU TOWN JIANGSHAN,ZHEJIANG ,CHINA FCC ID: YVJSL24 R e p o r t T y p e : O r i g i n a l R e p o r t P r o d u c t N a m e : C F L Test Engineer: Star Xie Report Number: R1SH120806058-00 Report Date: 2012-09-24 Reviewed By: Harry Wu EMC Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1SH120806058-00 FCC Part 18 Page 2 of 16 TABLE OF CONTENTS GENERAL INFORMATION ......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE.................................................................................................................................................................. 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 TEST METHODOLOGY.................................................................................................................................................. 3 TEST FACILITY............................................................................................................................................................ 3 SYSTEM TEST CONFIGURATION ......................................................................................................................... 5 JUSTIFICATION............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE......................................................................................................................................... 5 SPECIAL ACCESSORIES................................................................................................................................................ 5 EQUIPMENT MODIFICATIONS....................................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................ 5 SUMMARY OF TEST RESULT................................................................................................................................. 6 FCC §18.307 (C) - AC LINE CONDUCTED EMISSIONS....................................................................................... 7 APPLICABLE STANDARD.............................................................................................................................................. 7 MEASUREMENT UNCERTAINTY................................................................................................................................... 7 EUT SETUP................................................................................................................................................................. 7 EMI TEST RECEIVER SETUP........................................................................................................................................ 7 TEST PROCEDURE........................................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS.......................................................................................................................... 8 CORRECTED AMPLITUDE & MARGIN CALCULATION................................................................................................... 8 TEST DATA.................................................................................................................................................................. 8 FCC §18.305 – FIELD STRENGTH ......................................................................................................................... 11 MEASUREMENT UNCERTAINTY................................................................................................................................. 11 EUT SETUP............................................................................................................................................................... 11 EMI TEST RECEIVER SETUP AND SPECTRUM ANALYZER SETUP............................................................................... 12 TEST PROCEDURE...................................................................................................................................................... 12 CORRECTED AMPLITUDE CALCULATION................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS........................................................................................................................ 12 TEST DATA................................................................................................................................................................ 13 DECLARATION LETTER....................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS AC Line Conducted Emissions – Front View AC Line Conducted Emissions – Side View Radiated Emissions – Front View (9 kHz-30 MHz) Radiated Emissions – Rear View (9 kHz-30 MHz) Radiated Emissions – Front View (30 MHz-1000 MHz) Radiated Emissions – Rear View (30 MHz-1000 MHz)
