YWE-DLI8400Single-Band GSM/GPRS 7" Tablet PC with Intel ATOM 1.6G processer

Rev. 1 DLI 8400 PRODUCT MANUAL PAGE 2/39 Rev. 1 Disclaimer Data Ltd., Inc. (DLI) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult DLI to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of DLI. DLI shall not be liable for technical or editorial errors or omissions contained herein: nor for incidental or consequential damages resulting from the furnishing performance, or use of this material. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of DLI. © 2011 Data Ltd., Inc. All rights reserved. Web Address: www.dataltd.com Trademarks DLI 8400 is a trademark or registered trademark of Data Ltd., Inc. Windows CE, Windows XP, Windows Embedded XP, Windows Tablet PC, ActiveSync, and the Windows logos are trademarks or registered trademarks of Microsoft Corporation. The Adaptus trademark is owned by Honeywell Inc., and licensed to DLI The Symbol & Motorola trademarks are owned by Motorola Corporation, USA and licensed to DLI The PenMount trademarks are owned by PenMount International Corp. and licensed to DLI Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Table of Contents Thank You! ...................................................................................................................................... 3 DLI 8400 Peripherals and Accessories ........................................................................................... 3 Hardware Overview ......................................................................................................................... 4 Operating Temperatures ................................................................................................................. 8 Setting Up the DLI 8400 Terminal ................................................................................................... 8 Unpack the Carton and Verify its Contents ..................................................................................... 9 Battery Status LED’s ....................................................................................................................... 9 Charging the Battery in the DLI 8400 .............................................................................................. 9 Power Management Utility ............................................................................................................. 10 Adjusting the Backlight .................................................................................................................. 11 Integrated Keyboard ...................................................................................................................... 12 Using the Stylus ............................................................................................................................. 14 Using the Programmable Keys ...................................................................................................... 16 SIM Card Insertion ......................................................................................................................... 20 Using the Camera Option .............................................................................................................. 21 DLI 8400 PRODUCT MANUAL PAGE 3/39 Rev. 1 Using the RS-232 DB9M ............................................................................................................... 21 Using the Barcode Scanner ........................................................................................................... 23 Biometric Reader ........................................................................................................................... 24 Using GPS ..................................................................................................................................... 24 DLI 8400 Cradle ............................................................................................................................. 28 Installing the Vehicle Cradle .......................................................................................................... 31 Shipping your DLI Device .............................................................................................................. 32 Technical Assistance ..................................................................................................................... 34 Product Service and Repair ........................................................................................................... 34 Limited Warranty............................................................................................................................ 34 Regulatory and Safety Approvals for the DLI 8400 ....................................................................... 35 FCC Compliance ........................................................................................................................... 37 Thank You! Data Ltd Inc. would like to thank you for selecting the DLI 8400. The DLI 8400 was designed as a forward thinking product that is modular in design and upgradeable. We thank you the customer for giving us the inspiration for the following features:  Impact Resistant Case  Color Camera with Picture & Video capture  Ergonomic form factor and lightweight design  Integrated radio technology (GPS, and Cellular)  Boot media via SSD (Solid State Drive) or (HDD) (Hard Disk Drive) DLI 8400 Peripherals and Accessories 8400-VMC-1 Vehicle Mount Cradle w/ 3-USB Locking, 3-RS232 Ports, 1-Power Locking with RAM 202U mountin…

Text truncated - open the document above for the full version.

Data Ltd.o Inc. 703 data ltd parkway laporte, Indiana 46350 Tel: 800 526 1299 ;Fax:219 362 1937 Date: December29.2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT FCC Application for FCC ID: YWE-DLI8400 To Whom It lvlay Concern: We, Data Ltd., Inc., hereby att€st to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing.

Data Ltd.o Inc. 703 data ltd parkway laporte, Indiana 46350 Tel: 800 526 1299: Fax:219 362 1937 Date: December29,2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YWE-DLI8400 Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (fi le: DLI8400_5chem.pdf) Block Diagram (fi le: DLI8400_BlkDia.pdf) Parts List (fi le: DLI8400_PartsLst.pdf) Operation Description (fi le: DLI8400_OpDes.pdf) Tune up Procedure (file: DLI8400_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Rev. l/l/03

Data Ltd., Inc. 703 data ltd parkway laporte, Indiana 46350 Tel: 800 526 1299;Fax:219 362 1937 Date: December29.2010 Power of Attornev To whom it may concem, Please be notified that I, Bryan J. Wesolek, have designated Roy Wu in Sporton International Inc. as the person being responsible for this project and to sign the form 73 | and other documentation. Any and allacts canied out by Roy Wu in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any parfy to this application, as defined in 47 CFR Ch.1.2002 (b), is subject to a denialto Federalbenefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YWE-DLI8400 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Company: Data Ltd., Inc. TEL: 800 5261299 FAX: 219 3621937 Person: Bryan J. Wesolek

Data Ltd.o Inc. 703 data ltd parkway laporte, Indiana 46350 Tel: 800 526 1299 :Fax:219 362 1937 Date: December 29, 2010 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : YWE-DLI8400 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: a External Photos (file: DLI8400_ExtPho.pdf) a Internal Photos (file: DLI8400_lntPho.pdf) a Test Setup Photos (file: Dll8400_Tsup.pdf) a User Manual (file: Dll8400_UserMan.pdf) The application contains technical information, which Data Ltd., Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application t/1

7" Tablet PC with Intel ATOM 1.6G processer DLI8400 Product Label sample Model: DLI8400 FCC ID: YWE‐DLI8400 Input: DC9.4~12.8V LABEL HERE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

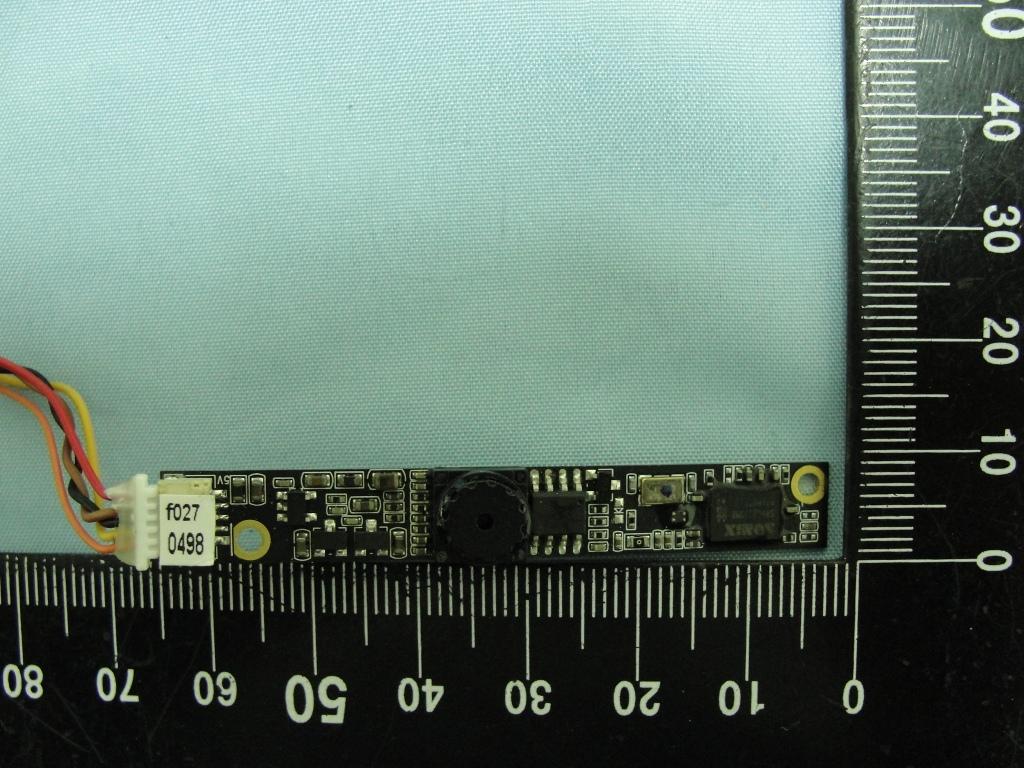

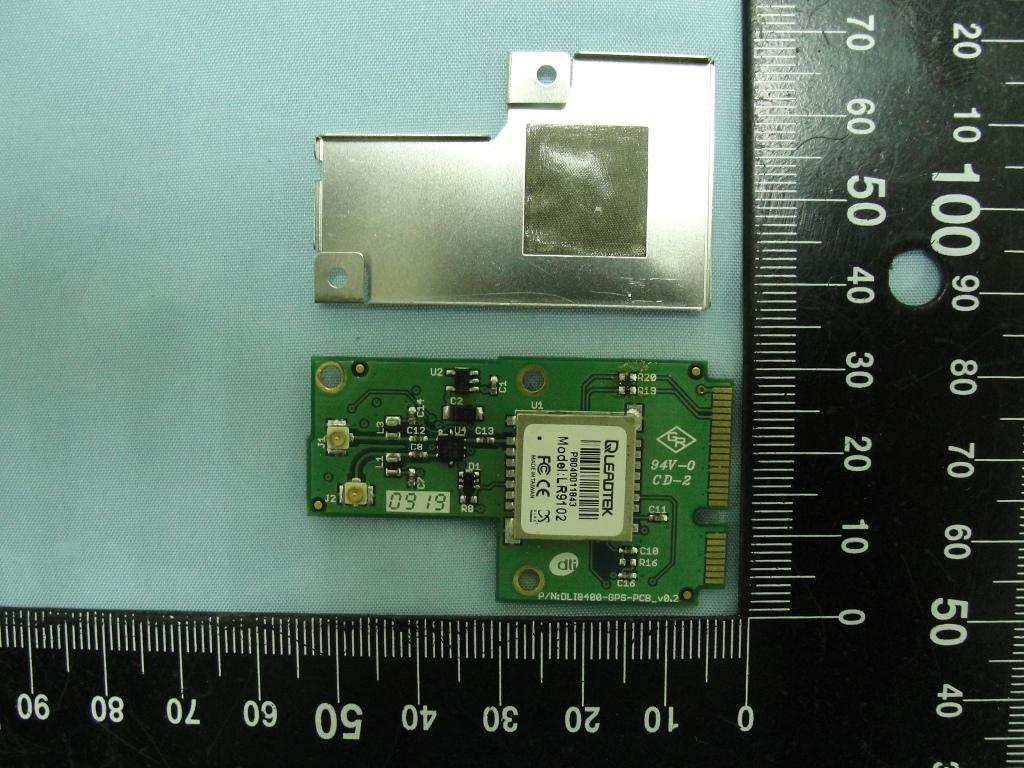

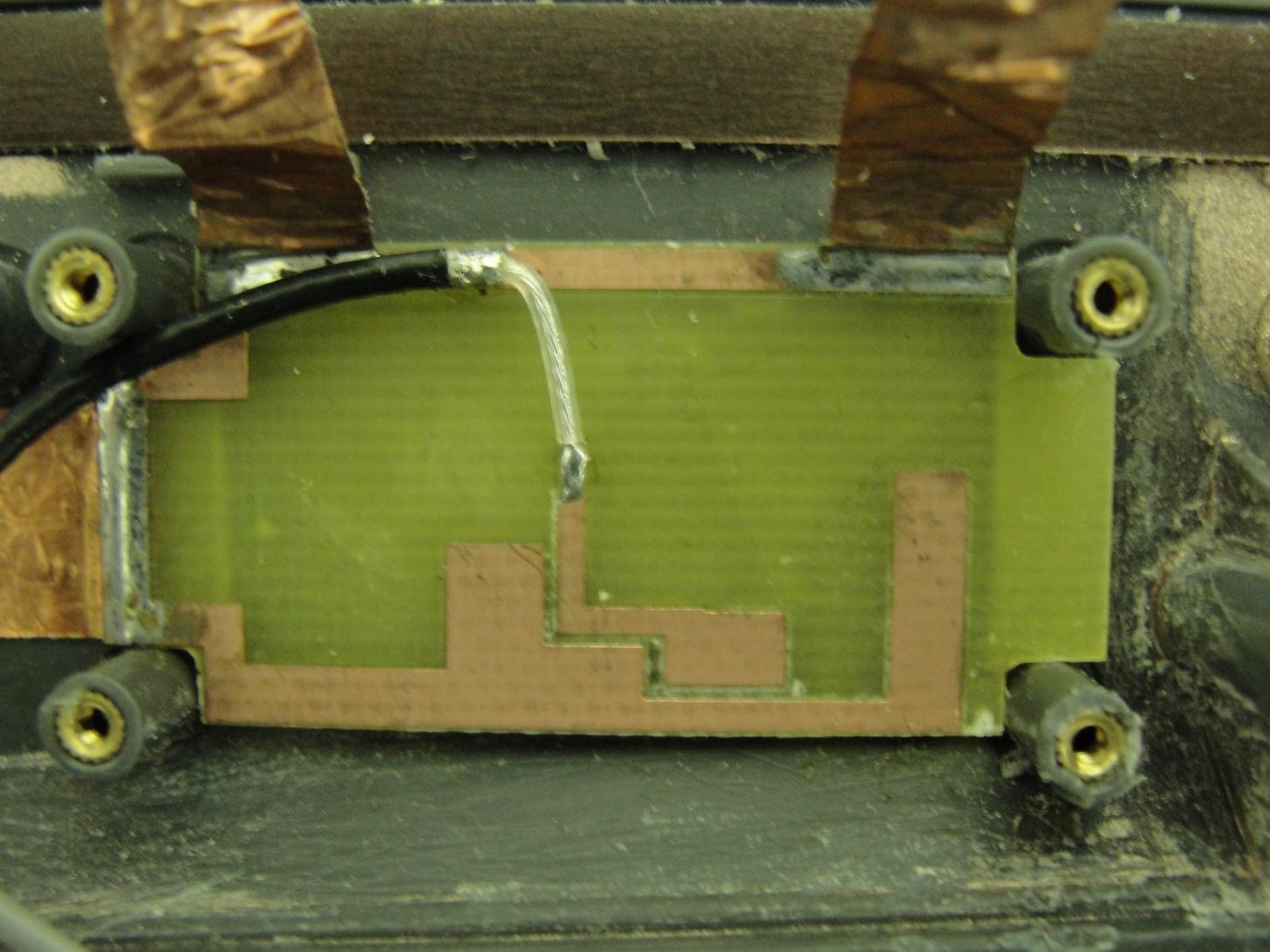

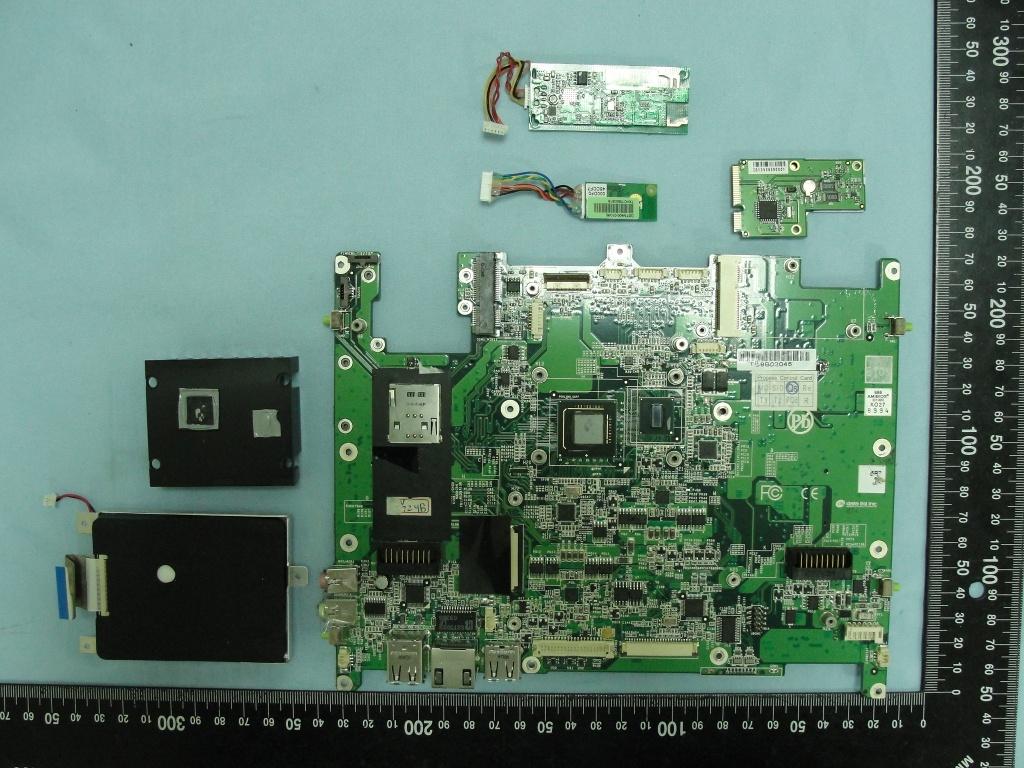

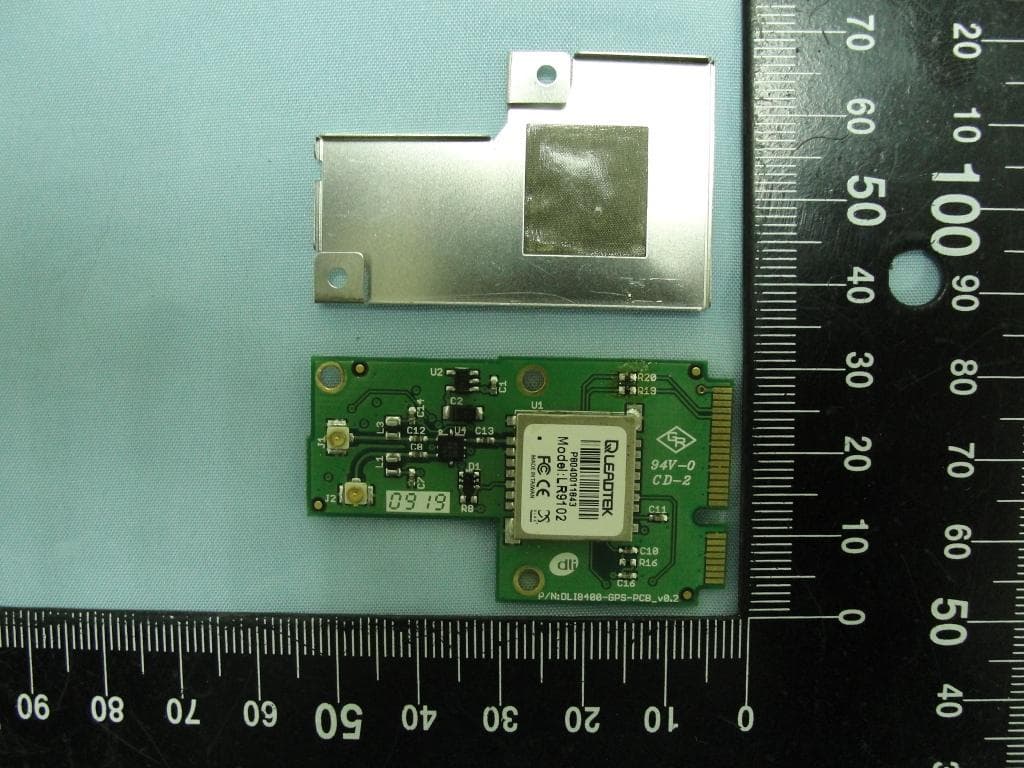

Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 7 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 3. Internal Photograph of EUT Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 8 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 9 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 10 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 11 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 12 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 13 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 14 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 15 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 16 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 17 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 18 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 19 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 20 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 21 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 22 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 720510 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 23 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 WWAN Module Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 24 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 25 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 WWAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP092013 Brand Name: dli / Model Name: DLI8400 SPORTON INTERNATIONAL INC. Page Number : 26 of 26 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 720510 WWAN Aux. Antenna <Rx>

SPORTON INTERNATIONAL INC. Page Number : 1 of 31 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 FCC SAR Test Report Report No. : FA092013 FCC SAR Test Report APPLICANT : Data Ltd., Inc. EQUIPMENT : 7" Tablet PC with Intel ATOM 1.6G processer BRAND NAME : dli MODEL NAME : DLI8400 FCC ID : YWE-DLI8400 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was integrated the WWAN Module (Brand Name: Sierra / Model Name: MC8790, FCC ID: N7NMC8790) during the test. The product was received on Sep. 20, 2010 and completely tested on Sep. 30, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 31 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 FCC SAR Test Report Report No. : FA092013 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ....................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/29 System Check_Body_835MHz_100929 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_100929 Medium parameters used: f = 835 MHz; σ = 0.994 mho/m; ε r = 56; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn393; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.11 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.5 V/m; Power Drift = 0.000 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 1.03 mW/g; SAR(10 g) = 0.679 mW/g Maximum value of SAR (measured) = 1.11 mW/g 0 dB = 1.11mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/30 System Check_Body_1900MHz_100930 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_100930 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.47, 4.47, 4.47); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn393; Calibrated: 2010/8/18 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 5.25 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.0 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 6.61 W/kg SAR(1 g) = 4.27 mW/g; SAR(10 g) = 2.33 mW/g Maximum value of SAR (measured) = 4.90 mW/g 0 dB = 4.90mW/g

SPORTON INTERNATIONAL INC. Page Number : F1 of F7 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 FCC SAR Test Report Report No. : FA092013 Appendix F. FCC 3G SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the TS 34.121. The EUT's WCDMA and HSPA function is Release 6 version supporting HSDPA Category 8, and HSUPA Category 5. A detailed analysis of the output power for all WCDMA, HSPDA, and HSPA (HSUPA & HSDPA) modes is provided in the tables below. According to the FCC 3G procedures, handsets with both HSDPA and HSUPA should be tested according to Release 6 HSPA test procedures, and the EUT does not support VOIP function over the HSPA function. Device was tested according to procedure KDB941225 - section Release 6 HSPA Data Devices as documented/evaluated in the following table. WCDMA SAR Test mode - Conducted Power Mode Setup Cell band (850) PCS band (1900) CH4132 CH4182 CH4233 CH9262 CH9400 CH9538 826.4 (MHz) 836.4 (MHz) 846.6 (MHz) 1852.4 (MHz) 1880.0 (MHz) 1907.6 (MHz) WCDMA RMC 12.2Kbps 22.46 22.65 22.54 22.57 22.73 22.88 HSDPA Subtest 1 22.25 22.64 22.26 22.48 22.66 22.84 Subtest 2 22.24 22.57 22.24 22.46 22.65 22.79 Subtest 3 21.74 22.16 21.72 22.19 22.26 22.50 Subtest 4 21.71 22.12 21.78 22.20 22.25 22.37 HSUPA Subtest 1 21.92 22.33 21.66 22.30 22.16 22.80 Subtest 2 20.45 20.65 20.63 21.05 21.11 21.40 Subtest 3 20.95 21.14 21.09 21.34 21.54 21.55 Subtest 4 20.98 21.24 20.92 21.15 21.32 21.24 Subtest 5 21.85 22.31 21.57 22.39 22.14 22.22 SPORTON INTERNATIONAL INC. Page Number : F2 of F7 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 FCC SAR Test Report Report No. : FA092013 WCDMA Setup Configuration: a. The EUT was connected to Base Station referred to the drawing of Setup Configuration. b. The RF path losses were compensated into the measurements. c. A call was established between EUT and Base Station with following setting i. Data rates: Varied from RMC 12.2Kbps ii. RMC Test Loop = Loop Mode 1 iii. Power Ctrl Mode = All Up bits d. The transmitted maximum output power was recorded. Setup Configuration SPORTON INTERNATIONAL INC. Page Number : F3 of F7 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 FCC SAR Test Report Report No. : FA092013 HSDPA Setup Configuration: a. The EUT was connected to Base Station referred to the drawing of Setup Configuration. b. The RF path losses were compensated into the measurements. c. A call was established between EUT and Base Station with following setting: i. Set Gain Factors (β c and β d ) and parameters were set according to each ii. Specific sub-test in the following table, C10.1.4, quoted from the TS 34.121 iii. Set RMC12.2Kbps + HSDPA mode. iv. Set Cell Power = -86 dBm v. Set HS-DSCH Configuration Type to FRC (H-set 1, QPSK) vi. Select HSDPA Uplink Parameters vii. Set DeltaACK, DeltaNACK and DeltaCQI = 8 viii. Set Ack-Nack Repetition Factor to 3 ix. Set CQI Feedback Cycle (k) to 4 ms x. Set CQI Repetition Factor to 2 xi. Power Ctrl Mode = All Up bits d. The transmitted maximum output power was recorded. Setup Configuration SPORTON INTERNATIONAL INC. Page Number : F4 of F7 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 FCC SAR Test Report Report No. : FA092013 HSPA (HSUPA & HSPDA) Setup Configuration: a. The EUT was connected to Base Station referred to the drawing of Setup Configuration. b. The RF path losses were compensated into the measurements. c. A call was established between EUT and Base Station with following setting * : i. Call Configs = 5.2B, 5.9B, 5.10B, and 5.13.2B with QPSK ii. Set the Gain Factors (β c and β d ) and parameters (AG Index) were set according to each specific sub-test in the following table, C11.1.3, quoted from the TS 34.121 iii. Set Cell Power = -86 dBm iv. Set Channel Type = 12.2k + HSPA v. Set UE Target Power vi. Power Ctrl Mode= Alternating bits vii. Set and observe the E-TFCI viii. Confirm that E-TFCI is equal to the target E-TFCI of 75 for sub-test 1, and other subtest’s E-TFCI d. The transmitted maximum output power was recorded. Setup Configuration Note: For details settings in the Agilent 8960 test equipment, please refer to the user guide “ HSUPA Measurement Guide with 8960 V7.5.0 Release 7 (2007-06) Ver.: v.02.18” SPORTON INTERNATIONAL INC. Page Number : F5 of F7 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 FCC SAR Test Report Report No. : FA092013 Example for HSPA Subtest 1, and other subtests following table, C11.1.3 (Gain Factors (β c = 11 and β d = 15)) Example: AG – Index = 20 for HSPA subtest 1 SPORTON INTERNATIONAL INC. Page Number : F6 of F7 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 FCC SAR Test Report Report No. : FA092013 Example: Confirm that E-TFCI is equal to the target E-TFCI of 75 for sub-test 1 SPORTON INTERNATIONAL INC. Page Number : F7 of F7 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 FCC SAR Test Report Report No. : FA092013 Reference: [1] 941225 D01 SAR test for 3G devices v02, SAR Measurement Procedures for 3G Devices CDMA 2000/Ev-Do/WCDMA/HSDPA/HSPA Oct. 2007 Laboratory Division Office of Engineering and Technology Federal Communications Commission [2.] TS 34.121 Universal Mobile Telecommunications System (UMTS); Terminal Conformance Specification, Radio Transmission and Reception (FDD) [3.] HSUPA Measurement Guide with 8960 V7.5.0 Release 7 (2007-06) Ver.: v.02.18

SPORTON INTERNATIONAL INC. Page Number : 1 of 68 TEL : 886-3-327-3456 Report Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8400 FCC RF Test Report Report No. : FG092013 FCC RF Test Report APPLICANT : Data Ltd., Inc. EQUIPMENT : 7" Tablet PC with Intel ATOM 1.6G processer BRAND NAME : dli MODEL NAME : DLI8400 FCC ID : YWE-DLI840…

Text truncated - open the document above for the full version.
