YWE-DLI88007" Tablet PC with Intel ATOM 1.6G processer

Rev. 2 DLI 8800 PRODUCT MANUAL PAGE 2/30 Rev. 2 Disclaimer Data Ltd., Inc. (DLI) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult DLI to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of DLI. DLI shall not be liable for technical or editorial errors or omissions contained herein: nor for incidental or consequential damages resulting from the furnishing performance, or use of this material. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of DLI. © 2011 Data Ltd., Inc. All rights reserved. Web Address: www.dataltd.com Trademarks DLI 8800 is a trademark or registered trademark of Data Ltd., Inc. Windows CE, Windows XP, Windows Embedded XP, Windows Tablet PC, ActiveSync, and the Windows logos are trademarks or registered trademarks of Microsoft Corporation. The Adaptus trademark is owned by Honeywell Inc., and licensed to DLI The Symbol & Motorola trademarks are owned by Motorola Corporation, USA and licensed to DLI The PenMount trademarks are owned by PenMount International Corp. and licensed to DLI Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. DLI 8800 PRODUCT MANUAL PAGE 3/30 Rev. 2 Table of Contents Thank You!.................................................................................................................................. 4 DLI 8800 Peripherals and Accessories ........................................................................................ 4 Hardware Overview ..................................................................................................................... 5 Setting Up the DLI 8800 Terminal ................................................................................................ 8 Unpack the Carton and Verify its Contents .................................................................................. 9 Battery Status LED’s ................................................................................................................... 9 Charging the Battery in the DLI 8800 ........................................................................................... 9 Power Management Utility ......................................................................................................... 10 Adjusting the Backlight .............................................................................................................. 11 Using the Stylus ........................................................................................................................ 12 Using the Programmable Keys .................................................................................................. 14 SIM Card Insertion .................................................................................................................... 18 Using the RS-232 DB9M ........................................................................................................... 19 Using the Barcode Scanner ....................................................................................................... 22 Biometric Reader ...................................................................................................................... 22 Shipping your DLI Device .......................................................................................................... 23 Technical Assistance ................................................................................................................. 25 Product Service and Repair ....................................................................................................... 25 Limited Warranty ....................................................................................................................... 25 Regulatory and Safety Approvals for the DLI 8800 ..................................................................... 26 FCC Compliance ....................................................................................................................... 27 DLI 8800 PRODUCT MANUAL PAGE 4/30 Rev. 2 Thank You! Data Ltd Inc. would like to thank you for selecting the DLI 8800. The DLI 8800 was designed as a forward thinking product that is modular in design and upgradeable. We thank you the customer for giving us the inspiration for the following features: • Impact Resistant Case • Ergonomic form factor and lightweight design • Programmable Function Keys • Integrated three radio technology (Wifi) • Boot media via SSD (Solid State Drive) or HDD (Hard Disk Drive) DLI 8800 Peripherals and Accessories 2214014250004P 2500mAh, Lithium-Ion Battery Pack. (Spare) 5422112880900P AC Wall Adapter Requires Line Cord 5412202880900P In-Vehicle Power Adapter, 11~27V DC Input, 4ft Input Cable with In-Line 10AMP ATC Fuse 12ft Output Cable with Barrel Connector 8800-3B-CHG 3-Bay Battery Charger Requires AC Adapter with Country-specific Line Cord. DLI 8800 PRODUCT MANUAL PAGE 5/30 Rev. 2 Hardware Overview Front Panel Microphones Impact Resistant Case Function Keys LCD with Touch Panel Mag Stripe Reader Biometric Reader / Mouse Speaker Power LED Barcode Scanner LED MSR LED Battery Status LED DLI 8800 PRODUCT MANUAL PAGE 6/30 Rev. 2 Front Panel Status Indicator Lights The front panel includes status indicator lights for the following: • Power On / Off • Barcode Scanner • MSR (Magnetic Stripe Reader) • Battery Status Indicator Light Status Description Power Solid Green Powered On Barcode Scanner Solid Red Scanning Flash Green Good Scan MSR Solid Green On Flash Green Good Read Flash Red Bad Read No Light Disabled or Not…

Text truncated - open the document above for the full version.

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, , Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Declaration Date: September 14, 2011 To whom it may concern, The FCC qualified radio module ( FCC ID: N7NMC8790) is plugged in the our host product (model: DLI8800). It makes the host product with same configurations in the radio feature. The only one change is antenna between radio module and host so that conducted radio test item is re-used from the original module data and re-test ERP/ERIP/RSE for the host again only. The test report information as below: 1. The test report No. is 08U11743-1 2. The Sierra Wireless report date is Apr. 29. 2008 3. The Sierra Wireless report date is Dec. 01. 2008 Sincerely yours, Duty Signature: Contact Person: Jones Tsai Company: Sporton International Inc. TEL: 886-3-327-3456 FAX: 886-3-328-4978 E-mail: [email protected]

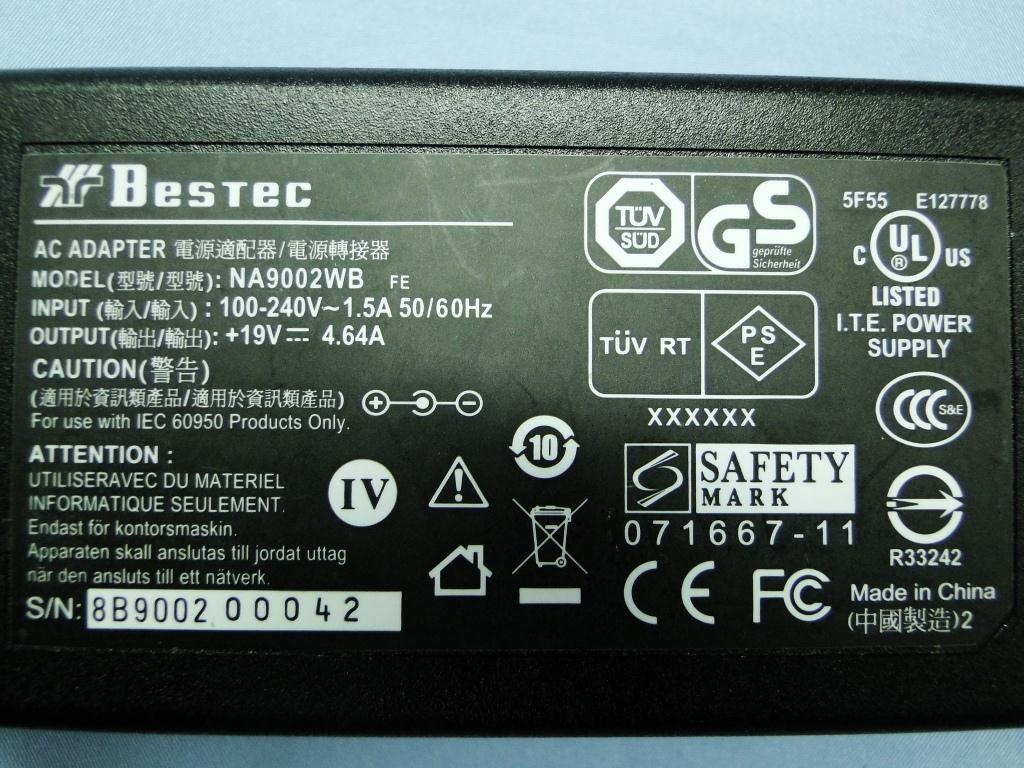

Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 1 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 2 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 720510 720510 Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 3 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 List of Accessory: Specification of Accessory AC Adapter Brand Name BESTEC Model Name NA9002WB Battery Brand Name SANYO Model Name UR18650F 3G Module Brand Name Sierra Model Name MC8790 FCC ID N7NMC8790 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 4 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 5 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 6 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 720510

DLI 8800 Product label and location Label Sample Label Size L x H: 70mm x 40mm Label location Model: DLI8800 FCC ID: YWE-DLI8800 Input: DC19V 4.64A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 7 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 3. Internal Photograph of EUT WWAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 8 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 9 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 10 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 720510 Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 11 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 WWAN Module Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 12 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 13 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 WWANMain(TXRX) 7.4cm 1.2cm 8.5cm 1.0cm WWAN_Aux(RX) Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 14 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 15 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 WWAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP082627 Brand Name: dli / Model Name: DLI8800 SPORTON INTERNATIONAL INC. Page Number : 16 of 16 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 WWAN Aux. Antenna <Rx>

SPORTON INTERNATIONAL INC. Page Number : 1 of 31 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 FCC SAR Test Report Report No. : FA082627 FCC SAR Test Report APPLICANT : Data Ltd., Inc. EQUIPMENT : 7" Tablet PC with Intel ATOM 1.6G processer BRAND NAME : dli MODEL NAME : DLI8800 FCC ID : YWE-DLI8800 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was integrated the WWAN Module (Brand Name: Sierra / Model Name: MC8790, FCC ID: N7NMC8790) during the test. The product was received on Aug. 26, 2010 and completely tested on Jun. 22, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 31 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 FCC SAR Test Report Report No. : FA082627 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 11.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 11.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 11.3 Robot ...............................................................................................................................................................12 11.4 Measurement Server .......................................................................................................................................13 11.5 Phantom ..........................................................................................................................................................14 11.6 Device Holder ..................................................................................................................................................15 11.7 Data Storage and Evaluation .........................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/20 System Check_Body_835MHz_110620 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_110620 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.35, 6.35, 6.35); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.56 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54 V/m; Power Drift = -0.024 dB Peak SAR (extrapolated) = 3.27 W/kg SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.58 mW/g Maximum value of SAR (measured) = 2.57 mW/ g 0 dB = 2.57mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/21 System Check_Body_835MHz_110621 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_110621 Medium parameters used: f = 835 MHz; σ = 0.996 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.88 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.3 V/m; Power Drift = -0.190 dB Peak SAR (extrapolated) = 3.94 W/kg SAR(1 g) = 2.57 mW/g; SAR(10 g) = 1.66 mW/g Maximum value of SAR (measured) = 2.77 mW/ g 0 dB = 2.77mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/20 System Check_Body_1900MHz_110620 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110620 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.03, 5.03, 5.03); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.6 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89.3 V/m; Power Drift = 0.027 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 9.74 mW/g; SAR(10 g) = 5.1 mW/g Maximum value of SAR (measured) = 11 mW/ g 0 dB = 11mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/22 System Check_Body_1900MHz_110622 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110622 Medium parameters used: f = 1900 MHz; σ = 1.52 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3731; ConvF(7.13, 7.13, 7.13); Calibrated: 2010/9/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.1 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.1 V/m; Power Drift = -0.050 dB Peak SAR (extrapolated) = 18.3 W/kg SAR(1 g) = 9.41 mW/g; SAR(10 g) = 4.72 mW/g Maximum value of SAR (measured) = 10.6 mW/g 0 dB = 10.6mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/20 #01 GSM850_GPRS10_Rear Face_0cm_Ch128 DUT: 082627 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: MSL_850_110620 Medium parameters used: f = 824.2 MHz; σ = 0.953 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.35, 6.35, 6.35); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch128/Area Scan (111x131x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.471 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.67 V/m; Power Drift = -0.140 dB Peak SAR (extrapolated) = 0.959 W/kg SAR(1 g) = 0.561 mW/g; SAR(10 g) = 0.313 mW/g Maximum value of SAR (measured) = 0.597 mW/ g 0 dB = 0.597mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/20 #01 GSM850_GPRS10_Rear Face_0cm_Ch128_2D DUT: 082627 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: MSL_850_110620 Medium parameters used: f = 824.2 MHz; σ = 0.953 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.35, 6.35, 6.35); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch128/Area Scan (111x131x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.471 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.67 V/m; Power Drift = -0.140 dB Peak SAR (extrapolated) = 0.959 W/kg SAR(1 g) = 0.561 mW/g; SAR(10 g) = 0.313 mW/g Maximum value of SAR (measured) = 0.597 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/20 #02 GSM850_GPRS10_Top Side_0cm_Ch128 DUT: 082627 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: MSL_850_110620 Medium parameters used: f = 824.2 MHz; σ = 0.953 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.35, 6.35, 6.35); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch128/Area Scan (41x131x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.529 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.6 V/m; Power Drift = -0.134 dB Peak SAR (extrapolated) = 1 W/kg SAR(1 g) = 0.493 mW/g; SAR(10 g) = 0.298 mW/g Maximum value of SAR (measured) = 0.538 mW/ g 0 dB = 0.538mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/20 #03 GSM850_GPRS10_Right Side_0cm_Ch128 DUT: 082627 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: MSL_850_110620 Medium parameters used: f = 824.2 MHz; σ = 0.953 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.35, 6.35, 6.35); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch128/Area Scan (41x101x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.172 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.3 V/m; Power Drift = 0.189 dB Peak SAR (extrapolated) = 0.205 W/kg SAR(1 g) = 0.151 mW/g; SAR(10 g) = 0.105 mW/g Maximum value of SAR (measured) = 0.161 mW/ g 0 dB = 0.161mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/20 #04 GSM850_GPRS10_Left Side_0cm_Ch128 DUT: 082627 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: MSL_850_110620 Medium parameters used: f = 824.2 MHz; σ = 0.953 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.35, 6.35, 6.35); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch128/Area Scan (41x101x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.00811 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.81 V/m; Power Drift = 0.087 dB Peak SAR (extrapolated) = 0.011 W/kg SAR(1 g) = 0.00782 mW/g; SAR(10 g) = 0.00511 mW/g Maximum value of SAR (measured) = 0.00873 mW/g Ch128/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.81 V/m; Power Drift = 0.087 dB Peak SAR (extrapolated) = 0.010 W/kg SAR(1 g) = 0.00666 mW/g; SAR(10 g) = 0.00485 mW/g Maximum value of SAR (measured) = 0.00712 mW/g 0 dB = 0.00712mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/6/20 #05 GSM1900_GPRS12_Rear Face_0cm_Ch512 DUT: 082627 Communication System: PCS; Frequency: 1850.2 MHz;Duty Cycle: 1:2 Medium: MSL_1900_110620 Medium parameters used: f = 1850.2 MHz; σ = 1.38 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.03, 5.03, 5.03); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1249; Calibrated: 2011/2/21 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch512/Area Scan (111x131x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (i…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : F1 of F7 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 FCC SAR Test Report Report No. : FA082627 Appendix F. FCC 3G SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the TS 34.121. The EUT's WCDMA and HSPA function is Release 6 version supporting HSDPA Category 8, and HSUPA Category 5. A detailed analysis of the output power for all WCDMA, HSPDA, and HSPA (HSUPA & HSDPA) modes is provided in the tables below. According to the FCC 3G procedures, handsets with both HSDPA and HSUPA should be tested according to Release 6 HSPA test procedures. Device was tested according to procedure KDB941225 - section Release 6 HSPA Data Devices as documented/evaluated in the following table. WCDMA SAR Test mode - Conducted Power Mode Setup Cell band (850) PCS band (1900) CH4132 CH4182 CH4233 CH9262 CH9400 CH9538 826.4 (MHz) 836.4 (MHz) 846.6 (MHz) 1852.4 (MHz) 1880.0 (MHz) 1907.6 (MHz) WCDMA RMC 12.2Kbps 22.62 22.78 22.69 22.59 22.84 22.01 HSDPA Subtest 1 22.27 22.60 22.37 22.52 22.79 21.98 Subtest 2 22.13 22.38 22.30 22.50 22.78 22.00 Subtest 3 21.71 21.97 21.87 22.02 22.46 21.55 Subtest 4 21.56 21.91 21.80 22.15 22.36 21.52 HSUPA Subtest 1 21.99 22.22 22.32 22.48 22.56 21.85 Subtest 2 19.67 19.89 19.37 20.44 20.31 19.48 Subtest 3 20.57 20.77 20.66 20.80 21.24 20.55 Subtest 4 20.42 20.55 20.48 21.03 21.25 20.52 Subtest 5 21.63 21.96 21.71 22.00 22.44 21.67 SPORTON INTERNATIONAL INC. Page Number : F2 of F7 TEL : 886-3-327-3456 Report Issued Date : Jul. 05, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : YWE-DLI8800 FCC SAR Test Report Report No. : FA082627 WCDMA Setup Configuration: a. The EUT was connected to Base Station referred to the drawing of Setup Configuration. b. The RF path losses were compensated into the measurements. c. A call was established between EUT and Base Station with following s…

Text truncated - open the document above for the full version.
