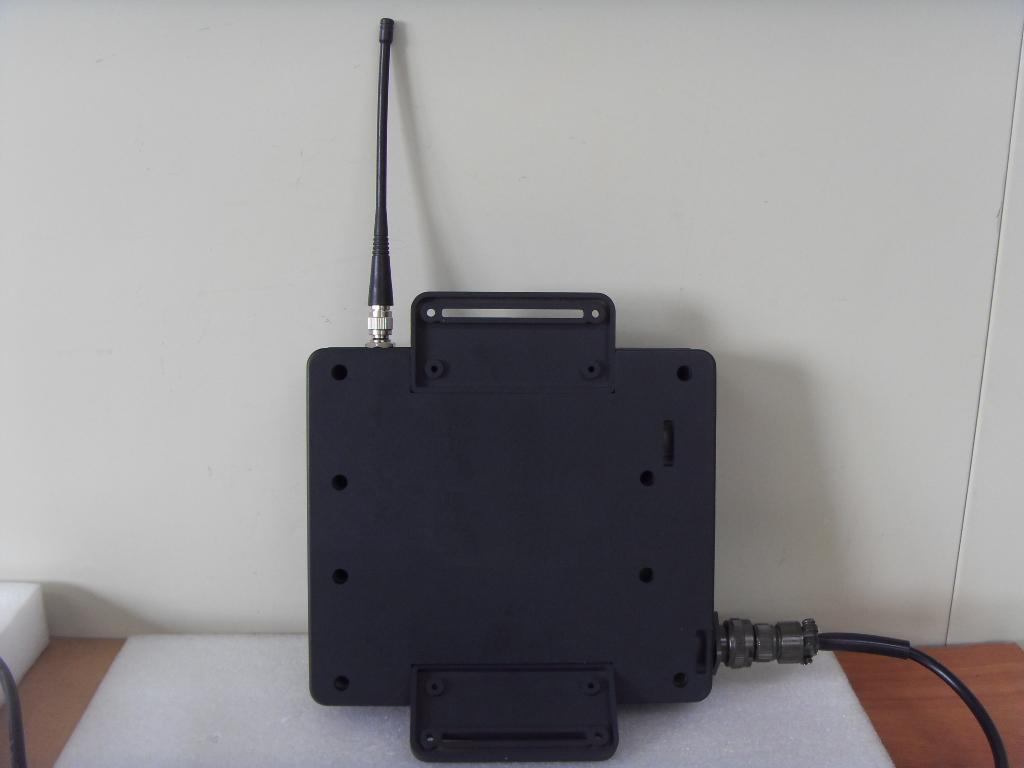

YWVDH-R1UHF Band RFID Reader (Low power transceiver - RX verfied)

User Manual DH Technology ,Inc. Model : DH-R1User Manual 2DH-Tech,Inc. [Contents] 1. Summary 2. Composition 2.1 Devices Composition 2.2 System Composition 2.3 Outward Appearance of Device and Dimension 3. Specification of the System 3.1 RFID Tag 3.2 RFID Reader 4. Function of the System 5. Installation of the System 6. System Operation 7. Certification Model : DH-R1User Manual 3DH-Tech,Inc. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1)THE DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. ALSO, TO PREVENT INTERFERENCE TO FEDERAL GOVERNMENT READER SYSTEMS, OPERATION GOVERNMENT RADAR SYSTEMS, OPERATION UNDER THE PROVISIONS OF THIS SECTION IS NOT PERMITTED WITHIN 40 KILOMETERS OF THE FOLLOWING LOCATIONS: DoD Radar SiteLatitudeLongitude BealeAirForceBase39°08 10 N′′′121°21 04 W′′′ Cape Cod Air Force Station41°45 07 N′′′070°32 17 W′′′ Clear Air Force Station64°55 16 N′′′143°05 02 W′′′ Cavalier Air Force Station48°43 12 N′′′097°54 00 W′′′ Eglin Air Force Base30°43 12 N′′′086°12 36 W′′′ CAUTION : Any changes or modifications inconstruction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The user of the device shall be responsible for submitting updated information in the event the operating location or other information changes after the initial registration by the grantee. The information provided by the grantee or user to the Commission shall include the name, address, telephone number and e-mail address of the user, the address and geographic coordinates of the operating location, and the FCC identification number of the device. The material shall be submitted to the following address: Experimental Licensing Branch, OET, Federal Communications Commission, 445 12th Street, SW., Washington, DC 20554, ATTN: RFID Registration. Professional installation is required. Installers are responsible for ensuring that the proper antenna is used as described in the FCC filing. and this product is for industrial use product. Model : DH-R1User Manual 4DH-Tech,Inc. 1. Summary A) The RFID system for containers is composed of an "Active RFID Tag" and a "Reader", and the communication between the tag and reader follows a Master-Slave model. B) Containers are embedded with 433.92Mhz RFID tag, and the reader, if necessary, gives a wake-up signal, activates the RFID tag, so that it can obtain container-related information. C) The reader works according to the order of middleware or a terminal(or a computer). The communication air protocol between the reader and the tag follows ISO/IEC 18000-7. D) By using a RFID tag system, the recognition rate and recognition distance for containers is greatly improved, so that it can lay the foundation for the job automation of gate, CY storage, shipment, and Air Cargo. E) By making the best use of wireless/network technology, this system can be flexibly applied regardless of container's movement of position 2. Composition 2.1 Deceives Composition Model : DH-R1User Manual 5DH-Tech,Inc. No.Model NameTypeRemarks 1RFID Tag433.92MHz active tagDH-ST1 2RFID ReaderFixed typeDH-R1 Model : DH-R1User Manual 6DH-Tech,Inc. 2.2 System Composition 2.3 Dimension SectionContents DH-ST1(DH Sensor Tag Type 1) Dimension: 14.3≫cm*4.3cm*3.0 cm DH-R1 (DH Reader Type 1) Dimension: 22.3cm*20.7cm*6.6cm≫ Model : DH-R1User Manual 7DH-Tech,Inc. 3. Specification of the System 3.1 RFID Tag Tag NameDH-ST1 UHFTransceiver Frequency433.92Mhz ModulationFSK Range100m Power3.6mW Tag Wake-upUHF Air ProtocolISO/IEC 18000-7 Memory Tag ID4bytes(RO) User ID16bytes(RW) User Memory128Kbytes Beaconyes Range(unobstructed)~100m Battery TypeNon-replaceable, Non-rechargeable Volts/Material3.6V/Lithium Life3years(5 read events/day) Re-Usableyes Temperature Operation: -30 to +70°C°C Storage: -40 to +70°C°C Humidity100% Condensing ApprovalKCC Model : DH-R1User Manual 8DH-Tech,Inc. 3.2 RFID Reader Reader NameDH-R1 Case MaterialPC(Polycarbonate)/PBT(Polybuthylene Terephalate) Environmental Temperature Operating: -30 to +60°C°C Storage: -40 to +80°C°C Humidity90% Condensing RF Frequency(Transceiver)433.92Mhz RangeUp to 100m ModulationFSK, deviation 35Khz for receiver, 50Khz for transmit Sensitivity95 dBm IF Frequency307.2Khz Data Rate27.8Kbps Air ProtocolISO/IEC 18000-7 RFID Tag CompatibilityAll 433Mhz Active RFID Tags Network InterfaceRS485, RS232 UpgradesSupports firmware downloads DiagnosticsSupports remote reader performance status reports Type ApprovalKCC Other MountingMounting Kit Model : DH-R1User Manual 9DH-Tech,Inc. 4. Function of the System The communication protocol and operation between the reader and the tag follows□ ISO/IEC 18000-7. 5. Installation of the System Installation of the system(Container tag and Reader) follows ISO 10374.2□ 6. System Operation Basic Operation□ A reader(DH-R1) communicates with a server(or middleware) over TCP/IP, and communicates with a tag(DH-ST1) over RF. Orders sent via a server(or middleware) are transmitted to the reader(DH-R1), witch gives a wake-up signal, send the orders to the tag(DH-ST1), receives the response data from the tag(DH-ST1), and finally transmits them to the server(or middleware). 7. Certification FCCID : YWVDH-R1□ This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio …
