YY5TP3762.4G Wireless Earphone

1 深圳台铂电子有限公司 SHENZHEN TOOPO ELECTRONICS CO.LTD （TP-376 2.4G Wireless headset operation manual） >Adapt to personal PC,MP3,CD player, TV,ect audio, home appliance. > performance parameter 1, 2.4GHz digital wireless two-way technology 2，transmission distance of more than 15M without any block. 3，Smart power saving mode, 120 hours long standby (Standy Power dissipation low to 3mw) 4, Low power consumption design, output power is 45MW,Built in Lithum battery, continously working to 8 hours, and rechargeable. 5，Inner with double charge protection,low power pressure checking fuction automatically. 6，Working power pressure 3.0-4.0V, Charging power pressure 5V > Press key function,Interface and parts introduction. (I). Receiver- Headphone 图1 Headphone key-press funciton 1，Volume + ②，Volume – ③，MINI 5P USB ④，backward ⑤，forward ⑥，Power ⑦Power light ⑧，MIC mute Combination keys function To code key： Power indicator light and assembled key function and the code key Press ①+② in a same time. (II). Transmitter 6 2 4 3 5 1 8 7 2 ①
USB plug 图2 (III）USB Power line ① USB Plug ：(charge access computer USB port) ② MINI5P USB Straight Pin (while charging connect to the headphone ③ charging port （IV）Micphone 图3 1.Built in noise cancelling micphone 图4 > Steps (I). Preparations Transmitter Insert into the USB port on the PC. Can be connected directly with the PC, do not need to install any startup program when connected to a desktop, can be connected to extension cords. Check the status of the USB connection on the PC. Click the mouse to click the speaker icon lowwer right corner of the computer screen. Right-click the speaker icon in the lower right corner of the screen. Select "Adjust Audio Properties", as shown in Figure 5. 6 dialog has shown. Then click on the Audio Options, select the output device for 2.4G Wireless, headset, shown in Figure 6. indicates that transmitter and the PC USB connected successful. 1 2 1 1 喇叭图标 3 图5 （图6） 1.Open the headphone power switch ⑥(slightly press on-off key is ok) Paired indicator light ⑦ begin to flash (II). ID Matching 1．Completion of the above preparatory work can be an ID matching. First make sure the headset and the Dongle boot. Near the headset dongle (<25 cm), and then press the code key ① + ②, time for about 3 seconds after the release. When paired indicator ⑦ Always, indicating successful pairing. If the pairing indicator is still flashing, indicating that pairing is not successful, be this way again paired. (I factory headphones are paired at the factory OK) 2．ID Storage The ID matching is successfully, the matching ID code will be stored in the headset and Dongle, the same on the device do not need matched pairs. Unless replacement Dongle or headset. 3．Finished above idea,then open the player,enjoying the music. （Ш）Charging 1.The MINI 5P USB USB cable to charge the plug in the earphone ③ the MINI 5P USB charging jack, the other end of the access to the computer USB jack, this time charging indicator light, when the red light is not lit, charging is completed 4 Notice: first three times should filled with 12hs, it must be completely exhausted the power to charge. Full of once in 8-9 hours. Products for long periods so that unused, the need to charge it once a month.  technical parameters  Specifications Wireless Specificat ion RF Frequency Range 2．4GHz Workable range 10m(any direction) Signal System GFSK headphone Power output 3dBm Frequency response 20~20KHz THD <0.1% S/N >72dB Work Voltage 3.0V~4.0V Speaker Impedance 32Ω MIC MIC dimension Ø6.0*5.0mm Impedance ≤2.2kΩ Frequency response 6KHz Dongle Work Voltage USB_5V jack USB standard jack FAQ Question reason solution No voice Power s supply switch not opened Open the power supply switch(indicator lights flash) did not match successful,Match indicator light flash Re-match Music player cannot open normally or volume placed the lowest position the player is set in the PLAY state, or turn up the volume to a suitable location Turn the power switch, paired indicator does not light Low battery, need to be recharged FCC Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

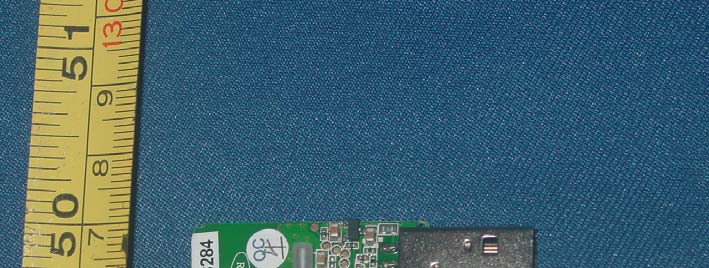

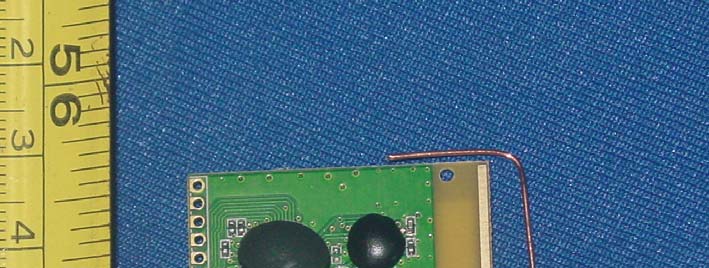

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 120911N018 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 120911N018 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 120911N018 ANT

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 on 27 Report Version 1 Test Report No.: FC120911N018 TEST REPORT Applicant: Shenzhen Toopo Electronics Co.,Ltd Address: Toopo Industrial Park, No.5,Lane 5,Baigong’ao Industrial Zone,Xikeng New Village, GuanLan Town, Bao’an District, Shenzhen City, Guangdong Province, China Manufacturer or Supplier Shenzhen Toopo Electronics Co.,Ltd Address Toopo Industrial Park, No.5,Lane 5,Baigong’ao Industrial Zone,Xikeng New Village, GuanLan Town, Bao’an District, Shenzhen City, Guangdong Province, China Product: 2.4G Wireless Earphone Brand Name: N/A Model: TP-376 Additional Model & Model Difference: N/A Date of tests: Sep. 12 ~ Oct. 23, 2012 the tests have been carried out according to the requirements of the following standards: FCC Part 15, Subpart C (Section 15.249) CONCLUSION: The submitted sample was found to COMPLY with the test requirement Prepared by Glyn He Project Engineer / EMC Department Approved by Sam Tung Manager / EMC Department Date: Oct. 23, 2012 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 on 27 Report Version 1 Test Report No.: FC120911N018 TABLE OF CONTENTS RELEASE CONTROL RECORD........................................................................................................3 1 SUMMARY OF TEST RESULTS.................................................................................................4 2 MEASUREMENT UNCERTAINTY .............................................................................................. 4 3 GENERAL INFORMATION.........................................................................................................5 3.1 GENERAL DESCRIPTION OF EUT ...................................................................................... 5 3.2 DESCRIPTION OF TEST MODES ........................................................................................ 6 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................................... 6 3.4 DESCRIPTION OF SUPPORT UNITS................................................................................... 6 4. TEST TYPES AND RESULTS................................................................................................7 4.1 CONDUCTED EMISSION MEASUREMENT ................................................................. 7 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................................. 7 4.1.2 TEST INSTRUMENTS .................................................................................................... 7 4.1.3 TEST PROCEDURES..................................................................................................... 8 4.1.4 DEVIATION FROM TEST STANDARD........................................................................... 8 4.1.5 TEST SETUP .................................................................................................................. 9 4.1.6 EUT OPERATING CONDITIONS ................................................................................... 9 4.1.7 TEST RESULTS............................................................................................................ 10 4.2 RADIATED EMISSION MEASUREMENT .................................................................... 12 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................. 12 4.2.2 TEST INSTRUMENTS .................................................................................................. 13 4.2.3 TEST PROCEDURES................................................................................................... 14 4.2.4 DEVIATION FROM TEST STANDARD......................................................................... 14 4.2.5 TEST SETUP ................................................................................................................ 15 4.2.6 EUT OPERATING CONDITIONS ................................................................................. 15 4.2.7 TEST RESULTS............................................................................................................ 16 4.3 20dB BANDWIDTH MEASUREMENT.......................................................................... 21 4.3.1 LIMITS OF 20dB BANDWIDTH MEASUREMENT ....................................................... 21 4.3.2 TEST INSTRUMENTS ........................…

Text truncated - open the document above for the full version.

1 Set-up for radiated emission test <Frequency Range 30MHz~1GHz> <Frequency Range above 1GHz> 2 Set-up for conducted emission test
