YYQ-LBH-001UWB HOST

1.Description2.Structure3.Specfication4. Installatiin Step1. Host InstallationStep2. Docking Station InstallationStep3. Association 5. How to use6. FCC STATEMENT UWB Host & Docking Station User Manual You can connect any PC to any monitor with DVI (VGA) by UWB Docking Station.Docking Station give up to 10m(r ecommanf within 7.5m)of same –room range plently of distance to get comfortable and browse photos, document and surf the int ernet on your large screen ful l HD TV from your computer. 1. Description Structure of Host Part Name of Host 1 Host2 Antenna3 Connection Display 2 Structure 1 2 3B 3 5 6 Part Name of Docking Station 1 Docking Station Body2 Antenna3A Link Display of Internet3B Power & Monitor Display4 RJ45 Jack for Internet5. DVI Port6 Audio Jack7 VGA Port8 Power Jack9 Power Switch10 USB Terminal for Peripheral Device11 USB Mini Jack for Association Structure of Docking Station 2. Structure ` Item Unit Spec Data Throughput Mbps 480 Resolution Pixel 1920x1080p Field Range m10 OS Mm Windows7,Vista, XP3 USB Terminal EA 1 Ethernet Jack EA 1 Speaker Jack EA 1 Speaker EA Mono Speaker, 2W DVI Jack EA 1 VGA Jack EA 1 Power Jack EA 1 Power Switch EA 1 Data Throughput Mbps 480 Size Host mm 80 x 40 x 15 Docking 125 x 64 x 26.5 Specification 3. Specification 1. Insert the provided CD into your PC( or Notebook). Caution!!!!You have to select 32bit or 64bit which your PC support. 2. Select HWA > 32 > setup as shown in the attached picture. 4. Installation (Step1. Host Installation) 3. Select Next as shown in the attached p icture. 4. Installation (Step1. Host Installation) 4. Select Yes as shown in the attached picture. 4. Installation (Step1. Host Installation) 5. Select Finish as shown in the attached picture. 4. Installation (Step1. Host Installation) 1. Insert the provided CD into your PC (or Notebook). Caution!!!!You have to select 32bit or 64bit which your PC support 2. Select HWA > 32 > setup as shown in the attached picture. 4. Installation (Step2. Docking Station Installation) 3. Select Next as shown in the attached picture. 4. Installation (Step2. Docking Station Installation) 4. Installation (Step2. Docking Station Installation) 4.1 How to Change to Englishas shown in the attached picture. 4.2 Select Englishas shown in the attached p icture. 4.3 Acceptas shown in the attached picture. (4.1) (4.2) (4.3) 5. Select Finish as shown in the attached picture. 4. Installation (Step2. Docking Station Installation) 6 . You have to reboot your PC (or Notebook) Both of Wireless UWB Host & UWB Docking Station driver installation completed is necess ary before you start to make ca ble association 1. Get started start by plugging y our UWB Host into USB Port on Your PC (or Notebook) and you will f ind the Wireless USB Manager 4. Installation (Step3. Association) 1 2. Please separate UWB Host from PC 3. Power on Docking Station4. Using a USB Type A to Mini B Cable, connector the Docking St ation to your PC( or Notebook) 4. Installation (Step3. Association) 2)Power ON Cable Connect cable to the PC. 1) Please plug the DC 5V Adapter into Docking Station. Connect cable to Mini USB Jack of Docking Station. Mini B type A type 5. When the UWB association scr een display , please click on A ccept Association and OK for A ssociation successful. 6. Wait a minute please. 4. Installation (Step3. Association) 6. 7. Select 다음( Next) as shown in the attached picture. 8. Select 다음(Next) as shown in the attached picture. 4. Installation (Step3. Association) 9. Select 취소( Cancel)as shown in the attached picture. 10. Select 마침(Finish)as shown in the attached picture. 4. Installation (Step3. Association) I accept Cancel 11. Remove the USB cable on your UWB Docking Station. 4. Installation (Step3. Association) When the Association is completed, please remove USB cable remove 5. How to use 1.Please insert the Host into USB terminal of PC and make connection between Docking Statio n and Monitor( oer PC) with DVI cable as shown in the attached picture. After a moment, It is possible to see Monitor (or TV) that sho wthe same content of PC when green L ED of Docking Station is indicat ed. VGADVI DVI (or VGA)Jack of Monitor( or TV) 2. Please double click Wireless U SB Manager in notification are a. 3. The icon in Green represents association successful. (2) (3) How to rename 5. How to use 4. Please double click Display Ma rk in notification area.( see below) 5. You had better select M(Mirro r mode) as shown in the attached picture 4 5 5. How to use This equipment has been tested and found to comply with the lim its for a Class B dig ital device, pursuant to Part 15 of the FCC Rules. These limits are desig ned to provide reasonable prot ection against harmful interference in a residential installation. This equipment generates, uses and can radiate ra dio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferenc e to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harm ful interference to radio or television reception, which can b e determined by turning the eq uipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an o utlet on a circuit different fr om that to which the re ceiver is connected. ● Consult the dealer or an experi enced radio/TV technician for h elp. FCC Caution: Any changes or modifi cations not expressly approve d by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 1 5 of the FCC Rules. Operation i s subject to the following two conditions: (1) This device may not cause harmful interferen ce, and (2) this device must ac cept any interference received , including interference that may cause…

Text truncated - open the document above for the full version.

Jiwumedia Co., Ltd. 153-803, #902, Daerung techno town 13th, 664, Gasan-dong, Geumcheon-gu, Seoul, Korea TEL 82-2-2029-4811 FAX 82-2-2633-2746 November 19, 2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Jiwumedia Co., Ltd. FCC Application for FCC ID: YYQ-LBH-001 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Dong in Park / R&D Director Jiwumedia Co., Ltd .

Jiwumedia Co., Ltd. 153-803, #902, Daerung techno town 13th, 664, Gasan-dong, Geumcheon-gu, Seoul, Korea TEL 82-2-2029-4811 FAX 82-2-2633-2746 November 19, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: YYQ-LBH-001. including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Jiwumedia Co., Ltd. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Regards, Dong in Park / R&D Director Jiwumedia Co., Ltd .

Jiwumedia Co., Ltd. 153-803, #902, Daerung techno town 13th, 664, Gasan-dong, Geumcheon-gu, Seoul, Korea TEL 82-2-2029-4811 FAX 82-2-2633-2746 November 19, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Jiwumedia Co., Ltd. FCC ID: YYQ-LBH-001 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Jiwumedia Co., Ltd.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Jiwumedia Co., Ltd.. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX YYQ-LBH-001 SCH DIA.pdf Parts list CONF APPENDIX YYQ-LBH-001 PL.pdf Block diagram CONF APPENDIX YYQ-LBH-001 BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX YYQ-LBH-001 OpDes.pdf External Photos SHORT-TERM CONF YYQ-LBH-001 EXT Photo.pdf Internal Photos SHORT-TERM CONF YYQ-LBH-001 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF YYQ-LBH-001 Test Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF YYQ-LBH-001 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Regards, Dong in Park / R&D Director Jiwumedia Co., Ltd .

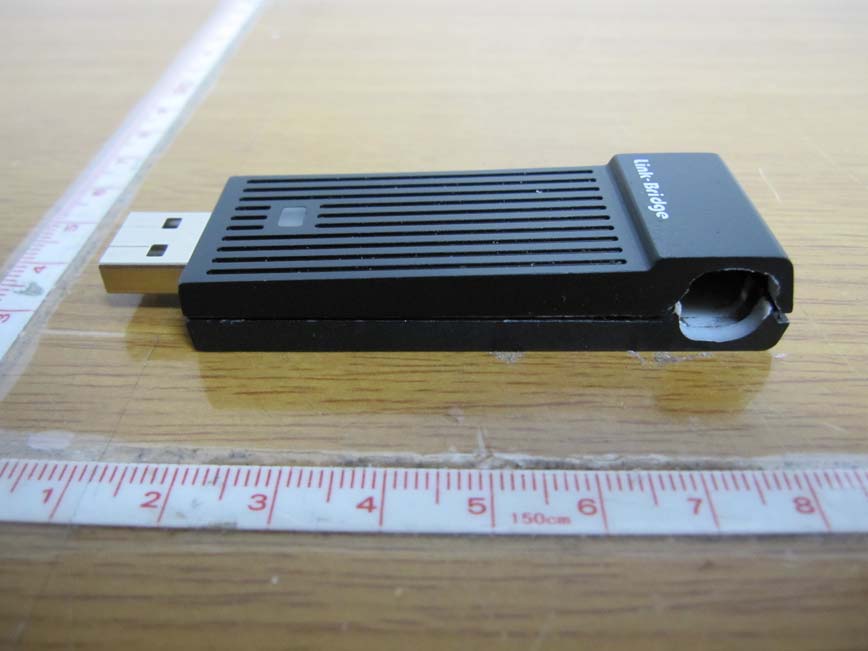

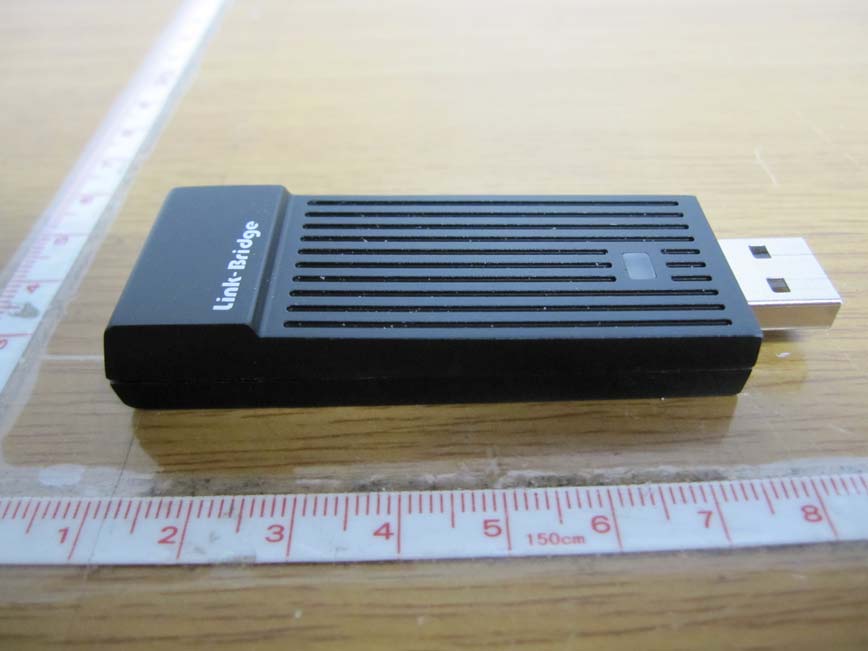

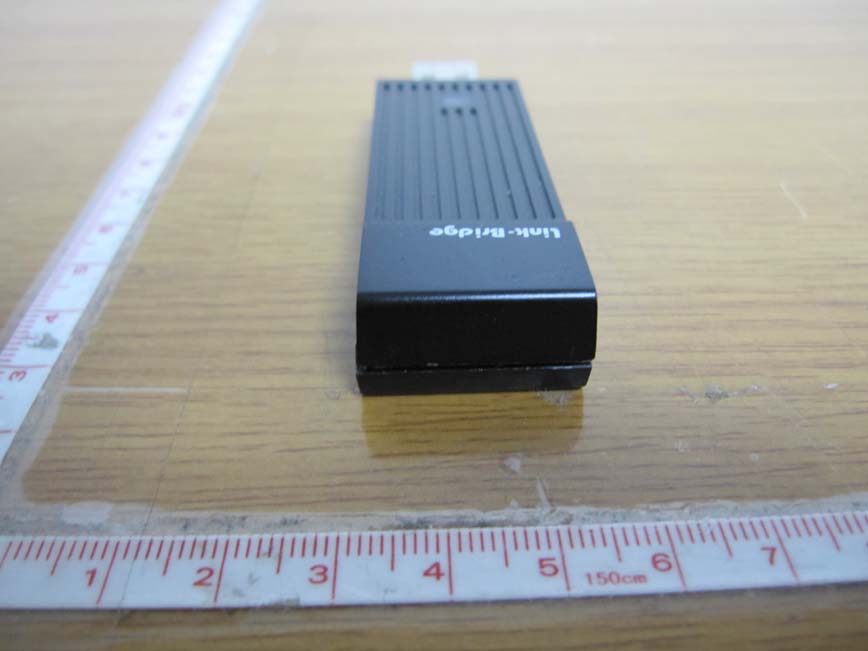

FCC ID: YYQ-LBH-001 Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 4 Upper Lower FCC ID: YYQ-LBH-001 Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 4 Front Rear FCC ID: YYQ-LBH-001 Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 4 Left Right FCC ID: YYQ-LBH-001 Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 4 ANT

FCC ID: YYQ-LBH-001 Copyright Ⓒ 2010, LTA Co., Ltd. SAMPLE LABEL & LOCATION FCC ID: YYQ-LBH-001 M/N: LBH-001 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Made in Korea

FCC ID: YYQ-LBH-001 Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 2 Internal photo FCC ID: YYQ-LBH-001 Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 2 MainBoard - Front MainBoard - Rear

Ref. No.: LR5001901011C Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 28 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: November 10~22, 2010 Test Report S/N: LR500191011C Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Ultra Wideband Transmitter (UWB) Manufacturing Description : UWB HOST Manufacturer : Jiwumedia Co., Ltd. Model name : LBH-001 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15 Subpart F ; ANSI C-63.4-2003 Frequency Range : 3168MHz ~ 4752MHz Max. Output Power : Max 64.64dBuV - Radiated Data of issue : November 22, 2010 This test report is issued under the authority of: The test was supervised by: Kyung-Taek LEE, Technical Manager Hyun-Chae You, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 YYQ-LBH-001 Jiwumedia Co., Ltd. Ref. No.: LR5001901011C Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 28 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 AC CONDUCTED EMISSIONS -------------------------------------------------------------- 3.2.2 Operational limitations ---------------------------------------------------------------------- 3.2.3 UWB Bandwidth Measurement ------------------------------------------------------------ 3.2.4 Radiated Emissions Measurement ----------------------------------------------------------- 3.2.5 Radiated Emissions in GPS Bands Measurement ----------------------------------------- 3.2.6 Peak Emissions within a 10MHz Bandwidth Measurement ------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 9 10 14 20 25 27 Ref. No.: LR5001901011C Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 28 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2011-09-30 ECT accredited Lab. RRL KOREA KR0049 2011-06-20 EMC accredited Lab. FCC U.S.A 610755 2011-04-22 FCC filing VCCI JAPAN R2133, C2307 2011-06-21 VCCI registration IC CANADA IC5799 2012-05-14 IC filing Ref. No.: LR5001901011C Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 28 2. Information’s about test item 2-1 Client & Manufacturer Company name : Jiwumedia Co., Ltd. Address : 153-803, #902, Daerung techno town 13th, 664, Gasan-dong, Geumcheon-gu, Seoul, Korea Tel / Fax : TEL 82-2-2029-4811 FAX 82-2-2633-2746 2-2 Equipment Under Test (EUT) Trade name : UWB HOST FCC ID : YYQ-LBH-001 Model name : LBH-001 Serial number : Identical prototype Date of receipt : November 10, 2010 EUT condition : Pre-production, not damaged Antenna type : Dipole Antenna Max Gain 2.54 dBi Frequency Range : 3168MHz ~ 4752MHz RF output power : Max 64.64dBuV - Radiated Type of Modulation : MOFDM Power Source : 5.0Vdc by PC usb 2-3 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook PP17L N/A DELL PRINTER STYLUS C65 N/A EPSON 2-4 Description of Test modes MODE SUB-BAND Frequency (MHZ) 1 1 3432 2 2 3960 3 3 4488 4 1,2,3 3432, 3960, 4488 NOTE: After pre-testing each mode, the combination mode (sub-band 1, 2, 3) was the worst situation and only the data was presented in the following sections<Except for UWB Bandwidth Measurement and Peak Emission Measurement>. Ref. No.: LR5001901011C Copyright ○ c 2010, LTA Co., Ltd. Page 5 of 28 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.207 AC Conducted Emissions EN 55022 Line Conducted C 15.519(a) Operational Limitations - C 15.519(b) UWB Bandwidth between 3100MHz to 10,600MHz C 15.519(c)/ 15.209 Radiated Emissions Refer to the 3.2.4 C 15.519(d) Radiated Emissions in GPS Bands 19.44dBuV/m at 1M C 15.519(e) Peak Emissions within a 10MHz Bandwidth 90.77dBuV/m at 1M Radiated C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards.  Antenna Requirement The Jiwumedia Co., Ltd.. FCC ID: YYQ-LBH-001 unit complies with the requirement of §15.203. The antenna connector is the reverse polarity SMA connector. The sample was tested according to the following specification: FCC Parts 15F ; ANSI C-63.4-2003 Ref. No.: LR5001901011C Copyright ○ c 2010, LTA Co., Ltd. Page 6 of 28 3.2 Technical Characteristics Test 3.2.1 AC Conducted Emissions Procedure: The conducted emissions are measured in the shielded room with a spectrum analyzer in peak hold. While the measurement, EUT had its hopping function disabled at the middle channels in line with Section 15.31(m). Emissions closest to the limit are measured in the quasi-peak mode (QP) with the tuned receiver using a bandwidth of 9 kHz. The emissions are maximized further by cable manipulation and Exer…
