YYQ-LBM-002WIRELESS USB MINI-CARD MODULE

LBM-002 UWB RF Module Users Manual LBM-002 RF LBM-002 1. Introduction 1. Introduction 4.8 5.0 2. Reference Design Feature 2. Reference Design Feature LBM-002 +5V LBM-002 LBM-002 LBM-002 LBM-002 . 3. Usage and Documentation 3. Usage and Documentation TOP PCB LAYOUT BOTTOM PCB LAYOUT Pin# 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Func GND 5V 5V 5V 5V GND GND USB+ USB- GND GND GND GND 4. User I/O Interface 4. User I/O Interface TOP BOTTOM 5. Size 5. Size This equipment has been tested an d found to comply with the lim its for a Class B digital device, pursuant to Part 15 of the FCC Rules. T hese limits are designed to provide reasonable p rotection against harmful inter ference in a residential installation. This equipment generates, uses and ca n radiate radio frequency energy and, if not installed and used in accordance w ith the instructions, may cause harmful interference to radio communica tions. However, there is no guarantee th at interference will not occur in a particular installation. If this equipment does cause harmful i nterference to radio or television reception, w hich can be determined by turni ng the equipment off and on, the user i s encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an o utlet on a circuit different fr om that to which the receiver is connected. ● Consult the dealer or an experi enced radio/TV technician for h elp. 6. FCC STATEMENT 6. FCC STATEMENT FCC Caution: Any changes or modi fications not expressly approve dby the party responsible for compliance could void the user’s authorit y to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation i ssubject to the following two conditions: (1) This device may not cause har mful interference, and (2) this devic e must accept any interference received, including interference that ma y cause undesired operation. This device and its antenna(s) mu st not be co-located or operat ion in conjunction with any other antenna or transmitter. A UWB device operating under the provisions of this section sha ll transmit only when it is sending informat ion to an associated receiver. The UWB intentional radiator shall cease transmission within 10 seconds unless it receives an acknowledgement from the associated receiver that i ts transmission is being received. An acknowledgement of reception must continue to be received by the U WB intentional radiator at leas tevery 10 seconds or the UWB device must cease transmitting. 6. FCC STATEMENT 6. FCC STATEMENT

Jiwumedia Co., Ltd. #366-11, Sangok-dong, Bupyeong-gu, Incheon, korea TEL: 82-2-2029-4811 FAX: 82-2-2029-4810 January 5, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: YYQ-LBM-002. including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Jiwumedia Co., Ltd. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Regards, Dong in Park / R&D Director Jiwumedia Co., Ltd .

Jiwumedia Co., Ltd. #366-11, Sangok-dong, Bupyeong-gu, Incheon, korea TEL: 82-2-2029-4811 FAX: 82-2-2029-4810 January 5, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Jiwumedia Co., Ltd. FCC ID: YYQ-LBM-002 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Jiwumedia Co., Ltd.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Jiwumedia Co., Ltd.. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX YYQ-LBM-002 SCH DIA.pdf Parts list CONF APPENDIX YYQ-LBM-002 PL.pdf Block diagram CONF APPENDIX YYQ-LBM-002 BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX YYQ-LBM-002 OpDes.pdf External Photos SHORT-TERM CONF YYQ-LBM-002 EXT Photo.pdf Internal Photos SHORT-TERM CONF YYQ-LBM-002 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF YYQ-LBM-002 Test Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF YYQ-LBM-002 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Regards, Dong in Park / R&D Director Jiwumedia Co., Ltd .

Jiwumedia Co., Ltd. #366-11, Sangok-dong, Bupyeo ng-gu, Incheon, korea TEL: 82-2-2029-4811 FAX: 82-2-2029-4810 FCC ID: YYQ-LBM-002 Request for Single Modular Approval Transmitter Module Characteristics  The module will be used to the manuf actured product by Jiwumedia Co., Ltd. No Requirements EUT 1 Have its own RF shielding Device is equipped with metal shielding to cover RF section. Refer to external photos. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered th ought logic or microprocessor inputs. 3 Have it own power supply regulation The part number of the power regulator is ( XC6223-3.3V ) 4 Meet the antenna requirements of Section 15.203 The antenna type is PCB antenna. refer to the external photo. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Please reference exhibition Test Conf iguration Photo for the stand-alone test configuration 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the out side of the device into which the module is installed must also display a label referring to the enclosed module Label is to be placed in front of the EUT(LBM-002), and other label is to be placed in the User’s Guide. Refer to FCC ID label format. 7 The modular transmitter is manufactured so t hat the user cannot influence the operation of the transmitter that will operate outsi de of the scope of the regulations. The EUT is compliant whith all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8 Address compliance with the Commission’s RF exposure limits in Sections 1.1310 and 2.1091. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). This device is categorically excluded from routine environmental because it operate at very low power level

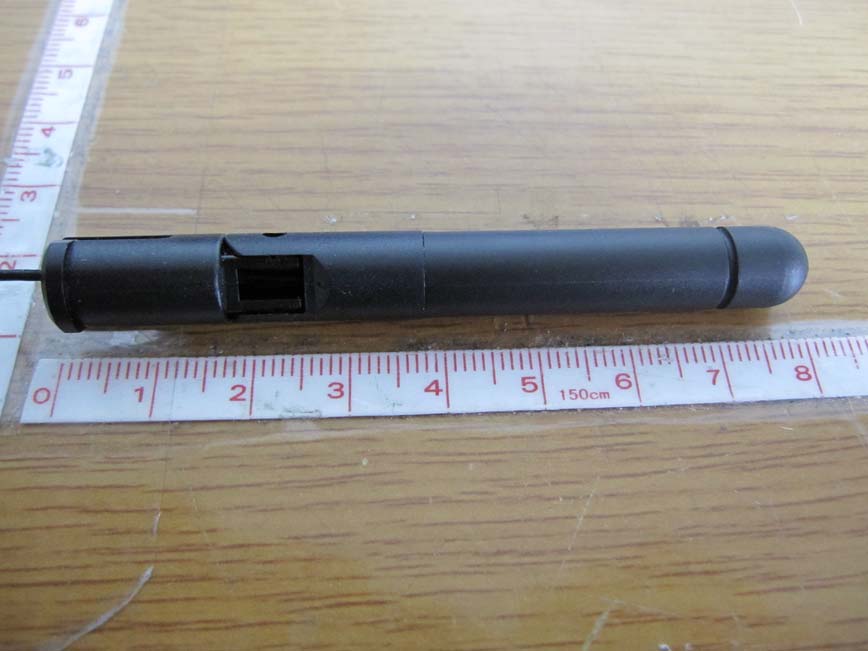

FCC ID: YYQ-LBM-002 Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 2 Upper Lower FCC ID: YYQ-LBM-002 Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 2 ANT

FCC ID: YYQ-LBM-002 Copyright Ⓒ 2011, LTA Co., Ltd. SAMPLE LABEL & LOCATION FCC ID: YYQ-LBM-002 M/N: LBM-002 Made in Korea

FCC ID: YYQ-LBM-002 Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 1 MainBoard - Front MainBoard - Rear

Ref. No.: LR500111101D Copyright ○ c 2011, LTA Co., Ltd. Page 1 of 30 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: January 3~11, 2011 Test Report S/N: LR500111101D Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Ultra Wideband Transmitter (UWB) Manufacturing Description : Wireless USB mini-card module Manufacturer : Jiwumedia Co., Ltd. Model name : LBM-002 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15 Subpart F ; ANSI C-63.4-2003 Frequency Range : 3168MHz ~ 4752MHz Max. Output Power : Max 87.30dBuV - Radiated Data of issue : January 11, 2011 This test report is issued under the authority of: The test was supervised by: Hyun-Chae You, Manager Il-Shin kim, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 YYQ-LBM-002 Jiwumedia Co., Ltd. Ref. No.: LR500111101D Copyright ○ c 2011, LTA Co., Ltd. Page 2 of 30 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 AC CONDUCTED EMISSIONS -------------------------------------------------------------- 3.2.2 Operational limitations ---------------------------------------------------------------------- 3.2.3 UWB Bandwidth Measurement ------------------------------------------------------------ 3.2.4 Radiated Emissions Measurement ----------------------------------------------------------- 3.2.5 Radiated Emissions in GPS Bands Measurement ----------------------------------------- 3.2.6 Peak Emissions within a 10MHz Bandwidth Measurement ------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 6 6 7 7 8 9 12 18 27 29 Ref. No.: LR500111101D Copyright ○ c 2011, LTA Co., Ltd. Page 3 of 30 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2011-09-30 ECT accredited Lab. RRL KOREA KR0049 2011-06-20 EMC accredited Lab. FCC U.S.A 610755 2011-04-22 FCC filing VCCI JAPAN R2133, C2307 2011-06-21 VCCI registration IC CANADA IC5799 2012-05-14 IC filing Ref. No.: LR500111101D Copyright ○ c 2011, LTA Co., Ltd. Page 4 of 30 2. Information’s about test item 2-1 Client & Manufacturer Company name : Jiwumedia Co., Ltd. Address : #366-11, Sangok-dong, Bupyeong-gu, Incheon, korea Tel / Fax : TEL: 82-2-2029-4811 / FAX: 82-2-2029-4810 2-2 Equipment Under Test (EUT) Trade name : Wireless USB mini-card module FCC ID : YYQ-LBM-002 Model name : LBM-002 Serial number : Identical prototype Date of receipt : December 30, 2010 EUT condition : Pre-production, not damaged Antenna type : Dipole Antenna Frequency Range : 3168MHz ~ 4752MHz RF output power : Max 87.30dBuV - Radiated Type of Modulation : MB-OFDM Power Source : 5.0Vdc 2-3 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook PP17L N/A DELL PRINTER STYLUS C65 N/A EPSON Ref. No.: LR500111101D Copyright ○ c 2011, LTA Co., Ltd. Page 5 of 30 2-4 Description of Test modes MODE SUB-BAND Frequency (MHZ) 1 1 3432 2 2 3960 3 3 4488 4 1,2,3 3432, 3960, 4488 NOTE: After pre-testing each mode, the combination mode 4 was the worst situation and only the data was presented in the following sections <Except for “Radiated Emissions in GPS Bands”, “UWB Bandwidth Measurement”, “Peak Emission Measurement”>. Applicable to Description EUT configure mode RE<1G RE≥1G GPS UB PE Frequency (MHZ) 1 - - √ √ √ 3432 2 - - √ √ √ 3960 3 - - √ √ √ 4488 4 √ √ √ √ √ 3432, 3960, 4488 Where RE<1G: Radiated Emission below 1GHz RE≥1G: Radiated Emission above 1GHz UB:UBW Bandwidth PE: Peak Emission GPS: Radiated Emissions in GPS Bands Ref. No.: LR500111101D Copyright ○ c 2011, LTA Co., Ltd. Page 6 of 30 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.207 AC Conducted Emissions EN 55022 Line Conducted NA note3 15.519(a) Operational Limitations - C 15.519(b) UWB Bandwidth between 3100MHz to 10,600MHz C 15.519(c)/ 15.209 Radiated Emissions Refer to the 3.2.4 C 15.519(d) Radiated Emissions in GPS Bands 19.44dBuV/m at 1M C 15.519(e) Peak Emissions within a 50MHz Bandwidth 90.77dBuV/m at 1M Radiated C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. Note 3: This device is only operated by DC  Antenna Requirement The Jiwumedia Co., Ltd.. FCC ID: YYQ-LBM-002 unit complies with the requirement of §15.203. The antenna connector is MICRO COAXIAL CONNECTOR. The sample was tested according to the following specification: FCC Parts 15F ; ANSI C-63.4-2003 Ref. No.: LR500111101D Copyright ○ c 2011, LTA Co., Ltd. Page 7 of 30 3.2 Technical Characteristics Test 3.2.1 AC Conducted Emissions Procedure…

Text truncated - open the document above for the full version.

FCC ID: YYQ-LBM-002 Copyright Ⓒ 2011, LTA Co., Ltd. Radiated Emission (f<1GHz) FCC ID: YYQ-LBM-002 Copyright Ⓒ 2011, LTA Co., Ltd. Radiated Emission (f>1GHz)
